Mechanical Seal Fiber Optic Enclosures 12cores / PLC Network Electrical Enclosures 4 Port

Basic Information
Place of Origin: China
Brand Name: OPTFOCUS
Certification: ROHS
Model Number: OFS-FTH-SM4
Minimum Order Quantity: 10 pcs
Price: negotiated
Packaging Details: Carton Size(cm):84*43*34 Qty/CTN:10PCS G.W/CTN:21KG
Delivery Time: 5-8 days afterpayment received
Payment Terms: Western Union, T/T, L/C, Paypal
Supply Ability: 10000PCS/Month
Cable Entry: 4 Color: Black
Max.capacity:: 12 Cores No. Of Tray: 1-2
Cable Diameter: 4 Ports For Max. 16 Material: Engineering Plastics
Dimension(mm): 178*288 Mm
High Light:

electrical enclosures

,

fiber enclosure



Mechanical Seal Fiber Optic Enclosures 12cores /  PLC Network Electrical Enclosures 4 Port

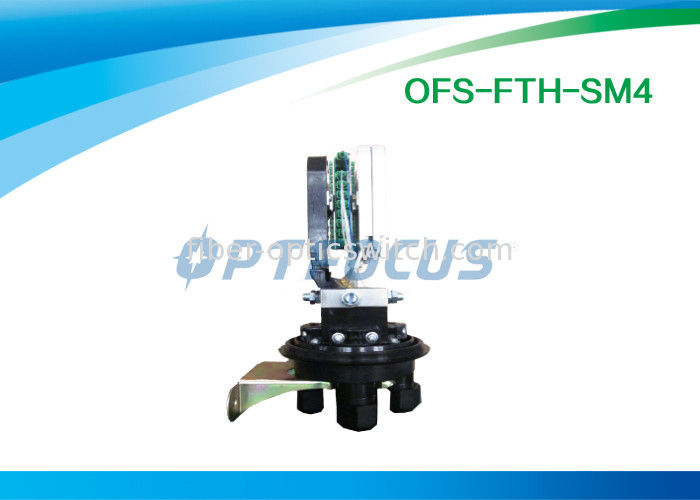

OFS-FTH-SM4

Description



The OFS-FTH-SM4 is a small size specialized designed for FTTx application.





The product adopts fully-mechanical sealing structure. It can be used for Install PLC splitter application, as well as passive optical fiber distribution.





Features



ü  · Made from engineering plastic with high strength and anti-corrosion.



ü  ·Reinforce rebar on the body of closure make excellent performace under impact, pulling, tension etc



ü  ·Convenient to increase or reduce trays/ cassette for capacity requirement



ü  ·Spacious storing tray/ cassette for storing and maintainance



ü  ·3 fixing item/designs to prevent fiber cable from external effect



ü  ·Can be used from -40°C to +65°C temperature range



ü  ·Easy to re-enter without tools



ü  ·Intergrated seal, air tight and water proof, flame-retarded



ü  ·Exquisite small size design, convenience installation application







ü  · available 1 pcs of 1x8 or 1x16(LC duplex) splitter.



ü  · Suitable for wall-mounting or pole mounting application



ü  ·4 pcs of small round port



ü  · suitable for mini module type of PLC splitter with SC connector or LC    connector, etc



ü  · Sealing method: mechanical sealing type





Application



ü  · FTTH, FTTB, FTTC



ü  · Telecommunication Network



ü  · CATV



ü  · Local Area Network







Item

No.

Dimension

(D×H)mm

Cable Entry

Ports

Cable Diameter

mm

Max.Capacity

(bunchy fiber)

No. of

Tray

REMARK

OFS-FTH-SM4

Φ178×288

4

4 ports for Max. Φ16

12

1-2

mechanical seal

1x8PLC (SC)



Standard Accessories: one set of wrench, metal hoop, earthing wire, nylon tie, labeling paper, splicing sleeves, sealing tape, insulation tape, emery cloth, wrench for reinforce core, 1M buffer tubeOptional



Accessories: earthing device, air-pressure test valve





 Mechanical Seal Fiber Optic Enclosures 12cores /  PLC Network Electrical Enclosures 4 Port 0             Mechanical Seal Fiber Optic Enclosures 12cores /  PLC Network Electrical Enclosures 4 Port 1



                   1,HHeight (295mmm)                                                2,IInside height(285mmm)

  Mechanical Seal Fiber Optic Enclosures 12cores /  PLC Network Electrical Enclosures 4 Port 2                   Mechanical Seal Fiber Optic Enclosures 12cores /  PLC Network Electrical Enclosures 4 Port 3





                 3,Splice tr ay width (91mm)                                      4,Splice tr ay height (1114mm)



  Mechanical Seal Fiber Optic Enclosures 12cores /  PLC Network Electrical Enclosures 4 Port 4             Mechanical Seal Fiber Optic Enclosures 12cores /  PLC Network Electrical Enclosures 4 Port 5



              5,Inside deepth(60m m)                                               6,IInlet hole(4ppcs φ5~φ18)
