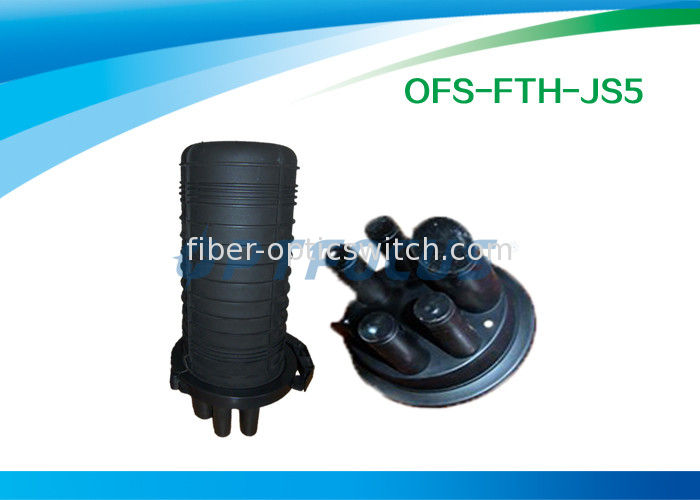

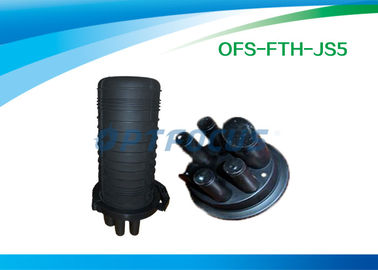

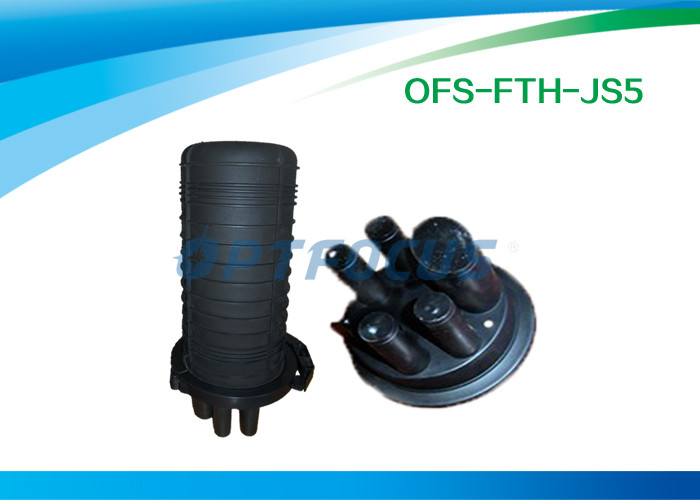

4 port Mechanical seal,12cores for 1*8/2*8 mini module type PLC Fiber Optic closure

Basic Information
Place of Origin: China
Brand Name: OPTFOCUS
Certification: ROHS
Model Number: OFS-FTH-JS5
Minimum Order Quantity: 10 pcs
Price: negotiated
Packaging Details: Carton Size(cm):84*43*34 Qty/CTN:10PCS G.W/CTN:21KG
Delivery Time: 5-8 days afterpayment received
Payment Terms: Western Union, T/T, L/C, Paypal
Supply Ability: 10000PCS/Month
Material: Engineering Plastics Color: Black
Splitter: 1x16SC Or 2x32 LC Core Capacity (max): 48cores
Adapter Type: SC Or LC Weight: 6.5KG
High Light:

optical enclosures

,

electrical enclosures



OFS-FTH-SM4

Dome Mechanical Seal Splitter Splice Closure

4 port Mechanical  seal,12cores for 1*8/2*8 mini module type PLC Fiber Optic closure 04 port Mechanical  seal,12cores for 1*8/2*8 mini module type PLC Fiber Optic closure 1





Description

The OFS-FTH-SM4 is a small size specialized designed for FTTx application.



The product adopts fully-mechanical sealing structure. It can be used for Install PLC splitter application, as well as passive optical fiber distribution.



Features

ü  · Made from engineering plastic with high strength and anti-corrosion.

ü  ·Reinforce rebar on the body of closure make excellent performace under impact, pulling, tension etc

ü  ·Convenient to increase or reduce trays/ cassette for capacity requirement

ü  ·Spacious storing tray/ cassette for storing and maintainance

ü  ·3 fixing item/designs to prevent fiber cable from external effect

ü  ·Can be used from -40°C to +65°C temperature range

ü  ·Easy to re-enter without tools

ü  ·Intergrated seal, air tight and water proof, flame-retarded

ü  ·Exquisite small size design, convenience installation application



ü  · available 1 pcs of 1x8 or 1x16(LC duplex) splitter.

ü  · Suitable for wall-mounting or pole mounting application

ü  ·4 pcs of small round port

ü  · suitable for mini module type of PLC splitter with SC connector or LC    connector, etc

ü  · Sealing method: mechanical sealing type









Application

ü  · FTTH, FTTB, FTTC

ü  · Telecommunication Network

ü  · CATV

ü  · Local Area Network



Item

No.

Dimension

(D×H)mm

Cable Entry

Ports

Cable Diameter

mm

Max.Capacity

(bunchy fiber)

No. of

Tray

REMARK

OFS-FTH-SM4

Φ178×288

4

4 ports for Max. Φ16

12

1-2

mechanical seal

1x8PLC (SC)

Standard Accessories: one set of wrench, metal hoop, earthing wire, nylon tie, labeling paper, splicing sleeves, sealing tape, insulation tape, emery cloth, wrench for reinforce core, 1M buffer tubeOptional Accessories: earthing device, air-pressure test valve



1,HHeight (295mmm)                                   2,IInside height(285mmm)



3,Splice tr ay width (91mm)           4,Splice tr ay height (1114mm)



5,Inside deepth(60m m)                     6,IInlet hole(4ppcs φ5~φ18)
