Direct Buried Dome Type FOSC Fiber Optic Splice Enclosure For Backbone / FTTH Network

Basic Information
Place of Origin: China
Brand Name: Optfocus
Certification: CE&FC
Model Number: SC-D048-02
Minimum Order Quantity: 100 pcs
Price: $6
Packaging Details: 1 pcs in a inner box,several pcs in a export carton
Delivery Time: 5-10 working days
Payment Terms: L/C, T/T
Supply Ability: 5000pcs/month
Type: Fiber Splice Closure Use:: FTTH
Installation:: Pole/Aerial/Manhole Max Capacity(F):: Single:144Cores; Ribbon:432/576Cores
High Light:

Direct Buried Fiber Optic Splice Enclosure

,

FOSC Fiber Optic Splice Enclosure

,

FTTH Network Fiber Optic Enclosures



Direct Buried Dome Type FOSC Fiber Optic Splice Joint Closure Enclosure For Backbone And FTTH Network

48 cores Fiber Optical Splice Closure SC-D048-02

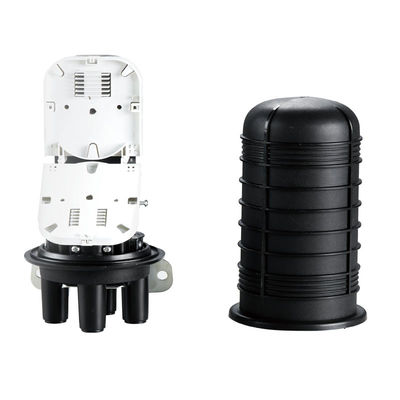

Direct Buried Dome Type FOSC Fiber Optic Splice Enclosure For Backbone / FTTH Network 0



Specifications

1. The box body is made of PC or PP high quality engineering plastic material with excellent intensity and stable chemical performance.

2. With good waterproof design, the fiber optical splice closure can be applied into underground and aerial.

3. Excellent fiber routing design ensures the radius curvature of the fiber well and enough fiber storage space.

4. The service life is up to more than 25 years.

5. Protection Level: IP68

6. The box body can be sealed quickly and easily, which the ports of inlet and outlet cable likes to do that.

7. Product dimension: 310*Ф128 mm

8. Flame retardant performance: non-flame retardant

Box section

Product name Specification Unit Quantity Remark
Box bottom   PCS 1
Box cover   PCS 1
Cable holder   SET 4
Holder for strengthening cable part   SET 1
Splice tray   PCS 4
Cable tie   PCS 1
Splice panel   PCS 1 The color is same as box body’s

Accessory section

Product name Specification Unit Quantity Remark
Nylon cable tie 3*100 PCS 10
Splice tube L=60MM PCS 24 The quantity of splice tube is same as the fibers’
Sandpaper 80*30 PCS 1
Split card   PCS 1
Aluminium boil 100*100 PCS 2
Protective tube for bare fiber   M 1
Insulation Tape   PCS 1 Same as quantity for inlet and outlet cables
