1×64 2×64 Mini Fiber Optic Enclosures Wall Mount 192 Cores Ø42

Basic Information
Place of Origin: China
Brand Name: OPTFOCUS
Certification: ROHS
Model Number: OFS-FTH-510
Minimum Order Quantity: 10 pcs
Price: negotiated
Packaging Details: Carton Size(cm):55*54*45 Qty/CTN:4PCS G.W/CTN:18.2KG
Delivery Time: 5-8 days
Payment Terms: Western Union, T/T, L/C, Paypal
Supply Ability: 10000PCS/Month
Color: Black Material: PC
Size (mm)L*W*H: 490*252*192 Core Capacity (max): 192 Cores
Cable Ports: 3 Max Diameter Of Cable (mm): 1*42, 2*21
High Light:

optical enclosures


electrical enclosures

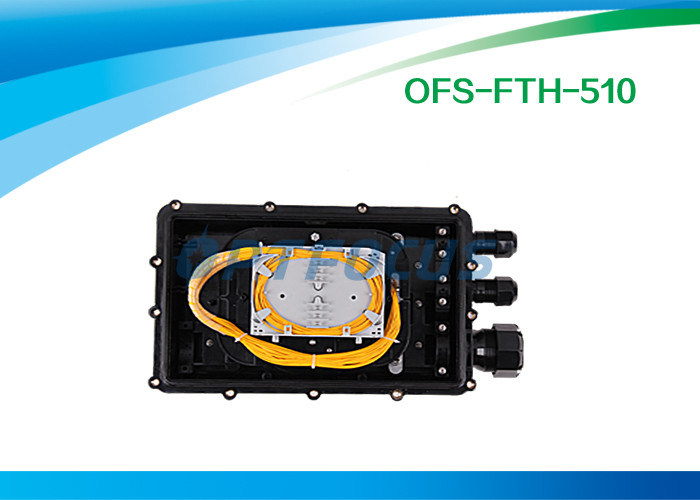

1×64 2×64 Mini Fiber Optic Enclosures Wall Mount 192 Cores Ø42


OFS-FTH-510 Fiber Optic Splice Closure Datasheet


Model No.

Size (mm) L×W×H

Core capacity

Cable Ports (max)

Max diameter of cable (mm)

Adapter and holes of Front Panel






FC adapters:60PCS

SC adapters:72PCS

ST adapters:77PCS

LC adapters:76PCS




  • Convenient to increase or reduce trays/ cassette for capacity requirement
  • Improved reinforce rebar on the body of closure make excellent performance under impact, pulling, tension etc
  • Can be used from 40 °C to +65°C temperature range
  • Integrated seal, air tight and water proof, flame-retarded
  • Suitable for aerial, wall, underground duct or direct burial applications
  • Spacious place for storing and maintenance
  • adapter plug-in fits a variety of adapters such as SC, FC, LC (duplex).



  1. Installation accessories provided with the FOSC: 3 pieces of special wrenches, abrasive cloth, earthing wire, nylon ties, labeling paper, desiccant,3 elastic seal rings and 3 plastic seal rings.
  2. Accessories by customers’ selection: adapter panel, earthing device, buffer pipe for bunchy fiber, pressure testing valve, pigtail, patchcord, aerial hook or wall-mounting fixer.
