Outdoor 96 Cores Fiber Optic Enclosures 490×220 mm Pole Mounting 6 Port

Basic Information
Place of Origin: China
Brand Name: OPTFOCUS
Certification: ROHS
Model Number: OFS-FTH-504
Minimum Order Quantity: 10 pcs
Price: negotiated
Packaging Details: Carton Size(cm):46*44.5*47 Qty/CTN:4PCS G.W/CTN:19.4KG
Delivery Time: 5-8 days after payment received
Payment Terms: Western Union, T/T, L/C, Paypal
Supply Ability: 10000PCS/Month
Core Capacity (max): 96 Cores Max Diameter Of Cable (mm): 2*21,4*16
Size (mm) H*D: 490*220 Material: PC
Cable Ports: 6 Color: Black
High Light:

optical enclosures


fiber enclosure

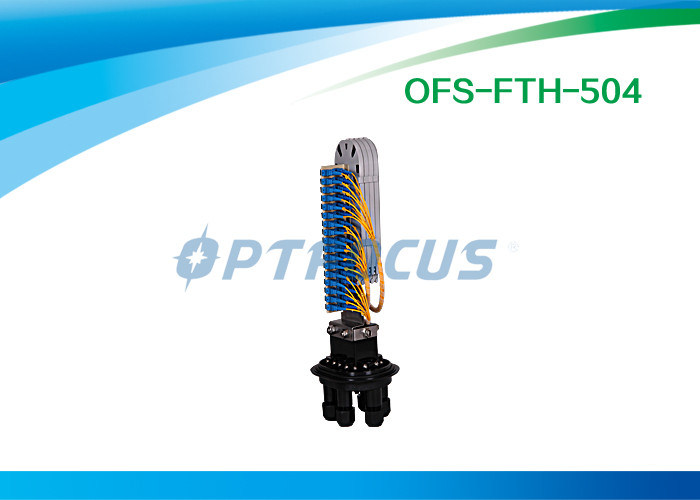

Outdoor 96 Cores Fiber Optic Enclosures 490×220 mm Pole Mounting 6 Port



  • Advanced internal structure design
  • Easy to re-enter,it never requires re-entry tool kit.
  • Teh closure is spacious enough for winding and storing fibers
  • Fiber Optic Splice Trays(FOSTs) are designed in SLIDE-IN-LOCK and its opening angle is about 90
  • The curved diameter meets with international standard
  • Easy and fast to increase and reduce FOSTs
  • Straight-through for uncutting and branching for cut
  • Lay adapters suit for FTTH and easy to operrate


OFS-FTH-504 Fiber Optic Splice Closure Datasheet


Model No.

Size (mm) HxD

Core capacity

Cable Ports (max)

Max diameter of cable (mm)

Adapter and holes of Front Panel



96 cores



FC adapters:24PCS

SC adapters:24PCS

ST adapters:24PCS

LC adapters:24PCS



  1. OFS-FTH-504 accommodates one set of elastic seal fitting for 6 inlet/outlet ports.
  2. Installation accessories provided: seal tape, insulation tape, 2pcs of special wrenches, abrasive cloth, earthing wire, nylon ties, labeling paper, measuring paper and desiccant.
  3. Accessories by customers’ selection: earthing device, buffer pipe, pressure testing valve, adapter panel, adapter, pigtail, patchcord, wall-mounting bracket and pole mounting bracket.
