OPTFOCUS sfp Optical Transceiver 1.25G SM SC 120KM 1490nm/1550NM SFP Optical Transceiver OFSB-4512-120LD BI-BD

Basic Information
Place of Origin: Shenzhen, China
Brand Name: OPTFOCUS
Certification: CE
Model Number: OFSB-4512-120LD
Minimum Order Quantity: 1 pairs
Price: USD 39.99
Packaging Details: The seller standard export package
Delivery Time: Within 3-7 days after get payment
Payment Terms: L/C, T/T, D/A, Western Union,Paypal
Supply Ability: 10000 pcs one month
Product Name: Fiber Transceiver,SFP Transceiver Fiber Type: SF-SM
Application: FTTH FTTB FTTX Network,Telecommunication Operating Temperature: 0 °C ~ 70 °C
Power Supply: 3.3V Keywords: Sfp Transceiver Manufacturers
Connector Type: SC Date Rate: 1.25Gbps
Ddm: Optional

OPTFOCUS sfp Optical Transceiver MANUFACTORY 1.25G SFP Optical Transceiver OFSB-4512-120LD BI-BD Single fiber SM SC 120KM 1490nm/1550NM





SFP Optical Transceiver Details

Model Number: OFSB-4512-120LD Connector:SC
Type: Fiber Optic Transceivers Diagnostics:digital
Place of Origin: Shenzhen, China TX Power(dBm):0~+4
Brand Name: OPTFOCUS Temperature:0°C~70°C
Network:Wired LAN Voltage supply:3.3v
Wavelength:1490nm/1550NM RX Sens(dBm):<=24
Data Rate:1.25Gb Use:FTTX
Working Distance:120km Certification:FCC







SFP Optical Transceiver  Transmitter Characteristics
Parameter Symbol Min. Typ. Max. Units
Optical Transmitter Power P0 6 7.5 11 dBm
Optical Transmitter Power off POFF - - -39 dBm
Output Center Wavelength λ 1480 - 1500 nm
Output Spectrum Width Δλ - - 1.0 nm
Side Mode Suppression Ratio SMSR 30 - - dB
Extinction Ratio ER 9 - - dB
Optical Rise Time - - - 260 ps
Optical Fall Time - - - 260 ps
Optical Eye Diagram Compliant with IEEE Std 802.3ahTM-2004
Tolerence to Tx Back Reflection - -15 - - dB
Data Rate - - 1.25 - Gb/s
Single Ended Data Input Voltage Swing VPP 200 - 1200 mV
Differential Input Impedance ZIN 80 100 120 ohm
Tx_fault Output Voltage- High VOH 2.4 - - V
Tx_fault Output Voltage- Low VOL - - 0.4 V
Tx_Dis Input Voltage- High VIH 2.0 - - V
Tx_Dis Input Voltage- Low VIL - - 0.8 V

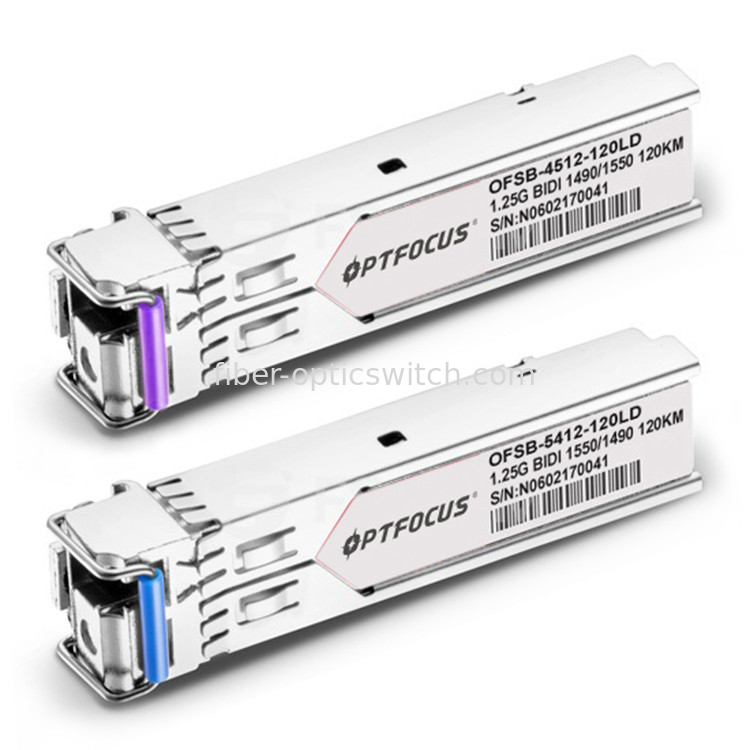

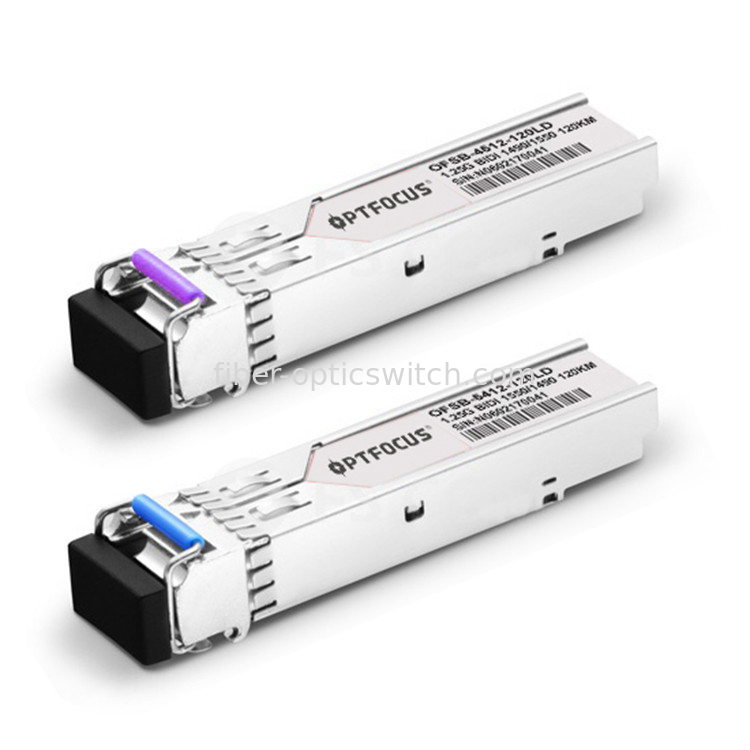

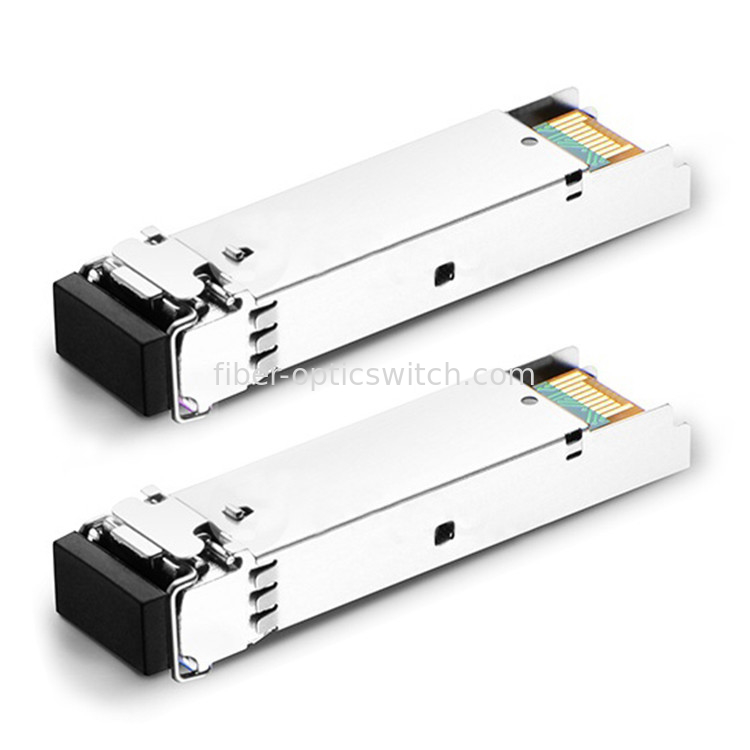

SFP Optical Transceiver Image details



OPTFOCUS sfp Optical Transceiver 1.25G   SM SC 120KM 1490nm/1550NM  SFP Optical Transceiver  OFSB-4512-120LD BI-BD 0OPTFOCUS sfp Optical Transceiver 1.25G   SM SC 120KM 1490nm/1550NM  SFP Optical Transceiver  OFSB-4512-120LD BI-BD 1OPTFOCUS sfp Optical Transceiver 1.25G   SM SC 120KM 1490nm/1550NM  SFP Optical Transceiver  OFSB-4512-120LD BI-BD 2



Advantage of our company :



OPTFOCUS sfp Optical Transceiver 1.25G   SM SC 120KM 1490nm/1550NM  SFP Optical Transceiver  OFSB-4512-120LD BI-BD 3





Packaging & Delivery(SFP Optical Transceiver )
Selling Units:Single item Single package size: 0.8X0.3X0.3 cm
Single gross weight:0.100 kg

Package Type:carton



OPTFOCUS sfp Optical Transceiver 1.25G   SM SC 120KM 1490nm/1550NM  SFP Optical Transceiver  OFSB-4512-120LD BI-BD 4



SFP Optical Transceiver Certification



OPTFOCUS sfp Optical Transceiver 1.25G   SM SC 120KM 1490nm/1550NM  SFP Optical Transceiver  OFSB-4512-120LD BI-BD 5

FQA



Q:Do you have MOQ?

A:For stock products,we don't have MOQ. For custom product,we ask for low MOQ.

Q:Can you offer a better price?Any discount?

A:Yes,surely. We’re source factory and providing reasonable price.

Q:What is your warranty period?

A:Different products have different warranties.This warranty does not cover damage caused by man-made damage,improper care ,negligence,normal wear tear,and force majeure such as natural disasters,earthquakes,fires ,etc.



Q: how can we guarantee quality?
A: Always a pre-production sample before mass production;
Always final Inspection before shipment;
