1.25G SFP Optical Transceiver Bi-Directional Transceiver, 3km Reach TX 1310nm /RX 1550nm LC With DDM function

Basic Information
Place of Origin: Shenzhen, China
Brand Name: OPTFOCUS
Certification: CE
Model Number: OFSB-3512L-03
Minimum Order Quantity: 1 pairs
Price: USD 12.99
Packaging Details: The seller standard export package
Delivery Time: Within 3-7 days after get payment
Payment Terms: L/C, T/T, D/A, Western Union,Paypal
Supply Ability: 10000 pcs one month
Product Name: 1.25G SFP Bi-Directional Transceiver, 3km Reach TX 1310nm /RX 1550nm LC With DDM Function Wavelength: TX 1310nm /RX 1550nm
Distance: 3km Warranty: 3 Years
Application: FTTH FTTB FTTX Network Operating Temperature: 0 °C ~ 70 °C
Keywords: Sfp Transceiver Manufacturers

1.25G SFP Optical Transceiver Bi-Directional Transceiver, 3km Reach TX 1310nm /RX 1550nm LC With DDM function



SFP Optical Transceiver  Details



Model Number: OFSB-3512L-03 Connector:LC Connector
Type: Fiber Optic Transceivers Diagnostics:digital
Place of Origin: Shenzhen, China TX Power(dBm):0~+4
Brand Name: OPTFOCUS Temperature:0°C~70°C
Network:Wired LAN Voltage supply:3.3v
Wavelength:RX1310 TX1550nm RX Sens(dBm):<=24
Data Rate:1.25Gb Use:FTTX
Working Distance:3km Certification:FCC





SFP Optical Transceiver Transmitter Characteristics
Parameter Symbol Min. Typ. Max. Units
Optical Transmitter Power P0 6 7.5 11 dBm
Optical Transmitter Power off POFF - - -39 dBm
Output Center Wavelength λ 1480 - 1500 nm
Output Spectrum Width Δλ - - 1.0 nm
Side Mode Suppression Ratio SMSR 30 - - dB
Extinction Ratio ER 9 - - dB
Optical Rise Time - - - 260 ps
Optical Fall Time - - - 260 ps
Optical Eye Diagram Compliant with IEEE Std 802.3ahTM-2004
Tolerence to Tx Back Reflection - -15 - - dB
Data Rate - - 1.25 - Gb/s
Single Ended Data Input Voltage Swing VPP 200 - 1200 mV
Differential Input Impedance ZIN 80 100 120 ohm
Tx_fault Output Voltage- High VOH 2.4 - - V
Tx_fault Output Voltage- Low VOL - - 0.4 V
Tx_Dis Input Voltage- High VIH 2.0 - - V
Tx_Dis Input Voltage- Low VIL - - 0.8 V

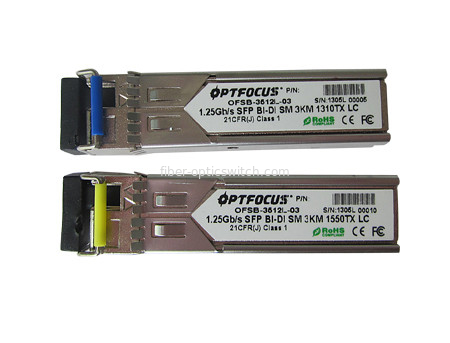

SFP Optical Transceiver image Details

1.25G SFP Optical Transceiver Bi-Directional Transceiver, 3km Reach TX 1310nm  /RX  1550nm  LC  With DDM function 0





Company information

1.25G SFP Optical Transceiver Bi-Directional Transceiver, 3km Reach TX 1310nm  /RX  1550nm  LC  With DDM function 1

1.25G SFP Optical Transceiver Bi-Directional Transceiver, 3km Reach TX 1310nm  /RX  1550nm  LC  With DDM function 2



SFP Optical Transceiver Standard Application
