OPTFOCUS 155M SFP Optical Transceiver OFSB-3503-20L BI-BD SM 20KM T1330-R1550NM SFP Optical Transceive WITH DDM

Basic Information
Place of Origin: Shenzhen, China
Brand Name: OPTFOCUS
Certification: CE & FC
Model Number: OFSB-3503-20L
Minimum Order Quantity: 2 PIECES
Price: USD 14.99
Packaging Details: The seller standard export package
Delivery Time: Within 2-8 days after get payment
Payment Terms: L/C, T/T, D/A, Western Union,Paypal
Supply Ability: 10000 pcs one WEEKS
Product Name: SFP Optical Transceiver Wavelength: T1330-R1550NM
Distance: 20KM Warranty: 1 YEARS

OPTFOCUS 155M SFP Optical Transceiver OFSB-3503-20L BI-BD SM 20KM T1330-R1550NM  SFP Optical Transceive WITH DDM

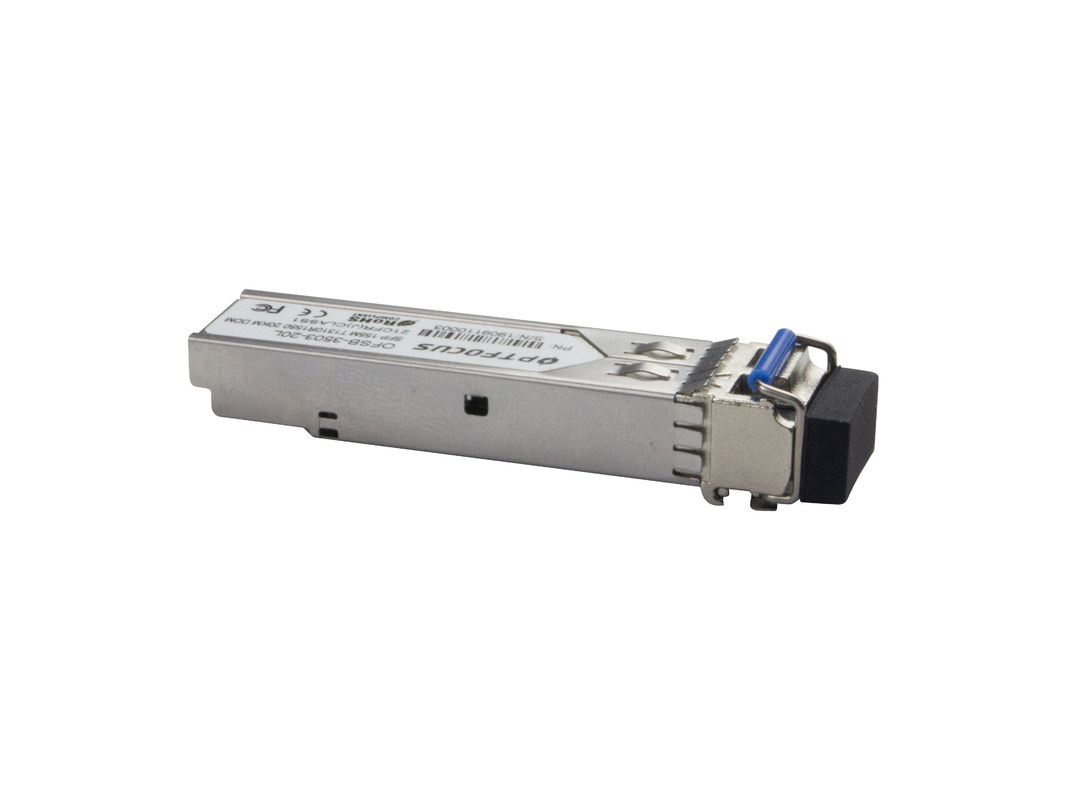

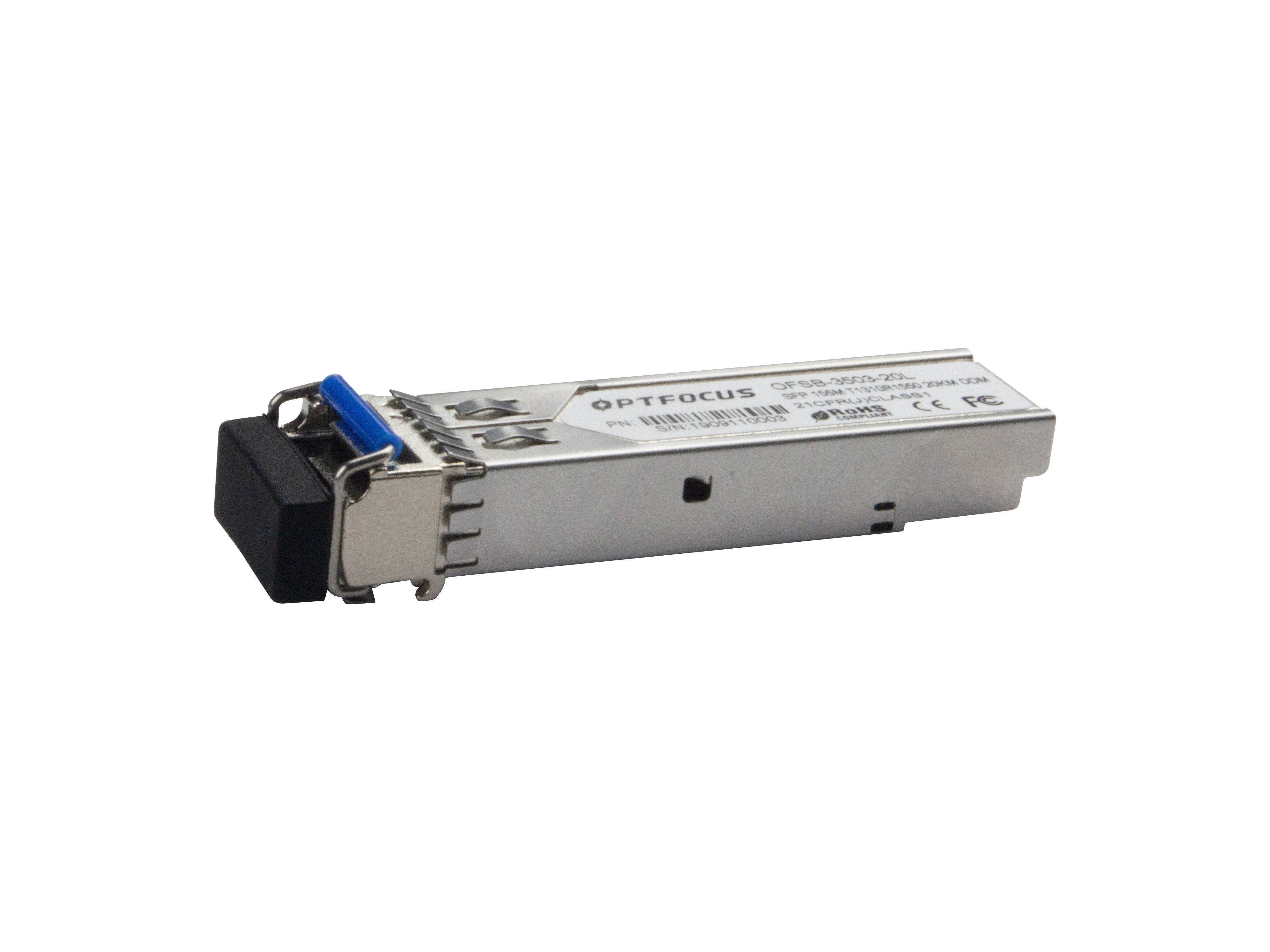

SFP Optical Transceive image details





OPTFOCUS  155M SFP Optical Transceiver  OFSB-3503-20L BI-BD SM  20KM T1330-R1550NM SFP Optical Transceive  WITH DDM 0OPTFOCUS  155M SFP Optical Transceiver  OFSB-3503-20L BI-BD SM  20KM T1330-R1550NM SFP Optical Transceive  WITH DDM 1

SFP Optical Transceiver Details

Model Number: OFSB-3503-20L Connector:SC
Type: Fiber Optic Transceivers Diagnostics:digital
Place of Origin: Shenzhen, China TX Power(dBm):0~+4
Brand Name: OPTFOCUS Temperature:0°C~70°C
Network:Wired LAN Voltage supply:3.3v
Wavelength:T1330-R1550NM RX Sens(dBm):<=24
Data Rate:155M Use:FTTX
Working Distance:20km Certification:FCC







 SFP Optical Transceiver Transmitter Characteristics
Parameter Symbol Min. Typ. Max. Units
Optical Transmitter Power P0 6 7.5 11 dBm
Optical Transmitter Power off POFF - - -39 dBm
Output Center Wavelength λ 1480 - 1500 nm
Output Spectrum Width Δλ - - 1.0 nm
Side Mode Suppression Ratio SMSR 30 - - dB
Extinction Ratio ER 9 - - dB
Optical Rise Time - - - 260 ps
Optical Fall Time - - - 260 ps
Optical Eye Diagram Compliant with IEEE Std 802.3ahTM-2004
Tolerence to Tx Back Reflection - -15 - - dB
Data Rate - - 1.25 - Gb/s
Single Ended Data Input Voltage Swing VPP 200 - 1200 mV
Differential Input Impedance ZIN 80 100 120 ohm
Tx_fault Output Voltage- High VOH 2.4 - - V
Tx_fault Output Voltage- Low VOL - - 0.4 V
Tx_Dis Input Voltage- High VIH 2.0 - - V
Tx_Dis Input Voltage- Low VIL - - 0.8 V



OPTFOCUS  155M SFP Optical Transceiver  OFSB-3503-20L BI-BD SM  20KM T1330-R1550NM SFP Optical Transceive  WITH DDM 2



Advantage of our company :

① National High-tech Enterprise integrating with R&D, manufacturing,marketing of FTTH/FTTx Access solutions&products.

② Fiber Optical Innovative &production team Over 13 years;

③ Fiber optical active and passive components production Workshop;

④ Strict quality management system;

⑤ Professional One stop supply&service;

⑥ OEM&ODM available;

⑦ Reliable and Timely customer services;



SFP Optical Transceiver Standard Application

ATM SDH PDH SONET Network

Data Communication Network

Telecom Communication Network



Packaging & Delivery (SFP Optical Transceiver)
Selling Units: Single item Single package size: 5.71X0.85X1.34 cm
Single gross weight:0.100 kg Single gross weight:0.100 k
