OPTFOCUS 1.25 G SFP Optical Transceiver OFSB-3512-20SD SFP Optical Transceiver BI-BD SM SC 20KM 1310-1550NM DDM

Basic Information
Place of Origin: Shenzhen, China
Brand Name: OPTFOCUS
Certification: CE & FC
Model Number: OFSB-3512-30SD
Minimum Order Quantity: 1 PIECES
Price: USD 13.99
Packaging Details: The seller standard export package
Delivery Time: Within 3-8 days after get payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 pcs one month
Product Name: SFP Optical Transceiver Wavelength: 1310-1550NM
Distance: 20KM Application: FTTH FTTB FTTX Network
Power Supply: 3.3V Connector: SC
Transmission Distance: 20KM

OPTFOCUS 1.25 G SFP Optical Transceiver OFSB-3512-20SD SFP Optical Transceiver BI-BD SM SC 20KM 1310-1550NM DDM





SFP Optical Transceiver Details
Model Number:OFSB-3512-20SD Connector:Single SC
Place of Origin:China Distance:20KM
Brand Name:OPTFOCUS Wavelength:1310nm-1550nm
Key Feature1:Shenzhen, China (Mainland) Compatible: Huawei,Cisco,Hp
Key Feature2:SFP Optical Transceiver DDM:With DDM
Key Feature3:1.25G Product status:Stock
Fiber Type: SM



SFP Optical Transceiver Transmitter Characteristics
Parameter Symbol Min. Typ. Max. Units
Optical Transmitter Power P0 6 7.5 11 dBm
Optical Transmitter Power off POFF - - -39 dBm
Output Center Wavelength λ 1480 - 1500 nm
Output Spectrum Width Δλ - - 1.0 nm
Side Mode Suppression Ratio SMSR 30 - - dB
Extinction Ratio ER 9 - - dB
Optical Rise Time - - - 260 ps
Optical Fall Time - - - 260 ps
Optical Eye Diagram Compliant with IEEE Std 802.3ahTM-2004
Tolerence to Tx Back Reflection - -15 - - dB
Data Rate - - 1.25 - Gb/s
Single Ended Data Input Voltage Swing VPP 200 - 1200 mV
Differential Input Impedance ZIN 80 100 120 ohm
Tx_fault Output Voltage- High VOH 2.4 - - V
Tx_fault Output Voltage- Low VOL - - 0.4 V
Tx_Dis Input Voltage- High VIH 2.0 - - V
Tx_Dis Input Voltage- Low VIL - - 0.8 V

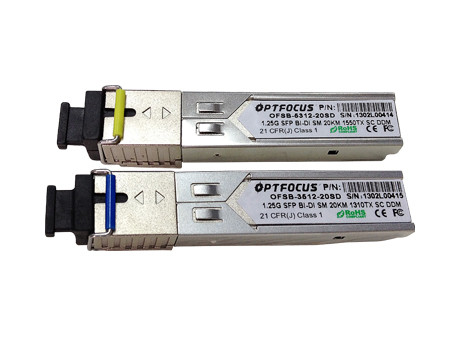

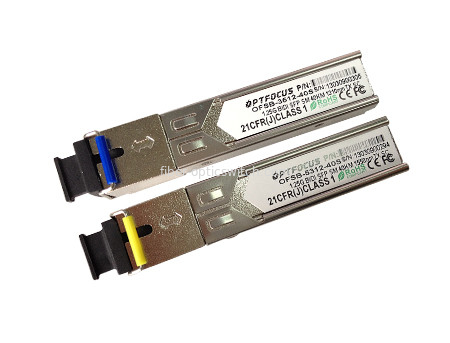

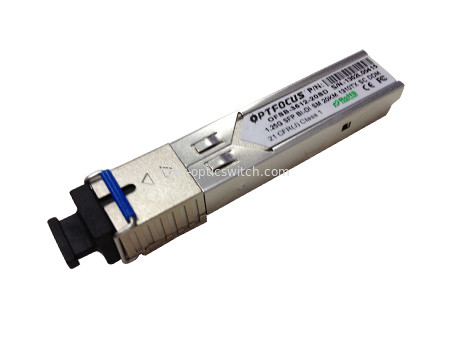

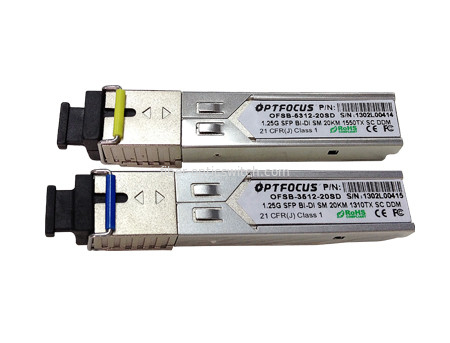

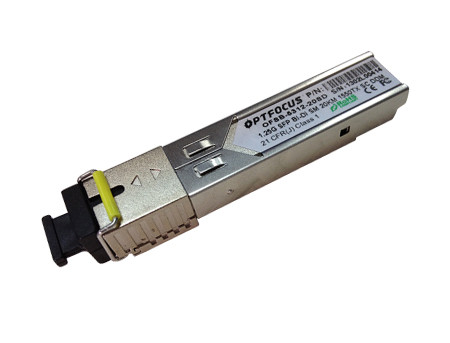

SFP Optical Transceiver image details

OPTFOCUS  1.25 G SFP Optical Transceiver  OFSB-3512-20SD SFP Optical Transceiver BI-BD SM SC  20KM 1310-1550NM DDM 0



Company information



OPTFOCUS  1.25 G SFP Optical Transceiver  OFSB-3512-20SD SFP Optical Transceiver BI-BD SM SC  20KM 1310-1550NM DDM 1OPTFOCUS  1.25 G SFP Optical Transceiver  OFSB-3512-20SD SFP Optical Transceiver BI-BD SM SC  20KM 1310-1550NM DDM 2



Packaging & Delivery  (SFP Optical Transceiver)
Selling Units: Single item Single package size: 5.71X0.85X1.34 cm
Single gross weight:0.100 kg

Single gross weight:0.100 k



OPTFOCUS  1.25 G SFP Optical Transceiver  OFSB-3512-20SD SFP Optical Transceiver BI-BD SM SC  20KM 1310-1550NM DDM 3



SFP Optical Transceiver Standard Application

ATM SDH PDH SONET Network

Data Communication Network

Telecom Communication Network



FAQ



Q:Do you have MOQ?

A:For stock products,we don't have MOQ. For custom product,we ask for low MOQ.

Q:Can you offer a better price?Any discount?

A:Yes,surely. We’re source factory and providing reasonable price.

Q:What is your warranty period?

A:Different products have different warranties.This warranty does not cover damage caused by man-made damage,improper care ,negligence,normal wear tear,and force majeure such as natural disasters,earthquakes,fires ,etc.
