| Place of Origin: | China |
|---|---|
| Brand Name: | OPFFOCUS |
| Certification: | CE.RosE |
| Model Number: | OFS |
| Minimum Order Quantity: | 1 piece |
| Price: | 0.3USD |
| Packaging Details: | 100 pcs per carton |
| Delivery Time: | 3-14 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 30000 PCS PER MONTH |
| Key Words: | Fast Connector | Color: | Blue And Black |
|---|---|---|---|
| Connector: | SC/APC | Length: | 50MM |
| USE: | FTTX | ||
| High Light: | FTTH Fiber Optic Fast Connector,Embedded Fiber Optic Fast Connector,Field Assembly SC APC fast connector |
||

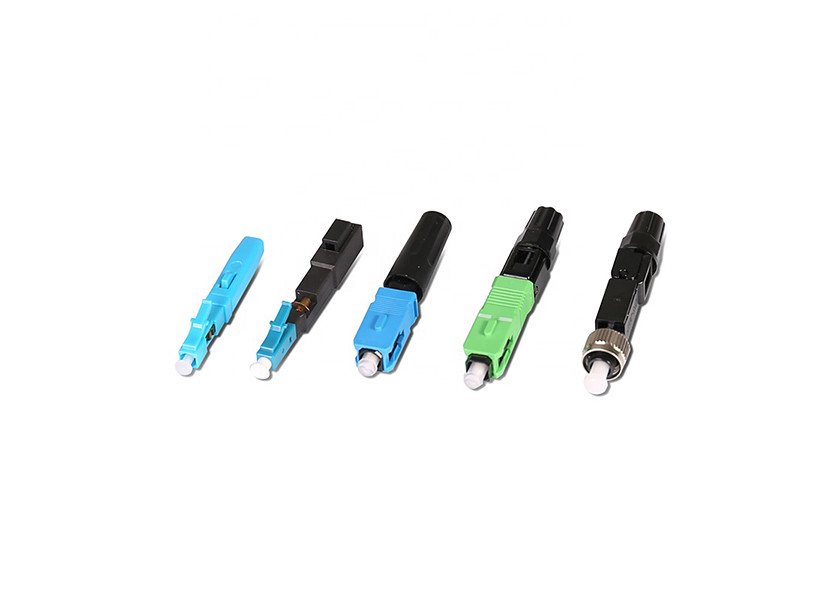

Field assembly ftth sc/upc apc quick embedded optical fast connector for fiber
| connector | SC/APC SC/UPC |
| Length | 60MM |
| Key words | Quick connector |
Product Description

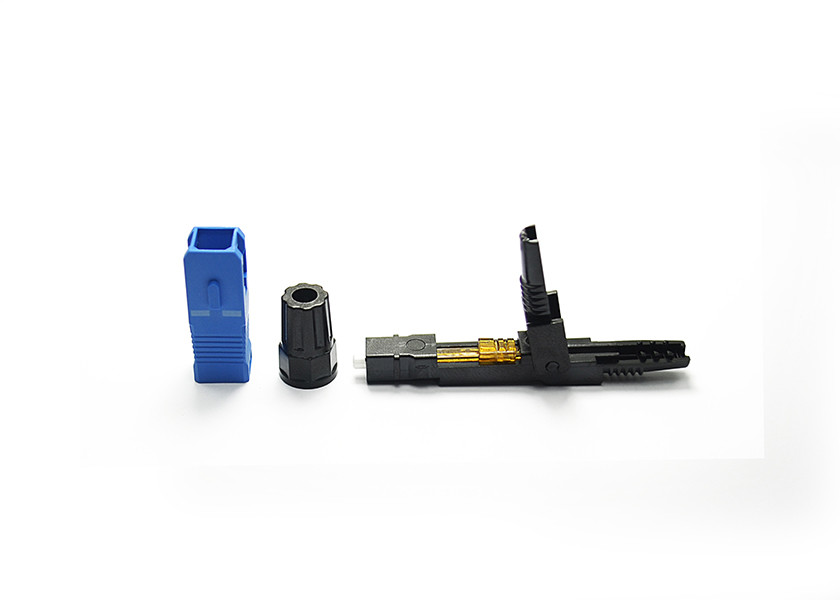

Fiber Fast Connector is used for field assembled optical fiber connector ,widely used in fiber to the home
(FTTH) access optical networks,to assemble with drop cable quickly.
1. Twin end-face of pre embedded fiber is polised in the factory..
2. Fiber optics is aligned in V-groove through the ceramic ferrule.
3. Side cover design provide complete preservation of the matching liquid.
4. Ceramic ferrule with pre-embedded fiber is polished to APC.
5. Length of the FTTH cable is controllable
6. Simple tooling, easy operation, portable style and reusable design.
7.Connector size: 49.5*7*6mm or produced as per client's request.
Technical specification
| Item | Parameter |
| Cable Scope | 3.0 x 2.0 mm Bow-type Drop Cable |
| Fiber Diameter | 125μm ( 652 & 657 ) |
| Coating Diameter | 250μm |
| Mode | SM |
| Operation Time | about 15s(exclude fiber presetting) |
| Insertion Loss | ≤ 0.25dB(1310nm & 1550nm) |
| Return Loss | ≤ -45dB |
| Success Rate | >98% |
| Reusable Times | >10 times |
| Tensile Strength | >5 N |
| Tighten Strength of Coating | >10 N |
| Temperature | -40~+85°C |
| On-line Tensile Strength Test (20 N) | IL ≤ 0.3dB |
| Mechanical Durability(500 times) | IL ≤ 0.3dB |
| Drop Test(4m concrete floor, once each direction, three times total) | IL ≤ 0.3dB |
