| Place of Origin: | China |
|---|---|
| Brand Name: | OPFFOCUS |
| Certification: | CE.RosE |
| Model Number: | OFS |
| Minimum Order Quantity: | 1 piece |
| Price: | 0.3USD |
| Packaging Details: | 100 pcs per carton |
| Delivery Time: | 3-14 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 30000 PCS PER MONTH |
| Key Words: | Fast Connector | Color: | Blue And Black |
|---|---|---|---|
| Connector: | SC/APC | Length: | 50MM |
| USE: | FTTX | ||
| High Light: | SC APC Fiber Optic Fast Connector,SC FC Fiber Optic Fast Connector,FTTB Solution fiber optic quick connector |
||

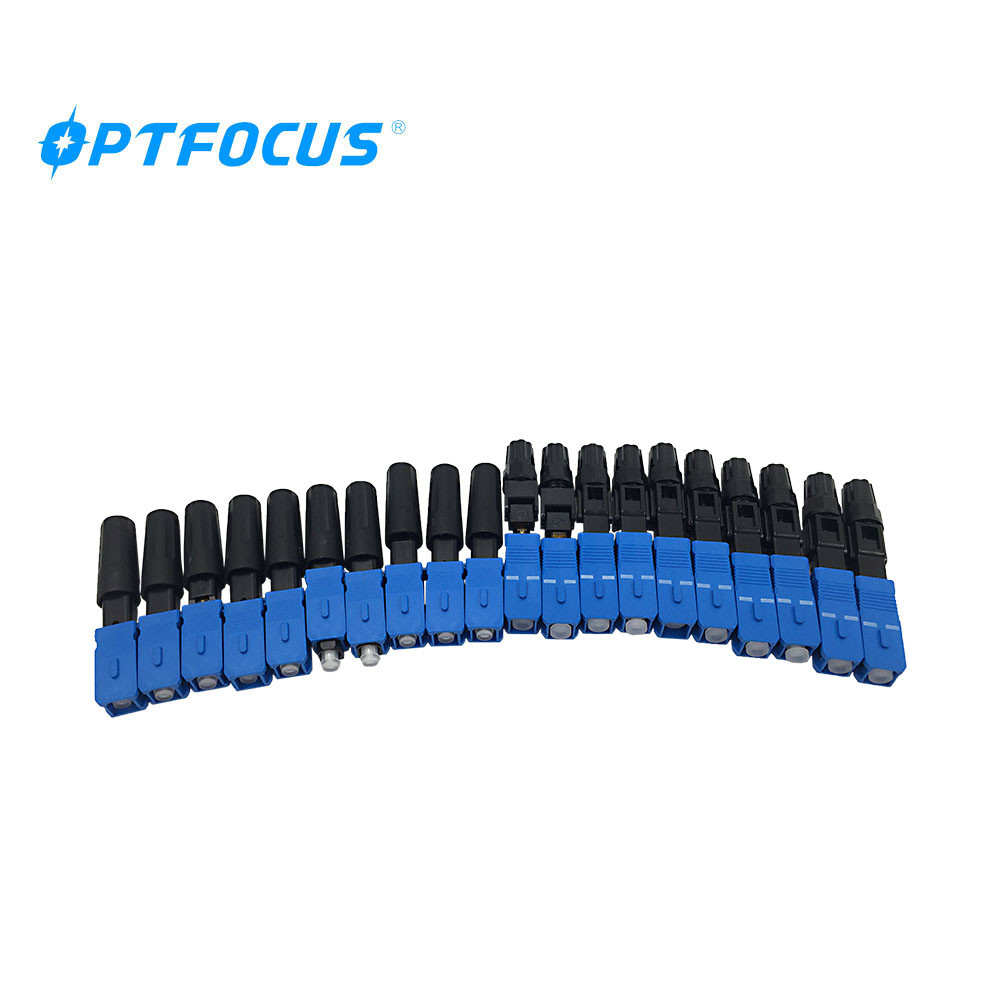

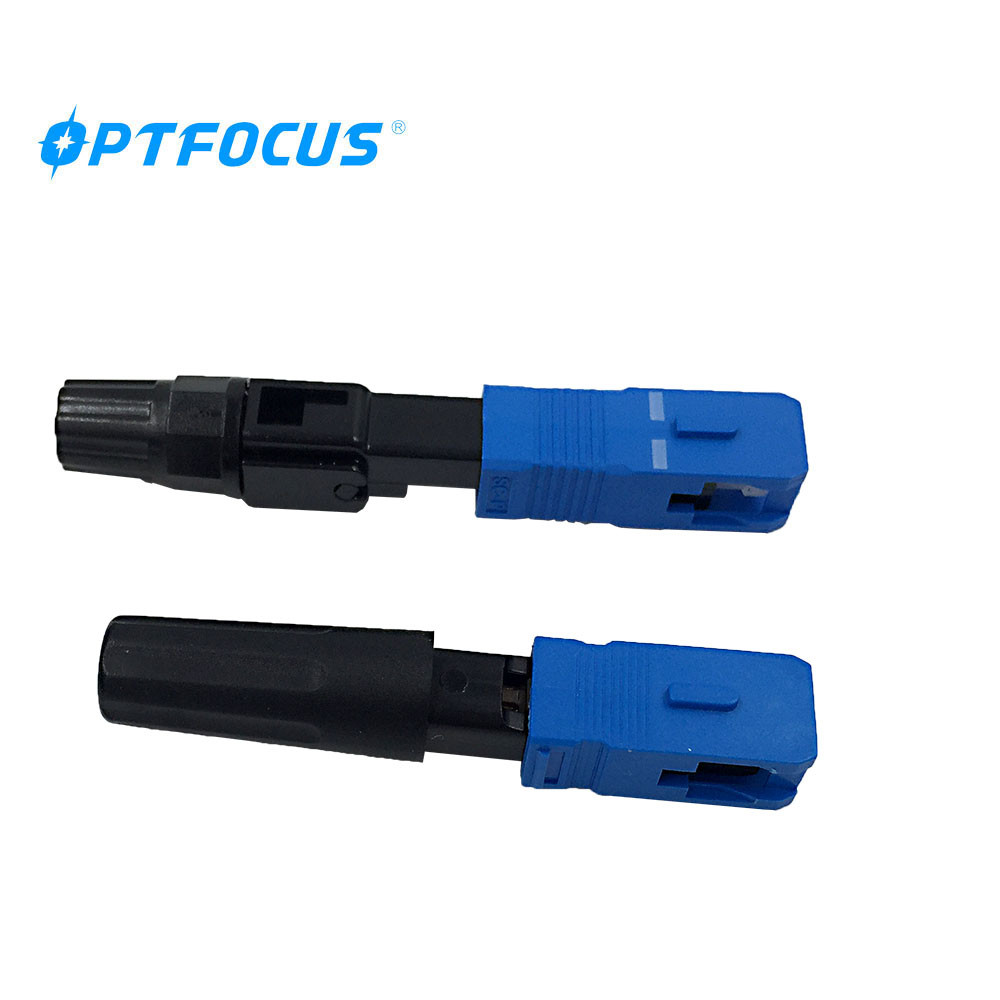

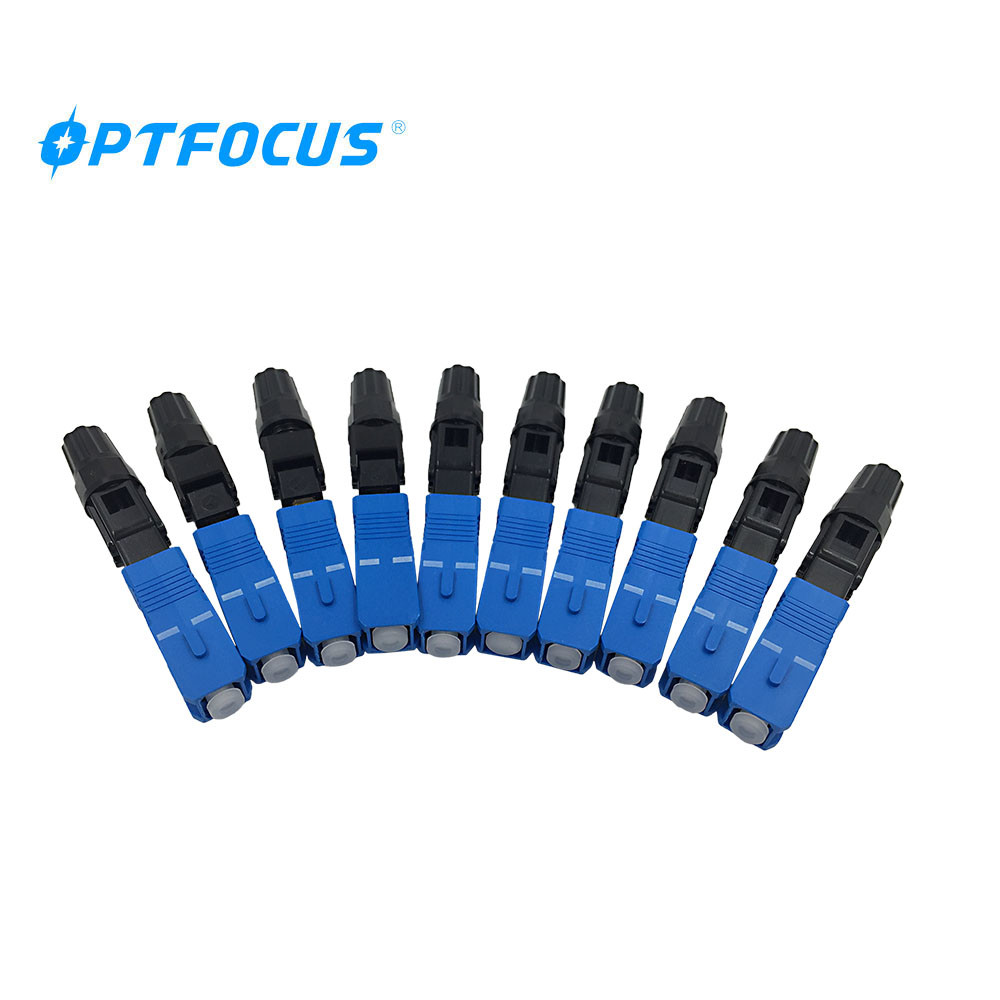

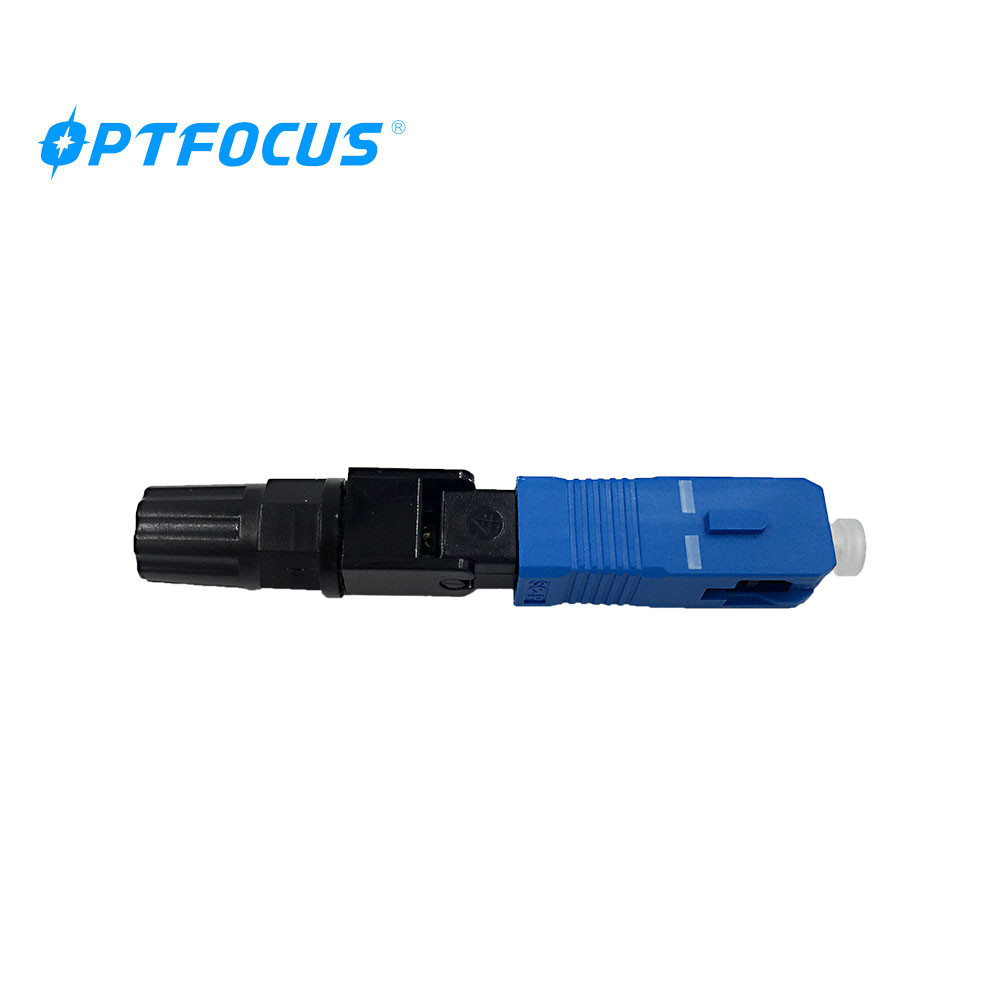

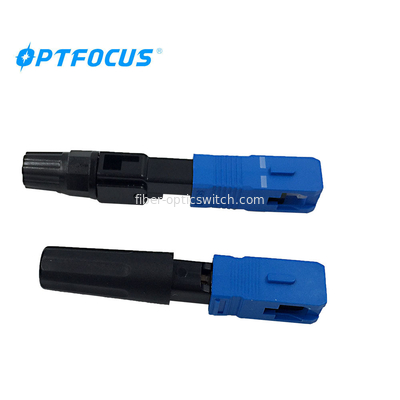

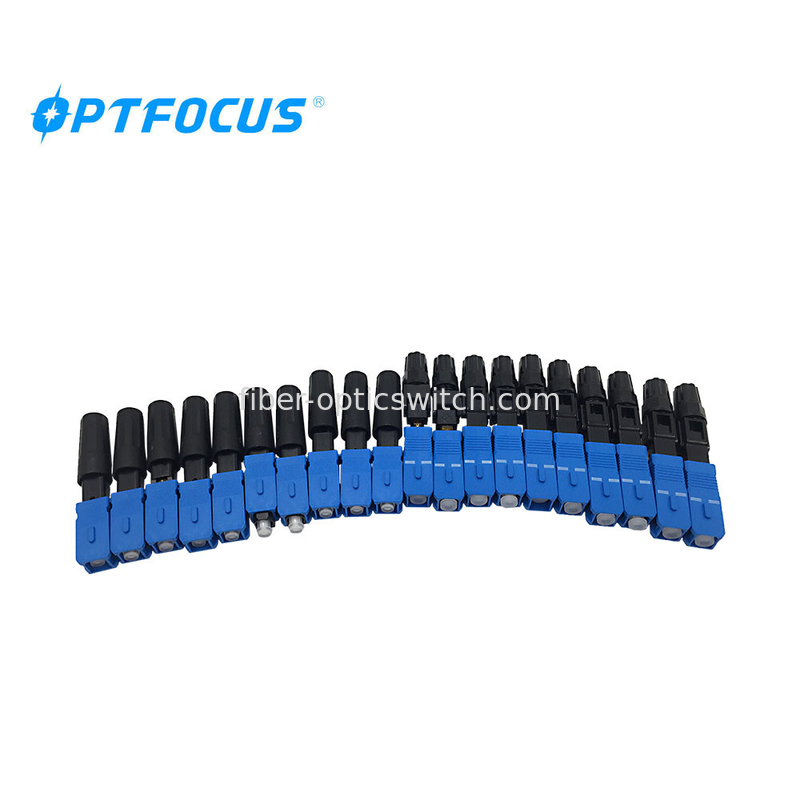

SC/APC SC/FC SC/UPC fast connector for FTTH/FTTB Solution cables
| connector | SC/APC SC/UPC |
| Length | 50MM |
| Key words | Fast connector |
Application
Used to open the FTTH fiber terminal end.
In the box, cabinet, such as wiring into the box.
Off the back of the accidents such as fiber, maintenance.
LAN, wan, data and video transmission.
The construction of the fiber end user access and maintenance.
Optical fiber access of mobile base station.
Product description
Installed in order to ensure the quality and efficiency of research and development of the high ratio
of the fiber optic fast in products.

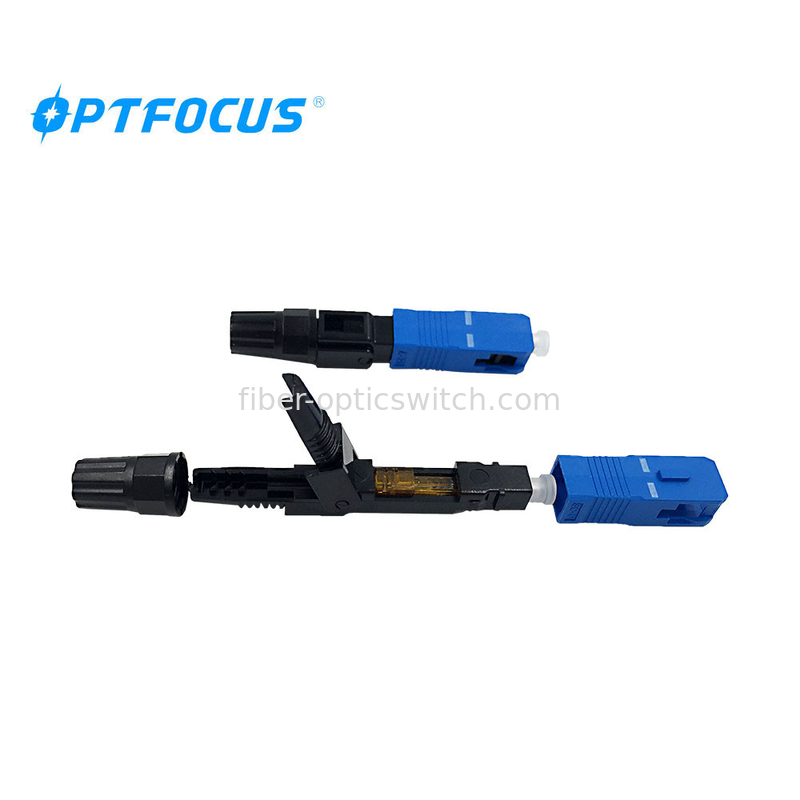

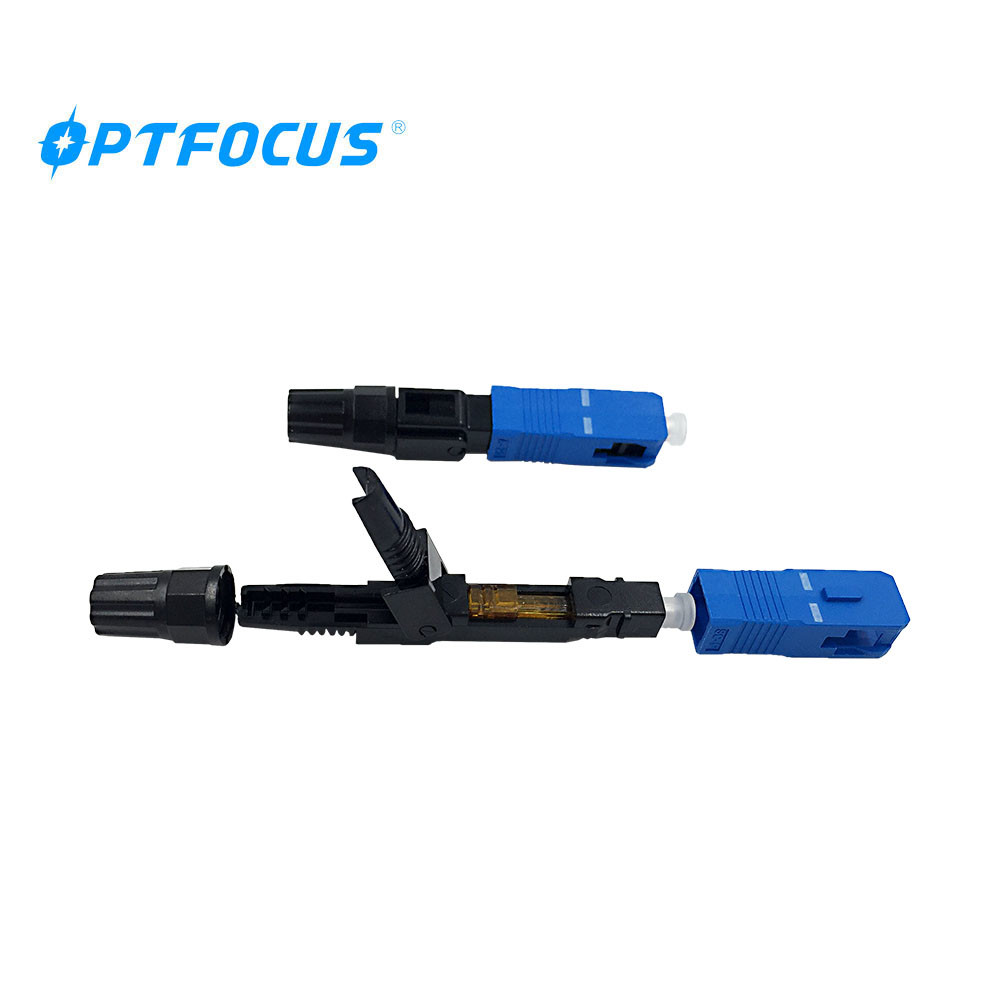

Pressure welding parts adopt new unique structure design, installation no injecting, no grinding, no
material . With embedded optical fiber type structure .
Installed with high quality and high success rate and fast and other characteristics . Can be reused,
the scene is simple.
Easy to carry
Performance
(1).Insertion loss:≤0.40dB ,Return loss:≥45dB.
(2). Mechaincal Durability:500matings
(3).Storage temperature:-40℃to+85℃
(4).Operation temperature:- 40 ~ + 85 ℃
(5).Tensile Strengh:>40N
(6).Number of repeated use:5times above
(7).SC connector according to IEC 61754-4 .
(8).Suitable for cable outer diameter 2.0 mm and 3.0 mm, 2 * 3.0 mm.
