FTTX SC UPC Fast Connector 60mm FTTH Optical Fiber Fast Connector

Basic Information
Place of Origin: China
Brand Name: OPFFOCUS
Certification: CE.RosE
Model Number: OFS
Minimum Order Quantity: 1 piece
Price: 0.3USD
Packaging Details: 100 pcs per carton
Delivery Time: 3-14 working days
Payment Terms: T/T, Western Union
Supply Ability: 30000 PCS PER MONTH
Key Words: Fast Connector Color: Blue And Black
Connector: SC/UPC Length: 60MM
USE: FTTX
High Light:

FTTX SC UPC fast connector

,

60mm SC UPC fast connector

,

FTTH optical fiber fast connector

Fast Connector Sc Connector FTTH Fiber Optic SC/APC Fast Connector Quick Connector SC/UPC

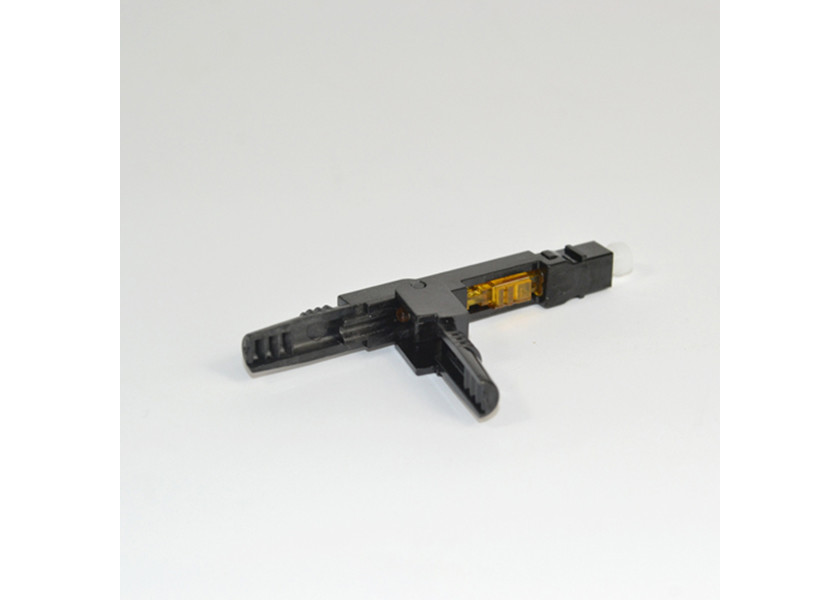

FTTX SC UPC Fast Connector 60mm FTTH Optical Fiber Fast Connector 0



connector SC/APC SC/UPC
Length  60MM
Key words Quick connector

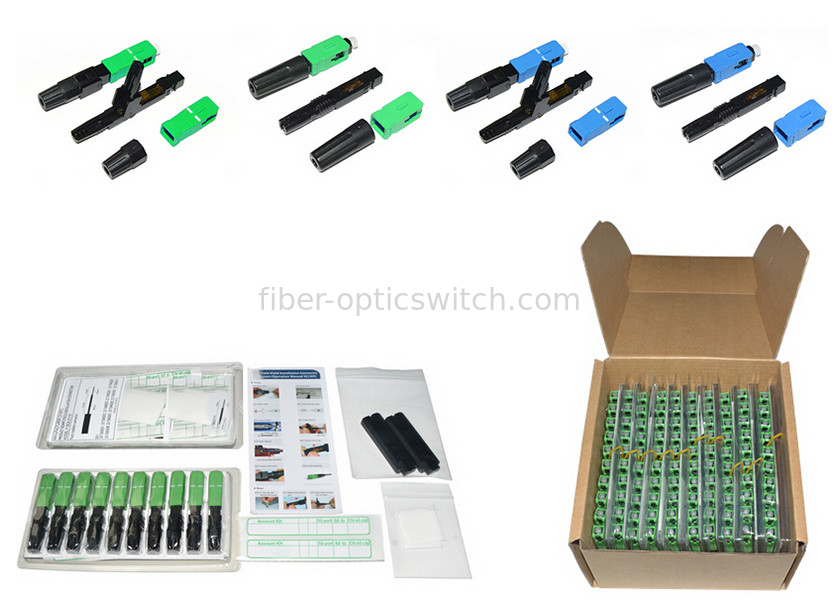

FTTX SC UPC Fast Connector 60mm FTTH Optical Fiber Fast Connector 1







SC/APC Fast Connector / Field assembly optical connector



Product Description

Advantage

1. our 100% insertion loss less than 0.3dB( International Standard less than 0.5dB)

2. Return loss: 55dB

3. Using corning fiber

4. High temperature cycle test 24hours( -40-85centigrade) quality is stable working in poor condition.

5. Imported Brand matching gel(FIS)



Application
Used to open the FTTH fiber terminal end.
In the box, cabinet, such as wiring into the box.
Off the back of the accidents such as fiber, maintenance.
LAN, wan, data and video transmission.
The construction of the fiber end user access and maintenance.
Optical fiber access of mobile base station.


Product description
Installed in order to ensure the quality and efficiency of research and development of the high ratio of the fiber
optic fast in products.

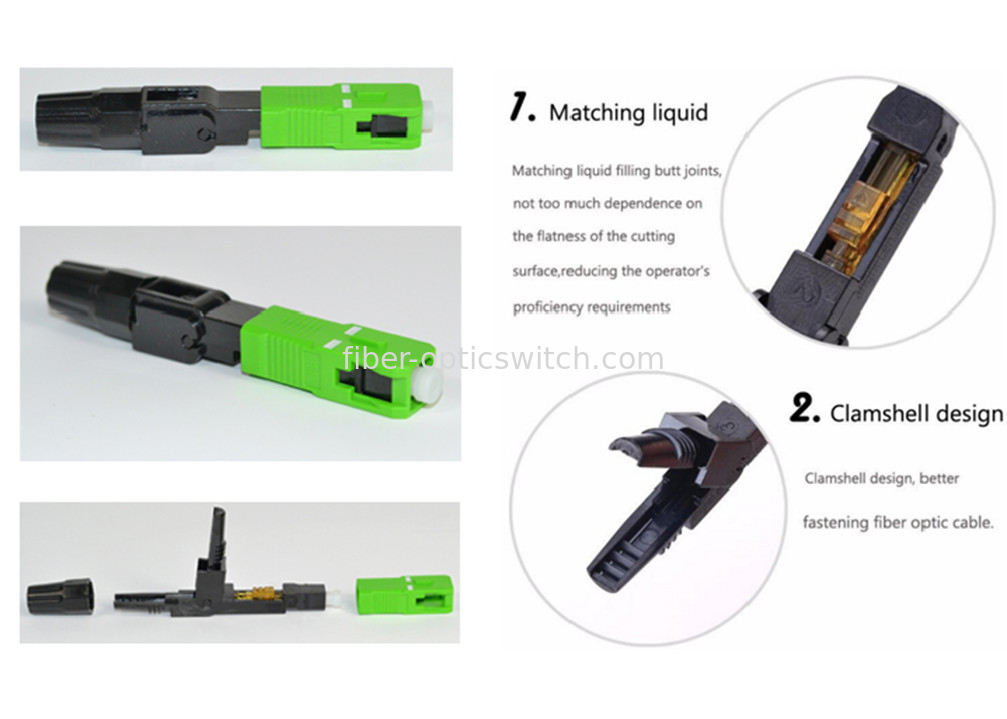

Pressure welding parts adopt new unique structure design, installation no injecting, no grinding, no material .
With embedded optical fiber type structure .
Installed with high quality and high success rate and fast and other characteristics .
Can be reused, the scene is simple.
Easy to carry


Performance
(1).Insertion loss:≤0.35dB ,Return loss:≥60dB.
(2). Mechaincal Durability:1000matings
(3).Storage temperature:-40℃to+85℃
(4).Operation temperature:- 40 ~ + 85 ℃
(5).Tensile Strengh:>30N
(6).Number of repeated use:5 times above
(7).SC connector according to IEC 61754-4 .
(8).Suitable for cable outer diameter 0.9 mm, 2.0 mm and 3.0 mm, 2 * 3.0 mm.

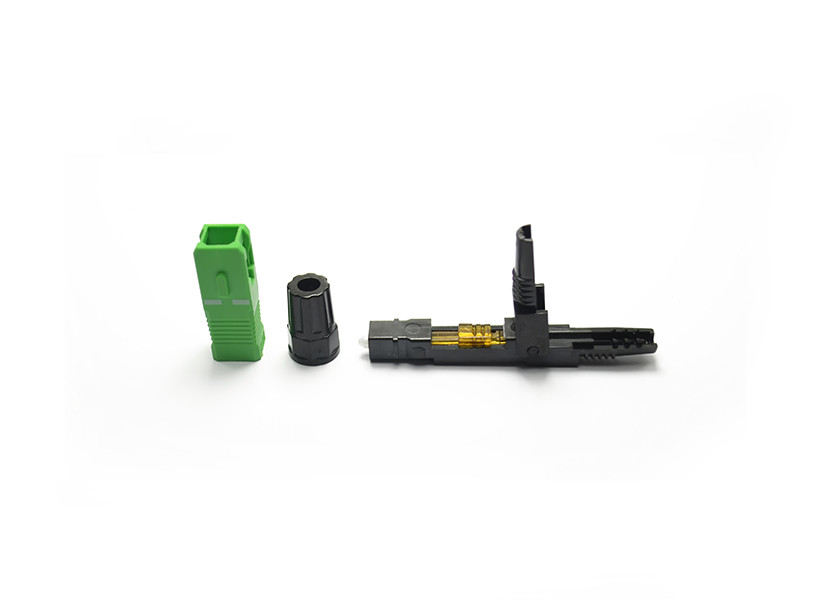

FTTX SC UPC Fast Connector 60mm FTTH Optical Fiber Fast Connector 2

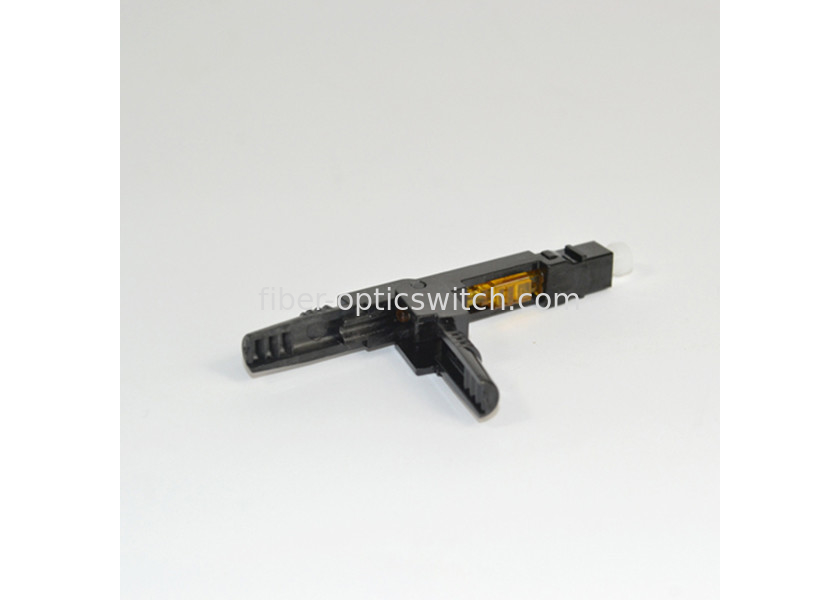

FTTX SC UPC Fast Connector 60mm FTTH Optical Fiber Fast Connector 3
