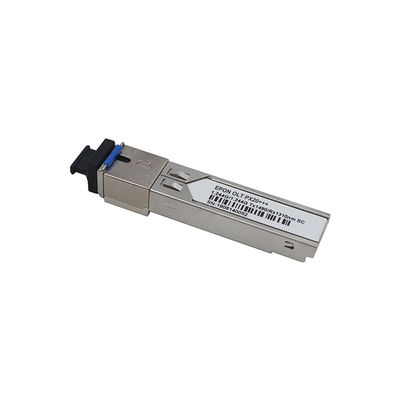

1000base T SFP Transceiver Module EPON OLT SFP PON Module 1.25G PX20+++ TX1490nm RX1310nm

Basic Information
Place of Origin: China
Brand Name: Optfocus
Certification: Roshs
Model Number: OFS-OLT-ESPX20+++
Minimum Order Quantity: 80 pcs
Price: $6
Packaging Details: 5 pcs in a opp box
Delivery Time: 5-9 working days
Payment Terms: L/C, D/P, T/T
Supply Ability: 21000pcs/month
Item Number: OFS-OLT-ESPX20+++ Type: SFP Transceiver
Use: Fiber Optical Equipment Wavelength:: 1310nm
High Light:

1000base T SFP Transceiver Module

,

PX20+++ SFP Transceiver Module

,

EPON OLT SFP PON Module

1000base t sfp transceiver module EPON OLT SFP PON module 1.25G PX20+++ 9db 8dB 7db TX1490nm / RX1310nm





Introduction:

The EPON PX20+++ SFP transceiver is the high performance module for single fiber by using 1490nm continuous-mode transmitter and 1310nm burst-mode receiver.



EPON OLT SFP PON module 1.25G PX20+++ 9db 8dB 7db TX1490nm / RX1310nm





Introduction:

Features:

1. Single Fiber Transceiver with single mode SC receptacle
2. 1490nm continuous-mode transmitter with DFB laser
3. 1310nm burst-mode receiver with APD-TIA
4. Single 3.3V power supply
5. Reset burst-mode receiver design
6. Burst mode signal detect output which is LVTTL compatible.
7. Burst mode received signal strength indication (RSSI) output
8. 20Km Reach 30dB link budget
9. Complies with huawei,zte,fiberhome,bdcom OLTs
10. Operating case temperature: Standard : 0 to +70°C





Technical parameters:

Technical item Specification
EPON SFP PX20+++

1.25Gbps/1.25Gbps, Class PX20+++,

0ºC ~ +70ºC With Digital Diagnostic Monitoring

Wavelength Tx1310nm, Rx 1490nm



Application:

EPON OLT SFP PON module 1.25G PX20+++ 9db 8dB 7db TX1490nm / RX1310nmEPON OLT SFP PON module 1.25G PX20+++ 9db 8dB 7db TX1490nm / RX1310nmEPON OLT SFP PON module 1.25G PX20+++ 9db 8dB 7db TX1490nm / RX1310nmEPON OLT SFP PON module 1.25G PX20+++ 9db 8dB 7db TX1490nm / RX1310nm







Packing details:

EPON OLT SFP PON module 1.25G PX20+++ 9db 8dB 7db TX1490nm / RX1310nm







Applications and solutions
PX20 1.25G 20KM Gpon Epon GEPON Ont Olt Oun SFP

Packaging & Shipping

PX20 1.25G 20KM Gpon Epon GEPON Ont Olt Oun SFP
