| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Brand Name: | OPTFOCUS |
| Certification: | CE, FCC |
| Model Number: | OFS-DS-40 |
| Minimum Order Quantity: | 10 Pieces |
| Price: | negotiated |
| Packaging Details: | 48*42.5*38 CM 40pcs per carton |
| Delivery Time: | 3-5 working days after received your payment |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 30000 Pieces per Month |
| Max Distance: | 40 KM | Operating Standards: | IEEE802.3u,10/100Base-TX And 100Base-FX |
|---|---|---|---|
| Interface Type: | RJ45 | Optical Fiber: | Single Fiber Or Double Fiber |
| Eth: | 10/100M | Supporting Agreementses Table: | IEEE802.3U 100Base-TX, 10/100M |
| High Light: | optical media converter,fiber optic converters |
||

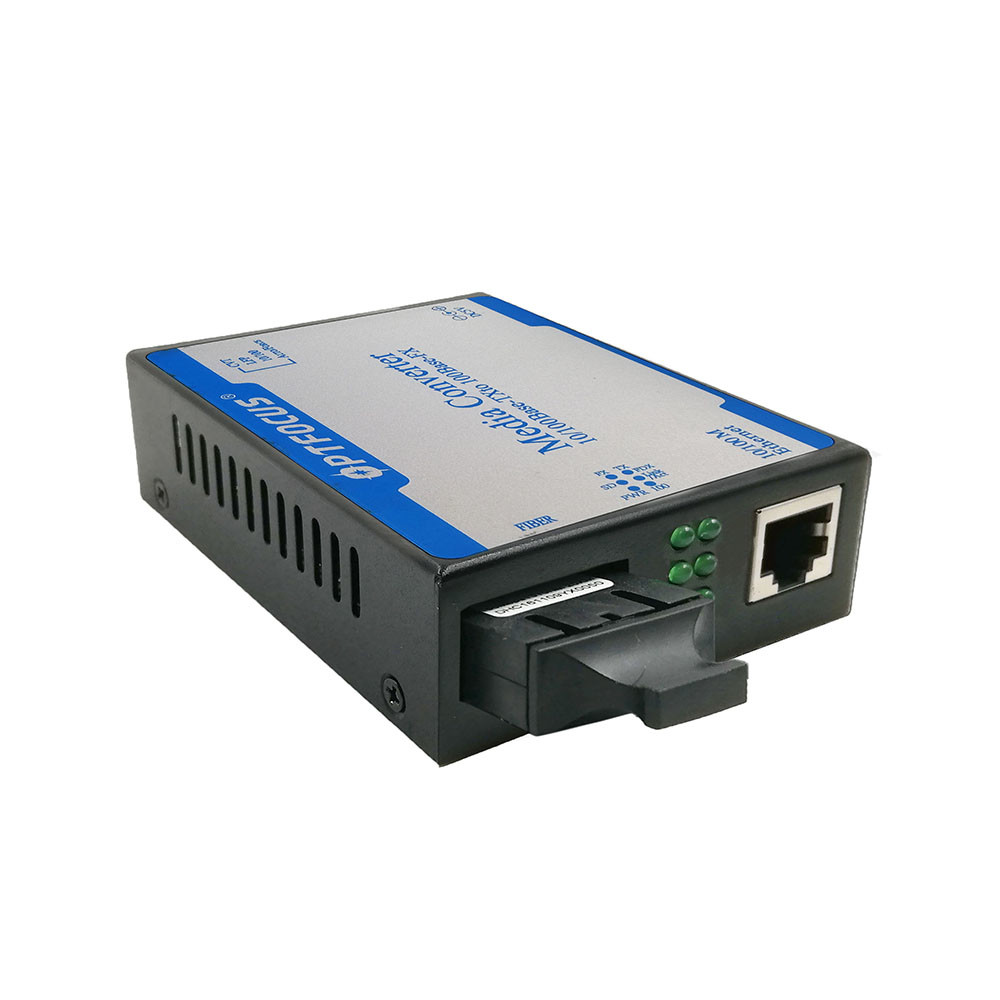

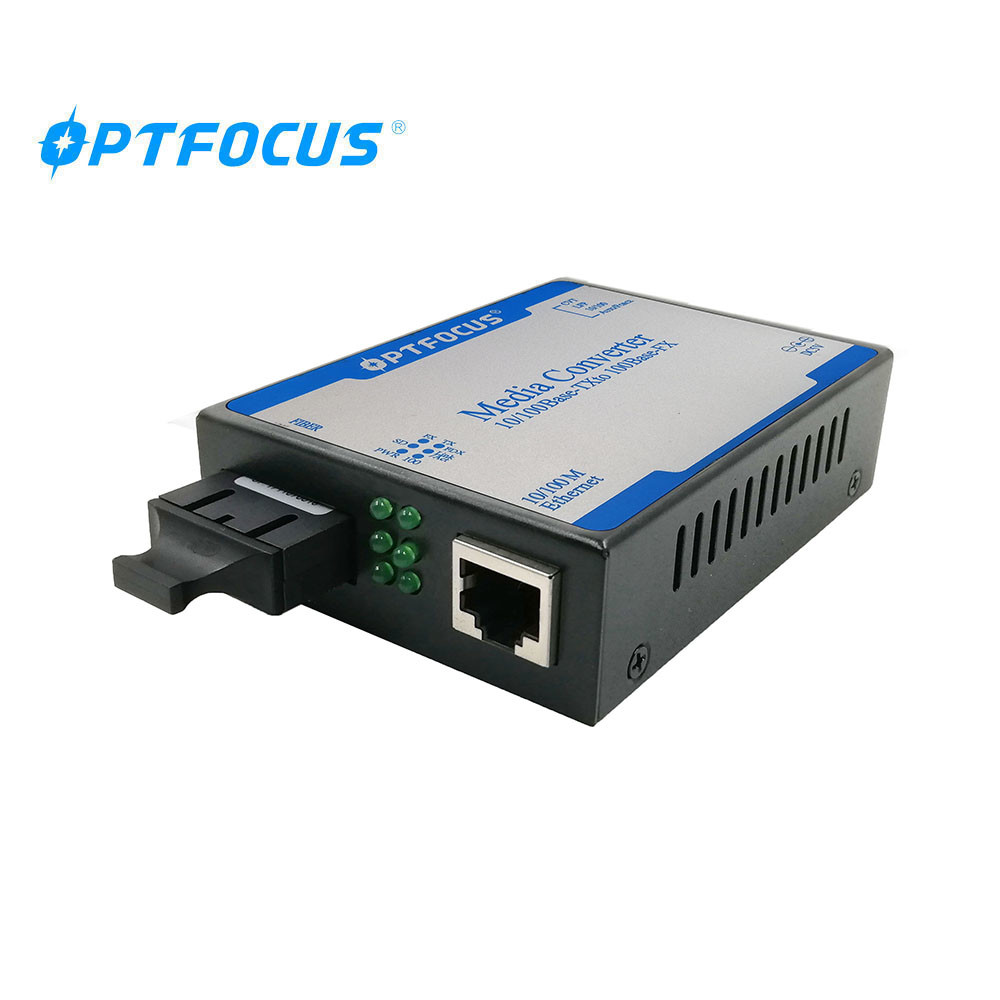

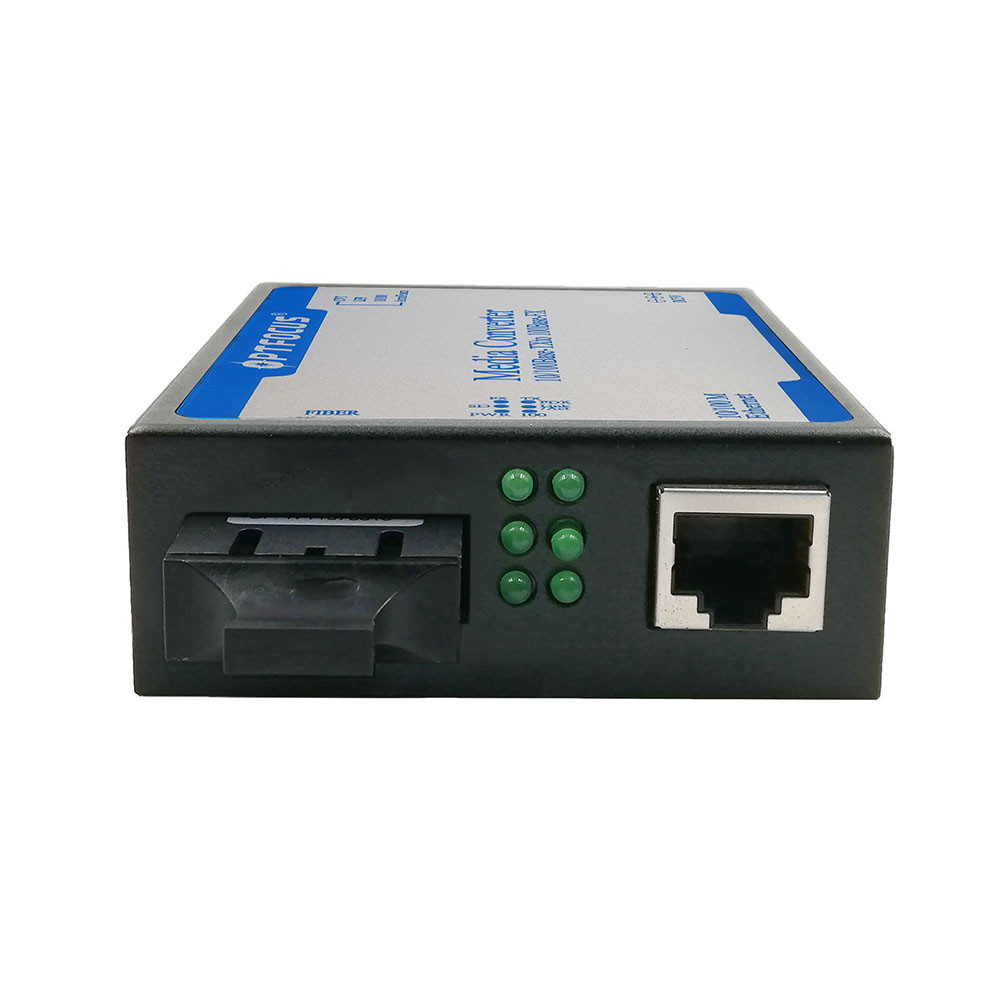

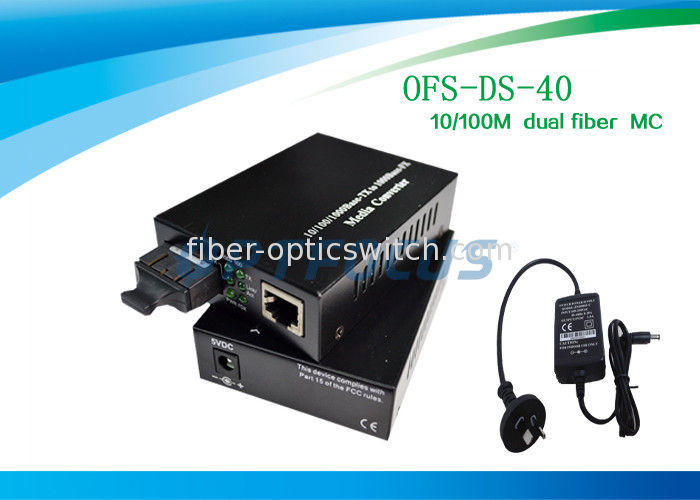

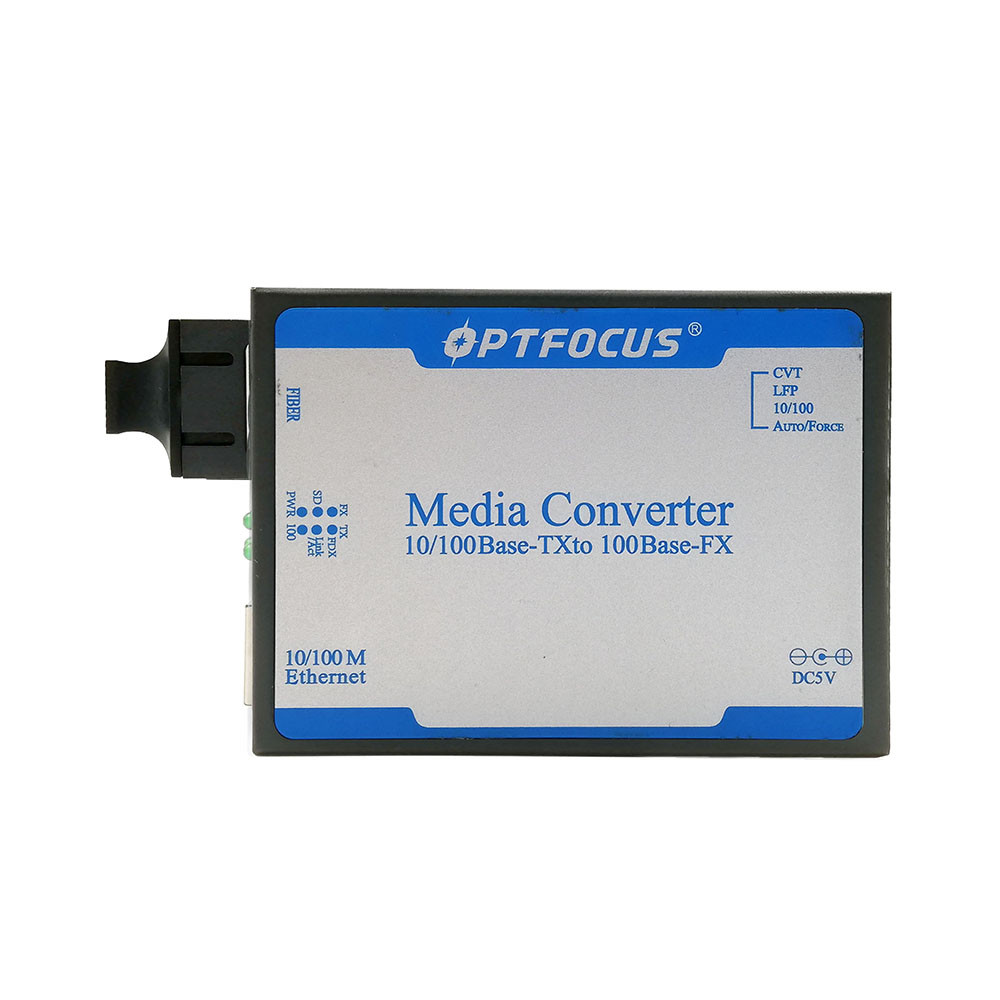

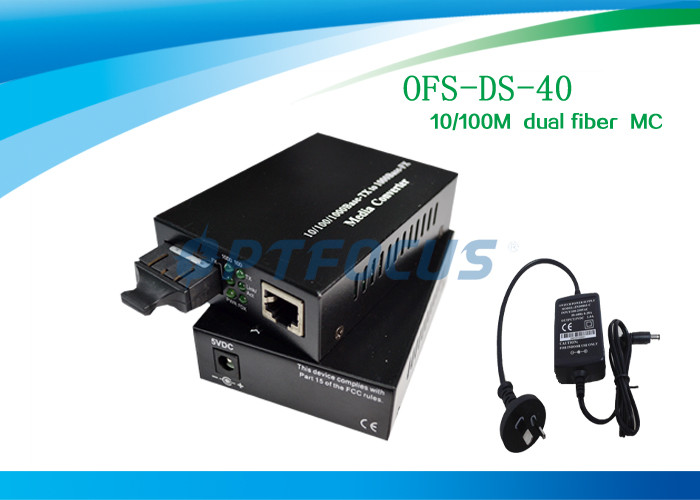

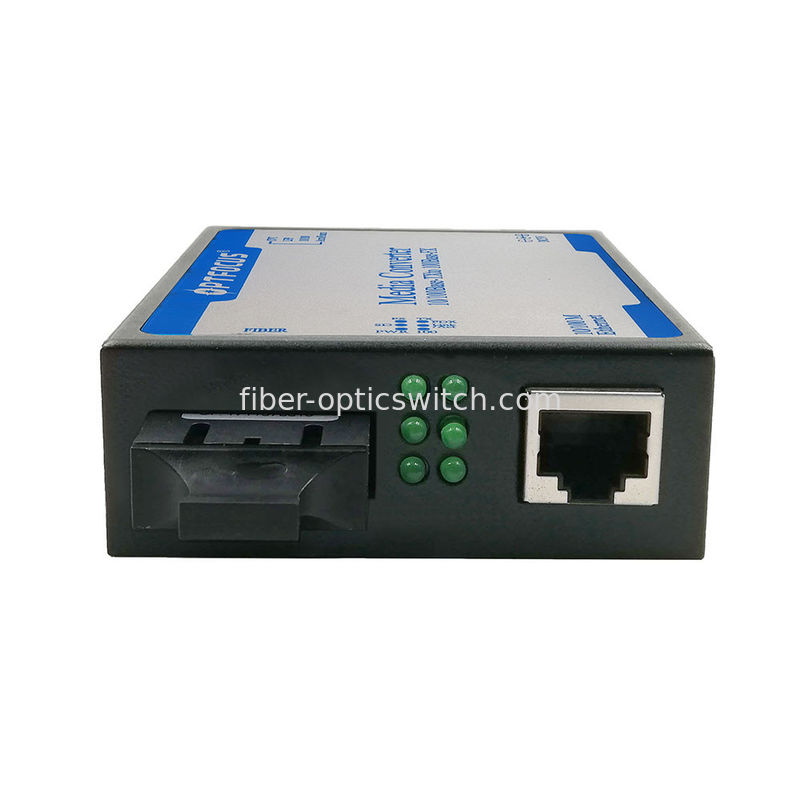

Name : External Power Media Converter
Fiber type: Multimoede , singlemode
Connector: ST,SC. FC, SFP
10/100M Ethernet Fiber Media Converters
OFS series Fiber Media Converters can convert Optical-Electric Ethernet signals between 10/100M UTP interface (TX) and 100M optical fiber interface (FX).
It can extend traditional 10/100M fast Ethernet to the distance of 120km through optical fiber link. It possesses stable performance and good quality by adopting latest IC packages from USA and Taiwan. 6 Group LED indicated lights could fully monitor the working conditions of Converters. It is easy for end-users to observe network operation.
Technical Specifications
| Operating standards | IEEE802.3u,10/100Base-TX and 100Base-FX |
| MAC addresses table | 1K |
| Data buffer | Built-in 128Kbyte RAM |
| Cable |
UTP: Cat. 5 (the max distance up to 100m) Fiber ( Multimode): 50/125, 62.5/125μm(the max distance up to 2km or 5km) Fiber ( Singlemode): 8.3/125, 8.7/125, 9/125, 10/125μm(the max distance up to 20 -120km) |
| Flow Control |
Full Duplex: Supporting standard IEEE802.3x Half Duplex: back pressure |
| LED | Power, FX SD, FX Link/Act, TX 100, TX FDX, TX Link/Act |
| Power Requirement | AC 170 ~ 240V, DC 5V |
| Ambient Temperature | 0 ~ 70°C |
| Humidity | 5 ~ 90% |
| Dimensions | Internal power: 30×110×140mm |
| External power | 26×70×93mm |
Fiber Optic Information
|
Type |
Connector |
Fiber type |
Wavelength |
Max. distance |
TX power |
Sensitivity |
Link Budget |
|
OFS-DM-2 |
ST/SC |
multimode |
850/1310nm |
2km |
-20~-12dBm |
-30dBm |
10dBm |
|
OFS-DM-5 |
SC |
multimode |
850/1310nm |
5km |
-13~-8dBm |
-30dBm |
17dBm |
|
OFS -DS-25 |
SC |
singlemode |
1310nm |
25km |
-14~-8dBm |
-32dBm |
18dBm |
|
OFS -DS-40 |
SC |
singlemode |
1310nm |
40km |
-8~-3dBm |
-33dBm |
25dBm |
|
OFS -DS-60 |
SC |
singlemode |
1310nm |
60km |
-3~0dBm |
-36dBm |
33dBm |
|
OFS -DS-80 |
SC |
singlemode |
1550nm |
80km |
-10~-5dBm |
-35dBm |
25dBm |
|
OFS -DS-100 |
SC |
singlemode |
1550nm |
100km |
-5~0dBm |
-36dBm |
31dBm |
|
OFS -DS-120 |
SC |
singlemode |
1550nm |
120km |
0~3dBm |
-36dBm |
36dBm |
Order Information
|
Model |
Product description |
|
OFS-DM |
10/100M multimode Media Converter, the max optical fiber distance up to 2/5 km. |
|
OFS-DS-xx |
10/100M singlemode Media Converter, max fiber distance from 20 to 120 km, xx for the amount of distance. |
