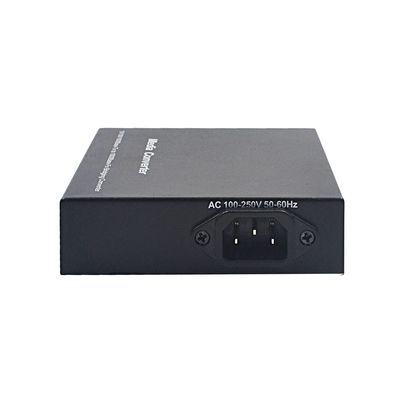

SFP+ Fiber Media Converter 10G Optical Media Converter Support Hot Plugging

Basic Information
Place of Origin: China
Brand Name: OPTFOCUS
Certification: CE
Model Number: OFS-10GAS-1
Minimum Order Quantity: 1
Price: USD9 per Unit
Packaging Details: Box/Carton
Delivery Time: 7 days
Payment Terms: T/T, Western Union
Supply Ability: 70000 per Month
Product Name: Media Converter Distance: 20km
LOGO: Customized Connector: SC,LC
MOQ: 1 Model Number: OFS-10GAS-1
Place Of Origin: China Warranty Time: 1 Year
Brand: OPTFOCUS
High Light:

SFP+ Fiber Media Converter

,

Hot Plugging Fiber Media Converter

,

10G Optical Media Converter

Factory OEM/ODM Fiber Media Converter Media Converter Gigabit
Welcome to contact our sales team and they will offer you a professional introduction about our products!

Product Overview

This product is high-performance 10G optical media converter , Using Optical - Electrical - Electrical

wavelength conversion, realize the optical signal equilibrium amplification, clock extraction and optical regeneration, and with WDM (DWDM/CWDM) technology, can achieve optical signals transmit in a single fiber by single or multiple way over a long distance. On the existing network infrastructure, it can quickly improve the communication capacity, expand the bandwidth, while using low cost and high cost-effective solutions to manage and operate the system, easy operation and maintenance.

  • 1 Port 10G with Auto Uplink™ , 1 port SFP+
  • 1G/10G Auto-negotiation , auto-MDI-MDI-X
  • Comply with IEEE 802.3, IEEE 802.3u 10GBase-TX, 10GBase-FX Standard
  • Auto negotiation function allows UTP port to auto select 1G or 10G and Full Duplex or Half Duplex
  • Easy installation
  • Extend fiber distance up to 2km for multi-mode fiber and 20-120km for single-mode fiber
  • Data Transfer Rate:

TP: 1G/10G

FX: 10G

  • Duplex mode support:

Full or half-duplex mode by Auto-Negotiation (TP)

Full or half-duplexmode by DIP-switch (FX)

  • LED indicators: Power, 1G, FX Link/Act,10G
  • Support hot plugging
  • Internal circuit of prevented thunder could greatly reduce damage of the converter caused by thunderbolt induction.
Product Name 10G Media Converter
Product Model OFS-10GAS-1



Connector

RJ-45:1G/10Gbps;

Fiber: SFP+



Network Media

1000BASE-TX: Cat6 or later UTP(≤100 meter) 10GBASE-TX: Cat6A or later UTP(≤100 meter)





Fiber Media

Fiber ( Multimode): 50/125, 62.5/125μm(the max distance up to 2km or 5km)

Fiber( Singlemode): 8.3/125, 8.7/125, 9/125, 10/125μm(the

max distance up to 100km)

Forwarding Mode Store-and-Forward
Forwarding Rate: 14880000pps/port





Operating standard

SFF-8431,SFF-8432

IEEE802.3an(10Gbase-T), IEEE802.3ae(10Gbase-SR/LR/ER/ZR)

Power

external

Input:AC 220V(1100~240V)

Output:DC 5V 3A

Power consumption <10W
LED Power, 1G,Link/Act,10G.



Working Environment

Working temperature: -10~50℃ ; Storage temperature: -20~75℃

Relative Humidity: 5%~95 %( no condensation)
