LFP Single Mode Fiber Rj45 Converter , LC SC Media Converter Networking 10 / 100M

Basic Information
Place of Origin: Guangdong, China(Mainland)
Brand Name: OPTFOCUS
Certification: CE,FCC
Model Number: OFS-DML
Minimum Order Quantity: 5 pieces
Price: negotiated
Packaging Details: 30×110×140mm
Delivery Time: 3-5 Working Days after Payment Received
Payment Terms: Western Union, T/T, L/C, Paypal
Supply Ability: 10000 Pieces per Month
Type: MM,SM,WDM Operating Standards: IEEE802.3u,10/100Base-TX And 100Base-FX
Packaging Details: Normal Or According To Customer's Requirements Delivery Detail: 3-5 Working Days After Payment Received
Fiber Connector: SC,ST,FC,LC Power: External
Optical Fiber: Single Fiber Or Double Fiber Ethernet: 10 / 100M
High Light:

fiber optic media converter


optical media converter

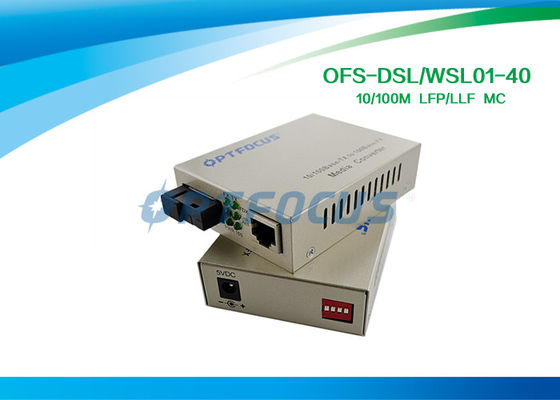

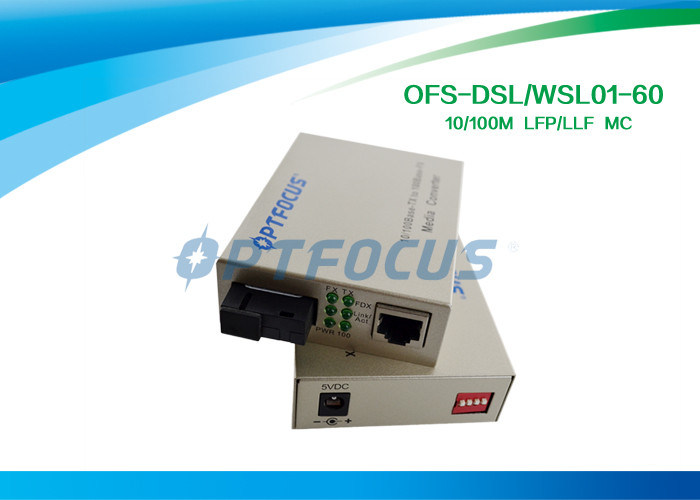

LFP Single Mode Fiber Rj45 Converter , LC SC Media Converter Networking 10 / 100M


10 / 100M LFP media converter / media converter rj45
1. Have DIP switch
2. IEEE802.3u, 10 / 100Base-TX and 100Base - FX
3. UTP: Cat. 5


OFS series Fiber Media Converters can convert Optical-Electric Ethernet signals between 10/100M UTP interface (TX) and 100M optical fiber interface (FX).  It can extend traditional 10/100M fast Ethernet to the distance of 120km through optical fiber link. It possesses stable performance and good quality by adopting latest IC packages from USA and Taiwan. 6 Group LED indicated lights could fully monitor the working conditions of Converters. It is easy for end-users to observe network operation. OFS series external power supply Converters could be used alone, or inserted to 14 slots Converters Rack supplied by OFS Crop. suitable for the use of Network Centre.


Main features


* Auto negotiation function allows UTP port to auto select 10M or 100M, and Full Duplex or Half Duplex.

* UTP port supports MDI / MDI-X auto crossover.

* Indicator function of link fault (LFP): When optical fiber or UTP is at fault, the converter could stop all the    link.

* Multiple Optical Transceiver could be chosen: SC, ST or FC, singlemode / multimode

* Supporting 1600 bytes packet for management

* Converter working mode could be chosen: Store and forward switch mode, Modified cut-through switch      mode, or Converter mode.

* Internal Circuit of prevented thunder could greatly reduce damage of the converter caused by          thunderbolt induction.

* Internal or External switching power: for users to choose.


Technical Specifications


Operating standards IEEE802.3u, 10 / 100Base- TX and 100Base - FX
MAC addresses table 1K
Data buffer Built-in 128Kbyte RAM
Connectors UTP Connector: RJ-45, 10 / 100Mbps;  Fiber Connector: ST / SC / FC, 100Mbps

UTP:                            Cat. 5 (the max distance up to 100m)

Fiber ( Multimode):      50 / 125, 62.5 / 125μm(the max distance up to                                              2km or 5km)

Fiber ( Singlemode):    8.3 / 125, 8.7 / 125, 9 / 125, 10 / 125μm(the max                                          distance up to 20 -120km)

Flow Control

Full Duplex:    Supporting standard IEEE802.3x

Half Duplex:    back pressure

LED Power, FX SD, FX Link / Act, TX 100, TX FDX, TX Link/Act
Power Requirement AC 170 ~ 240V, DC 5V
Ambient Temperature 0 ~ 70°C
Humidity 5 ~ 90%

Internal power:  30×110×140 mm

External power:  26×70×93 mm
