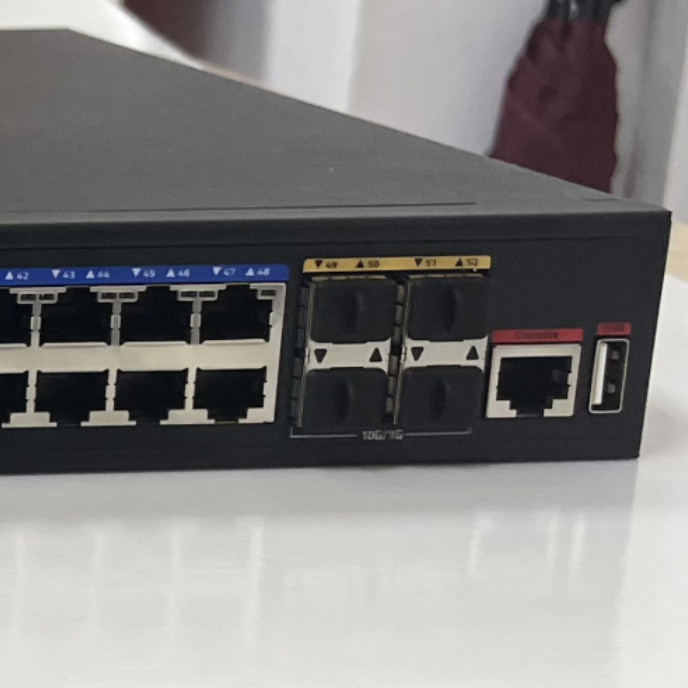

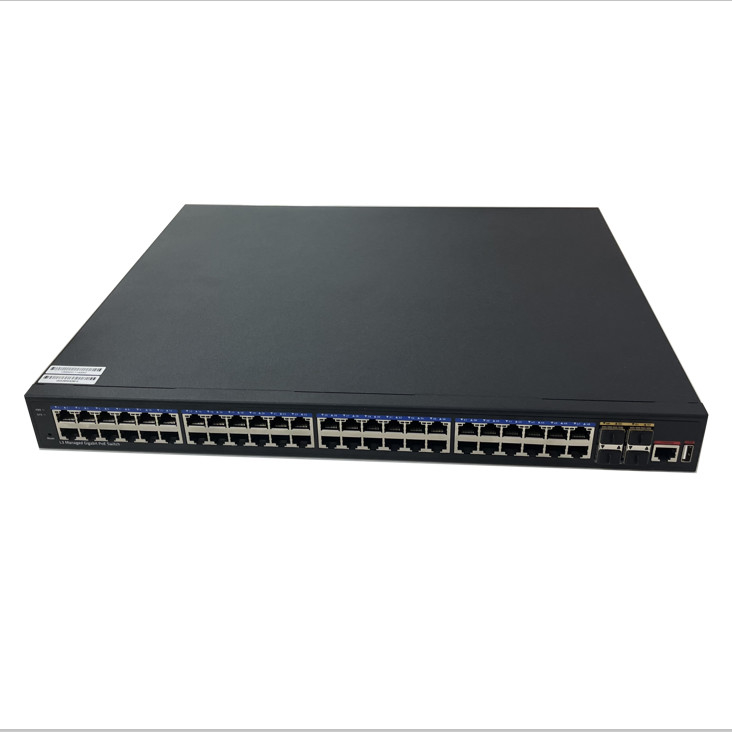

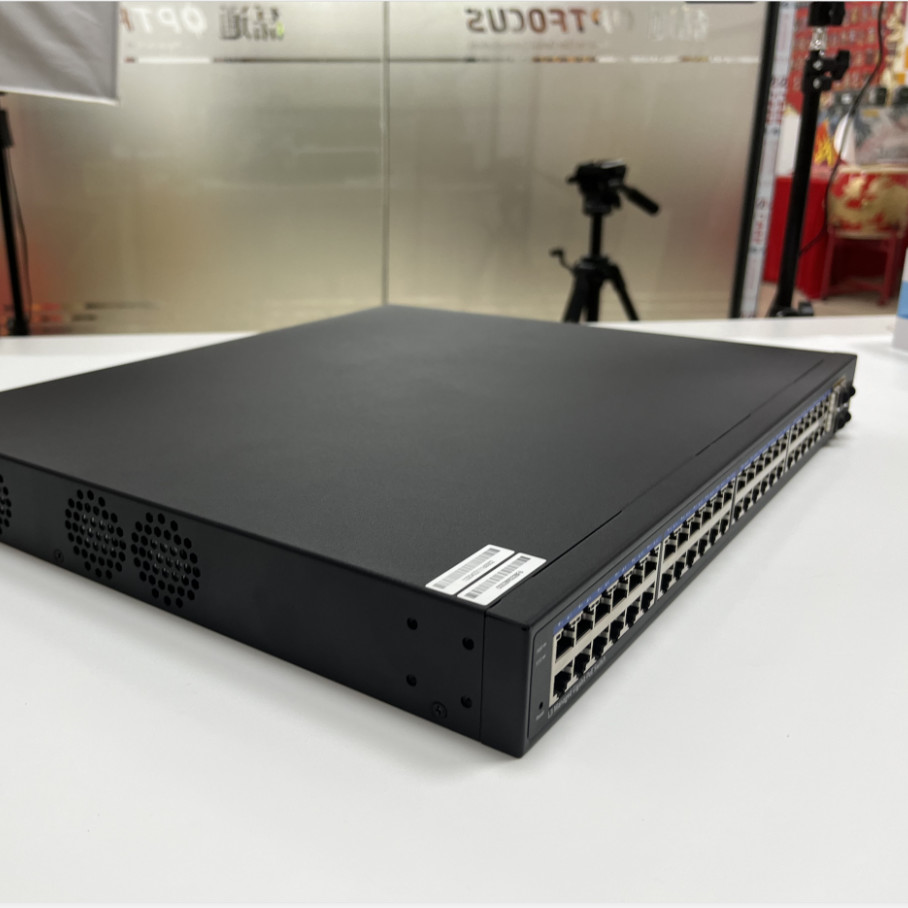

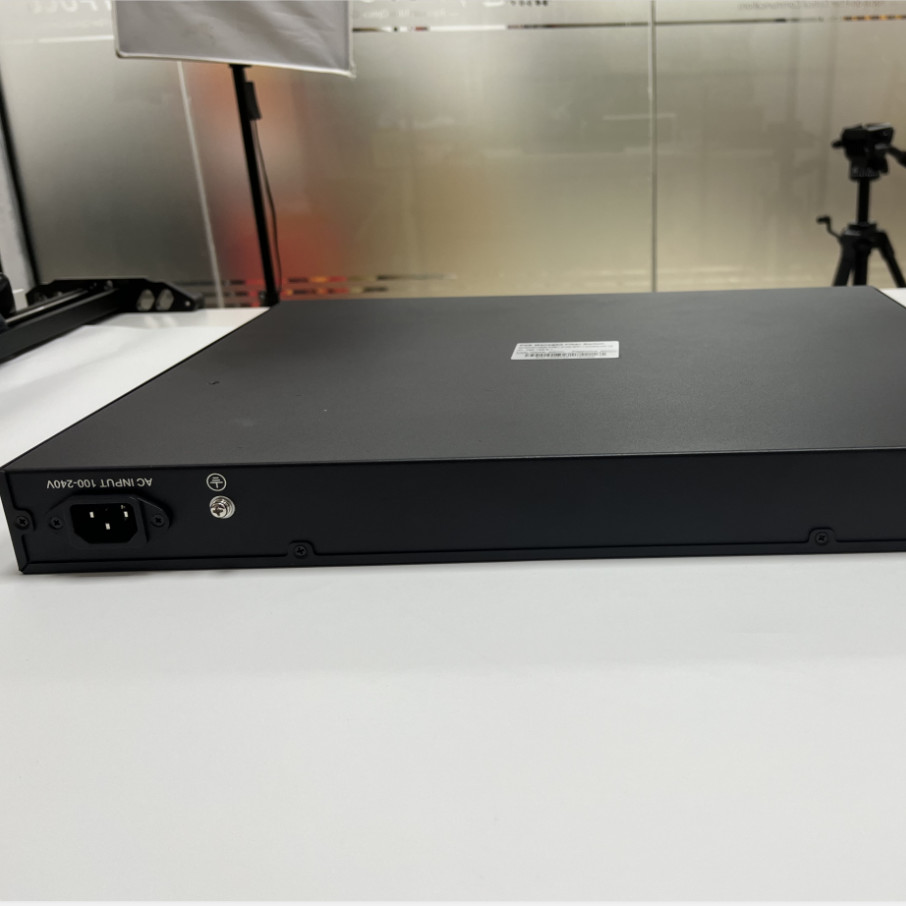

L3 Management 48 Port Poe Switch 48 * 10/100/1000Mbps POE Ports + 4 * 10G SFP+ Port

Basic Information
Place of Origin: China
Brand Name: OPTFOCUS
Certification: CE
Model Number: OFS-PE-M3XF4GT48
Minimum Order Quantity: 1pcs
Price: negotiated
Packaging Details: The seller standard export package
Delivery Time: within 1-3 days after get payment
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 10000pcs one month
Color: Black Camera: Adjustable Position
Operation Temperature: 0~40℃ Relative Humidity: 10~65%
High Light:

Management 48 Port Poe Switch OEM


L3 48 Port Poe Switch


10G SFP+ Ethernet POE switch

48 Port Poe Switch 48* 10/100/1000Mbps POE Ports+4* 10G SFP+ Port NVR IP Camera CCTV



52 Port 10G Uplink 48 Ports Gigabit L3 Management Ethernet POE switch, provides 48* 10/100/1000M POE Ethernet Ports, 4* 10G SFP+ Ports, 1* console Port, 1* USB Serial Port. With perfect security control policy and CPU Protect Policy, it can improve fault tolerance and ensure the stable operation of the network and load balance of links. The switch supports automatic DoS attack defense, SNMP, IEEE 802.1, STP, RSTP, and link aggregation. With advanced security features and advanced quality of Service (QoS), it can be used as a core, distribution or access layer switch with high-end port density, ease of management, it is an ideal choice for a variety of business networking applications.


I/O Interface
Power Input AC100-240V/50-60Hz

48* 10/100/1000Mbps POE Ports (Ports 1-8 support BT Power Supply) 4* 10G SFP+ Port

1* RJ45 Console Port 1* USB serial Port

Bandwidth 176Gbps
Packet Forwarding Rate 131Mpps
Buffer Memory 512MByte
Flash Memory 32MByte
MAC Address 32K
Jumbo Frame 12Kbytes
VLANs 4096
MTBF 100000 Hours
Network Protocol

IEEE802.3 Ethernet MAC Protocol IEEE802.3u 100BASE-TX Fast Ethernet

IEEE 802.3ab 1000BASE-T Gigabit Ethernet

IEEE 802.3z 1000BASE-X Gigabit Ethernet (optical fiber) IEEE 802.3ae 10G Ethernet

IEEE802.3x Flow Control

IEEE 802.3az Energy-efficient Ethernet

IEEE 802.3ad Standard method for performing link aggregation IEEE 802.1AB LLDP/LLDP-MED (Link Layer Discovery Protocol) IEEE 802.1D Spanning Tree Protocol(STP)

IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) IEEE 802.1Q (VLAN Bridge Operation)

IEEE 802.1p (VLAN Label)


  IEEE 802.1X Client/Server Access Control and Authentication Protocol
POE Standard IEEE802.3af (15.4W). IEEE802.3at (30W), IEEE802.3bt (90W)
Industry Standard

EMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD),

EN61000-4-4 (EFT), EN61000-4-5 (Surge)

Network Medium 10Base-T : Cat3, 4, 5 or above UTP(≤100m) 100Base-TX : Cat5 or above UTP(≤100m) 1000Base-TX : Cat5 or above UTP(≤100m)
Environment Standard
Working Environment

Working Temperature:-10~50°C Storage Temperature:-40~70°C

Working Humidity :10%~90%,non-condensing Storage Temperature:5%~90%,non-condensing
