AI Smart PoE Switch 8x1000M POE Port UP Link 2x1000m RJ45 Port 2x1000m SFP for NVR IP Camera

Basic Information
Place of Origin: China
Brand Name: OPTFOCUS
Certification: CE
Model Number: 8 ports poe switch
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Box/Carton
Delivery Time: 1 days
Payment Terms: T/T, Western Union
Supply Ability: 70000 per Month
Product Name: POE Switch Distance: 20km
LOGO: Customized Connector: SC,LC
MOQ: 1 Model Number: OFS-PE-GSF2GT2T8
Place Of Origin: China Warranty Time: 1 Year
Brand: OPTFOCUS
High Light:

AI Smart PoE Network Switch

,

8x1000M PoE Network Switch

,

Metal Casing POE Ethernet Switch

AI Smart POE Ethernet Switch 8*1000M POE Port+UP-Link 2*1000m RJ45 port+2*1000m SFP for NVR IP Camera


The PoE switch provides power and data from a single point, using Power over Ethernet (PoE) over a single Cat-5 cable. It can be used for any 10/100/1000Mbps link and supply industry-standard IEEE 802.3af/at power. Advanced auto-sensing algorithm gives power to 802.3af/at end devices, In addition, the PoE switch automatically determines PoE requirements, speed, duplex, and cable type using Auto Uplink. Easy to operate and reliable.





Connector 8*10/100/1000mbps POE port,2*1000mbps Uplink RJ45 port,2*1000mpbs SFP
Power Supply Type Build In, 1/2+,3/6-
PoE Output Power 15.4W/30W
DATA PIN 1/2+ 3/6- ,4/5+ 7/8-
Network Medium Cat5 (UTP) or more
Network Standards

IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX

IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet

PoE power Wiring: Data & power provided over pairs 1/2 and 3/6 or 4/5 (+) and 7/8(-)
Processing types

Store-and-forward

Half-duplex back pressure and IEEE 802.3x full-duplex flow control

Address database Table Size 8K MAC address
Buffer memory 48Kb embedded memory per unit
Backboard Bandwidth 20Gpbs Full duplex
Network Latency Less than 20us for 64 byte frames in store-and-forward mode for 100Mbps to 100Mbps transmission
Input 110V-240V
Overload current protection Present
Casing Metal Casing
Installation Wall mounting/ Desktop
LED Indicators

System: Power, PoE Maximum power

Per port: Link, Activity, Speed, PoE active, PoE error

Operating temperature -10-55℃(32-104℉)
Storage temperature -40-70℃(14-158℉)
Operating humidity 90% maximum relative humidity, non-condensing
Storage humidity 95% maximum relative humidity, non-condensing
ISO Manufactured in ISO9001 facility
Safety CE

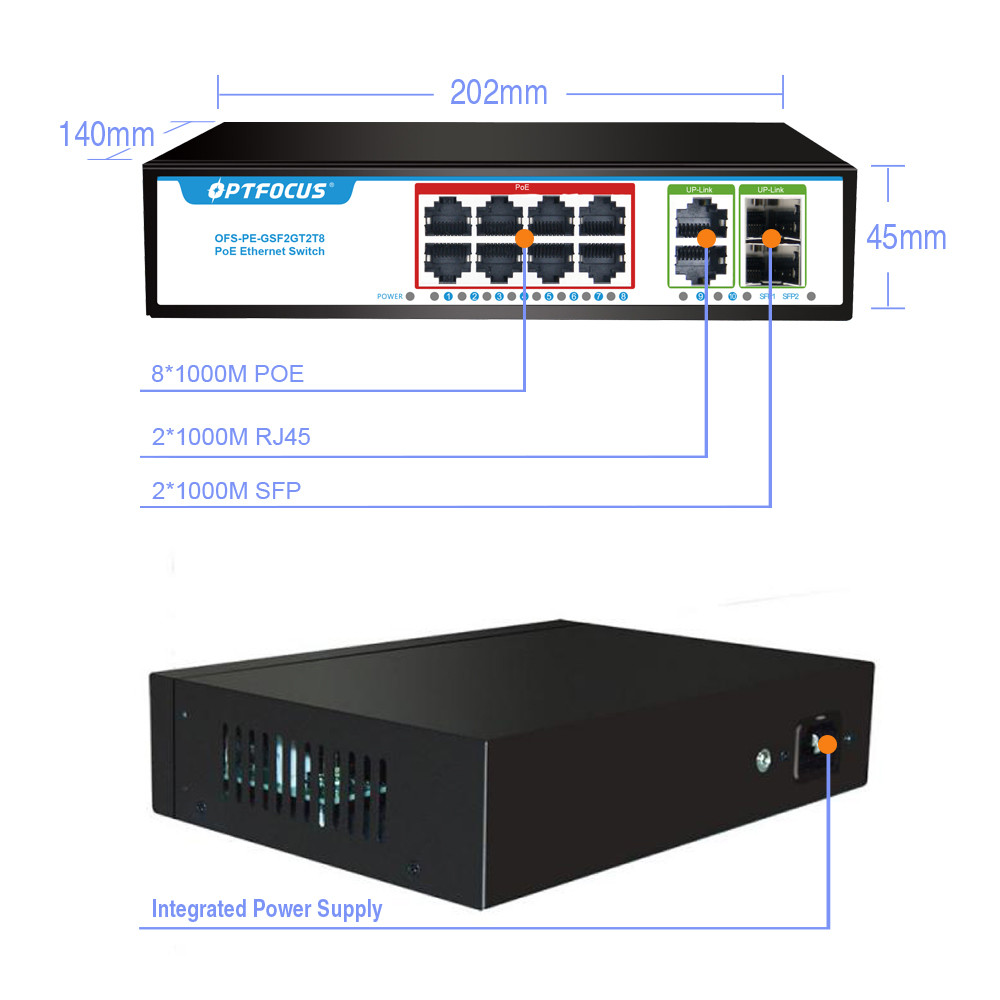

Dimensions 202*140*45mm (L*W*H)
Weight N.W:0.9Kg G.W:1.1Kg
OFS-PE-GSF2GT2T8 8*10/100/1000mbps POE port,2*1000mbps Uplink RJ45 port,2*1000mpbs SFP,Built-in power supply




AI Smart PoE Switch 8x1000M POE Port UP Link 2x1000m RJ45 Port 2x1000m SFP for NVR IP Camera 0

Company Information



Shenzhen OPTFOCUS Technology Co., Ltd was established in 2009, which is a High -tech manufacturer enterprise with 10 years' experience in global sales and services. Our company focus on professional R & D, production and sales of XPON access equipments, FTTH/FTTx solution and passive cabling system products. We also committed to provide Customized OEM & ODM services to Global communication distributors, Telecom Operators and System Integrator.



Advantage of our company :



1 Strict quality management system;

2 Professional One stop supply & service;

3 OEM&ODM available;

4 Reliable and Timely customer services;



company profile

FAQ:

1. who are we?
We are a 12 years manufacturer specialize in fiber optic communication equipment



2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
