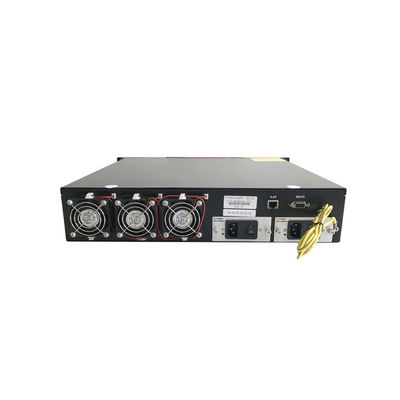

High Power Passive Electronic Components 1550nm EDFA Optical Amplifier DBC WDM For PON OLT

Basic Information
Place of Origin: China
Brand Name: Optfocus
Certification: CE&FC
Model Number: EDFA_OFS-A6102
Minimum Order Quantity: 100 pcs
Price: $20
Packaging Details: 1 pcs in a opp box
Delivery Time: 5-7 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20000pcs/month
Fiber Connector: TV Input:1550nm COM:1550/1490/1310nm SC/APC Optical Wavelength: 1540 ~1560
Laser Bias Current: 16*19/32*16dBm 3300mA±200mA @+6dBm Input
High Light:

1550nm EDFA Optical Amplifier

,

EDFA passive electronic components

,

PON OLT EDFA Optical Amplifier

High Power passive electronic components EDFA 1550nm Optical Amplifier DBC EDFA WDM for PON OLT



High Power Passive Electronic Components 1550nm EDFA Optical Amplifier DBC WDM For PON OLT 0High Power Passive Electronic Components 1550nm EDFA Optical Amplifier DBC WDM For PON OLT 1High Power Passive Electronic Components 1550nm EDFA Optical Amplifier DBC WDM For PON OLT 2



Description Unit Value Conditions / Notes
EDFA Optical Specifications
Fiber Connector nm

TV input:1550nm

COM:1550/1490/1310nm SC/APC

OLT:1310/1490nm SC/UPC
Optical Wavelength nm 1540 ~1560
Input Power dBm 0~+10 (1550nm) Recommend ≥3dBm
Output Power dBm

8/16/32*16

8/16/32*19

8/16/32*22


Laser Bias Current Pump

16*16dBm

2300mA±200mA

@+6dBm input

Alarm range: Out of

1000mA~3300mA

Laser Bias Current Pump

16*19/32*16dBm

3300mA±200mA

@+6dBm input

Alarm range: Out of

1500mA~4800mA



Laser Bias Current Pump

16*22/32*19dBm

3100mA±200mA

@6dBm input

Alarm range: Out of

1800mA~4600mA

Output Optical Power Stability dB 0.1 @+6dBm Input
Noise Figure dB 4(max 5.8) @+6dBm Input

Isolation

(Input/Output)

dB 30

Return Loss

(Input/Output)

dB 55

Polarization

Dependent Gain

dB max 0.5

Polarization Mode

Dispersion

ps max 0.5
Electrical Specifications
Communication Interface   RJ45 Supporting Web and SNMP NMS
Input voltage VAC 90-265 +12/-48 V DC(optional)
Consumption W 50 maximum 8/16/32*16/19, 8/16*22
100 maximum 32*22
Fuse A 2
Connector IEC Male power connector
Environmental Specifications
Operating Temperature -5 ~50
Storage Temperature -20 ~85
Storage Humidity RH% ≤95 No Condensation
Mechanical Specifications
Dimension (LxWxH) mm 483 ´ 422 ´ 88 Carton:590 ´ 590 ´ 200
Weight kg

Net weight 11.5

gross weight :14.8

8/16 port

Net weight 11.7

gross weight :15

32 port
Mounting   19” EIA rack, 2U Rack


High Power EDFA 1550nm Optical Amplifier DBC EDFA WDM with gain spectrum band within 1540~1563nm,which is mainly designed for the application of CATV or 1~8 continuous branding channel (ITU wavelength) and also offers a flexible and low-cost solution for CATV large areacoverage of large and medium-sized cities.



WS-50EYA High Power EDFA 1550nm Optical Amplifier DBC EDFA WDM for PON OLT can realize Single wave transmission,CWDM three waves in single fiber, flat gain. DWDM; it is important fiber transmission equipment of building large and medium -sized CATVnetwork, mainly used in FTTH,FTTB,DBS,MMDS,FTTX pon.

High Power EDFA 1550nm Optical Amplifier DBC EDFA WDM for PON OLTHigh Power EDFA 1550nm Optical Amplifier DBC EDFA WDM for PON OLT





Technical Index



Item Unit Technical paremeter Supplement
CATV operation wavelength nm 1545~1565 CATV
OLT pass wavelength nm 1310/1490 PON
CATV operation wavelength loss dB 0.8 1550nm
OLT pass wavelength loss dB 0.8 1310/1490nm
Number of uplink optical ports (for OLT) pcs 64
Input optical power dBm -5 ~ +10
Max output power dBm 40
Output power stability dBm ±0.5
Noise dB ≤ 5.0 Input power0dBm,λ=1550nm
Return loss Input dB ≥ 45
Output dB ≥ 45
Optical connector   SC/APC, SC/UPC
C/N dB ≥ 50
C/CTB dB ≥ 63
C/CSO dB ≥ 63
Supply voltage V AC170V~265V; AC90~135V; DC36~72V
Power Consume W ≤ 90
Network management interface   RJ45
Working temperature -10 - +42
Max relative humidity % Max 5% no condensation
Storage temperature -30 ~ +70
Devise size mm 464(L)*440(W)*89(H)
Package size mm 640(L)*640(W)*200(H)

High Power EDFA 1550nm Optical Amplifier DBC EDFA WDM for PON OLTHigh Power EDFA 1550nm Optical Amplifier DBC EDFA WDM for PON OLT



Model:WS-16EYA2U32*19-24SA-W

Analysis According to Model:WS-16EYA2U32*19-24SA-W style 32 outputs, each output power 19dBm, 220V power supply, 48V power supply, optical connector SC/APC, with WDM(1490/1310/1550nm)

High Power EDFA 1550nm Optical Amplifier DBC EDFA WDM for PON OLT

High Power EDFA 1550nm Optical Amplifier DBC EDFA WDM for PON OLT
High Power EDFA 1550nm Optical Amplifier DBC EDFA WDM for PON OLT
