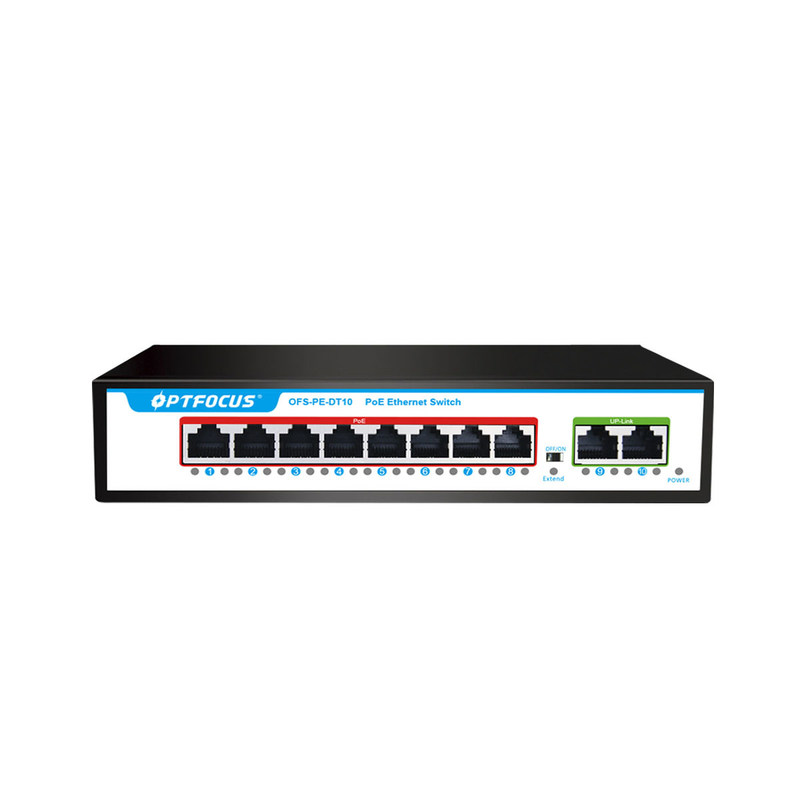

Factory OEM/ODM 100M 10 Port Poe Switch 10port poe switch 8 Port 10/100M ACTIVE POE Switch-(8+2)

Basic Information
Place of Origin: China
Brand Name: OPTFOCUS
Certification: CE
Model Number: OFS-PE-DT10
Minimum Order Quantity: 1
Price: USD13 per Unit
Packaging Details: Box/Carton
Delivery Time: 7 days
Payment Terms: T/T, Western Union
Supply Ability: 70000 per Month
Product Name: POE Switch Distance: 20km
LOGO: Customized Connector: SC,LC
MOQ: 1 Model Number: OFS-PE-DT10
Place Of Origin: China Warranty Time: 1 Year
Brand: OPTFOCUS

Factory OEM/ODM 100M 10 Port Poe Switch 10port poe switch 8 Port 10/100M ACTIVE POE Switch-(8+2)
Welcome to contact our sales team and they will offer you a professional introduction about our products!

Product Overview

The PoE switch provides power and data from a single point, using Power over Ethernet (PoE) over a single Cat-5 cable. It can be used for any 10/100Mbps link and supply industry-standard IEEE 802.3af power. Advanced auto-sensing algorithm gives power to 802.3af end devices, In addition, the PoE switch automatically determines PoE requirements, speed, duplex, and cable type using Auto Uplink. Easy to operate and reliable.

The PoE switch is ideal for powering PoE devices such as IP cameras, WLAN access point, IP phones, office access control systems, and other PD devices and offers a line of high quality products that provide a total solution for Ethernet application in different environments.



Product Name 8 Port 10/100M ACTIVE POE Switch(8+2)
Product Model OFS-PE-DT10
DATA PIN 1/2+,3/6-
Power Supply Type Build in , 1/2+,3/6-
PoE Output Power 15.4W/30W
Connector 8*10/100mbps POE port,2*10/100mbps UP-Link port
Network Medium Cat5 (UTP) or more
Technology
Network Standards

IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX

IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet

PoE power

30W per port(IEEE802.3af/at).

Wiring: Data & power provided over pairs 1/2 and 3/6

Processing types

Store-and-forward

Half-duplex back pressure and IEEE 802.3x full-duplex flow control

Address database Table Size 1K MAC address
Buffer memory 48Kb embedded memory per unit
Backboard Bandwidth 2G
Network Latency Less than 20us for 64 byte frames in store-and-forward mode for 100Mbps to 100Mbps transmission
Power
Input 52V DC input
PoE power consumption 15.4W per port(IEEE802.af)
Overload current protection Present
Mechanical
Casing Metal
Installation Desktop/Rack mounting
Interface
LED Indicators

System: Power, PoE Maximum power

Per port: Link, Activity, Speed, PoE active, PoE error

Environment specification
Operating temperature -10-55℃(32-104℉)
Storage temperature -40-70℃(14-158℉)
Operating humidity 90% maximum relative humidity, non-condensing
Storage humidity 95% maximum relative humidity, non-condensing
Regulatory Approval
ISO Manufactured in ISO9001 facility
Safety CE/CCC
Warranty 2 years
Dimensions 202*140*45mm(L*W*H)
Weight 1.1Kg
  Package List
Package List 10 Port 10/100M POE Switch*1
User Guide*1
Warranty Card*1
Power cable*1
