| Place of Origin: | China |
|---|---|
| Brand Name: | OPTFOCUS |
| Certification: | ROSE CE |
| Model Number: | OFS-GMS8 |
| Minimum Order Quantity: | 1 PCS |
| Price: | 8 USD |
| Packaging Details: | 20 pcs per carton box |
| Delivery Time: | 4-14 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 3000 PCS PER MONTH |
| Material: | Metal Case | Key Words: | Network Switch |
|---|---|---|---|
| Date Rate: | 10/100/1000M | Port: | POE Port |
| Use: | FTTH | ||
| High Light: | OEM Ethernet Network Switch,FTTX Solution Ethernet Network Switch,1310nm PoE Network Switch |
||

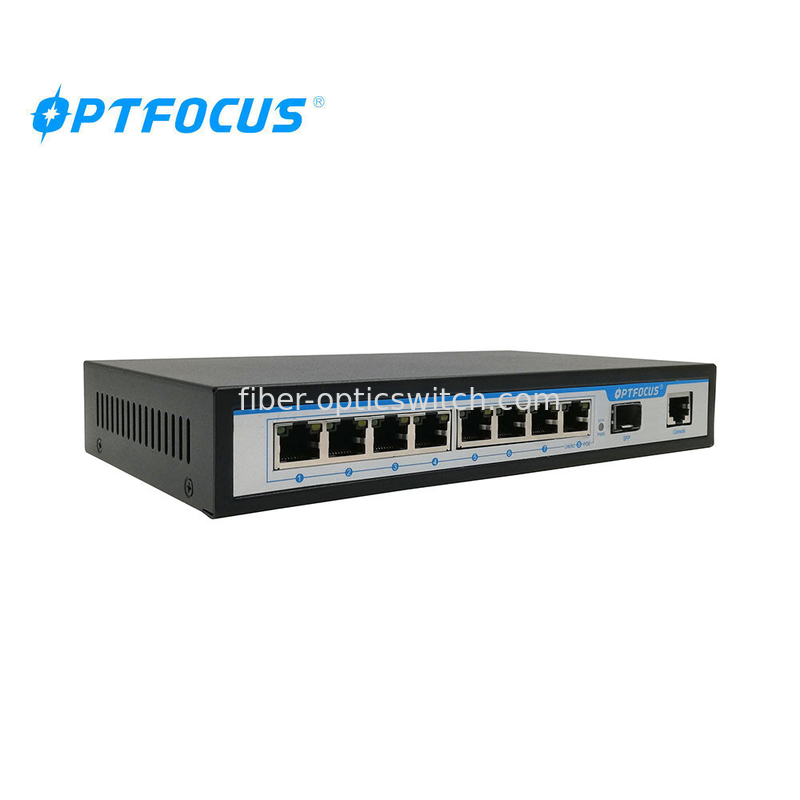

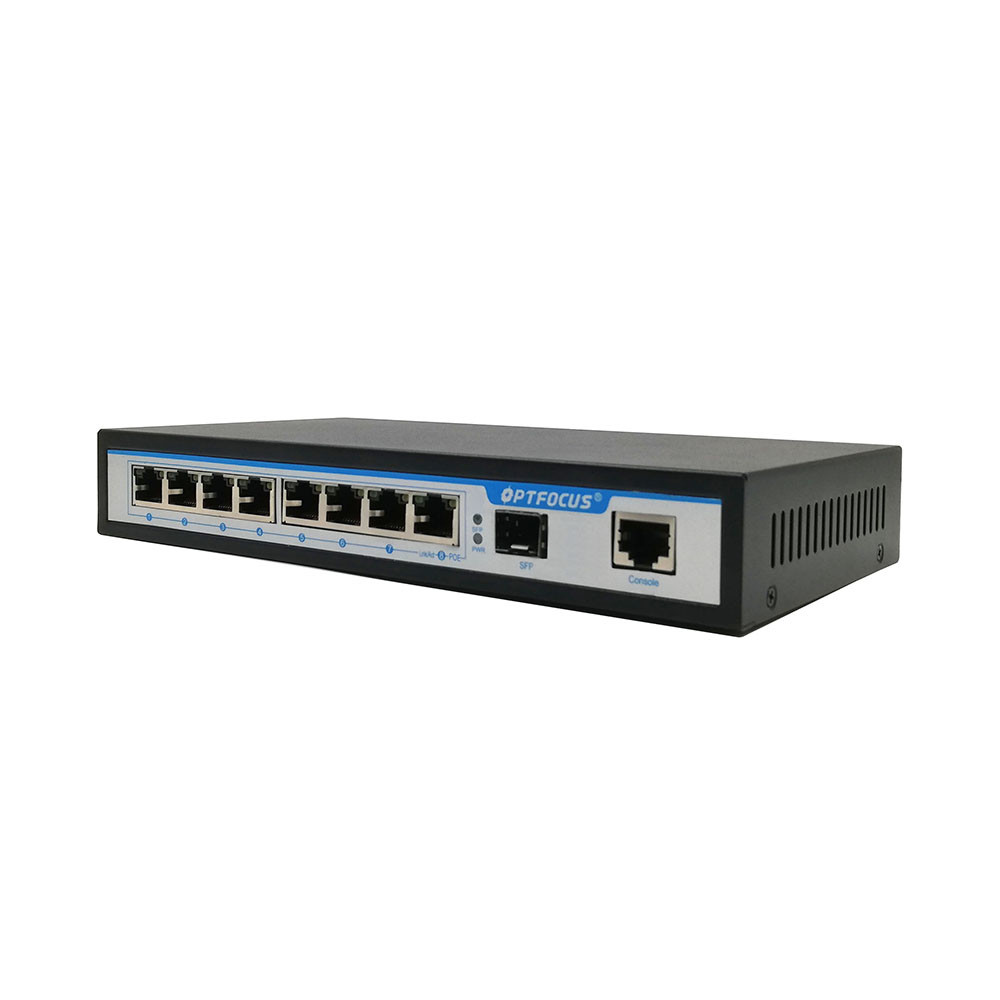

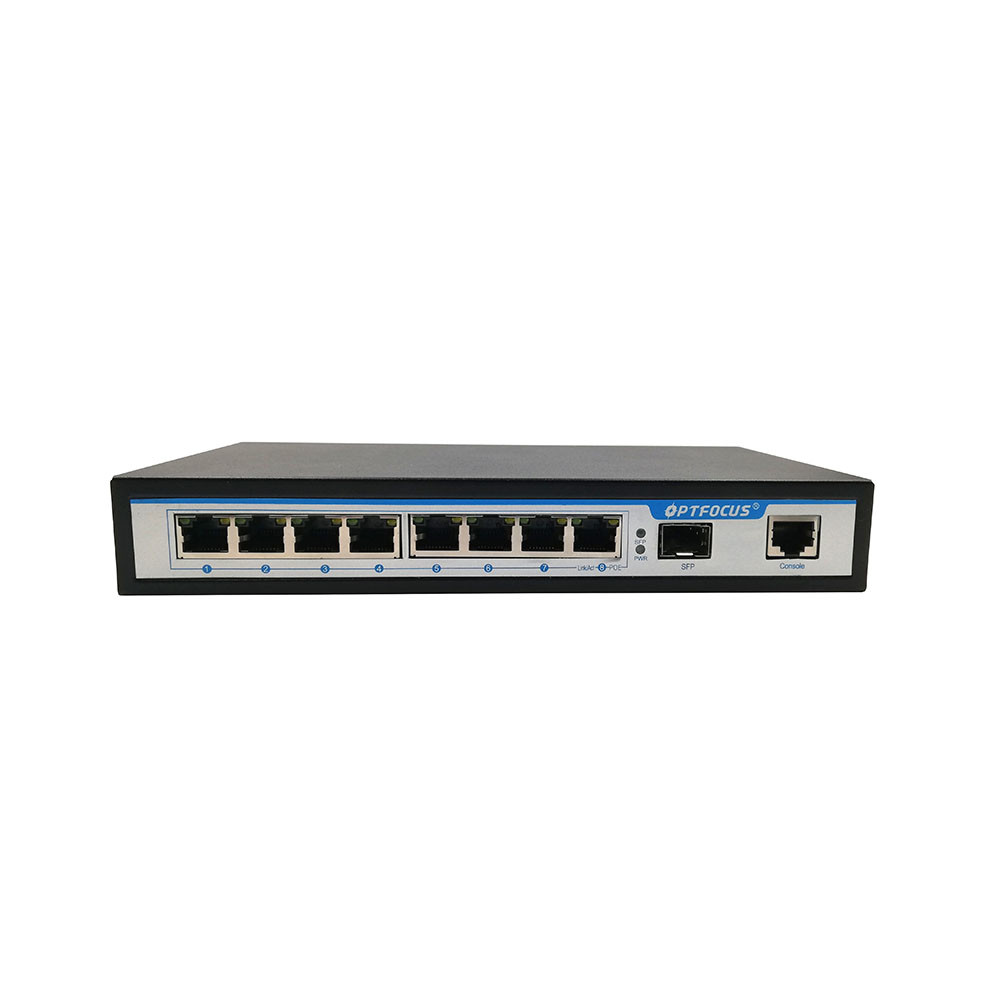

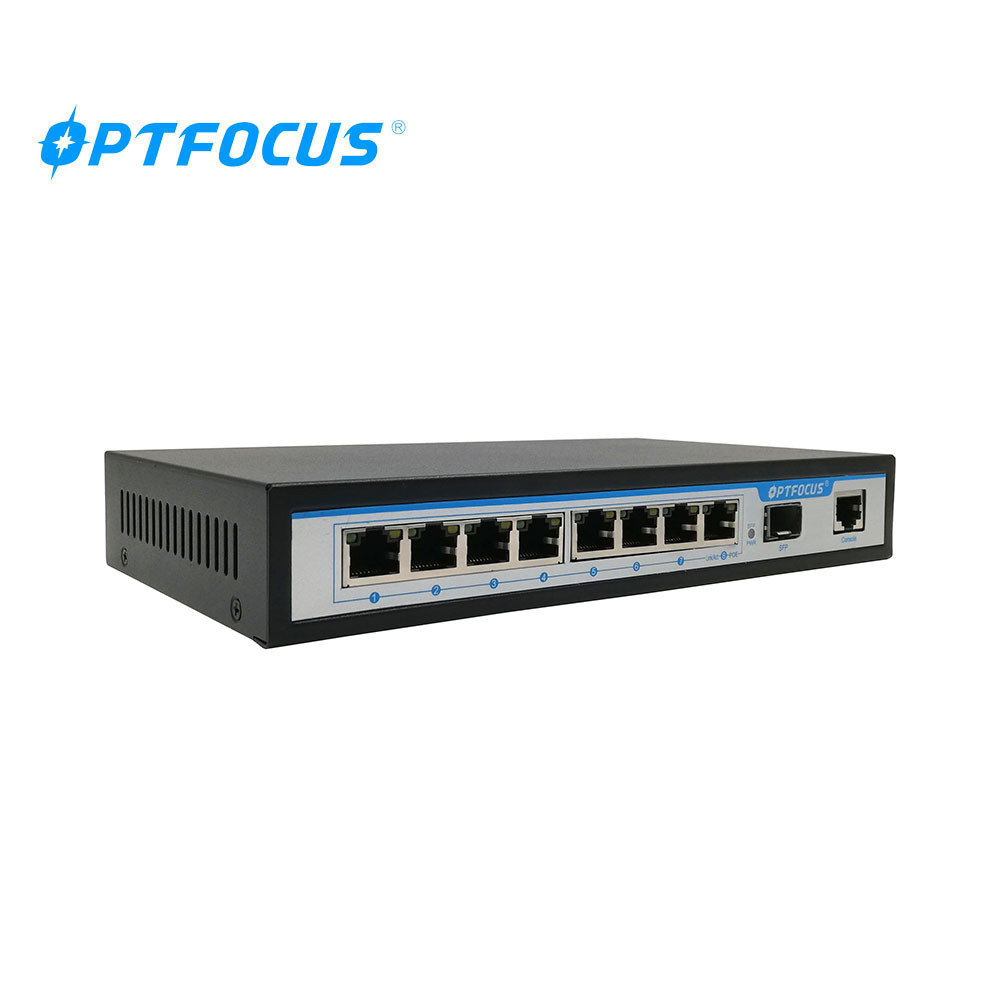

OEM FTTX Solution 1310nm 100/1000M 8 port POE NETWORK SWITCH
OFS-PE-GSF1T2DT8-I with 8*10/100/1000M PoE Ports + 2*1000M SFP Uplink Port,
using high-quality high-speed network IC and the most stable POE chip,
POE port meets 802.3af / 802.3at standard, this series of PoE Switch can be 10/100M Ethernet
The network provides a seamless connection, and the PoE power port can automatically detect and
power the powered devices that comply with the IEEE802.3af / IEEE802.3at standards.
The non-POE device intelligently detects no power and only transmits data.
PoE (Power over Ethernet) refers to the technology of providing dc Power supply
to some IP-based terminals (such as IP telephone, wireless access AP, network camera, etc.)
while transmitting data signals. These devices receiving dc Power supply are called receiving devices.
| Network Protocols |
IEEE802.3 IEEE802.3u IEEE802.3x IEEE802.3ab IEEE802.3z IEEE802.3af/at |
||
| PoE Parameters | PoE Standard: IEEE802.3af /IEEE802.3at | ||
|
Max each port: 15.4W ( IEEE 802.3af ) Max each port:30W ( IEEE 802.3at ) |
|||
| PoE compatibility: IEEE 802.3af/at adaptive | |||
| PoE port output: DC48-55V | |||
| Power Pin : Power over spare pairs 1/2(+) , 3/6 (-) | |||
| Network Media |
10BASE-T: Cat 6 UTP(≤250 meter) 100BASE-T: Cat 5 UTP(≤250 meter) 1000BASE-TX: Cat5 or more UTP (≤100 meter) |
||
| Optical |
MultiMode Fiber: 850nm, 1310nm, Transmission Distance: 550m/2Km Single-Mode Fiber: 1310nm, 1550nm, Transmission Distance: 20/40/60/80/100/120km |
||
|
Performance Specification
|
Bandwidth: 7.6Gbps | ||
| MAC Address: 2K | |||
| Packet Buffer Memory: 448K | |||
| Packet Forwarding Rate: 5.6Mpps | |||
| Forwarding Mode: Store-And-Forward | |||
| Power Supply | Adapter Input Voltage: AC100-240V; Product Input Voltage: DC48-55V, Output: 52V2A, Power Budget: 104W | ||
| Led indicator | PWR |
Power supply indicator (Red) |
Lighting:Powered Un-Light:No Power |
|
SW |
DIP indicator (Green) |
OFF: Normal VLAN: Lighting Extend: Slow flash |
|
|
1-10 |
RJ-45 ACT indicator (Green) |
Lighting:Connecting Flashing:Data Transmit Un-Light:Disconnect |
|
