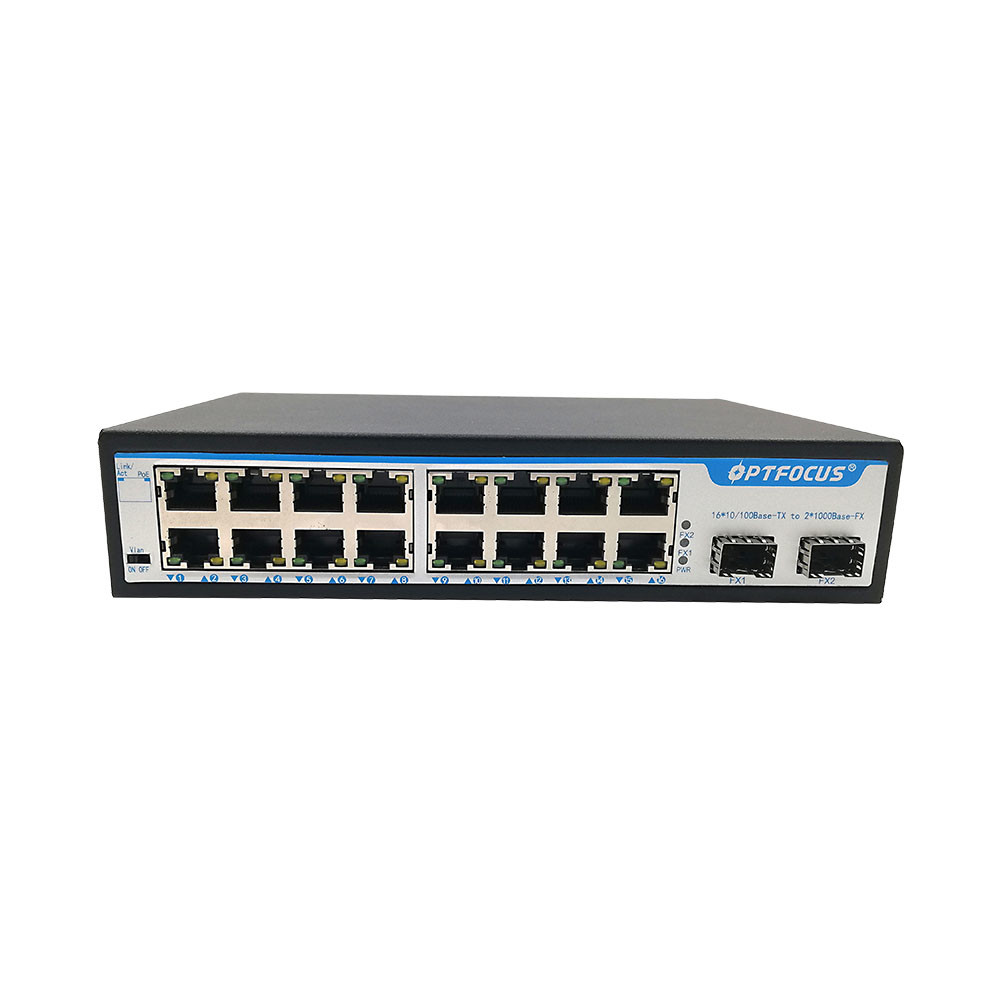

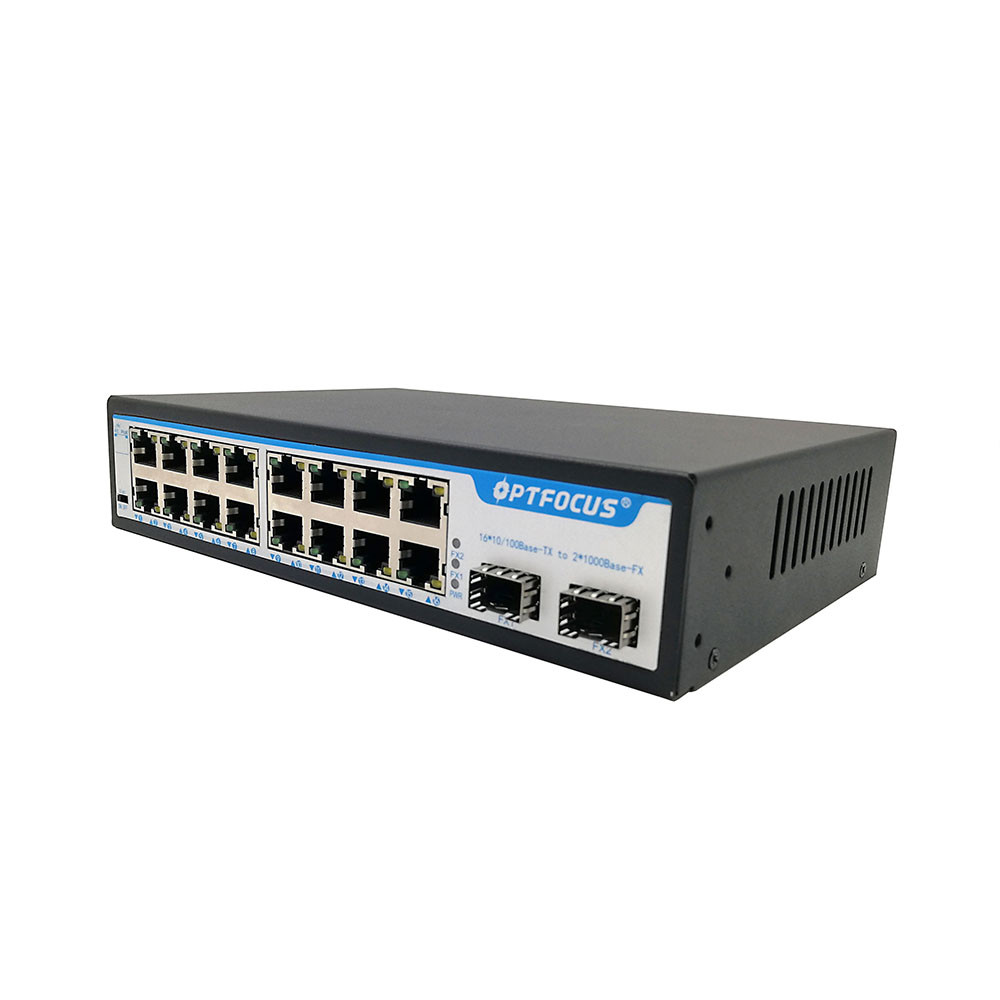

FTTH Ethernet Network Switch 480 Gbps Switching Capacity 16 Ports 2 Slot POE Switch

Basic Information
Place of Origin: China
Brand Name: Optfocus
Certification: CE RoSE
Model Number: OFS-PE-GT2DT16
Minimum Order Quantity: 1 PCS
Price: 18 usd
Packaging Details: 20 pcs per carton box
Delivery Time: 5-14 working days
Payment Terms: Western Union, T/T, MoneyGram
Supply Ability: 5000 pcs per month
Keywords: Poe Fiber Switch Wavelength: 1310nm
Distances: 20KM Date Rate: 1000M
USE: FTTH Type: 10/100/1000 Base T
High Light:

FTTH Ethernet Network Switch

,

480 Gbps Ethernet Network Switch

,

20KM Ethernet POE Switch



FTTH GPON EPON 480 Gbps Switching capacity 16 ports+ 2 slot POE Switch

FTTH Ethernet Network Switch 480 Gbps Switching Capacity 16 Ports 2 Slot POE Switch 0





Description

This switch is 16*10/100M PoE Ports + 2*1000M Ethernet Port, using high-quality high-speed network IC and the most stable POE chip, POE port meets 802.3af/at standard, this series of PoE Switch can be 10/100M Ethernet The network provides a seamless connection, and the PoE power port can automatically detect and power the powered devices that comply with the IEEE802.3af/at standards. The non-POE device intelligently detects no power and only transmits data.

PoE (Power over Ethernet) refers to the technology of providing dc Power supply to some IP-based terminals (such as IP telephone, wireless access AP, network camera, etc.) while transmitting data signals. These devices receiving dc Power supply are called receiving devices.

This series of POE switches, using 8 POE ports + 2 uplink Gigabit Ethernet port, the uplink port is to connect with the network equipment which provide data.



Can transfer data for network surveillance cameras
 Supports port auto-flip (Auto MDI/ MDIX)

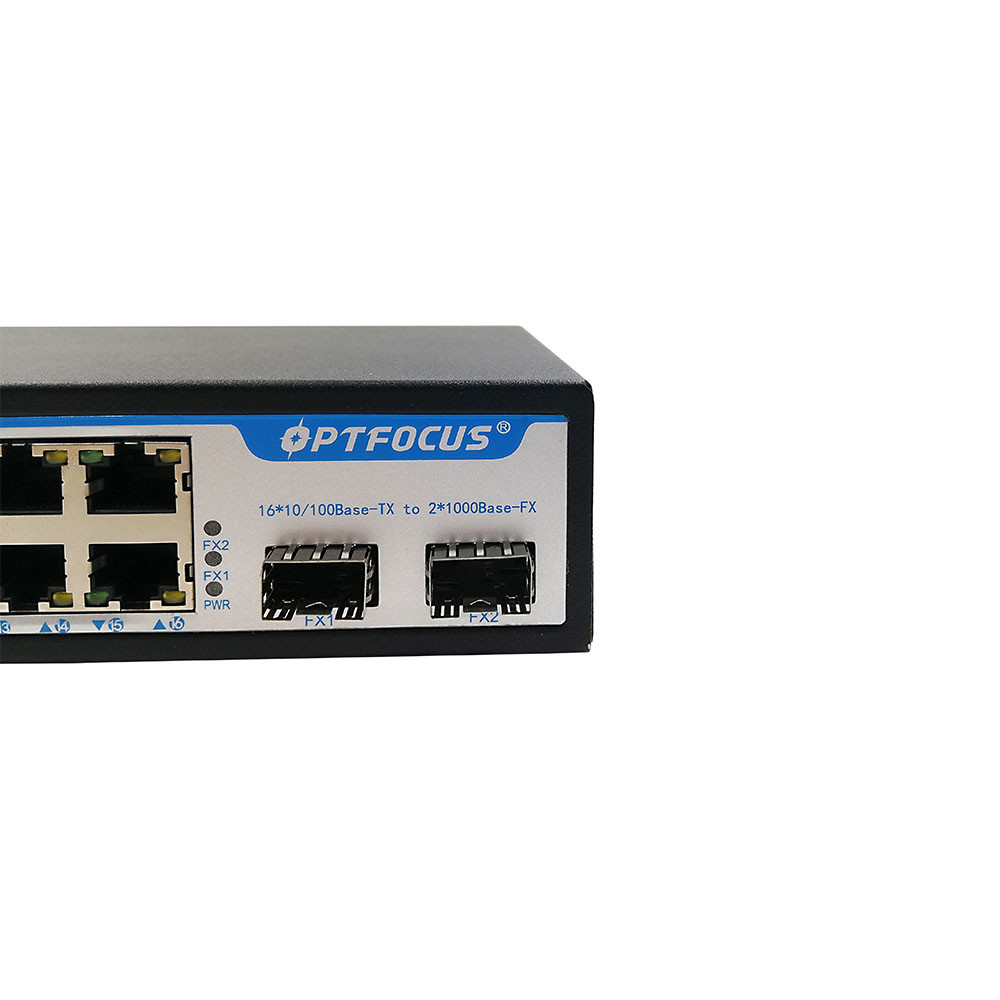

 Uplink port: 1.25Gbps fiber interface
 Maximum power consumption: 30W
 Adopts store-and-forward architecture
 Features with fanless, natural cooling, small, compact andquiet design, suitable for desktop or wall mounting
 Built-in 1U rack power supply series, easy to place it intostandard mounting brackets
 Optic fiber module is not included, can be orderedseparately
 Remote Web interface for Switch management





Model OFS-PE-GT2DT16
Connector Type 16 Port 10/100M PoE + 2 Port 10/100/1000M Ethernet Uplink
Network Protocols

IEEE802.3

IEEE802.3u

IEEE802.3x

IEEE802.3ab

PoE Parameters

PoE Standard: IEEE802.3at (30W) and IEEE802.3af (15.4w)

PoE compatibility: IEEE 802.3af/at adaptive

PoE port output: DC52V

Power Pin : 1/2(+) ; 3/6 (-)

DIP VLAN: Port isolation mode. In this mode, the PoE ports (1-8) of the switch cannot communicate with each other, and can only communicate with the UP-link port. The port AI mode is turned on.
  Default: Normal mode, all port can communicate with each other, the transmission distance is within 100 meters, the transmission rate is 10M / 100M adaptive; The port AI mode is closed.
  Extend: Link extension mode, 1-8 ports PoE power supply and data transmission distance can be extended to 250 meters, the transmission rate becomes 10M, and the port AI mode is turned on.
Network Media

10BASE-T: Cat 3,4,5 UTP(≤100 meter)

10BASE-T: Cat 6 UTP(≤250 meter)

100BASE-TX: Cat5 or more UTP (≤100 meter)

Power Supply Power input: AC100-240V 50/60Hz, Output: 52V2.3A, Power Budget: 120W
Performance Specification Bandwidth: 5.6Gbps
  MAC Address: 2K
  Packet Buffer Memory: 768K
  Packet Forwarding Rate: 0.1488M pps/each port
  Forwarding Mode: Store-And-Forward
Led indicator PWR Power supply indicator(Red)

Lighting:Powered

Un-Light:No Power





SW



DIP indicator(Green)

OFF: Normal

Vlan: Lighting

Extend: Slow flash





1-10



RJ-45 ACT indicator(Green)

Lighting:Connecting

Flashing:Data Transmit

Un-Light:Disconnect
