| Place of Origin: | China |
|---|---|
| Brand Name: | Optfocus |
| Certification: | CE |
| Model Number: | OFS-GSF2T24 |
| Minimum Order Quantity: | 1 piece |
| Price: | negotiable |
| Packaging Details: | 5 pcs per carton box |
| Delivery Time: | 3-10 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 2000 PCS per month |
| Type: | Network Switch | Use: | FTTX |
|---|---|---|---|
| Distance: | 40km | Wavelength: | 1550nm |
| Date Rate: | 10/100/1000M |

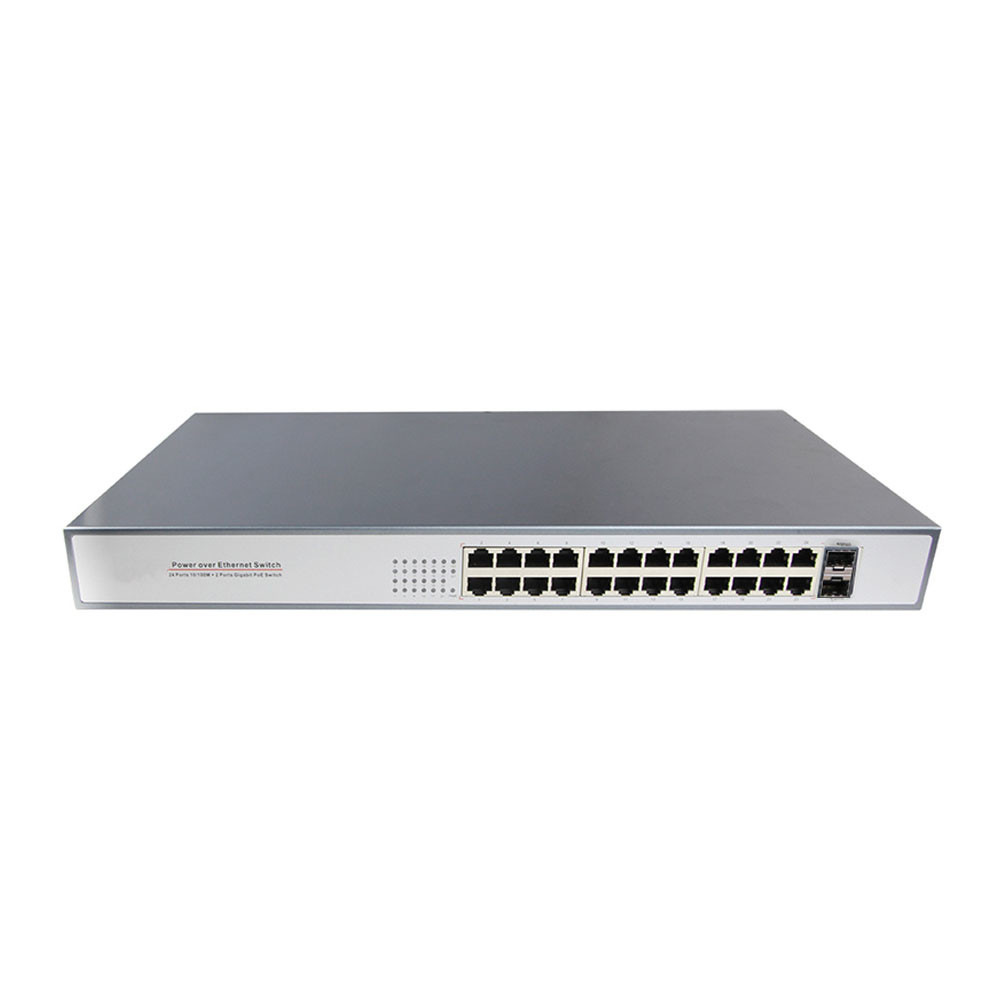

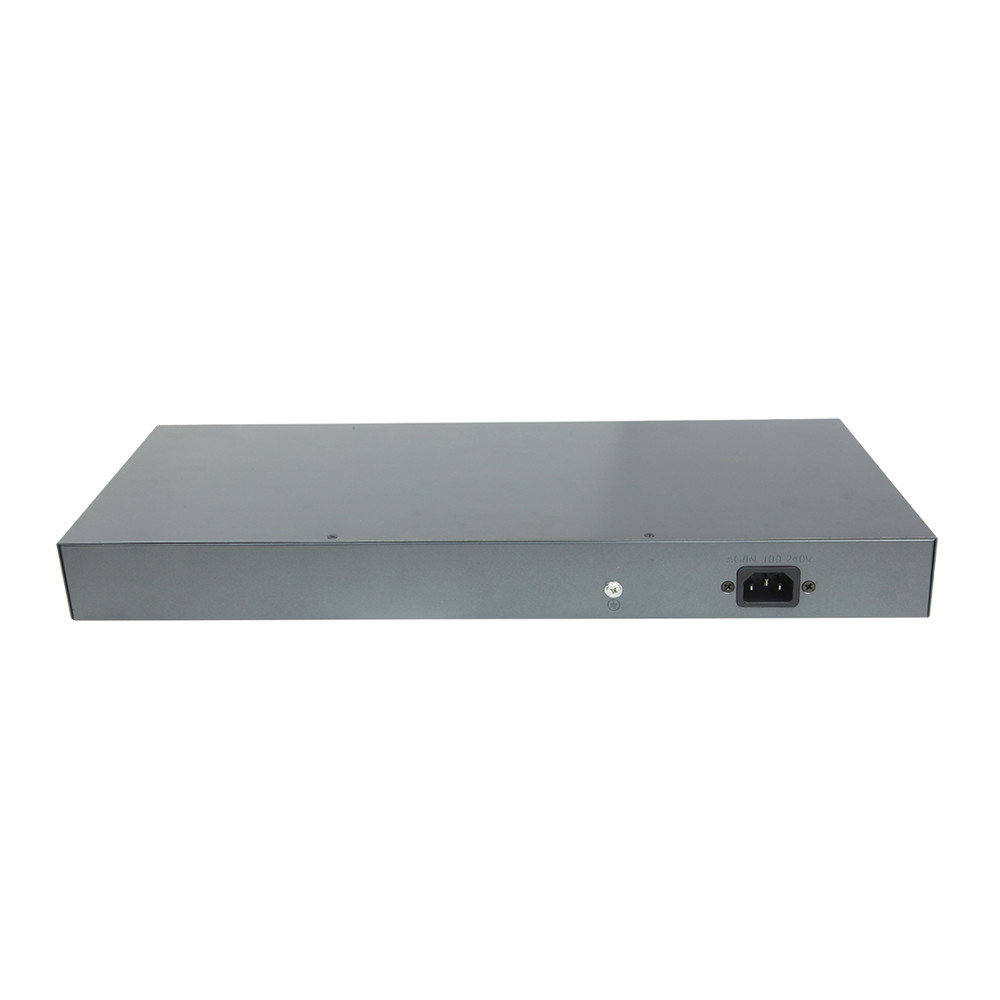

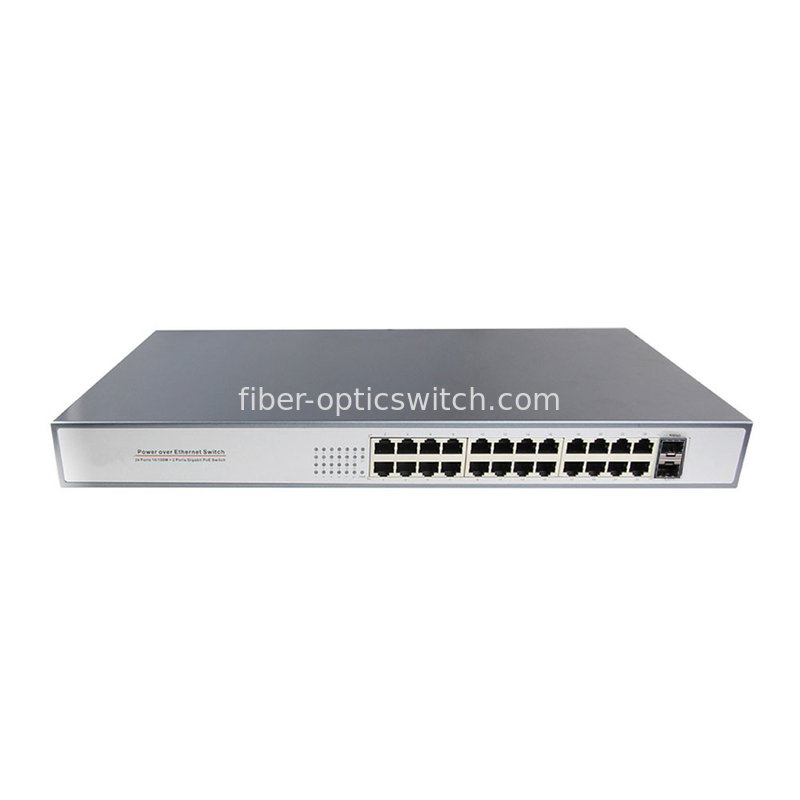

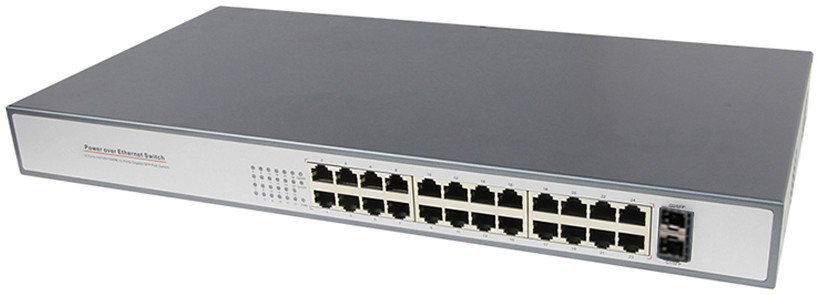

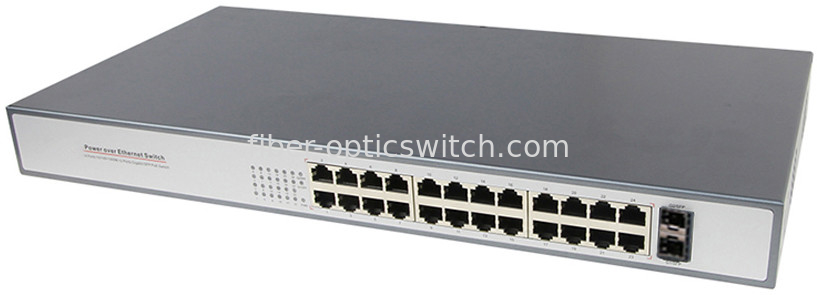

Factory OEM/ODM 24 Port Ethernet Fiber Switch 1000M 24 RJ45 Port Network Switch for Company Network
◆10/100/1000M
Network port comes with lighting-proof (AC power port: difference module +/-2kV, common module +/-4kV)
◆All ports support wire-speed switching, frame size within the range of 64 to 1536 can achieve wire-speed
◆Standard 1U rack design, suitable for rack installation mode
◆Automatic adjustment, plug and play, no need software and protocol conversion
◆Features with QOS, RSETMSTP, IGMP etc. RADIUS authentication, 802.1X authentication and so on
Technical parameter list
| Product model | OFS-GSF2T24-I |
| The number of port | 24 10/100/1000M RJ45 ports,2 1000M SFP ports |
| Port trunking | port 25,26 can achieve port trunking |
| Backplane bandwidth | 52Gbit |
| The frame length | 9216byte |
| MAC address table | 16K |
| Cache | 3.5Mb |
| Network Media | The 10Base-T:3 class or 3 class above UTP; (support maximum transmission distance 200m, 14880P/S) The 100Base-TX:5 class (UTP; support the maximum transmission distance 100m, 148800P/S) 1000Base-T:CAT-5E UTP or 6 UTP (support maximum transmission distance 100m, 1488000P/S) |
| Supported agreement | IEEE802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3x,IEEE802.3z,IEEE802.1q |
| Filtering and forwarding | 10Mbps:14880pps ; 100Mbps:148800pps ; 1000Mbps:1488000pps |
| LED indicator | Work on 1000M, 100M/10M respectively in green and yellow lights indicate |
| Dimensions | 440x160x44mm |
| Use of the environment | Operating temperature: 0 ℃ ~ 50 ℃; working humidity from 10% to 90%. Storage temperature: -20 ℃ ~ 70 ℃; storage humidity from 5% to 90%. |
| power | input:90-264VAC,50-60HZ； outpur: 5V/6A |
| Power consumption | 30W |
Shenzhen Optfocus Technology Co.,Ltd was established in 2009, which
is a National High-tech Enterprise integrating with R&D, manufacturing,
marketing and service to our worldwide partners and customers.
OPTFOCUS with 12 years’s experience focus on high-performance
fiber optical communication solutions&products,network security monitoring
transmission solutions& products.FTTH/FTTx Access solutions&products.
