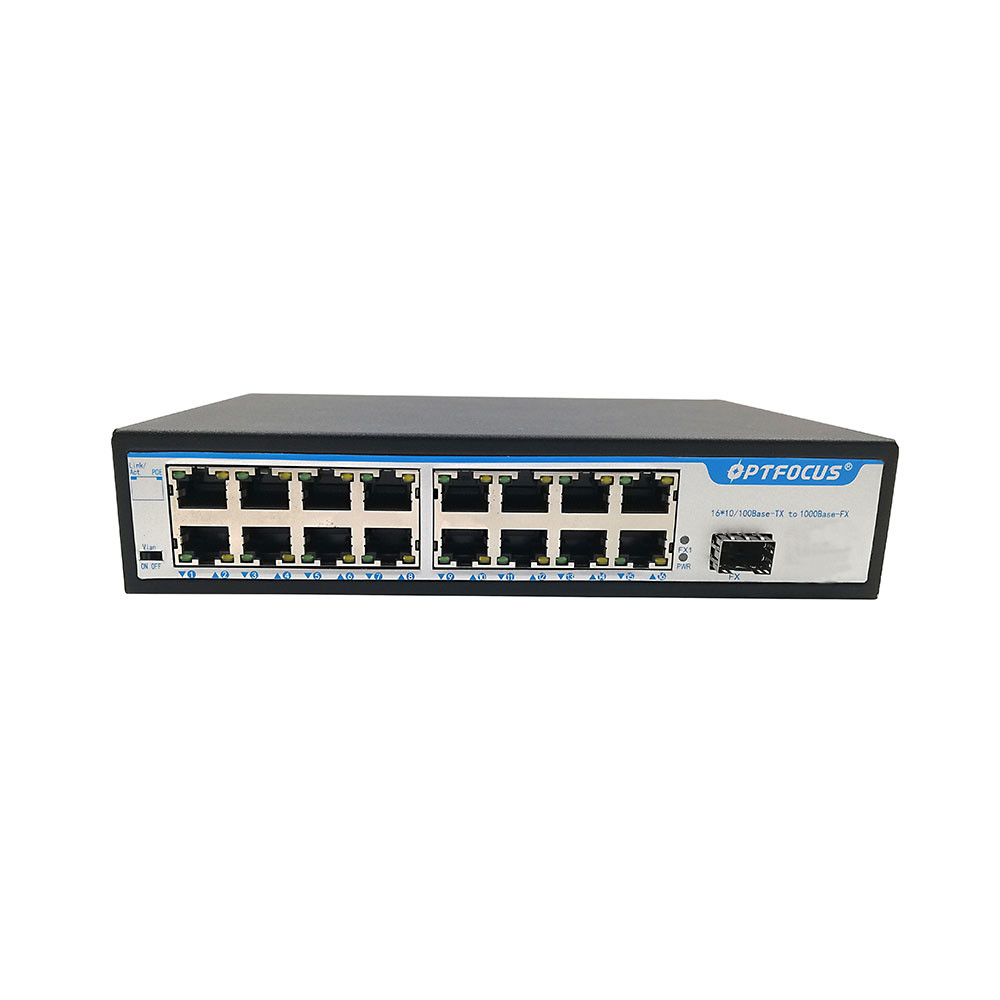

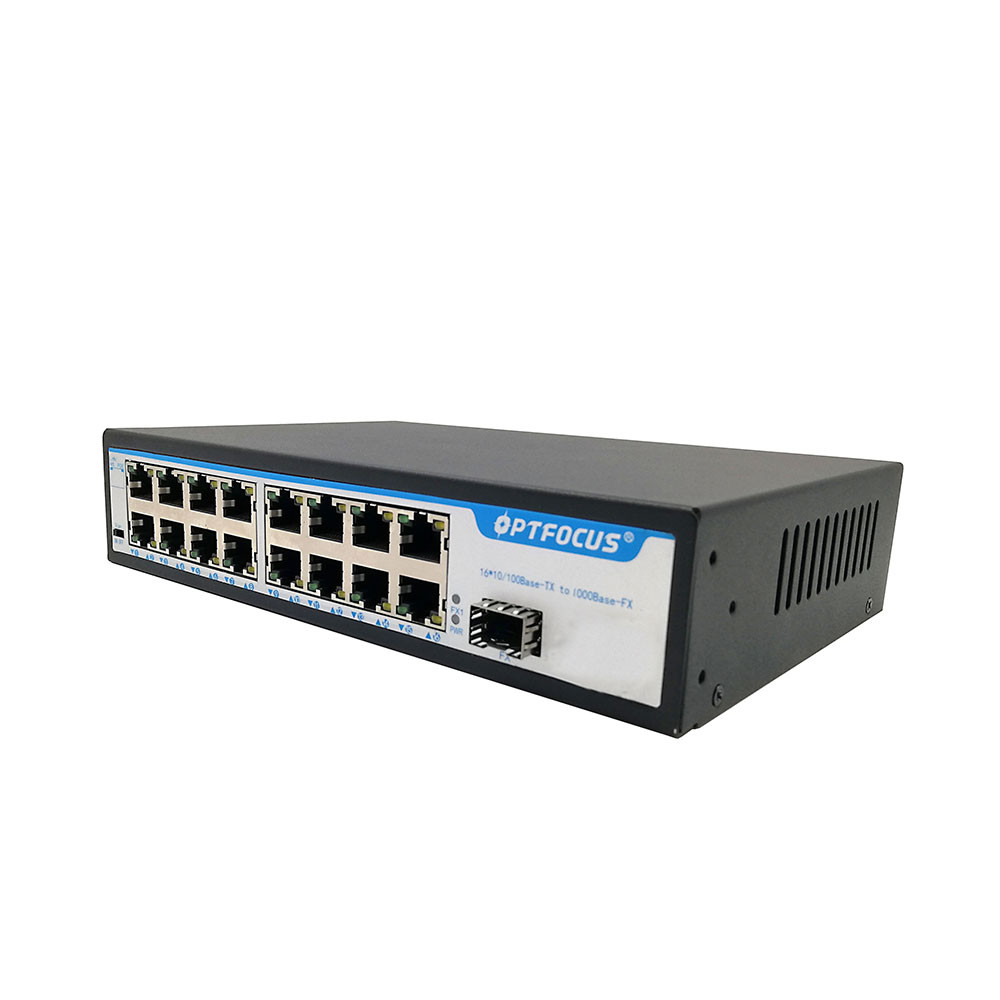

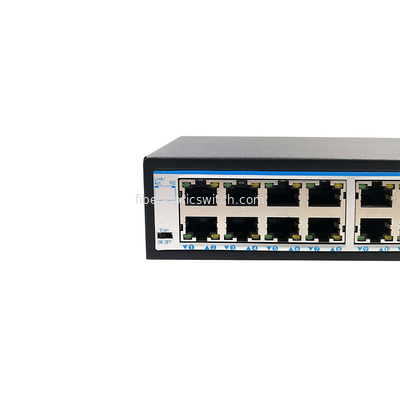

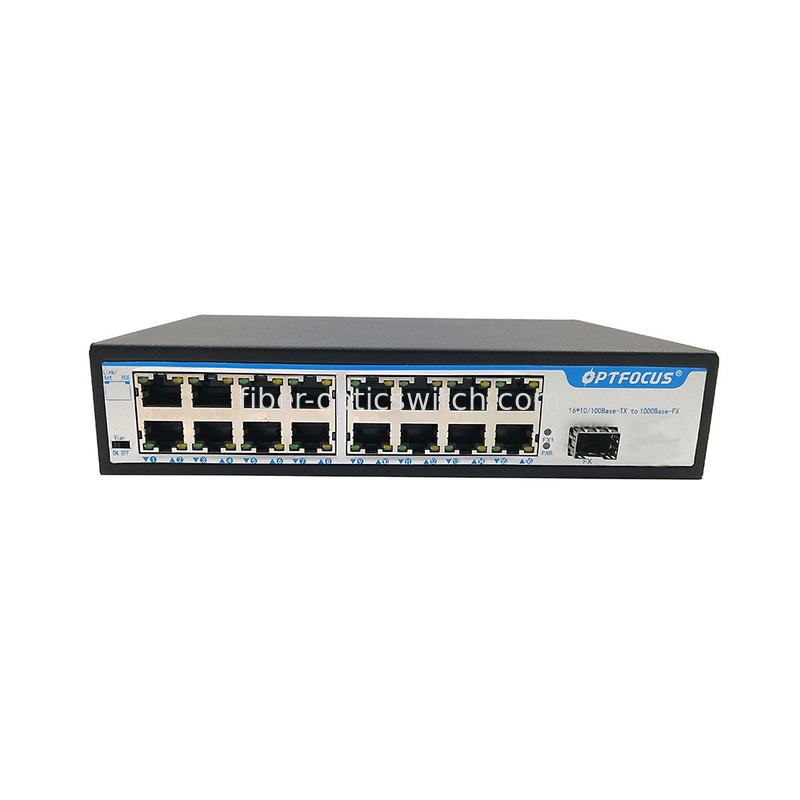

10/100M Single Fiber Optic Switch 1310nm 16 Ports FTTH 120W With Poe

Basic Information
Place of Origin: China
Brand Name: Optfocus
Certification: CE RoSE
Model Number: OFS-PE-GT1DT16-I
Minimum Order Quantity: 1 PCS
Price: 8usd
Packaging Details: 50 pcs per carton box
Delivery Time: 7-14 working days
Payment Terms: Western Union, T/T, MoneyGram
Supply Ability: 5000 pcs per month
Keywords: Poe Fiber Switch Wavelength: 1310nm
Distances: 20KM Date Rate: 1000M
USE: FTTH Ports: 16 Ports
High Light:

100M Single Fiber Optic Switch

,

1310nm Fiber Optic Switch

,

FTTH Fiber Ethernet Switch



10/100M single fiber optic switch 1310nm 16 ports fiber switch with poe





Description

OFS-PE-GTDT16 with 16*10/100M PoE Ports + 1*1000M Ethernet Port, using high-quality high-speed network IC and the most stable POE chip, POE port meets 802.3af/at standard, this series of PoE Switch can be 10/100M Ethernet The network provides a seamless connection, and the PoE power port can automatically detect and power the powered devices that comply with the IEEE802.3af/at standards. The non-POE device intelligently detects no power and only transmits data.

PoE (Power over Ethernet) refers to the technology of providing dc Power supply to some IP-based terminals (such as IP telephone, wireless access AP, network camera, etc.) while transmitting data signals. These devices receiving dc Power supply are called receiving devices.





Model OFS-PE-GTDT16
Connector Type 16 Port 10/100M PoE + 1 Port 10/100/1000M Ethernet Uplink
Network Protocols

IEEE802.3

IEEE802.3u

IEEE802.3x

IEEE802.3ab

PoE Parameters

PoE Standard: IEEE802.3at (30W) and IEEE802.3af (15.4w)

PoE compatibility: IEEE 802.3af/at adaptive

PoE port output: DC52V

Power Pin : 1/2(+) ; 3/6 (-)

DIP VLAN: Port isolation mode. In this mode, the PoE ports (1-8) of the switch cannot communicate with each other, and can only communicate with the UP-link port. The port AI mode is turned on.
  Default: Normal mode, all port can communicate with each other, the transmission distance is within 100 meters, the transmission rate is 10M / 100M adaptive; The port AI mode is closed.
  Extend: Link extension mode, 1-8 ports PoE power supply and data transmission distance can be extended to 250 meters, the transmission rate becomes 10M, and the port AI mode is turned on.
Network Media

10BASE-T: Cat 3,4,5 UTP(≤100 meter)

10BASE-T: Cat 6 UTP(≤250 meter)

100BASE-TX: Cat5 or more UTP (≤100 meter)

Power Supply Power input: AC100-240V 50/60Hz, Output: 52V2.3A, Power Budget: 120W
Performance Specification Bandwidth: 5.6Gbps
  MAC Address: 2K
  Packet Buffer Memory: 768K
  Packet Forwarding Rate: 0.1488M pps/each port
  Forwarding Mode: Store-And-Forward
Led indicator PWR Power supply indicator(Red)

Lighting:Powered

Un-Light:No Power





SW



DIP indicator(Green)

OFF: Normal

Vlan: Lighting

Extend: Slow flash





1-10



RJ-45 ACT indicator(Green)

Lighting:Connecting

Flashing:Data Transmit

Un-Light:Disconnect
