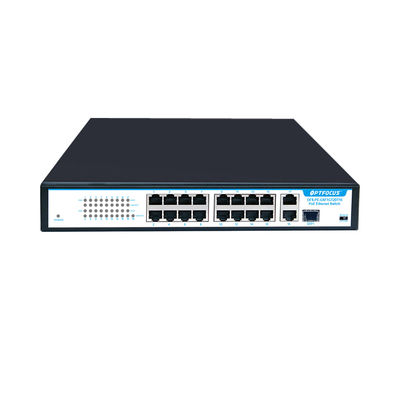

NVR IP Camera 16 Port Poe Switch 2*10/100/1000mbps UP-Link Port + 1*SFP

Basic Information
Place of Origin: CHINA
Brand Name: OPTFOCUS
Certification: CE, RoHS
Model Number: OFS-PE-GSF1GT2T16
Minimum Order Quantity: 1 PCS
Price: negotiable
Delivery Time: 5-7 working days
Payment Terms: T/T, Western Union, L/C, paypal
Supply Ability: 3000 pcs per week
Material: Iron POE PORT: 16
Working Humidity: 10%~90% RH Non-condensing Working Temperature: -0℃~40℃
Exchange Mechanism: Store-and-forward (4M Cache)
High Light:

52VDC 16 Port Poe Switch


1*SFP 16 Port Poe Switch


Gigabit Active POE Switch

Factory AI 16 Port Poe Switch 16*10/100mbps POE port+2*10/100/1000mbps UP-Link port+1*SFP for NVR IP Camera


The PoE switch provides power and data from a single point, using Power over Ethernet (PoE) over a single Cat-5 cable. It can be used for any 10/100Mbps link and supply industry-standard IEEE 802.3af power. Advanced auto-sensing algorithm gives power to 802.3af end devices, In addition, the PoE switch automatically determines PoE requirements, speed, duplex, and cable type using Auto Uplink. Easy to operate and reliable.


Product Name 16 Port GIGABIT ACTIVE POE Switch(16+3)
Product Model X1621GB
DATA PIN 1/2+,3/6-
Power Supply Type Build In, Both 1/2+,3/6- and 4/5+7/8-
PoE Output Power 15.4W/30W
Connector 16*10/100mbps POE port,2*/1000mbps UP-Link port,1*100mbps SFP
Network Medium Cat5 (UTP) or more
Network Standards

IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX

IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet

PoE power

30W per port(IEEE802.3af/at).

Wiring: Data & power provided over pairs 1/2 and 3/6 or 4/5 (+) and 7/8(-)

Processing types


Half-duplex back pressure and IEEE 802.3x full-duplex flow control

Address database Table Size 2K MAC address entry
Buffer memory 48Kb embedded memory per unit
Backboard Bandwidth 8.8G
Network Latency Less than 20us for 64 byte frames in store-and-forward mode for 100Mbps to 100Mbps transmission
Input 52V DC input
PoE power consumption 15.4W per port(
Overload current protection Present
Casing Metal
Installation DESKTOP/Rack mounting
LED Indicators

System: Power, PoE Maximum power

Per port: Link, Activity, Speed, PoE active, PoE error

Environment specification
Operating temperature -10-55℃(32-104℉)
Storage temperature -40-70℃(14-158℉)
Operating humidity 90% maximum relative humidity, non-condensing
Storage humidity 95% maximum relative humidity, non-condensing
Regulatory Approval
ISO Manufactured in ISO9001 facility
Safety CE/CCC
Warranty 2 years
Dimensions 312*185*46mm (L*W*H)
Weight 2.25Kg





NVR IP Camera 16 Port Poe Switch 2*10/100/1000mbps UP-Link Port + 1*SFP 0


Shenzhen OPTFOCUS Technology Co., Ltd was established in 2009, which is a High -tech manufacturer enterprise with 10 years' experience in global sales and services. Our company focus on professional R & D, production and sales of XPON access equipments, FTTH/FTTx solution and passive cabling system products. We also committed to provide Customized OEM & ODM services to Global communication distributors, Telecom Operators and System Integrator. OPTFOCUS manufacturing center covering area around 2,500 Square meter, and owning three production workshops, 9 production lines.


Advantage of our company :

1 National High-tech enterprise certification;

2 Fiber Optical Innovative &production team Over 10 years;

3 Fiber optical active and passive components production Workshop;

4 Strict quality management system;
