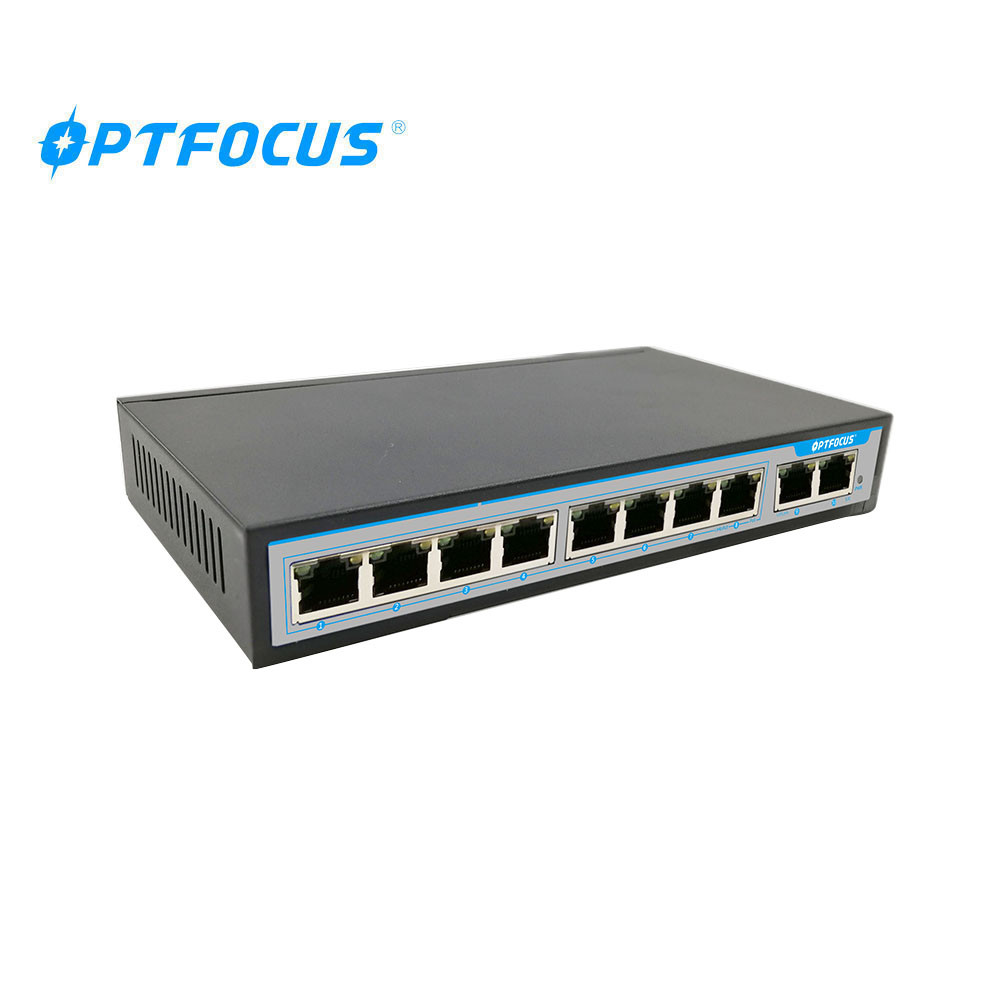

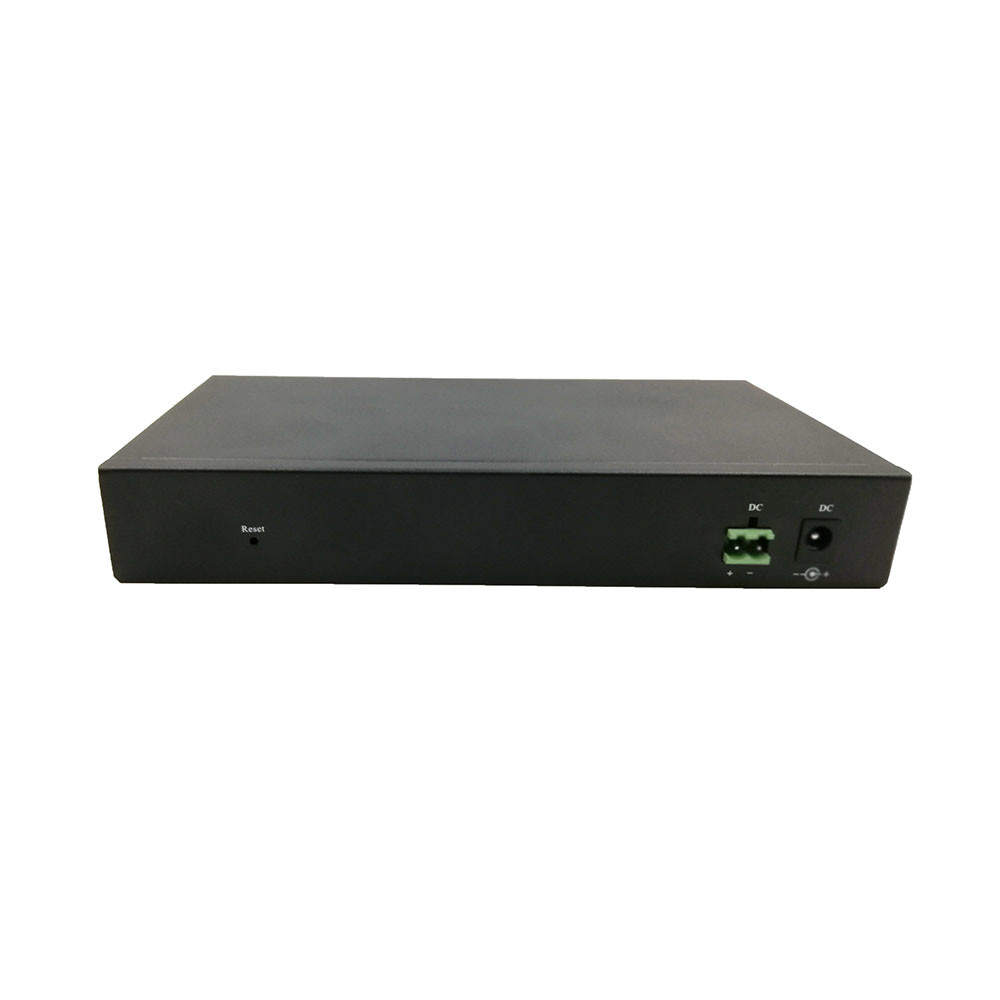

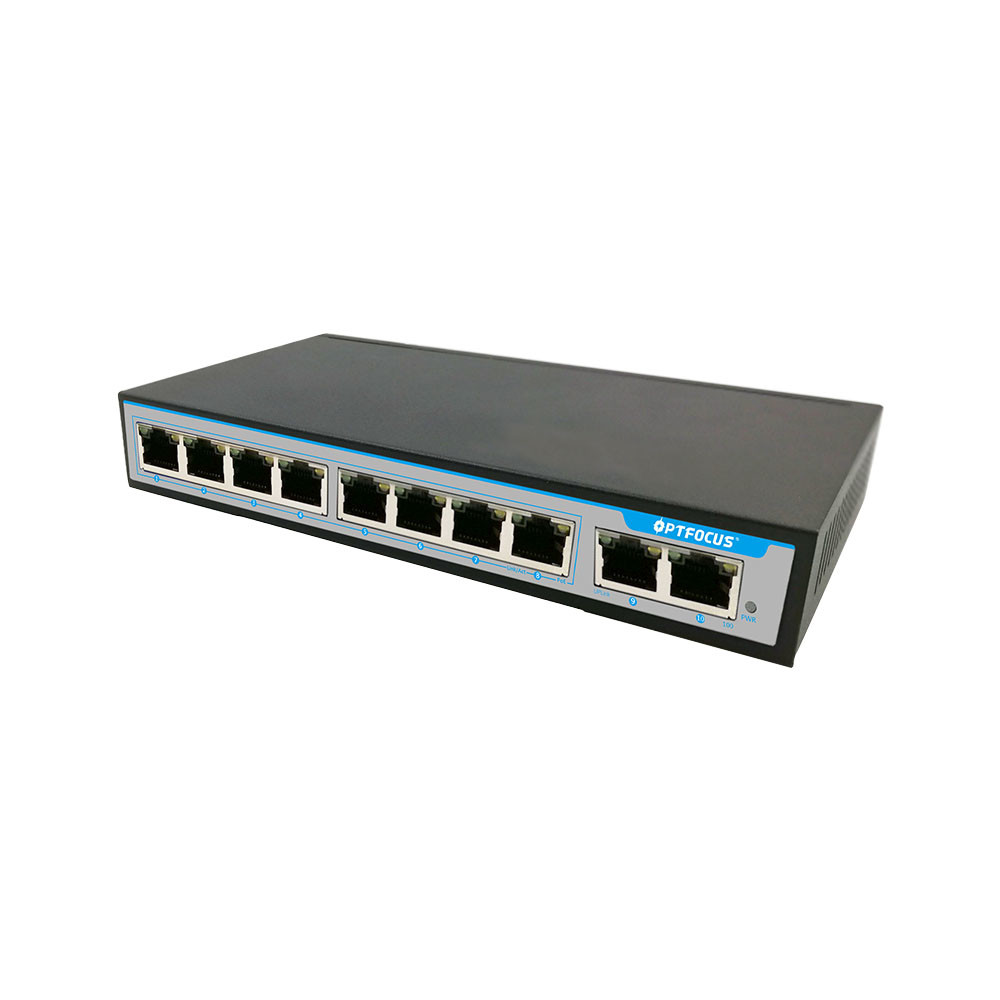

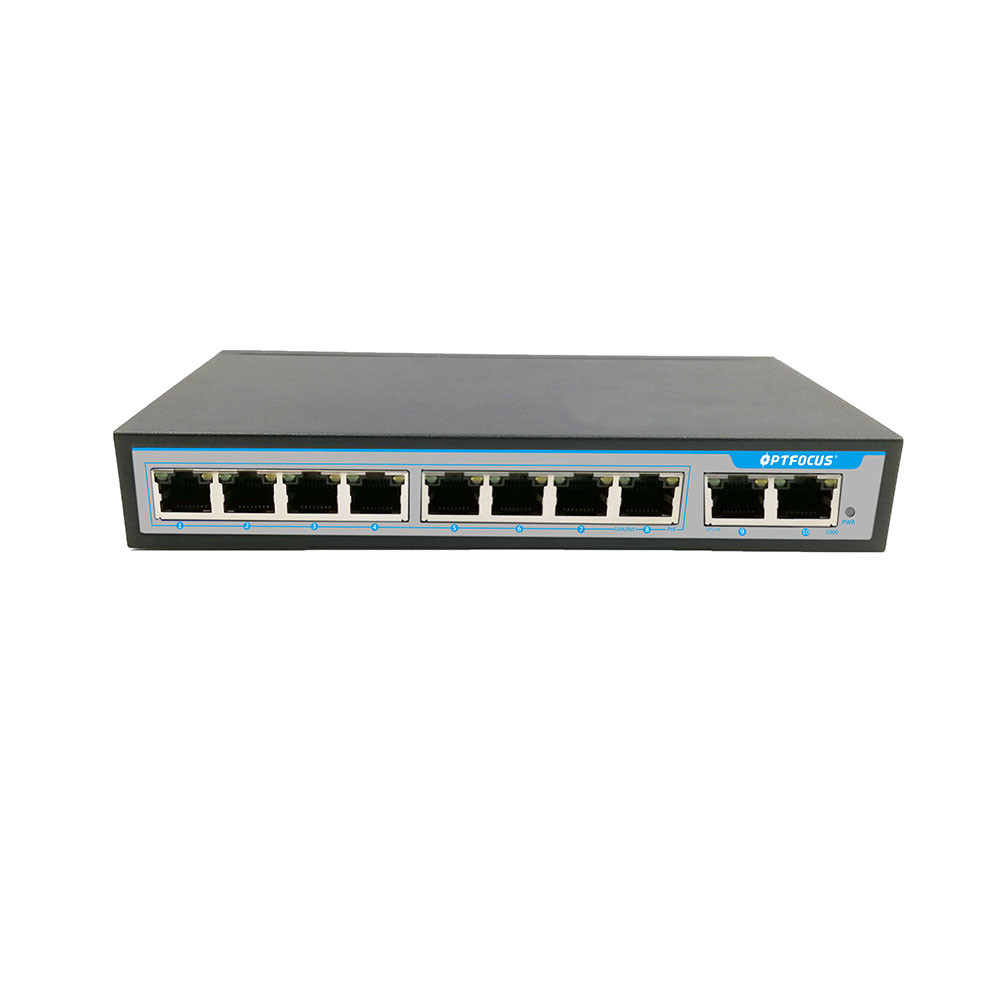

MDIX PoE Sfp Fiber Ethernet Switch 8 Ports AC240V Seamless Connection

Basic Information
Place of Origin: China
Brand Name: OPTFOCUS
Certification: CE
Model Number: OFS-GSF2T8S
Minimum Order Quantity: 2 piece
Price: USD 29.9 1piece
Packaging Details: Box and carton
Delivery Time: 7-14 days
Payment Terms: L/C, T/T
Supply Ability: 5000 piece a month
Storage Temperature: -40°C~ 85°C Operating Temperature: -20°C~ 50°C
Package Dimension (L*W*H): 303mm*190mm*60mm Product Dimension (L*W*H): 200mm*120mm*45mm
Warranty: 2 Years Certification: CE ,RoHS, FCC, CCC
MTBF: 100,000 Hours Key Word: Ethernet Switch
High Light:

MDIX Sfp Fiber Ethernet Switch

,

PoE Sfp Fiber Ethernet Switch

,

AC240V Fiber Optic Gigabit Switch

Best Selling Product 2sfp Optic Port 8 Ethernet Ports Gigabit Sfp Fiber Ethernet Switch



Product Description


10-Ports 10/100/1000M PoE Switch with 8*10/100/1000M PoE Ports + 2*1000M SFP Port, using high-quality high-speed network IC and the most stable POE chip, POE port meets 802.3af / 802.3at standard, this series of PoE Switch can be 10/100/1000M Ethernet The network provides a seamless connection, and the PoE power port can automatically detect and power the powered devices that comply with the IEEE802.3af / IEEE802.3at standards. The non-POE device intelligently detects no power and only transmits data.PoE (Power over Ethernet) refers to the technology of providing dc Power supply to some IP-based terminals (such as IP telephone,wireless access AP, network camera, etc.) while transmitting data signals. These devices receiving dc Power supply are called receiving devices.This series of POE switches, using 8POE ports + 2uplink Gigabit Fiber port, the uplink port is to connect with the network equipment which provide data.

10-Ports 10/100/1000M PoE Switch with 8*10/100/1000M PoE Ports + 2*1000M SFP Port, using high-quality high-speed network IC and the most stable POE chip, POE port meets 802.3af / 802.3at standard, this series of PoE Switch can be 10/100/1000M Ethernet The network provides a seamless connection, and the PoE power port can automatically detect and power the powered devices that comply with the IEEE802.3af / IEEE802.3at standards. The non-POE device intelligently detects no power and only transmits data.PoE (Power over Ethernet) refers to the technology of providing dc Power supply to some IP-based terminals (such as IP telephone,wireless access AP, network camera, etc.) while transmitting data signals. These devices receiving dc Power supply are called receiving devices.This series of POE switches, using 8POE ports + 2uplink Gigabit Fiber port, the uplink port is to connect with the network equipment which provide data.



Specfication


◆ 8*10/100/1000M PoE Ports + 2*1000M SFP Port ;
◆ Comply with IEEE 802.3, IEEE 802.3u, IEEE802.3af/at standards;
◆ Compatible with IEEE802.3at (30W) and IEEE802.3af (15.4w);
◆ Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard;
◆ Support port auto flip (Auto MDI/MDIX);
◆ Exchange mechanism using store-and-forward;
◆ All ports support wire-speed switching;
◆ Automatically supplied to adaptive devices;

◆ Panel indicator monitoring status and help failure analysis.



Technical parameter list




MDIX PoE Sfp Fiber Ethernet Switch 8 Ports AC240V Seamless Connection 0





Packing & Delivery
MDIX PoE Sfp Fiber Ethernet Switch 8 Ports AC240V Seamless Connection 1
MDIX PoE Sfp Fiber Ethernet Switch 8 Ports AC240V Seamless Connection 2
Box or carton.

Company Profile
00:00

02:56

MDIX PoE Sfp Fiber Ethernet Switch 8 Ports AC240V Seamless Connection 3
Shenzhen OPTFOCUS Technology Co., Ltd was established in 2009, which is a High -tech manufacturer enterprise with 10 years' experience in global sales and services. Our company focus on professional R & D, production and sales of XPON access equipments, FTTH/FTTx solution and passive cabling system products. We also committed to provide Customized OEM & ODM services to Global communication distributors, Telecom Operators and System Integrator. OPTFOCUS manufacturing center covering area around 2,500 Square meter, and owning three production workshops, 9 production lines. Advantage of our company : 1 National High-tech enterprise certification; 2 Fiber Optical Innovative &production team Over 10 years; 3 Fiber optical active and passive components production Workshop; 4 Strict quality management system; 5 Professional One stop supply & service; 6 OEM&ODM available; 7 Reliable and Timely customer services;
MDIX PoE Sfp Fiber Ethernet Switch 8 Ports AC240V Seamless Connection 4
FAQ
1. who are we?
We are a 12 years manufacturer specialize in fiber optic communication equipment

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Switch,GPON ONU,EPON ONU

4. How many days can shipment after ordered?
According to the quantity you order, we will reply you the shipment day

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,EXW,FCA;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash;
Language Spoken:English,Chinese or customize
