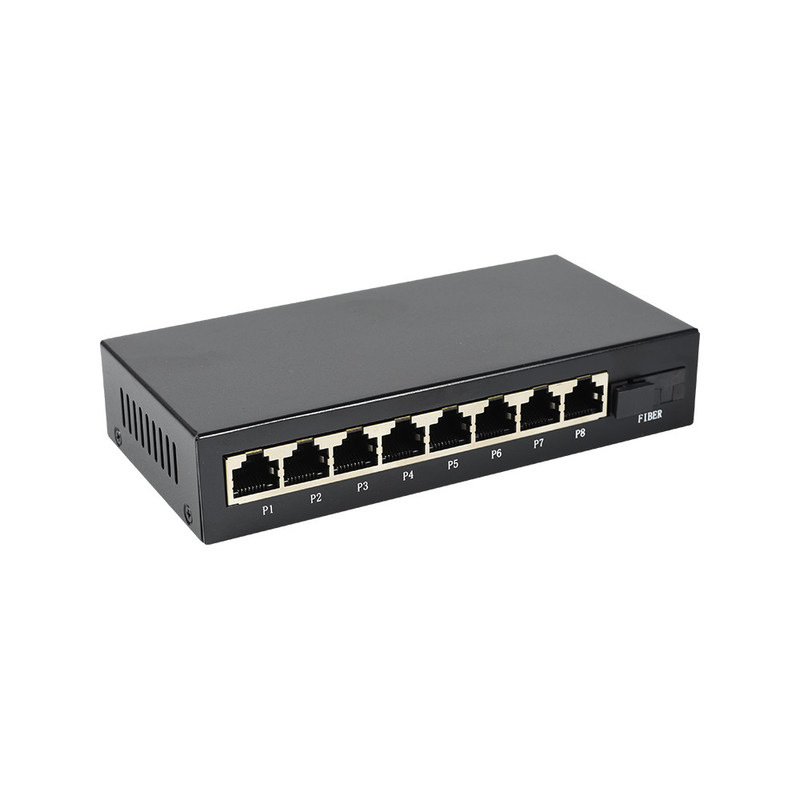

FCC Gigabit Ethernet Optical Fiber Switch 5W PWR SFP Media Converter

Basic Information
Place of Origin: China
Brand Name: OPTFOCUS
Certification: FCC, ce
Model Number: 10/100/1000M 8*RJ45+2*SFP
Minimum Order Quantity: 1 piece
Price: USD 69.9 1piece
Packaging Details: box and carton
Delivery Time: 6-14 days
Payment Terms: T/T
Supply Ability: 4000 piece a month
Place Of Origin: Guangdong, China Use: FIBER OPTIC NETWORK
Type: Enterprise Switch Forwarding Mode: Store-and-Forward
Power Supply: Input: AC100 ~ 250V, Output:DC5V 2A. Environment Temperature: 0 ~ +55℃
Certification: FCC, Ce Storage Temperature: -20 ~ +70℃
High Light:

FCC Gigabit Ethernet Optical Fiber Switch

,

5W Gigabit Ethernet Optical Fiber Switch

,

PWR SFP Media Converter

Quick Details
Model Number:
OFS-GSF2T8S
Type:
Enterprise Switch
Place of Origin:
Guangdong, China
Brand Name:
OPTFOCUS
Use:
FIBER OPTIC NETWORK
Product name:
8-port 10/100/1000Mbps + 2-port 1000Mbps SFP Fiber
Product Model:
OFS-GSF2T8S
Fiber Media:
Multi-mode:550M- 2KM Single-mode: 20/40/60/80/100KM
Forwarding Mode:
Store-and-Forward
LED Indicators:
Power: PWR;FX Link/Act;TP 1000(1-8); TP Link/Act(1-8)
Power Supply:
Input: AC100 ~ 250V, Output:DC5V 2A.
Max power:
5W
Environment temperature:
0 ~ +55℃
Storage temperature:
-20 ~ +70℃
Humidity:
5% ~ 90%
Certification:
FCC, ce
Supply Ability
Supply Ability
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1 pcs / box
Port
SHENZHEN, GUANGZHOU, XIANGGANG
Picture Example:
Lead Time:
Quantity(Pieces) 1 - 500 >500
Est. Time(days) 7 To be negotiated






Product Description

OFS-GSF2T8S

8ports 10/100/1000M +2ports 1000M SFP Fiber Switch



OFS-GSF2T8S series is a Layer 2 + Optical Ethernet switch with 2*1000Mbps SFP Optical fiber ports and 8*10/100/1000Mbps RJ45 ports. It is designed to meet the various application needs, and provide an Ethernet network communication solution with a high performance-price ratio.

OFS-GSF2T8S’s high availability and reliability, as well as the rich security features, makes it ideal for secure data transmission.for connecting with devices like computer, switch, hub, server, etc.



Technical Specifications

Product Name 8-port 10/100/1000Mbps + 2-port 1000Mbps SFP Fiber
Product Model OFS-GSF2T8S
Network Protocols

IEEE802.3 10BASE-T; IEEE802.3i

100Base-T;IEEE802.3u;1000Base-TX/FX;IEEE802.3ab

1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x;

Network Media 10BASE-T: Cat3,4,5 UTP(≤100 meter)
100BASE-TX: Cat5 or later UTP(≤100 meter)
1000BASE-TX: Cat6 or later UTP(≤100 meter)
Fiber Media Multi-mode:550M- 2KM
Single-mode: 20/40/60/80/100KM
Performance Specification Bandwidth: 20Gbps
Packet Forwarding Rate:1488000pps/port
MAC Address Table:8K
Forwarding Mode Store-and-Forward
LED Indicators

Power: PWR;FX Link/Act;TP 1000(1-8);

TP Link/Act(1-8)

Power Supply

Input: AC100 ~ 250V,

Output:DC5V 2A

Max power 5W
Environment temperature 0 ~ +55℃
Storage temperature -20 ~ +70℃
Humidity 5% ~ 90%





Features:

  • 8 Port 10/100/1000Mbps with Auto Uplink™ , 2 port 1000Mbps SFP Slot
  • Automatic MAC address learning and aging
  • 10/100/1000Mbps Auto-negotiation , auto-MDI-MDI-X
  • LED indicators for monitoring power/link/activity
  • Supports10/100/1000Mbps-Full/Half-duplex
  • Supports Wall-mount and DIN-Rail installation ,Optional
  • Supports Broadcast Storm Control
  • Excellent heat elimination without cooling fan
  • Apply to Urban Intelligent Traffic Monitoring System (ITS), Safe City
  • Harsh environment or higher requirement
  • -10℃-55℃operating temperature range.

Chassis Dimension

FCC Gigabit Ethernet Optical Fiber Switch 5W PWR SFP Media Converter 1





Package Dimension

FCC Gigabit Ethernet Optical Fiber Switch 5W PWR SFP Media Converter 2



More information

Installation DIN-Rail or Wall mounts,Optional,Default device is not
Packing List

1× Switch

1×User Manual/Certificate of quality/Warranty card

1×power adapter

MTBF 100,000 hours
Weight & Size

Product Weight: 0.5 KG

Packing weight: 1.1 KG

Product size (L×W×H):190mm× 104mm× 29mm

Packing size(L×W×H): 306mm×152 mm× 55mm

Warranty 1-years





Ordering Information:

model Product description
OFS-GSF2T8S 8* 10/100/1000Base-T RJ45,2* 1000M fiber SFP ports, without SFP module,external PS
