|Chipset:||IP178G||Description:||8*10/100M RJ45 Switch|
|Transfer Method:||Store-and-forward||Working Temperature:||0°C~40°C(32 F~104 F)|
RJ45 Juniper Ethernet Network Switch,
Auto MDI Ethernet Network Switch,
100Mbps Fiber Optic Ethernet Switch

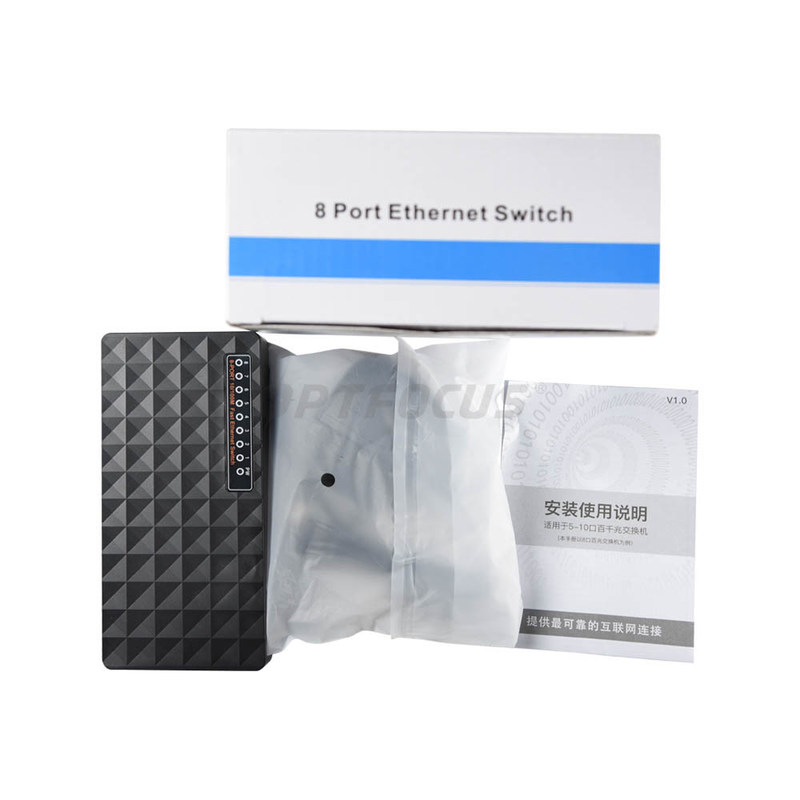

8ports 10/100M RJ45 Ethernet Switch
*Support IEEE802.3X for full duplex mode operation
*10Base-T, 100 Base-T, and 100Base-FX Operation
*Support Flow control for full duplex mode operation and backpressure for half duplex mode operation
*LED Status of Power on, Link and speed
*Full line speed capability of 148800 (14880) packets/sec for 100M (10m)
*Automatic MDI/ MDI-X Configuration
*Communication distance: Not less than 100M
*Interface: 8 RJ45 Port
|Product Name||8 ports 10/100M RJ45 Ethernet switch|
|Standards||IEEE802.3 10Base-T Ethernet IEEE802.3u 100Base-TX Fast Ethernet ANSI/IEEE 802.3 Nway Auto-Negotiation IEEE802.3x Flow control|
|Frame filtering and forward rate||10Mbps: 14880pps, 100Mbps: 148800pps|
|MAC address learning||Automatically learning, automatically Update|
|Network media(Cable)||10Base-T:2-Pair UTP category 3, 4, 5,5e,6 cable (maximum 100m), EIA/TIA-568 100Ù STP(maximum 100m), 100Base-Tx: UTP category 5, 5e cable (maximum 100m), EIA/TIA-568 100Ù STP (maximum 100m)|
|Operating temperature||0°C~40°C(32 F~104 F)|
|Storage temperature||-40°C~70°C(-40 F~158 F)|
|Operating humidity||10%~90% non-condensing|
|Storage humidity||5%~90% non-condensing|
1. Is there a minimum order quantity?
No, you can feel free to order any quantity of any product.
2. Do your products come with warranty?
Yes,we provide 1 year warranty for all our products from the date of shipment.
3. How much charge voltage can reach?
Battery charging voltage should be 13.8V only high charging and low cutoff 10V.
4.Is your switch customizable for rack or DIN rail mountable?
Yes, of course, but we have the MOQ. Please contact with out server for details.
5.Does your network management switch support ring redundancy?
With STP (Spanning Tree) function, ring redundancy is supported. The network management type we produce can support this function.
If you have any interested in fiber optical products, please feel free to contact me!
