10/100Mbps 1310/1550nm 20km Fiber Optic Media Converter 2.5W

Basic Information
Place of Origin: Guangdong, China
Brand Name: OPTFOCUS
Certification: CE
Model Number: OFS-WS01/02-20
Minimum Order Quantity: 2 pcs
Price: USD 4~7.5/piece
Packaging Details: 1 piece / box
Delivery Time: 5-10 days, depend on the quantity
Payment Terms: L/C , T/T , Western Union , MoneyGram
Supply Ability: 50000 pcs / month
Product: 10/100M Media Converter Power Consumption: 2.5W
Forwarding Rate: 1488000pps/port Network Media: 100BASE-TX: Cat5 Or Later UTP(≤100 Meter)
Working Temperature: 0~55℃ Storage Temperature: -20~75℃
High Light:

20km Fiber Optic Media Converter


1550nm Fiber Optic Media Converter


2.5W 100Mbps Media Converter

Fast delivery 10/100Mbps 1310/1550nm wavelength 20km distance fiber media converter




OFS-WS01/02-20 Series Fiber Media Converter is the conversion equipment of Ethernet optical-electronic signals between 10/100M UTP interface (TX) and 100M Fiber interface (FX). The traditional 10/100M Fast Ethernet can be extended to the distance of 120km through optical fiber link. The performance and quality of the products are excellent because of adopting latest IC. 6 Group LED indicated lights could fully monitor the working conditions of Converters. It is easy for users to observe the network operations. The Series products with reasonable price are especially designed for network users.OPTFOCUS Series Converters could be used alone.

The converters can be used as a stand-alone unit or as a slide-in module to the OPTFODUS Media Converter Chassis, OFS-RACK-14. As the other OPTOFUS OFS-Series media converters, they're hot swappable in MC-Chassis.



 - 1 Port 10/100Mbps with Auto Uplink™ , 1 port 100Mbps
 - 10/100Mbps Auto-negotiation auto-MDI-MDI-X

 - Comply with IEEE 802.3, IEEE 802.3u 10/100Base-TX,100Base-FX Standard
 - Auto negotiation function allows UTP port to auto select 10M or 100M and Full Duplex or Half Duplex
 - Supporting 1480bytes packet
 - Extend fiber distance up to 2km for multi-mode fiber and 20-120km for single-mode fiber
 - Data Transfer Rate:
     - TP: 10/100Mbps
     - FX: 100Mbps
 - Duplex mode support:
     - Full or half-duplex mode by Auto-Negotiation (TP)

 - LED indicators: Power, FX 100, FX Link/Act,TX 100, TX FDX, TX Link/Act
 - Supports link fault passthrough function

 - Design of internal or external powersupply for selection byend-users


Technical parameter list

Product Name 10/100M Media Converter
Product Model OFS-WS01/02-20
Connector Fiber: 1* 100Mbps
RJ45: 1*10/100Mbps,Auto MDI/MDI-X
Network Media 10BASE-T: Cat3,4,5 UTP(≤100 meter)
100BASE-TX: Cat5 or later UTP(≤100 meter)
Fiber Media Fiber(Multimode): 50/125, 62.5/125μm(the max distance up to 2km)
Fiber(Singlemode): 8.3/125, 8.7/125, 9/125, 10/125μm(the max distance up to 120km)
Forwarding Mode Store-and-Forward
Forwarding Rate 1488000pps/port
Operating standard EEE802.3, IEEE802.3u
External Power Input:AC 110~240V Output:DC 5V (default).
or Input:DC:12V~-72V;Output:DC 5V (Optional)
USB power supply(Optional).
Power consumption 2.5W

Power, 100, FX Link/Act, TX 100, TX FDX, TX Link/Act.

Working Environment Working temperature: 0~55ºC ;
Storage temperature: -20~75ºC
Relative Humidity: 5%~95 %( no condensation)
DIP settings SW1 ON
TP at auto-negotiation(default)
Force TP at 10M or at half duplex
TP at 100M (default)
TP at 10M when TP at Force
TP at full duplex(default)
TP at half duplexwhen TP at Force
Disable Link Fault
Enable Link Fault Pass-Through

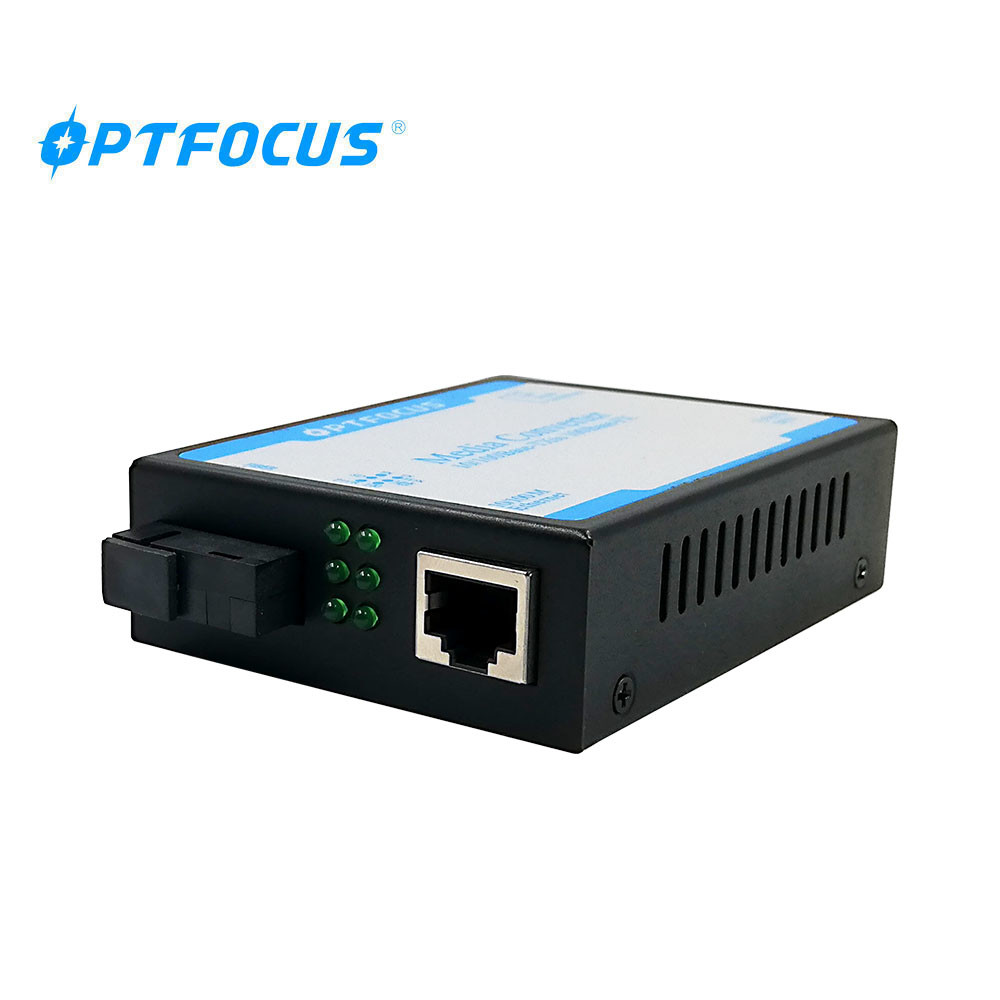

10/100Mbps 1310/1550nm 20km Fiber Optic Media Converter 2.5W 0


10/100Mbps 1310/1550nm 20km Fiber Optic Media Converter 2.5W 1



1. Can i test a sample before ordering?

Yes, normally we will provide sample 1 or 2 pcs to customers to test.


2. What's your MOQ about this product?

2 pcs order is okay, we support small quantity. You can order more if you were satisfied to our product and service.


3. What's your payment terms and payment way?

We accept T/T 30% in advance, pay the balance payment before shipment.

T/T, western union, paypal, bank transfer, cash, all support. You can discuss the details with us online.
