Factory 24 Port Ethernet Switch 24*1G RJ45 Port+4*10g Fiber Switch for Data Center ISP

Basic Information
Place of Origin: CHINA
Brand Name: Optfocus / OEM
Certification: CE , RoHS
Model Number: OFS-MXF4GT24-I
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: standard PE bag and carton for delivery
Delivery Time: 5-15 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 10000 pieces per month
Product Name : 24*10/100/1000M Ports+4 Ports SFP 10G Ethernet Fiber Switch Model Number: OFS-MXF4GT24-I
Use: Business Network Fixed Port: 24 10/100/1000Base-T Ethernet Ports, 4 10G SFP+ Ports
Backplane Bandwidth: 128Gbps Packet Forwarding Rate: 95.232Mpps
Processor: RISC 400MHz
High Light:

95.232Mpps 10G Ethernet Fiber Switch


1000M 10G Ethernet Fiber Switch


80W SFP Optical Fiber Switch

 24 10/100/1000M Ports+4 Ports SFP 10G Ethernet Fiber Switch



Product Brief Introduction:


    L3 24+4 10Gigabit Ethernet Switch is standard third-layer non-blocking switch. Provides 24 10/100/1000Base-T Ethernet ports, 4 10G SFP+ ports. Based on high-performance ASIC chip technology, the modular structure design, which have a capability of multilayer switching and wire-speed routing forwarding. Can be deployed in the metropolitan area network, and provides a few last 1 km technology to gather and core data exchange. At the same time, L3 24+4 10Gigabit Ethernet Switch provide a complete IPv4/IPv6 routing, including tunnel and IP multicast.The user can set all kinds of functions of switch through the Web, SNMP and so on. L3 24+4 10Gigabit Ethernet Switch very suitable for the aggregation application of large-scale network and the core application of medium and small-sized network.



Details Images

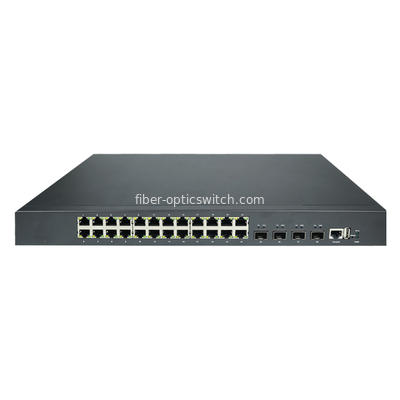

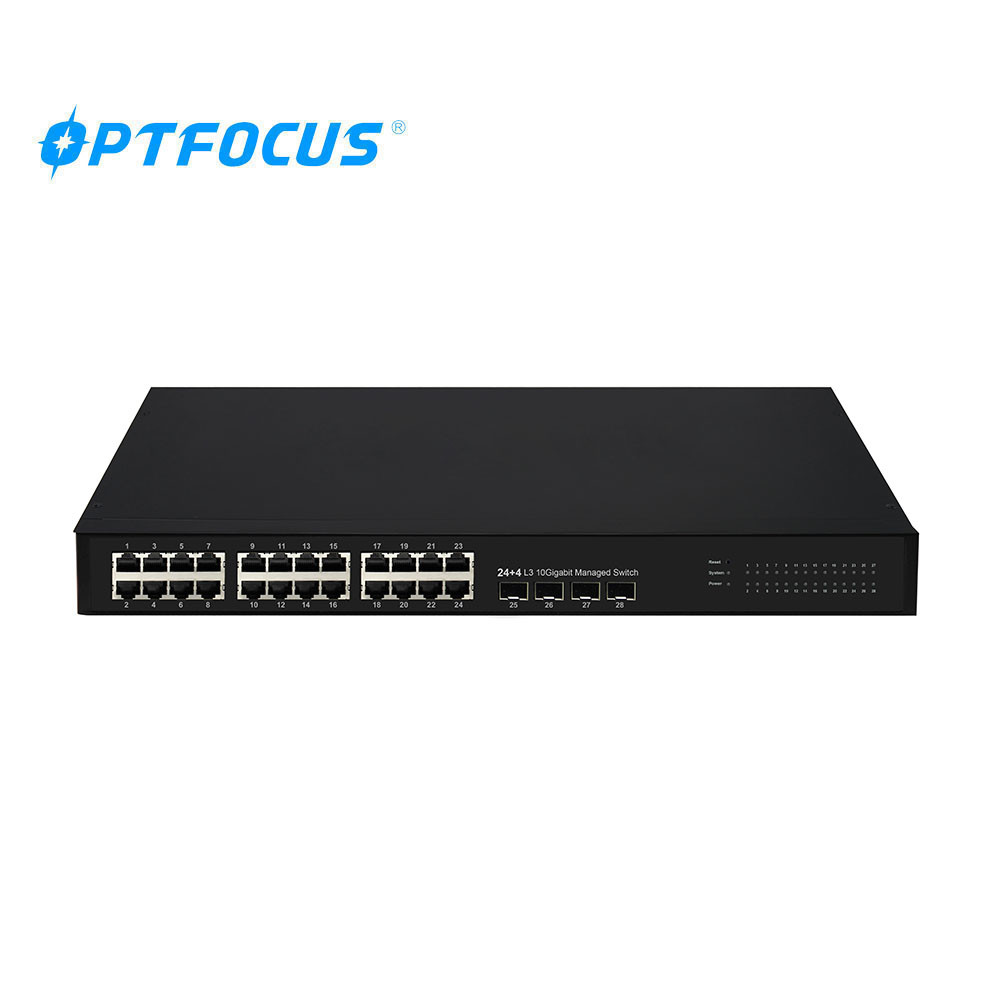

Factory 24 Port Ethernet Switch 24*1G RJ45 Port+4*10g Fiber Switch for Data Center ISP 0




Technical Data Sheet:


The product model L3 24+4 10Gigabit Ethernet Switch
Basic characteristics
Fixed port 24 10/100/1000Base-T Ethernet ports, 4 10G SFP+ ports
Backplane bandwidth 128Gbps
Packet forwarding rate 95.232Mpps
Processor RISC 400MHz
Flash memory capacity 8MB
The memory capacity 128MB
Address table 16K
Product characteristics
Spanning tree Support STP, RSTP, MSTP
Support PVST/PVST+
VLAN Support port-based VLAN
Support MAC-based VLAN
Support 802.1Q labeled VLAN
Support for Super Vlan
Support for Private Vlan
Support for the GVRP dynamic VLAN configuration
Support QinQ and flexible QinQ
Support for Voice VLAN
Flow control Based on a standard IEEE 802.3x flow control
Using IEEE 802.1Qbb priority flow control
Support CAR function
Broadcast control Restraining broadcast storm, stop sending so long as reaching a critical point
multicast control IGMP Snooping multicast message automatic monitoring
multicast routing IGMP v1/v2/v3, MLDv2
DVMRP (Distance Vector Multicast Routing Protocol)
GMRP (multicast dynamic registration protocol)
Port binding Each group of a maximum of 8, while support 128 group
LACP dynamic or static polymerization
Port mirroring Support based on flow classification mirroring and port mirroring
Stacked Stacked 16 hard, soft stacking 32
Using clustering techniques, with a unified centralized management of IP address to do address resource saving
Routing management Static routing
RIP v1/v2, OSPFv2, BEIGRP (compatible with Cisco EIGRP), BGPv4, ISIS, BGP
Anti virus intelligent routing function
Strategy routing Support based on IP strategy routing
The proxy function Support Proxy ARP, DNS Proxy
Redundancy backup Support for VRRP, HSRP Hot Standby Router Protocol
Characteristics of DHCP DHCP Server, DHCP Client and support DHCP relay
Function of NAT Support the static or dynamic NAT address translation function
Safety characteristics

IEEE 802.1x port certification, PKI certification
Port Security (Port Security) function

Hardware support for IP ACL ACL ACL, MAC, Vlan
Hardware support for port based user IP+MAC+Vlan ID+ user account a variety of factors combined to bind
Support IP Source Guard
Support WEB interface user authentication
Remote RADIUS, TACACS+ certification

User classification management and password protection

Net shield technology
Safety control technology
Policy control list

Quality of service IEEE 802.1Qau congestion mechanism
Each port 8 send queue mapping 802.1p 8 priority
WRED, WFQ, SP and FIFO queue scheduling algorithm
Best-Effort Service
Differentiated Service
Strict Priority
Weighted Round Robin
First come first served
TOS to mark
Network management SNMP v1/v2/v3
RMON (1,2,3,9 group)
WEB interface
Support for cluster management
Support SSH
Support for PDP (compatible with Cisco CDP.)
To support the fan, temperature, system log, hierarchical alarm
Physical characteristics
Appearance size 440x230x44(mm)
Power characteristic AC 110-240V adaptive, 47-63Hz, 1A/230V, RPS power hot backup
Power 80W
Indicator lamp Power indicator, indication of system, connecting / transceiver instructions
Environment humidity / temperature 0-50 ℃ operation,-40-70 ℃ preservation,0-90% no condensation

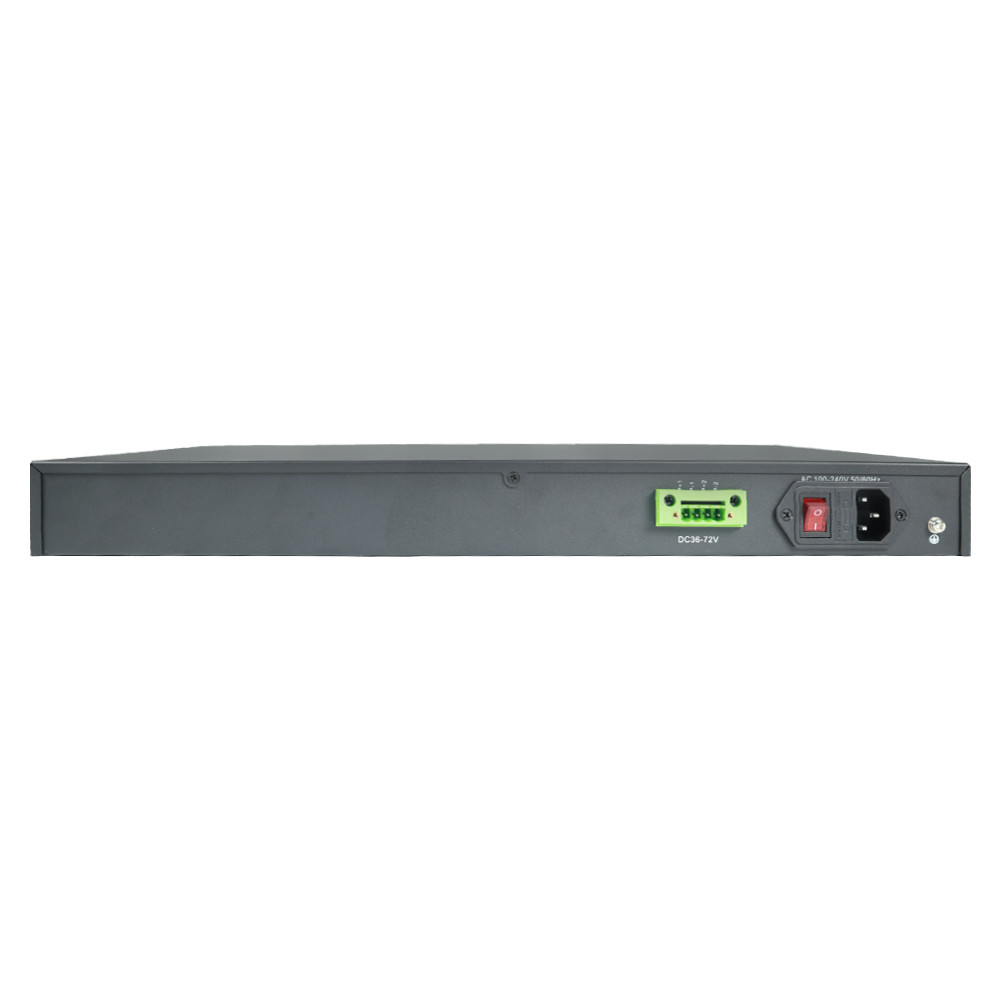

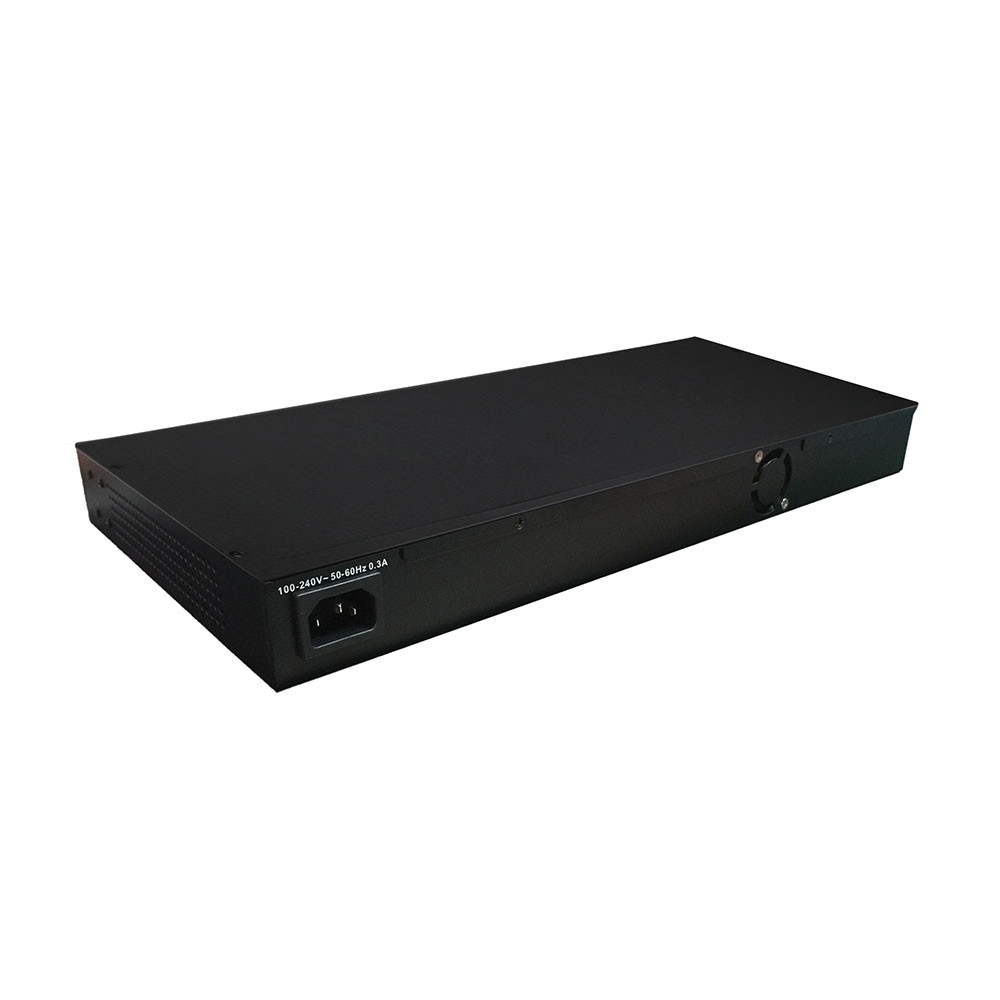

Factory 24 Port Ethernet Switch 24*1G RJ45 Port+4*10g Fiber Switch for Data Center ISP 1


Exhibition & Trade Show:

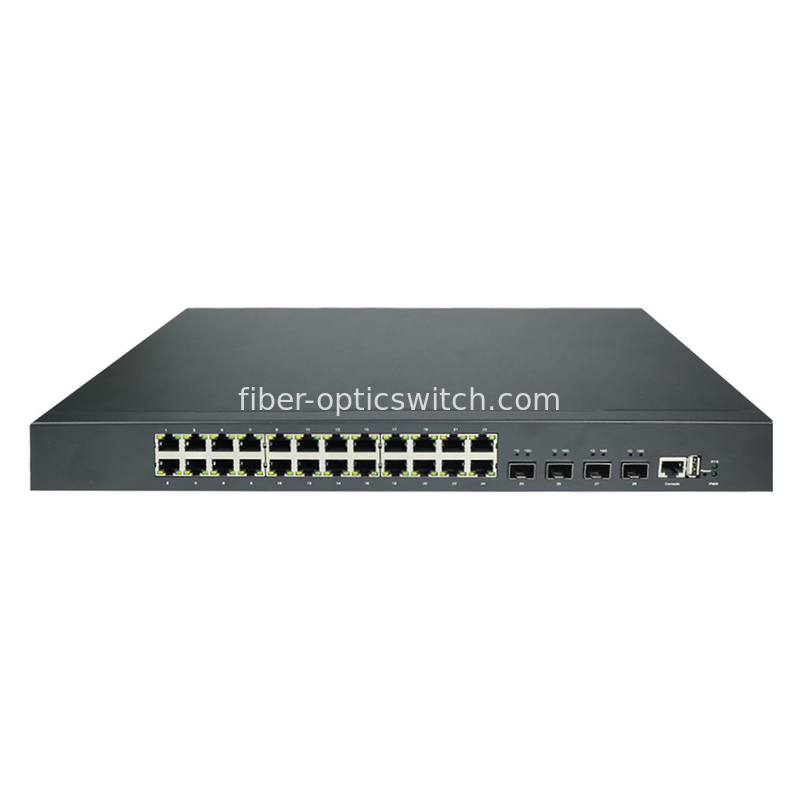

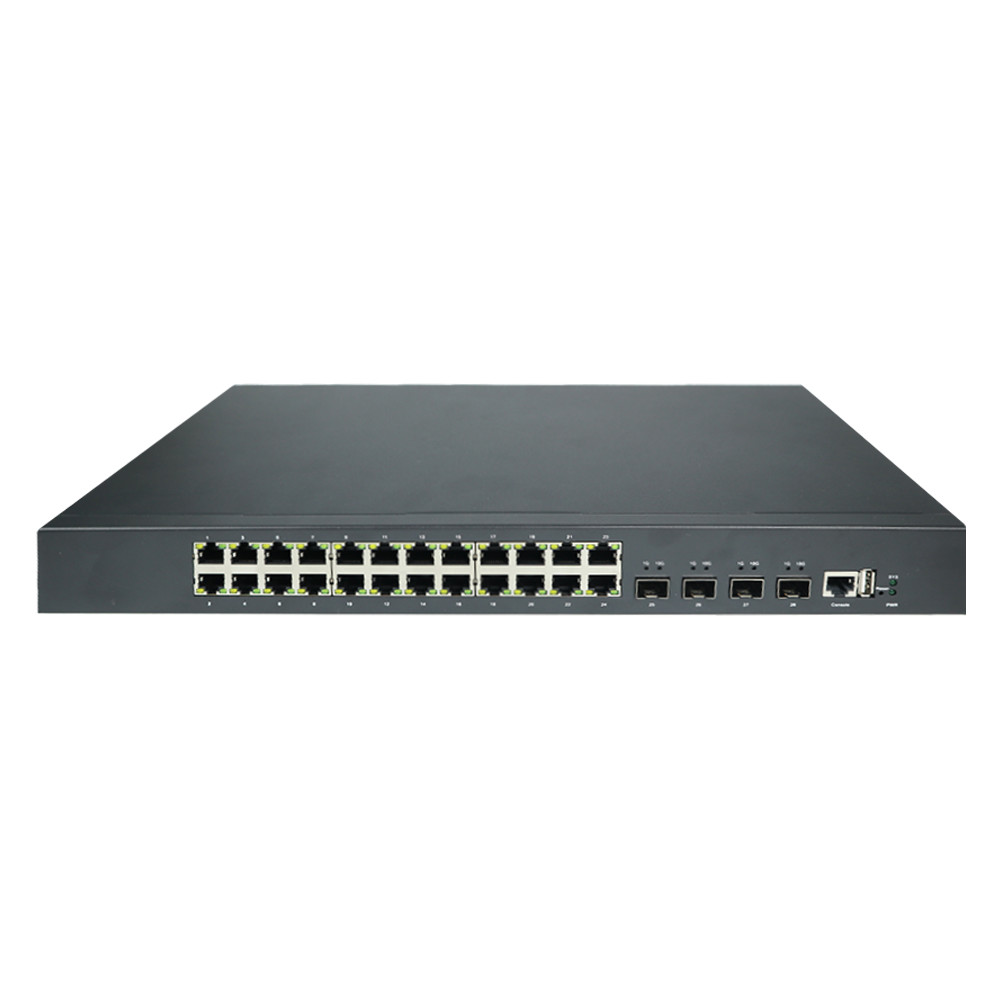

Factory 24 Port Ethernet Switch 24*1G RJ45 Port+4*10g Fiber Switch for Data Center ISP 2


Review From Our Clients:

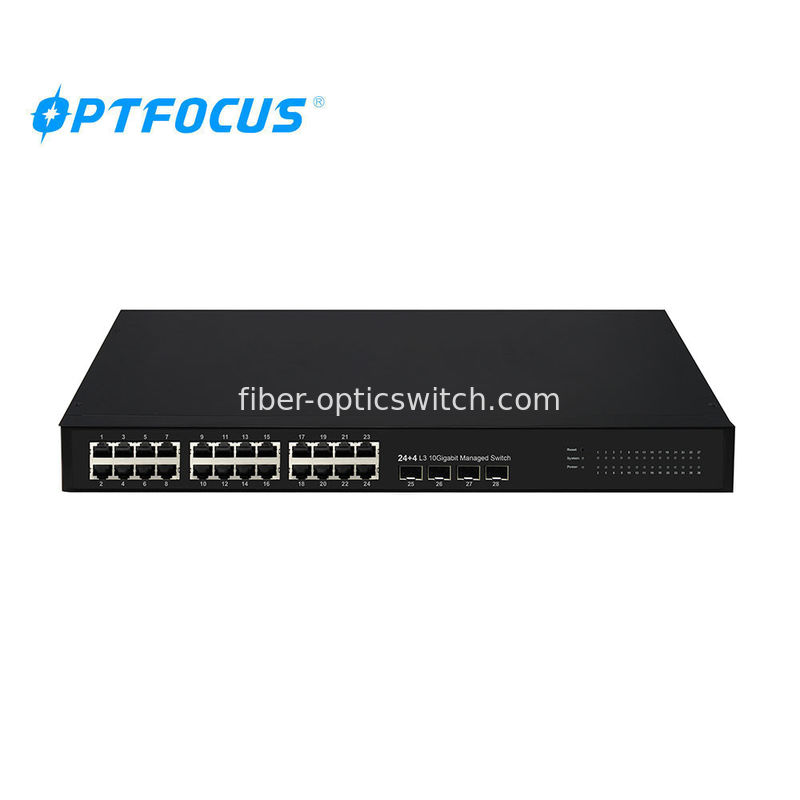

Factory 24 Port Ethernet Switch 24*1G RJ45 Port+4*10g Fiber Switch for Data Center ISP 3




1.What is your MOQ, Can I have a small sample order?
Yes, we welcome sample order to test and check quality.

2. What is your payment terms?

Trade assurance ,T/T, West Union or Cash.

3. What is your warranty time

We promise 2 years’ warranty for all products shipped from us.
