| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | OPTFOCUS |
| Model Number: | OFS-GSF2T8S |
| Minimum Order Quantity: | 1 |
| Packaging Details: | 190mm*104mm*29mm |
| Delivery Time: | 5-7working days |
| Payment Terms: | T/T |
| Supply Ability: | 5000 piece per one week |
| Product Name: | 8-port 10/100/1000Mbps + 2-port 1000Mbps SFP Fiber | Product Model: | OFS-GSF2T8S |
|---|---|---|---|
| Power Supply Input: | AC100 ～ 250V | Forwarding Mode: | Store-and-Forward |
| Max Power: | 5W | Environment Temperature: | 0 ～ +55℃ |
| Packing Size: | 306mm×152 Mm× 55mm | Packing Weight: | 1.1kg |
| High Light: | Unmanagerment Ethernet Network Switch,RJ45 port Ethernet Network Switch,Desktop Router Fiber Optical Switch |
||

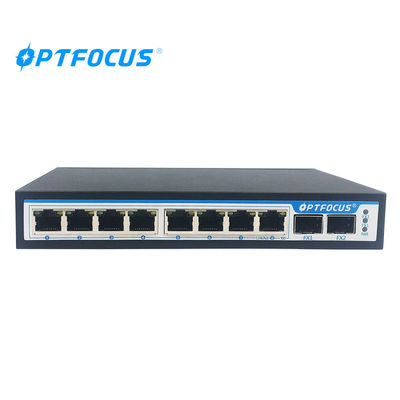

8+2 10/100/1000M RJ45 port Smart desktop router unmanagerment Gigabit Ethernet Fiber Optical Switch
OFS-GSF2T8S series is a Layer 2 + Optical Ethernet switch with 2*1000Mbps Optical fiber ports and 8*10/100/1000Mbps RJ45 ports. It is designed to meet the various application needs, and provide an Ethernet network communication solution with a high performance-price ratio.
OFS-GSF2T8’s high availability and reliability, as well as the rich security features, makes it ideal for secure data transmission.for connecting with devices like computer, switch, hub, server, etc.
| Technical items | Descriptions |
|---|---|
| Product Name | 8-port 10/100/1000Mbps + 2-port 1000Mbps SFP Fiber |
| Product Model | OFS-GSF2T8S |
| Network Protocols | IEEE802.3 10BASE-T; IEEE802.3i 100Base-T;IEEE802.3u;1000Base-TX/FX;IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x; |
| Network Media | 10BASE-T: Cat3,4,5 UTP(≤100 meter) |
| 100BASE-TX: Cat5 or later UTP(≤100 meter) | |
| 1000BASE-TX: Cat6 or later UTP(≤100 meter) | |
| Fiber Media | Multi-mode:550M- 2KM |
| Single-mode: 20/40/60/80/100KM | |
| Performance Specification | Bandwidth: 20Gbps |
| Packet Forwarding Rate:1488000pps/port | |
| MAC Address Table:8K | |
| Forwarding Mode | Store-and-Forward |
| LED Indicators | Power: PWR;FX Link/Act;TP 1000(1-8); |
| TP Link/Act(1-8) | |
| Power Supply | Input: AC100 ～ 250V, |
| Output:DC5V 2A. | |
| Max power | 5W |
| Environment temperature | 0 ～ +55℃ |
| Storage temperature | -20 ～ +70℃ |
| Humidity | 5% ～ 90% |
| Installation | DIN-Rail or Wall mounts,Optional,Default device is not |
| Packing List | 1× Switch |
| 1×User Manual/Certificate of quality/Warranty card | |
| 1×power adapter | |
| MTBF | 100,000 hours |
| Weight & Size | Product Weight: 0.5 KG |
| Packing weight: 1.1 KG | |
| Product size (L×W×H):190mm× 104mm× 29mm | |
| Packing size(L×W×H): 306mm×152 mm× 55mm | |
| Warranty | 1-years |
Automatic MAC address learning and aging
LED indicators for monitoring power/link/activity
Supports Wall-mount and DIN-Rail installation ,Optional.
Supports Broadcast Storm Control
Excellent heat elimination without cooling fan.
Apply to Urban Intelligent Traffic Monitoring System (ITS), Safe City.
Harsh environment or higher requirement
Most popular & high quality 8ports 10/100/1000M +2ports 1000M SFP Fiber Switch
