Smart 10gbps Data Sfp Port Network 6 Sfp Management 48-port Gigabit Fiber Ethernet Switches

Basic Information
Place of Origin: CHINA
Brand Name: OPTFOCUS
Certification: CE,RoHS,FCC
Model Number: OFS-MXG6GT48
Minimum Order Quantity: 1 pcs
Price: negotiable
Packaging Details: Carton BOX
Delivery Time: 5-7 working days
Payment Terms: T/T, Western Union, L/C, paypal
Supply Ability: 10000 pcs per week
Keyword: 10G Managed Ethernet Switch Switching Capacity: 216G
Power Supply: 100-240V AC, 50/60Hz(DC Optional) Max Power Consumption: 58.82W (220V/50Hz)
Fan Quantity: 2 Removable Fan Module Address Table: 32K
Stacking Speed: 20Gbps (Full-Duplex)
High Light:

fiber optical switch

,

optical fibre switch

Smart 10gbps Data Sfp Port Network 6 Sfp Management 48-port Gig Fiber Ethernet Switches



Product overview



Description



The OFS-MXF6GT48-3 series of L3 managed switches are designed to form a highly accessible, scalable and powerful network. The OFS-MXF6GT48-3 series has a wide range of routing protocol suites, 10Gbps wire speed, physical stacking technology, diverse management functions and optional redundant external power supply units, providing a reliable, safe and cost-effective solution.



OFS-MXF6GT48-3 series switches support static routing, RIP, OSPF, VRRP and other three-layer routing protocols to help build a scalable and reliable network. Multicast routing protocols such as PIM-SM and PIM-DM ensure efficient routing of multicast groups.

These switches are equipped with 6 10G SFP+ ports, which can be used for stacking and support up to 8 switches to simplify the network. OFS-



MXF6GT48-3 series switches have multiple port forms such as Gigabit Ethernet, SFP Slots, 10G SFP+ Slots, etc., providing high switching capacity for the network. By identifying all units with a simple IP address, the stack can be easily configured and monitored.

The switch provides three types of out-of-band management ports: RJ45 console port, Micro-USB console port and RJ45 out-of-band management port. The Micro-USB console port is designed for notebook computers that do not support the RS232 (DB9) interface. Customers can use the USB cable to manage the switch through the CLI (Command Line Interface). RJ45

The out-of-band management port is dedicated to Web management, and the RJ45 port is idle for data transmission.

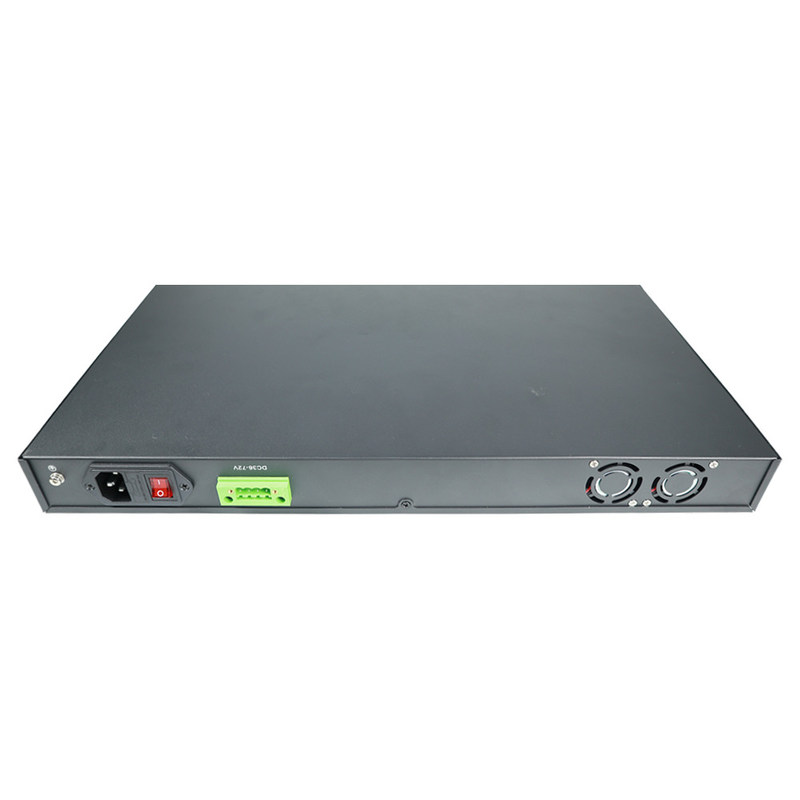

Smart 10gbps Data Sfp Port Network 6 Sfp Management 48-port Gigabit Fiber Ethernet Switches 0

Smart 10gbps Data Sfp Port Network 6 Sfp Management 48-port Gigabit Fiber Ethernet Switches 1



Technical parameter list



The product model L3 48+6+4 10Gigabit Ethernet Switch
Basic characteristics
Fixed port 48 1G optical ports, 6 1G electrical combo ports
Extensible port 4 extensible 10G ports
Backplane bandwidth 176Gbps
Packet forwarding rate 130.944Mpps
Processor RISC 400MHz
Flash memory capacity 8MB
The memory capacity 128MB
Address table 32K
Product characteristics
Spanning tree Support STP, RSTP, MSTP
Support PVST/PVST+
VLAN Support port-based VLAN
Support MAC-based VLAN
Support 802.1Q labeled VLAN
Support for Super Vlan
Support for Private Vlan
Support for the GVRP dynamic VLAN configuration
Support QinQ and flexible QinQ
Support for Voice VLAN
Flow control Based on a standard IEEE 802.3x flow control
Using IEEE 802.1Qbb priority flow control
Support CAR function
Broadcast control Restraining broadcast storm, stop sending so long as reaching a critical point
multicast control IGMP Snooping multicast message automatic monitoring
multicast routing IGMP v1/v2/v3, MLDv2
PIM-SM, OLINK&PIM-DM
DVMRP (Distance Vector Multicast Routing Protocol)
GMRP (multicast dynamic registration protocol)
Port binding Each group of a maximum of 8, while support 128 group
LACP dynamic or static polymerization
Port mirroring Support based on flow classification mirroring and port mirroring
Stacked Stacked 16 hard, soft stacking 32
Using clustering techniques, with a unified centralized management of IP address to do address resource saving
Routing management Static routing
RIP v1/v2, OSPFv2, BEIGRP (compatible with Cisco EIGRP), BGPv4, ISIS, BGP
Anti virus intelligent routing function
Strategy routing Support based on IP strategy routing
The proxy function Support Proxy ARP, DNS Proxy
Redundancy backup Support for VRRP, HSRP Hot Standby Router Protocol
Characteristics of DHCP DHCP Server, DHCP Client and support DHCP relay
Function of NAT Support the static or dynamic NAT address translation function
Safety characteristics

IEEE 802.1x port certification, PKI certification
Port Security (Port Security) function

Hardware support for IP ACL ACL ACL, MAC, Vlan
Hardware support for port based user IP+MAC+Vlan ID+ user account a variety of factors combined to bind
Support IP Source Guard
Support WEB interface user authentication
Remote RADIUS, TACACS+ certification

User classification management and password protection

Net shield technology
Safety control technology
Policy control list

Quality of service IEEE 802.1Qau congestion mechanism
Each port 8 send queue mapping 802.1p 8 priority
WRED, WFQ, SP and FIFO queue scheduling algorithm
Best-Effort Service
Differentiated Service
Strict Priority
Weighted Round Robin
First come first served
TOS to mark
RTS
Network management SNMP v1/v2/v3
RMON (1,2,3,9 group)
Telnet
WEB interface
Support for cluster management
Support SSH
Support for PDP (compatible with Cisco CDP.)
To support the fan, temperature, system log, hierarchical alarm
Physical characteristics
Appearance size 442mm × 285mm × 44mm
Power characteristic AC 110-240V adaptive, 47-63Hz, 1A/230V, RPS power hot backup
Power 80W
Indicator lamp Power indicator, indication of system, connecting / transceiver instructions
Environment humidity / temperature 0-50 ℃ operation,-40-70 ℃ preservation,0-90% no condensation





Smart 10gbps Data Sfp Port Network 6 Sfp Management 48-port Gigabit Fiber Ethernet Switches 2Smart 10gbps Data Sfp Port Network 6 Sfp Management 48-port Gigabit Fiber Ethernet Switches 3Smart 10gbps Data Sfp Port Network 6 Sfp Management 48-port Gigabit Fiber Ethernet Switches 4Smart 10gbps Data Sfp Port Network 6 Sfp Management 48-port Gigabit Fiber Ethernet Switches 5Smart 10gbps Data Sfp Port Network 6 Sfp Management 48-port Gigabit Fiber Ethernet Switches 6Smart 10gbps Data Sfp Port Network 6 Sfp Management 48-port Gigabit Fiber Ethernet Switches 7Smart 10gbps Data Sfp Port Network 6 Sfp Management 48-port Gigabit Fiber Ethernet Switches 8Smart 10gbps Data Sfp Port Network 6 Sfp Management 48-port Gigabit Fiber Ethernet Switches 9
