| Place of Origin: | CHINA |
|---|---|
| Brand Name: | OPTFOCUS |
| Certification: | CE; RoHS |
| Model Number: | OFS-SF2T6 |
| Minimum Order Quantity: | 1 PCS |
| Price: | negotiable |
| Packaging Details: | 20 pcs per carton |
| Delivery Time: | 5-7 days |
| Payment Terms: | T/T, Western Union, L/C, paypal |
| Supply Ability: | 5000 pcs per week |
| Full Duplex: | IEEE802.3x Flow Control | External Power Adapter: | AC110V~240V; DC 5V~15V |
|---|---|---|---|
| Environment Temperature: | 0 ～ +50℃ | Humidity: | 5% ～ 90% |
| Dimensions: | 180 × 45 × 143mm | WEB Support: | Optional |
| High Light: | optical fibre switch,optical fiber switch |
||

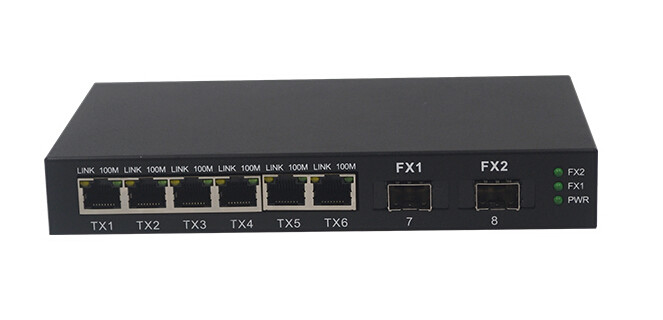

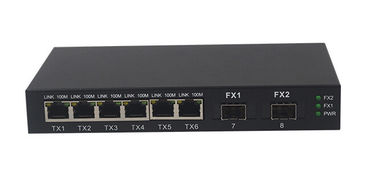

OFS-SF2T6
There are two 100M Fiber Ports and Six 10/100M UTP Ports. The product is possessed of stable performance, excellent quality and reasonable price because of adopting latest IC from USA and high quality of transceivers. It is applicable to use in small patterns of Optical Fiber Ethernet as Fiber Repeaters or Ethernet single / multimode fiber converters, and other special requirements of the environment.
Main features
◆It can convert Optical-Electric Ethernet signals between 10/100M UTP ports (TX) and 100M optical fiber interfaces (FX). The conversion of optical signals can be carried out between multi/multimode optical fiber, between single/multimode optical fiber or between single/singlemode optical fiber.
◆UTP port supports MDI / MDI-X auto crossover
◆WEB support (optional)
◆Broadcast storm protection
◆Supporting the max 1916 bytes frame
Technical Specifications
◆Operating standards: IEEE802.3u 100Base-TX and 100Base-FX
◆Connector: UTP: RJ-45,10/100Mbps; Fiber: ST/SC/FC/(Optional LC),100Mbps (Full Duplex)
◆WEB support (optional)
◆Cable UTP cable: Cat. 5 (the max distance up to 100m)
Fiber (multimode): 50/125, 62.5/125μm (the max distance up to 2km)
Fiber (singlemode): 8.3/125, 8.7/125, 9/125, 10/125μm (the max distance up to 100km)
◆Flow control
Full Duplex: IEEE802.3x flow control
Half Duplex: bake pressure flow control
◆External power adapter: AC110V~240V- DC 5V~15V
◆Environment temperature:0 ～ +50℃
◆Storage temperature:-20 ～ +70℃
◆Humidity:5% ～ 90%
◆Dimensions:180 × 45 × 143mm
Part of Fiber Optic Information
| Model | Fiber type | Connector | Max distance | Wavelength | TX power | Sensitivity | Link Budget |
| OFS-SF2T6MM | multimode | SC/ST | 2km | 850/1310nm | -20～-12dBm | -30dBm | 10dBm |
| OFS-SF2T6MS | multimode | SC | 2km | 850/1310nm | -20～-12dBm | -30dBm | 10dBm |
| singlemode | SC | 20km | 1310nm | -14～-8dBm | -32dBm | 18dBm | |
| OFS-SF2T6SS | singlemode | SC | 20km | 1310nm | -14～-8dBm | -32dBm | 18dBm |
Fiber Optic Information
| Model | Product description |
| OFS-SF2T6MM | 10/100M Ethernet Multimode Fiber Switches with 6 UTP ports and 2 multimode fiber ports, optical wavelength of 850 or 1310nm, the max fiber distance up to 2 km, for the use of multimode fiber repeaters. |
| OFS-SF2T6MS | 10/100M Ethernet Fiber Switches with 6 UTP ports and 1 multimode fiber port and 1 singlemode port, optical wavelength of 850 and 1310nm, the max multimode fiber distance up to 2 km, singlemode fiber up to 20～100 km, for the use of single / multimode fiber converters. |
| OFS-SF2T6SS | 10/100M Ethernet Fiber Switches with 6 UTP ports and 2 singlemode fiber ports, optical wavelength of 1310 or 1550nm, the max fiber distance up to 20～100 km, for the use of singlemode fiber repeaters. |
