IEEE 802.3af/at PoE media converter 100M FX SC port or SFP slot and 10 / 100M RJ45 port

Basic Information
Place of Origin: CHINA
Brand Name: OPTFOCUS
Certification: CE; RoHS
Model Number: OFS-PE-DS-25
Minimum Order Quantity: 1 pcs
Price: negotiable
Packaging Details: 20 pcs per carton
Delivery Time: 5-7 days
Payment Terms: T/T, Western Union, L/C, paypal
Supply Ability: 3000 pcs per week
Material: Iron PoE Power: 15.4W Per Port (IEEE802.3af)
Data Rate: 10/100Mpbs Power: DC48V 1.25A
Power Consumption: <30w Temperature: -10~50℃ (Operating); -20~70℃(Storage)
Humidity: 10~90% Non-condensing Dimension: 90x70x26 Mm
High Light:

managed poe switch

,

ethernet switch poe



IEEE 802.3af/at PoE media converter 100M FX SC port or SFP slot and 10 / 100M RJ45 port



OFS-PE-DS-25

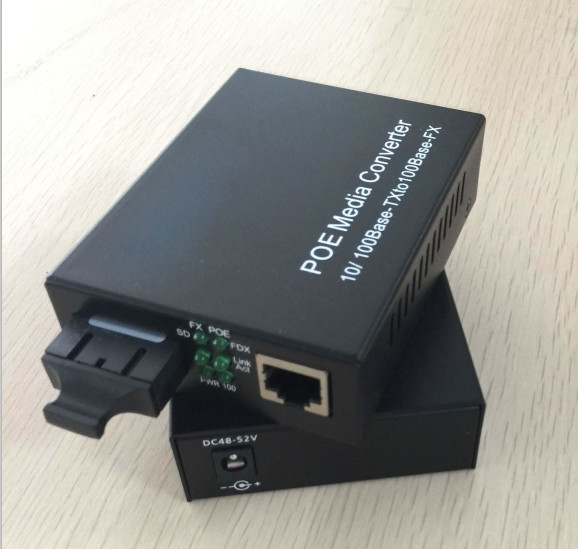

IEEE 802.3af/at PoE media converter 100M FX SC port or SFP slot and 10 / 100M RJ45 port 0



More than a Fiber Media Converter and also can be a Power over Ethernet Injector as well. The best data link and power sourcing solution for long reach network equipment.



This OFS-PE-DS series Media Converter are 10/100Base T/TX to 100Base FX Power over Ethernet(PoE) devices that serve as Power Sourcing Equipment(PSE).which allows the converter to provide power to IEEE802.3af PoE standard-compliant Powered Devices(PDs) using the twisted pair connection. Power transmitted along with data in one single cable(RJ45) allows you to expand your network where there are no power lines or outlets. Where you wish to devices such as Wifi Aps. IP Cameras or IP Phones, etc.



Feature:

◆With PoE supported to save power infrastructure cost.

◆IEEE 802.3af/at Poe PSE(Power Source Equipment) Compatible.

◆Connect to PoE switches, mid-span hubs, or other 802.3af Power Source Equipment(PSE).

◆Support Full-Duplex and Auto-Negotiation Mode for Fiber Port.

◆Stand alone unit with mini design.

◆Supporting 1552 bytes packet.

◆100Base-FX Optical Port: LC/SC/FC/ST/LC Optional fiber port



Specification:



Standard IEEE802.3i 10BASE-T
IEEE802.3u 100BASE-TX

IEEE802.3x Flow Control
IEEE802.3af Power over Ethernet
PoE power 15.4W per port (IEEE802.3af)
Wiring: Data & power provided over pairs 1/2 and 3/6
Cable: UTP cat.5 or higher
Fiber type Multi mode(MM): 62.5/125m.50/125m
Single mode(SM): 9/125m
Distance Multi mode & Dual Fiber 550M
Single mode & Single Fiber:20/40/60/80/120KM
Data rate 10/100Mpbs
Connector RJ45,SC/STFC/LC Optional fiber port
Wavelength 1310nm 1490nm 1550nm
Diagnostic LED Power Link/Activity
Power DC48V 1.25A
Power Consumption <30w
Temperature -10~50℃ (Operating); -20~70℃(Storage)
Humidity 10~90% non-condensing
Dimension 90x70x26mm











































Ordering information:



OFS-PE-DM-2 10/100M Ethernet Dual Fiber Switch with 1 UTP ports and 1 multimode fiber port, 850 or 1310nm of optical wavelength, the max distance of fiber up to 550m.supported 15.4W PSE.
OFS-PE-DSXX 10/100M Ethernet Dual Fiber Switch with 1 UTP ports and 1 singlemode fiber port, 1310 or 1550nm of optical wavelength, the max distance of fiber up to 20~120km.supported 15.4W PSE.
OFS-PE-WS01/02-XX 10/100M Ethernet Single Fiber Switch with 1 UTP ports and 1 singlemode fiber port, 1310/1550nm of optical wavelength, the max distance of fiber up to 20~120km.supported 15.4W PSE.
OFS-PE-FAS 10/100M Ethernet Dual Fiber Switch with 1 UTP ports and 1 10/100M RJ45 ports and 1 100M SFP sockets., the max distance of fiber up to 5~120km.supported 15.4W PSE.
