Fiber Optic Splice Closure Mechanical Seal Parts 1 Oval port + 3 small port 12 fibers

China Fiber Optic Splice Closure Mechanical Seal Parts 1 Oval port + 3 small port 12 fibers supplier
Fiber Optic Splice Closure Mechanical Seal Parts 1 Oval port + 3 small port 12 fibers supplier Fiber Optic Splice Closure Mechanical Seal Parts 1 Oval port + 3 small port 12 fibers supplier Fiber Optic Splice Closure Mechanical Seal Parts 1 Oval port + 3 small port 12 fibers supplier Fiber Optic Splice Closure Mechanical Seal Parts 1 Oval port + 3 small port 12 fibers supplier

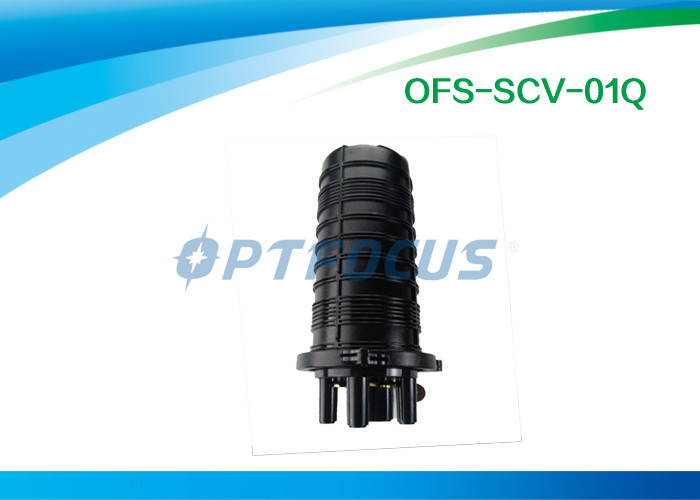

Large Image :  Fiber Optic Splice Closure Mechanical Seal Parts 1 Oval port + 3 small port 12 fibers

Product Details:

Place of Origin: China
Brand Name: OPTFOCUS
Certification: ROHS
Model Number: OFS-SCV-01Q

Payment & Shipping Terms:

Minimum Order Quantity: 10 pcs
Price: negotiated
Packaging Details: Carton Size(cm):73*44*49 Qty/CTN:8PCS G.W/CTN:21.3KG
Delivery Time: 5-8 days afterpayment received
Payment Terms: Western Union, T/T, L/C, Paypal
Supply Ability: 10000PCS/Month
Contact Now
Detailed Product Description
Color: Black Diameter Of Fiber Cable: 8mm~25 Mm
Cable Ports (max): 4 Max Cpacity: 96core
Weight (excluding Outside Box): 2350 G-2600g Material: PC
Dimension(mm): 435*190



Fiber Optic Splice Closure Mechanical Seal Parts 1 Oval port + 3 small port 12 fibers Shrinkable Dome Type ​



OFS-SCV-01Q

Dome Shrinkable Seal Splice Closure

Features:

  • Advanced internal structure design
  • Easy to re-enter,it never requires re-entry tool kit.
  • Teh closure is spacious enough for winding and storing fibers
  • Fiber Optic Splice Trays(FOSTs) are designed in SLIDE-IN-LOCK and its opening angle is about 90o
  • The curved diameter meets with international standard
  • Easy and fast to increase and reduce FOSTs
  • Straight-through for uncutting and branching for cut
  • Lay adapters suit for FTTH and easy to operate



Applications

  • Suitable for bunchy fibers
  • Pole-mounting,wall-mounting,hand hole-mounting
  • underground and duct-mounting



OFS-SCV-01Q Fiber Optic Splice Closure Datasheet


Model No.

Size (mm) HxD

Core capacity

Cable Ports (max)

Max diameter of cable (mm)

Weight (excluding outside box)

OFS-SCV-01Q

435*φ190

96

4

Φ8mm~Φ25 mm

2350 g— 2600g


Main components



No.

Name of components

Quantity

Usage

Remarks

1

FOSC cover

1 piece

Protecting fiber cable splices in whole

Height x Diameter
355mm x 150mm

2

Fiber optic splice tray (FOST)

Max. 6 trays (bunchy)
Max. 4 trays (ribbon)

Fixing heat shrinkable protective sleeve and holding fibers

Suitable for: Bunchy:12,24(cores) Ribbon:6 (pieces)

3

Fiber holding tray

1 pcs

Holding fibers with protective coat



4

Base

1set

Fixing internal and external structure



5

Plastic hoop

1 set

Fixing between FOSC cover and base



6

Seal fitting

1 piece

Sealing between FOSC cover and base



7

Pressure testing valve

1 set

After inject air, it is used for pressure testing and sealing testing

Configuration as per requirement

8

Earthing deriving device

1 set

Deriving metal parts of fiber cables in FOSC for earthing connection

Configuration as per requirement
