8mm - 23mm 12 Fibers Joint Closure Fiber Optic Splicing Enclosure 3100g - 3800g

8mm - 23mm 12 Fibers Joint Closure Fiber Optic Splicing Enclosure 3100g - 3800g

    • 8mm - 23mm 12 Fibers Joint Closure Fiber Optic Splicing Enclosure 3100g - 3800g
    • 8mm - 23mm 12 Fibers Joint Closure Fiber Optic Splicing Enclosure 3100g - 3800g
  • 8mm - 23mm 12 Fibers Joint Closure Fiber Optic Splicing Enclosure 3100g - 3800g

    Product Details:

    Place of Origin: China
    Brand Name: OPTFOCUS
    Certification: ROHS
    Model Number: OFS-SCH-01J

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 pcs
    Price: negotiated
    Packaging Details: 450*216*160cm/1pcs,4kg/1pcs
    Delivery Time: 5-8 days afterpayment received
    Payment Terms: Western Union, T/T, L/C, Paypal
    Supply Ability: 10000PCS/Month
    Contact Now
    Detailed Product Description
    Material: PC Color: Black
    Capacity Of FOSC: Bunchy: 12-192 (Cores),Ribbon: Up To 432(Cores) Connector Type: 3outlet And 3inlet
    Weight (excluding Outside Box): 3100g-3800g Diameter Of Fiber Cable: 8-23(mm)
    Dimension(mm): 450x216x160 (mm)

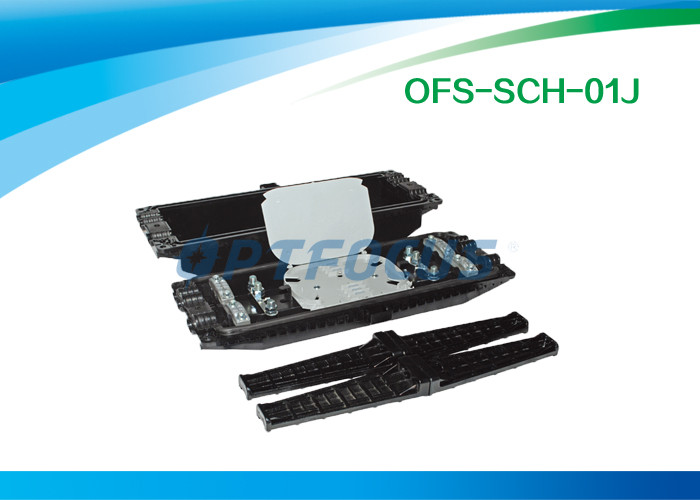

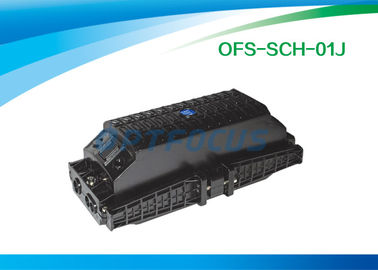

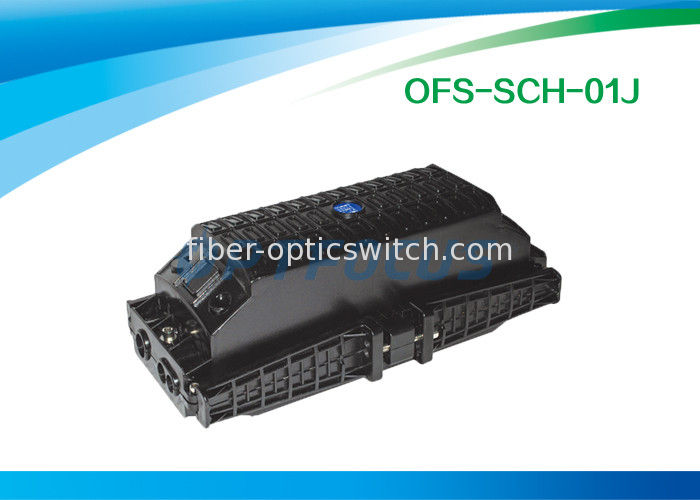

    8mm - 23mm 12 Fibers Joint Closure Fiber Optic Splicing Enclosure 3100g - 3800g



    OFS-SCH-01J

    Horizontal Splice Closure



    Features:



    l  Excellent sealing performance, reusable. Protection grade is IP 68.

    l  Installation Method: wall-mounted, aerial, pipe-lined, manhole

    l  Feature:

    l  Easy in operation and good in practicality.

    l  Inner and external push button can insure good sealing, requirements of cable torque, stretching, pressure, bending.

    l  Vulcanized sealing can meet the Φ8—Φ23 (mm) optical cable sealing needs with excellent re-package performance.

    l  The ambient temperature ranges from -40 to +65°C.



    Applications



    The scope of application is: aerial, underground, wall-mounting, wall-mounting in duct and handhold.



    INSTALLATION METHODS



    8mm - 23mm 12 Fibers Joint Closure Fiber Optic Splicing Enclosure 3100g - 3800g



    OFS-SCH-01J Fiber Optic Splice Closure Datasheet



    Model No.

    Size (mm) L×W×H

    Core capacity

    Cable Ports (max)

    Max diameter of cable (mm)

    Weight (excluding outside box)

    OFS-SCH-01J

    450x216x160 (mm)

    96

    6

    Φ8—Φ23 (mm) (mm)

    3100g-3800g



    Main components



    No.

    Name of components

    Quantity

    Usage

    Remarks

    1

    Housing

    1 set

    Protecting fiber cable splices in whole

    Internal diameter:

    378x136 (mm)

    2

    Insert plate

    2 pairs

    Fixing the housing

    175x56x30(mm)

    3

    Fiber optic splice tray

    (FOST)

    Max 8 pieces (bunchy) or 6pcs ( ribbon)

    Fixing heat shrinkable protective sleeve and holding fibers

    Suitable for:

    Bunchy:12,24(cores) Ribbon:6 (pieces)

    4

    Foundation

    1 set

    Fixing reinforced core of fiber cable and fiber optic splice tray (FOST)



    5

    Seal fitting

    1 set

    Sealing between FOSC cover and FOSC bottom



    6

    Port plug

    6 pieces

    Sealing empty ports



    7

    Pressure

    testing valve

    1 set

    After injecting air it is used for pressure testing and sealing testing

    Configuration as per requirement

    8

    Earthing deriving device

    1 set

    Deriving metallic components of fiber cable in the FOSC for earthing

    connection

    Configuration as per requirement



    2.3 Main accessories and special tools



    No.

    Name of accessories

    Quantity

    Usage

    Remarks

    1

    Heat shrinkable protective sleeve



    Protecting fiber splices

    Configuration as per capacity

    2

    Nylon tie



    Fixing fiber with protective coat

    Configuration as per capacity

    3

    Insulation tape

    1 roll

    Enlarging diameter of fiber cable for easy fixing



    4

    Seal tape

    1 roll

    Enlarging diameter of fiber cable which fits in with seal fitting

    Configuration as per specification

    5

    Hanging hook

    1 set

    For aerial use



    6

    Earthing wire

    1 piece

    Putting through between earthing device



    7

    Abrasive cloth

    1 piece

    Scratching fiber cable



    8

    Labeling paper

    1 piece

    Labeling fiber



    9

    Special Wrench

    3 pieces

    Fixing bolts and tightening nut of reinforced core



    10

    Measuring paper

    1 piece

    To measure circle, of which its diameter is enlarged with seal tape



    11

    Buffer tube



    To be decided by customers

    Hitched to fibers and fixed with FOST, managing buffer

    Configuration as per requirement

    12

    Desiccant

    1 bag

    Put into FOSC before sealing for desiccating air.
