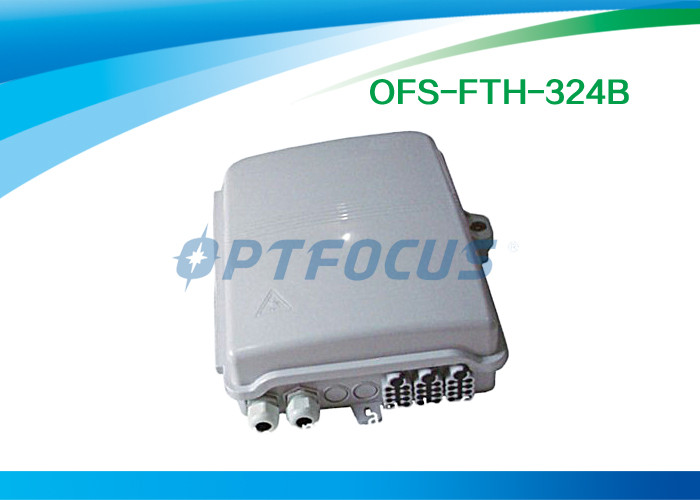

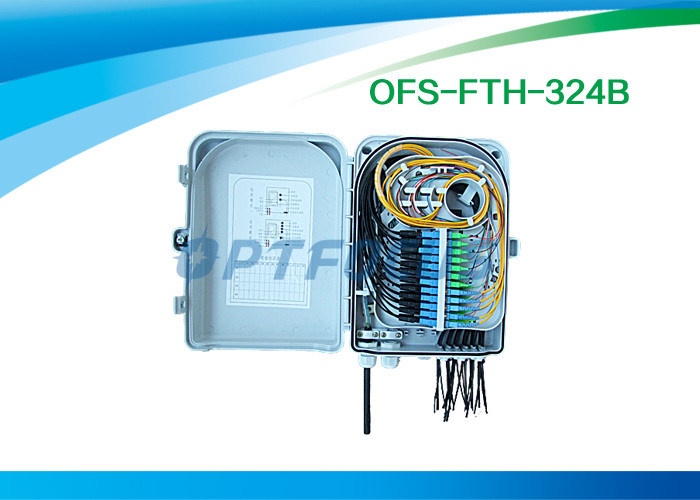

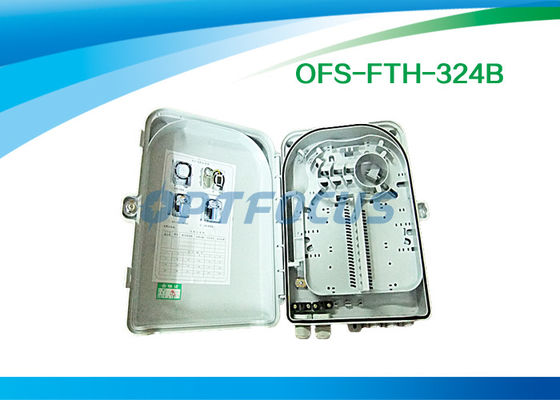

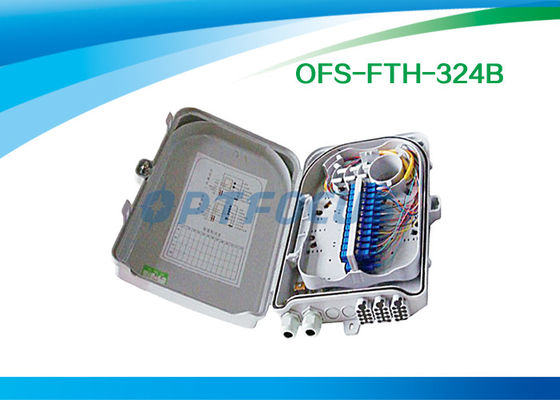

Mini Optical Fiber Termination Box 0.2dB Two 1x8 plug 62kpa - 106 kpa Atmospheric Pressure

Mini Optical Fiber Termination Box 0.2dB Two 1x8 plug 62kpa - 106 kpa Atmospheric Pressure

    • Mini Optical Fiber Termination Box 0.2dB Two 1x8 plug 62kpa - 106 kpa Atmospheric Pressure
    • Mini Optical Fiber Termination Box 0.2dB Two 1x8 plug 62kpa - 106 kpa Atmospheric Pressure
    • Mini Optical Fiber Termination Box 0.2dB Two 1x8 plug 62kpa - 106 kpa Atmospheric Pressure
    • Mini Optical Fiber Termination Box 0.2dB Two 1x8 plug 62kpa - 106 kpa Atmospheric Pressure
    • Mini Optical Fiber Termination Box 0.2dB Two 1x8 plug 62kpa - 106 kpa Atmospheric Pressure
  • Mini Optical Fiber Termination Box 0.2dB Two 1x8 plug 62kpa - 106 kpa Atmospheric Pressure

    Product Details:

    Place of Origin: Guangdong, China(Mainland)
    Brand Name: OPTFOCUS
    Certification: ROHS
    Model Number: OFS-FTH-324B

    Payment & Shipping Terms:

    Minimum Order Quantity: 5 pcs
    Price: negotiated
    Packaging Details: 315*275*96 MM
    Delivery Time: 5-8 working days after payment received
    Payment Terms: L/C, T/T, Western Union, Paypal
    Supply Ability: 10000 pcs per month
    Contact Now
    Detailed Product Description
    Insertion Loss: IL≤0.3dB(PC Type); IL≤0.3dB (APC Type) Working Temperature: - 40°C ~ + 70 °C
    Return Loss: RL≥40dB (PC Type); RL≥50dB (UPC Type);RL≥60dB (APC Type) Compatibility: ≤0.2dB
    Storage Temperature: - 40°C ~ + 70 °C Working Humidity: 90% Or Less (+ 30 °C)
    Atmospheric Pressure: 62 Kpa ~ 106 Kpa



    Mini Optical Fiber Termination Box 0.2dB Two 1x8 plug 62kpa - 106 kpa Atmospheric Pressure



    Specifications:

    1, Operating temperature: -40 oC -60 oC.
    2, Environmental Humidity: 90% at 30 oC.
    3, the air pressure: 62kPa-106kPa


    Size:315*275*96MM

    Three cable joint, joint for PG16, small joint for PG13.5



    1: Summary



    OFS-FTH-324B series cable runs fine box suitable for optical fiber access network of armored cable and a skin line cable joint point to use. The cabinet is made of hanging or embrace rod installation, suitable for indoor and outdoor use two scene; Through the SC type fiber optic adapter and quick connector on the perimeter armored cable and a skin line between cable connection and scheduling.



    2:the performance indicators



    Working temperature - 40°C ~ + 70 °C
    Storage temperature - 40°C ~ + 70 °C
    Working humidity 90% or less (+ 30 °C)
    Atmospheric pressure 62 kpa ~ 106 kpa
    Insulation resistance

    earthing device and the insulation resistance between the

     metalworking parts of not less than 2 x104m Ω / 500 v (DC)

    Voltage withstand

    earthing device and housing metalworking parts between the

                        voltagewithstand not less than 3000 v (DC) / 1 min

    Insertion loss IL≤0.3dB(PC type); IL≤0.3dB (APC type)
    Return loss RL≥40dB (PC type); RL≥50dB (UPC type);RL≥60dB (APC type)
    Compatibility ≤0.2dB



    3: function declaration



    The cabinet is made of high quality flame retardant engineering plastics, with good sealing performance and weathering can, suitable for indoor and outdoor wall hanging, hold rod installation use, protection level of IP55 level;

    Special skin line cable fixed position, ensure skin line cable fixed pulled off force not less than twenty n;

    Have special quick connector passing hole, skin line cable terminal quick connector can be in the box, terminal quick connector operation more convenient;

    Reliable armored cable into, fixed, stripping protection and earthing device, most fixed 4 root outdoor armored cable, which is equivalent to two integrated into 2 out of the cable connector box;

    Multi-function welding protection seat, can meet and core welding protection casing placed or 24 core cold after the son was demand;

    Flap structure design, fully rational utilization of housing space, full guarantee fiber enough bending radius, more convenient user reserve the right redundant fiber and reasonable go fiber routing;

    OFS-FTH-324B series of products using the same case, through the configuration of the adjustment, so as to meet the different requirements of function.



    4: product list



    Serial number

    name

    type

    Product features

    1

    Cable runs fine box

    OFS-FTH-324B-1

    Cable runs fine function, most into end 24 core, welding and core, don't pack light shunt



    2

    Cable runs fine box

    OFS-FTH-324B-2

    Spectral function, put 1 1 x16 plug type light shunt or two

     1 x8 plug type optical divider
