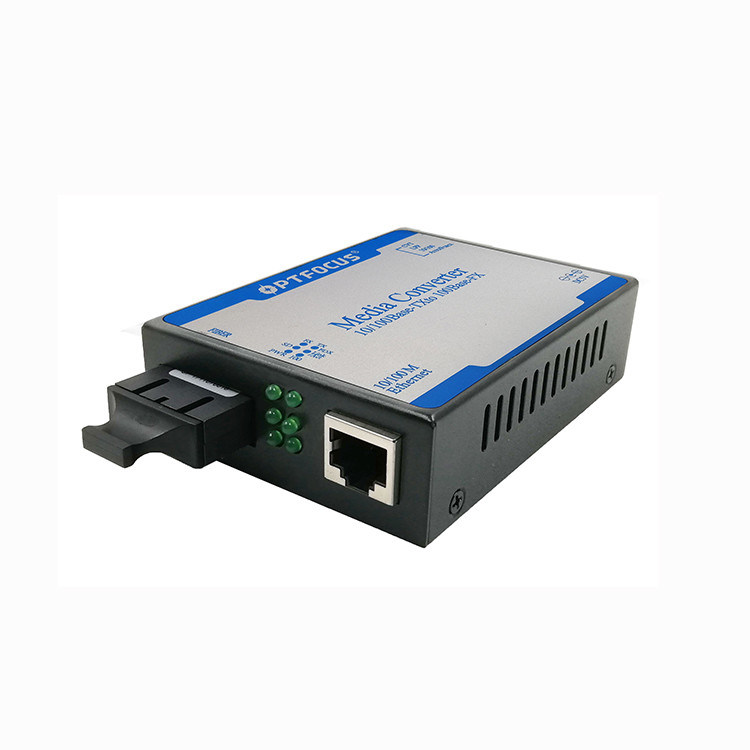

Single Mode Dual Fiber Media Converter 10/100M Auto Adaptive 2.5W Power Consumption

Basic Information
Place of Origin: Guangdong, China
Brand Name: OPTFOCUS
Certification: CE
Model Number: OFS-DS-20
Minimum Order Quantity: 2 pcs
Price: USD 9.2~10.5/piece
Packaging Details: 1 piece / box
Delivery Time: 5-10 days, depend on the quantity
Payment Terms: L/C , T/T , Western Union , MoneyGram
Supply Ability: 50000 pcs / month
Product: Media Converter Connector: 1*fiber Port SC/ST/FC Optional, 1*RJ45 Port
Power Consumption: 2.5W Working Temperature: -10~55℃
Storage Temperature: -20~75℃ Keyword: Fiber Converter
High Light:

optical media converter

,

fiber optic converters

10/100M auto adaptive 20km single mode dual fiber media converter







OFS-DS-20 Series
LFP&Jumbo Frame Support 10/100M Ethernet Fiber Media Converter



Description:
OFS-DS-20 Series Fiber Media Converter is the conversion equipment of Ethernet optical-electronic signals between 10/100M UTP interface (TX) and 100M Fiber interface (FX). The traditional 10/100M Fast Ethernet can be extended to the distance of 120km through optical fiber link. The performance and quality of the products are excellent because of adopting latest IC. 6 Group LED indicated lights could fully monitor the working conditions of Converters. It is easy for users to observe the network operations. The Series products with reasonable price are especially designed for network users.
The converters can be used as a stand-alone unit or as a slide-in module to the OPTFODUS Media Converter Chassis, OFS-RACK-14. As the other OPTOFUS OFS-Series media converters, they're hot swappable in MC-Chassis.


1. Specification

Product Name 10/100M Media Converter
Product Model OFS-WS01/02-20
Connector Single fiber: 1* 100Mbps,SC/ST/FC Optional
RJ45: 1*10/100Mbps,Auto MDI/MDI-X
Network Media 10BASE-T: Cat3,4,5 UTP(≤100 meter)
100BASE-TX: Cat5 or later UTP(≤100 meter)
Fiber Media Fiber(Multimode): 50/125, 62.5/125μm(the max distance up to 2km or 5km)
Fiber(Singlemode): 8.3/125, 8.7/125, 9/125, 10/125μm(the max distance up to 100km)
Forwarding Mode Store-and-Forward
Forwarding Rate 1488000pps/port
Operating standard EEE802.3, IEEE802.3u ,IEEE802.3z,IEEE802.3ab,IEEE802.3x
External Power Input:AC 100~250VOutput:DC 5V 1A ,(default).
or Input:DC:-36V~-72V;Output:DC 5V 1A .(Optional)
USB power supply(Optional).
Power consumption 2.5W
LED Power,Link/Act, TX 1000,100,FDX, Link/Act.
Working Environment Working temperature: -10~55ºC ;
Storage temperature: -20~75ºC
Relative Humidity: 5%~95 %( no condensation)



2. Other specifications

Installation

DIN-Rail or Wall mounts,Optional,Default device is not

Packing List

1× Media Converter

1×User Manual/Certificate of quality/Warranty card

1×power adapter

MTBF

100,000 hours

Weight & Size

Product Weight: 0.5 KG

Packing weight: 1.1 KG

Product size (L×W×H): 94.5*71*26​​mm

Packing size(L×W×H): 215*138*56mm

Warranty

1-year




























3. Ordering Information

Model Product description
OFS-WS01- 20 10/100M singlemode Converter,single fiber, 1310nm,SC,20km,external PS
OFS-WS02- 20 10/100M singlemode Converter,single fiber, 1550nm,SC,20km,external PS
OFS-WS01/02- XX 10/100M singlemode Converter,single fiber, must be used and orderd in couples. One set of WS01 must be connected with another set of WS02 for using. WS01 transmitted optical wavelength 1310nm, receive optical wavelength 1550nm; WS02 transmitted optical wavelength 1550nm, receive optical wavelength 1310nm. The max distance of fiber is up to 20, 40, 60, 80,100km,"XX"is the amount of distanc,external PS
