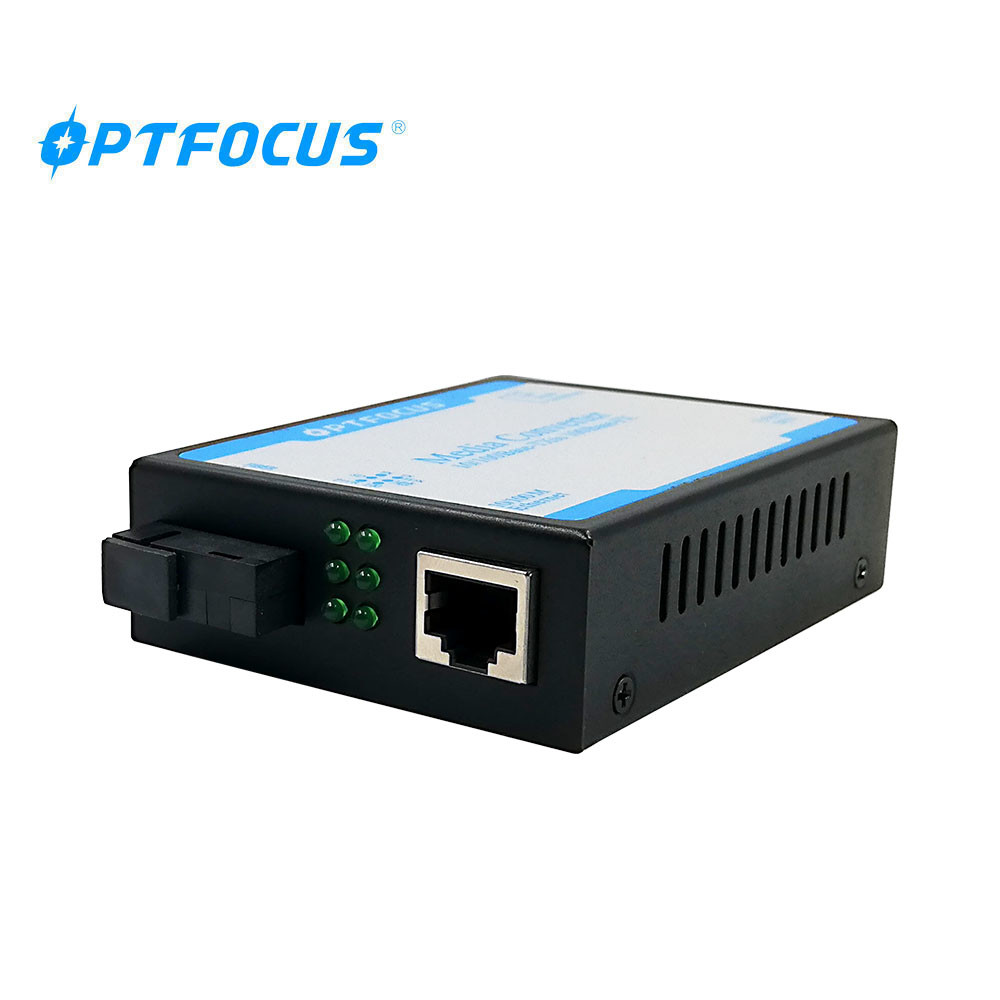

Durable 100 BASE -T Fiber Media Converter Single Mode Supporting 1552 Bytes Packet

Basic Information
Place of Origin: Shenzhen China
Brand Name: OPTFOCUS
Model Number: OFS-WS01/02-20
Minimum Order Quantity: 1
Packaging Details: 215*138*56mm
Delivery Time: 5-7 working days
Payment Terms: T/T
Supply Ability: 5000 pieces per one week

Durable 100BASE-T Fiber Media Converter single mode single fiber 20KM



Product Description

Technical itemsDescription
Product Name10/100M Media Converter
Product ModelOFS-WS01/02-20
ConnectorSingle Fiber: 1* 100Mbps,SC/ST/FC Optional
RJ45: 1*10/100Mbps,Auto MDI/MDI-X
Network Media10BASE-T: Cat3,4,5 UTP(≤100 meter)
100BASE-TX: Cat5 or later UTP(≤100 meter)
Fiber MediaFiber ( Multimode): 50/125, 62.5/125μm(the max distance up to 2km or 5km)
Fiber( Singlemode): 8.3/125, 8.7/125, 9/125, 10/125μm(the max distance up to 100km)
Forwarding ModeStore-and-Forward
Forwarding Rate:148800pps/port
Operating standardEEE802.3, IEEE802.3u ,IEEE802.3z,IEEE802.3ab,IEEE802.3x
PowerInput:AC 100~250VOutput:DC 5V 1A ,(default).
or Input:DC:-36V~-72V;Output:DC 5V 1A .(Optional)
USB power supply(Optional).
Power consumption2.5W
LEDPower, FX 100,Link/Act, TX 100,FDX, Link/Act.
Working EnvironmentWorking temperature: -10~55℃ ;
Storage temperature: -20~75℃
Relative Humidity: 5%~95 %( no condensation)
InstallationDIN-Rail or Wall mounts,Optional,Default device is not
Packing List1× Media Converter
1×User Manual/Certificate of quality/Warranty card
1×power adapter
MTBF100,000 hours
Weight & SizeProduct Weight: 0.5 KG
Packing weight: 1.1 KG
Product size (L×W×H): 94.5*70*26mm
Packing size(L×W×H):215*138*56mm
Warranty1-years

Feature:



DIP Switch:

DIP SwitchDip Function



TP

AUTO1TP at auto-negotiation(default)
FORCEForce TP at 10M or at half duplex
1002TP at 100M (default)
10TP at 10M when TP at Force
FDX3TP at full duplex(default)
HDXTP at half duplex when TP at Force
LFP DIS4Disable Link Fault Pass-Through(default)
LFPEnable Link Fault Pass-Through




Product Exhibition


Most popular & high quality LFP&Jumbo Frame Support 10/100M Ethernet Fiber Media Converter


 Durable 100 BASE -T Fiber Media Converter Single Mode Supporting 1552 Bytes Packet

Durable 100 BASE -T Fiber Media Converter Single Mode Supporting 1552 Bytes Packet



Durable 100 BASE -T Fiber Media Converter Single Mode Supporting 1552 Bytes Packet



Durable 100 BASE -T Fiber Media Converter Single Mode Supporting 1552 Bytes Packet



Application

Durable 100 BASE -T Fiber Media Converter Single Mode Supporting 1552 Bytes Packet
