Plug / Play FTTH GPON OLT 4GE RJ45 Auto Firmware Upgrade 20km Farthest Distance

China Plug / Play FTTH GPON OLT 4GE RJ45 Auto Firmware Upgrade 20km Farthest Distance supplier
Plug / Play FTTH GPON OLT 4GE RJ45 Auto Firmware Upgrade 20km Farthest Distance supplier Plug / Play FTTH GPON OLT 4GE RJ45 Auto Firmware Upgrade 20km Farthest Distance supplier Plug / Play FTTH GPON OLT 4GE RJ45 Auto Firmware Upgrade 20km Farthest Distance supplier

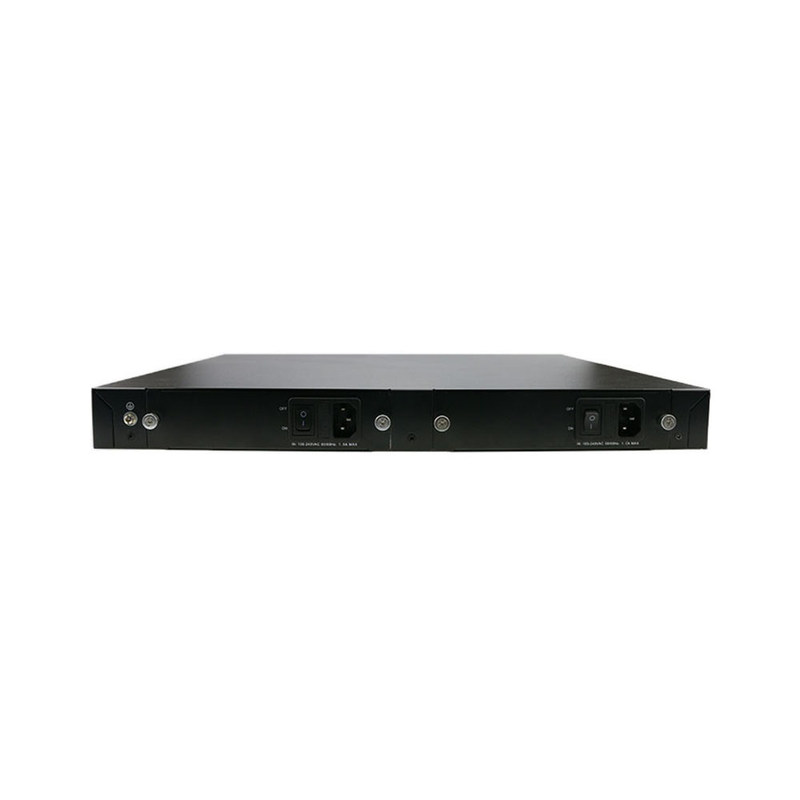

Large Image :  Plug / Play FTTH GPON OLT 4GE RJ45 Auto Firmware Upgrade 20km Farthest Distance

Product Details:

Place of Origin: Shenzhen China
Brand Name: OPTFOCUS
Model Number: OFSG3508

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: 540 mm x 367 mm x 100 mm
Delivery Time: 5-7 working days
Payment Terms: T/T
Supply Ability: 5000 pieces per one week
Contact Now
Detailed Product Description
Wavelength: Tx 1310nm, Rx 1490nm Product Model: OFSG3508
Farthest Distance: 20km Between OLT And ONU Power Supply: DC:-36V~-72V ;Optional Dual Power Supply
Dimension: 442mm*300mm*44mm(length*width*height) Net Weight: 1.84Kg

High reliable FTTH GPON OLT 8*GPON+4GE RJ45+4*10GE SFP



Product Description

Technical items Description
PORTS 8*PON interface, SC single-mode/single-fibre,1.25Gbps;
4*10/100/1000Mbps RJ45
4*SFP+
Wavelength Tx 1310nm, Rx 1490nm
Farthest distance 20km between OLT and ONU
Standard IEEE802.3ah
IEEE 802.1D, Spanning Tree
IEEE 802.1Q, VLAN
IEEE 802.1w, RSTP
IEEE 802.3ad, LACP
Ethernet – II, Ethernet-SNAP
IEEE 802.3ad VLAN Stacking( Q in Q)
VLNA 4K VLAN table items
VLAN based on port, MAC, protocol and IP subnet.
port QinQ and flexible QinQ (StackVLAN)
VLAN Swap and VLAN Remark
GVRP
t the addition, deletion and replacement of VLAN based on ONU
business flow.
Management Support for command line interface (CLI), Console port,
maintenance Telnet and WEB configuration management.
  IGMPv1/v2/v3.STP/RSTP/MSTP.ACL.
  QoS.SNMPv1/v2/v3
power supply AC:90~260V,47~63Hz
DC:-36V~-72V ;Optional dual power supply
Power consumption ≤25W
Operating condition Operating temp: -5~+55℃
Operating humidity:10~90%(non-condensed)
Storing condition Storing temp: -30~+60℃,Storing humidity:10~90%(non-condensed)
Dimension 442mm*300mm*44mm(length*width*height)
Net weight

1.84KgP



Feature:

  • Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade, etc.
  • China Telecom / China Unicom GGPON interoperability standards
  • Support for the transmission distance of 20Km on a single root fiber
  • Supporting 64 terminals of passive optical splitter on single optical fiber
  • Support 128Bits up and down three churning encryption functions
  • Support ONU terminal legitimacy authentication, illegal ONU registration events reported
  • DBA algorithm supporting dynamic bandwidth allocation, granularity 64Kbit/s
  • Support standard OAM and extended OAM management functions
  • Support ONU software batch upgrade, timing upgrade, real-time upgrade support PON port luminous power, accept optical power detection
  • Support for command line interface (CLI), Console port, Telnet and WEB configuration management.
  • Support EAPS and GERP enhanced Ethernet ring network protocol (loop healing time <50ms) support.



Product Exhibition


Most popular & high quality 8*GPON+4GE RJ45+4*10GE SFP+ OLT FTTH optic terminal



 Plug / Play FTTH GPON OLT 4GE RJ45 Auto Firmware Upgrade 20km Farthest Distance







Plug / Play FTTH GPON OLT 4GE RJ45 Auto Firmware Upgrade 20km Farthest Distance







Plug / Play FTTH GPON OLT 4GE RJ45 Auto Firmware Upgrade 20km Farthest Distance







Plug / Play FTTH GPON OLT 4GE RJ45 Auto Firmware Upgrade 20km Farthest Distance




Application



Plug / Play FTTH GPON OLT 4GE RJ45 Auto Firmware Upgrade 20km Farthest Distance
