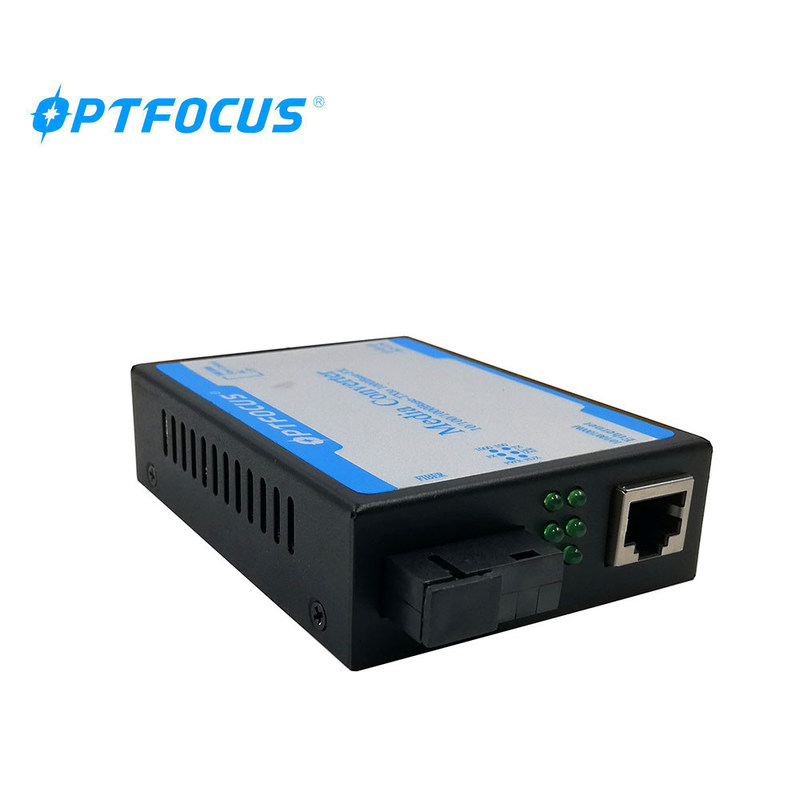

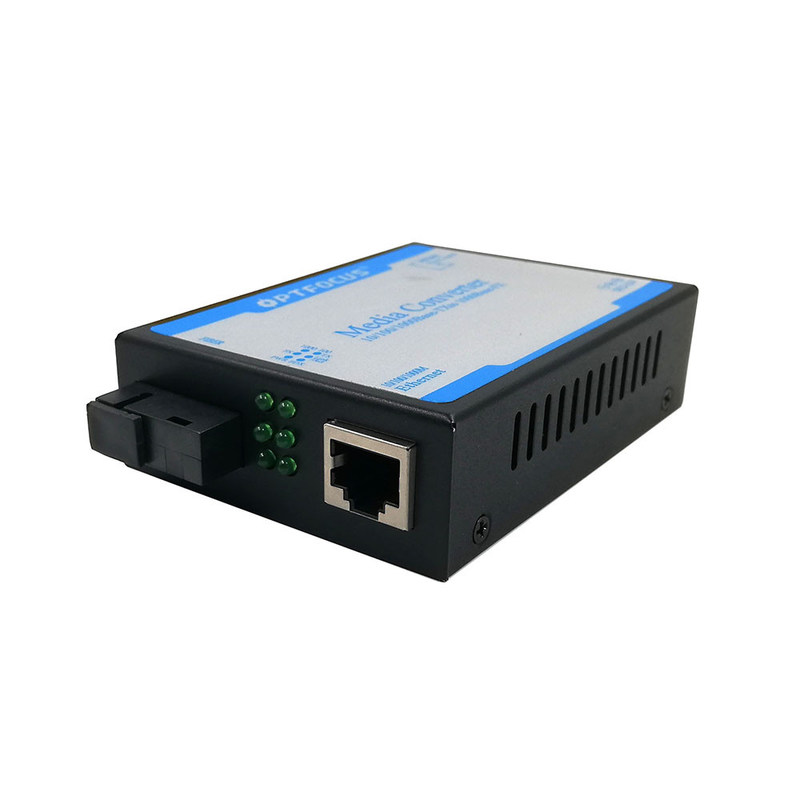

Name: Duplex Mode Fiber Media Converter , 20KM Switch Media Converter 0.5 KG Weight
Brand: Shenzhen Optfocus Technology Co., Ltd.
SKU: OFS-GWS01-20
Availability: InStock

Duplex Mode Fiber Media Converter , 20KM Switch Media Converter 0.5 KG Weight

Basic Information

Place of Origin:	Shenzhen China
Brand Name:	OPTFOCUS
Model Number:	OFS-GWS01-20

Minimum Order Quantity:	1
Packaging Details:	21513856mm
Delivery Time:	5-7 working days
Payment Terms:	T/T
Supply Ability:	5000 pieces per one week

Contact Now

Product Name:

10/100/1000M Media Converter

Product Model:

OFS-GWS01-20

Dual Fiber Connector:

1* 1000Mbps，SC/ST/FC Optional

RJ45 Connector:

1*10/100/1000Mbps,Auto MDI/MDI-X

Product Weight:

0.5 KG

Product Size (L×W×H):

94.5*70*26mm

Highlight:

optical media converter

fiber optic converters

High performance Fiber media convertor 10/100/1000M single fiber SM with 20KM

Product Description

Technical items	Description
Product Name	10/100/1000M Media Converter
Product Model	OFS-GWS01/02-20
Connector	Dual Fiber: 1* 1000Mbps,SC/ST/FC Optional
Connector	RJ45: 1*10/100/1000Mbps,Auto MDI/MDI-X
Network Media	10BASE-T: Cat3,4,5 UTP(≤100 meter)
	100BASE-TX: Cat5 or later UTP(≤100 meter)
	1000BASE-TX: Cat6 or later UTP(≤100 meter)
Fiber Media	Fiber ( Multimode): 50/125, 62.5/125μm(the max distance up to 2km or 5km)
Fiber Media	Fiber( Singlemode): 8.3/125, 8.7/125, 9/125, 10/125μm(the max distance up to 100km)
Forwarding Mode	Store-and-Forward
Forwarding Rate:	1488000pps/port
Operating standard	EEE802.3, IEEE802.3u ,IEEE802.3z,IEEE802.3ab,IEEE802.3x
Power	Input:AC 100~250VOutput:DC 5V 1A ,(default).
	or Input:DC:-36V~-72V；Output:DC 5V 1A .(Optional)
	USB power supply(Optional).
Power consumption	2.5W
LED	Power,Link/Act, TX 1000,100,FDX, Link/Act.
Working Environment	Working temperature: -10～55℃ ;
	Storage temperature: -20～75℃
	Relative Humidity: 5%~95 %( no condensation)
Installation	DIN-Rail or Wall mounts,Optional,Default device is not
Packing List	1× Media Converter
	1×User Manual/Certificate of quality/Warranty card
	1×power adapter
MTBF	100,000 hours
Weight & Size	Product Weight: 0.5 KG
	Packing weight: 1.1 KG
	Product size (L×W×H): 94.57026mm
	Packing size(L×W×H):21513856mm
Warranty	1-years

DIP Switch:

SW1	ON	Enable LFP
SW1	OFF	Disable LFP
SW2	ON	Cut-through
SW2	OFF	Store-and-Forward
SW3	OFF	No function
SW4	OFF	No function

Feature:

1 Port 10/100/1000Mbps with Auto Uplink™ , 1 port 1000Mbps SFP
10/100/1000Mbps Auto-negotiation , auto-MDI-MDI-X
Comply with IEEE 802.3, IEEE 802.3u 10/100/1000Base-TX, 1000Base-FX Standard
Auto negotiation function allows UTP port to auto select 100M or 1000M and Full Duplex or Half Duplex
Supporting 1552 bytes packet
Extend fiber distance up to 2km for multi-mode fiber and 20-120km for single-mode fiber
Data Transfer Rate:
　- TP: 10/100/1000Mbps
　- FX: 1000Mbps
Duplex mode support:
- Full or half-duplex mode by Auto-Negotiation (TP)
LED indicators: Power, FX Link/Act, TX 1000, 100,TX FDX, TX Link/Act
Supports link fault pass through function.
Design of internal or external power supply for selection by end-users
Internal circuit of prevented thunder could greatly reduce damage of the converter caused by thunderbolt induction.
