SFP Slot Mini Fiber Media Converter With 10 / 100 / 1000M RJ45 Interface

China SFP Slot Mini Fiber Media Converter With 10 / 100 / 1000M RJ45 Interface supplier
SFP Slot Mini Fiber Media Converter With 10 / 100 / 1000M RJ45 Interface supplier SFP Slot Mini Fiber Media Converter With 10 / 100 / 1000M RJ45 Interface supplier SFP Slot Mini Fiber Media Converter With 10 / 100 / 1000M RJ45 Interface supplier SFP Slot Mini Fiber Media Converter With 10 / 100 / 1000M RJ45 Interface supplier SFP Slot Mini Fiber Media Converter With 10 / 100 / 1000M RJ45 Interface supplier

Large Image :  SFP Slot Mini Fiber Media Converter With 10 / 100 / 1000M RJ45 Interface

Product Details:

Place of Origin: Shenzhen China
Brand Name: OPTFOCUS
Model Number: OFS-GASS-1

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: packaging size (L×W×H): 108mm x 82mm x 77mm
Delivery Time: 5-7working days
Payment Terms: T/T
Supply Ability: 5000 pieces per one week
Contact Now
Detailed Product Description
Fiber Connector: 1* 1000Mbps,SFP RJ45 Connector: 1*10/100/1000Mbps,Auto MDI/MDI-X
Forwarding Mode: Store-and-Forward Forwarding Rate: 1488000pps/port
MTBF: 100,000 Hours Power Consumption: 2.5W
Product Weight: 0.5 KG Product Size (L×W×H): 69*50*24mm

Durable unmanaged 1000 Mbps Gigabit SFP slot Mini media converter with 10/100/1000M RJ45 interface



Product Description



Technical Specifications



Technical items Description
Product Name 10/100/1000M Media Converter
Product Model OFS-GASS-1
Connector Fiber: 1* 1000Mbps, SFP
RJ45: 1*10/100/1000Mbps, Auto MDI/MDI-X
Network Media 10BASE-T: Cat3 ,4 ,5 UTP(≤100 meter)
100BASE-TX: Cat5 or later UTP(≤100 meter)
1000BASE-TX: Cat6 or later UTP(≤100 meter)
Fiber Media Fiber (Multimode): 50/125 , 62.5/125μm (the max distance up to 2km or 5km)
Fiber (Singlemode): 8.3/125, 8.7/125, 9/125, 10/125μm (the max distance up to 100km)
Forwarding Mode Store-and-Forward
Forwarding Rate 1488000pps/port
Operating standard EEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab IEEE802.3x
external Power Input:AC 100~250VOutput:DC 5V 1A ,(default)
or Input:DC:-36V~-72V; Output:DC 5V 1A (Optional)
Power consumption 2.5W
LED Power, Link/Act, TX 1000, 100, FDX, Link/Act.
Working Environment Working temperature: -10~55℃;
Storage temperature: -20~75℃
Relative Humidity: 5%~95 %(no condensation)
Installation DIN-Rail or Wall mounts ,Optional ,Default device is not
Packing List 1× Media Converter
1×User Manual/Certificate of quality/Warranty card
1×power adapter
MTBF 100 ,000 hours
Weight & Size Product Weight: 0.5 KG
Packing weight: 1.1 KG
Product size (L×W×H): 69*50*24mm
Packing size(L×W×H): 107mm*77mm*82mm
Warranty 1-years





DIP Switch:
SW1 ON Enable LFP
OFF Disable LFP
SW2 ON Cut-through
OFF Store-and-Forward
SW3 ON traffic control on
OFF traffic control off
SW4 ON 100M
OFF 1000M





Features:

  • 1 Port 10/100/1000Mbps with Auto Uplink TM , 1 port 1000Mbps SFP

  •

  • 10/100/1000Mbps Auto-negotiation, auto-MDI-MDI-X

  • Comply with IEEE 802.3, IEEE 802.3u 10/100/1000Base-TX, 1000Base-FX Standard

  • Auto negotiation function allows UTP port to auto select 100M or 1000M and Full Duplex or Half Duplex

  • Supporting 1552 bytes packet

  • Extend fiber distance up to 2km for multi-mode fiber and 20-120km for single-mode fiber

  • Data Transfer Rate:

 - TP: 10/100/1000Mbps
 - FX: 1000Mbps

  • Duplex mode support:

- Full or half-duplex mode by Auto-Negotiation (TP)



  • LED indicators: Power, FX Link/Act, TX 1000, 100TX FDX, TX Link/Act

  • Supports link fault pass through function.

  • Design of internal or external power supply for selection by end-users

  • Internal circuit of prevented thunder could greatly reduce damage of the converter caused by thunderbolt induction.

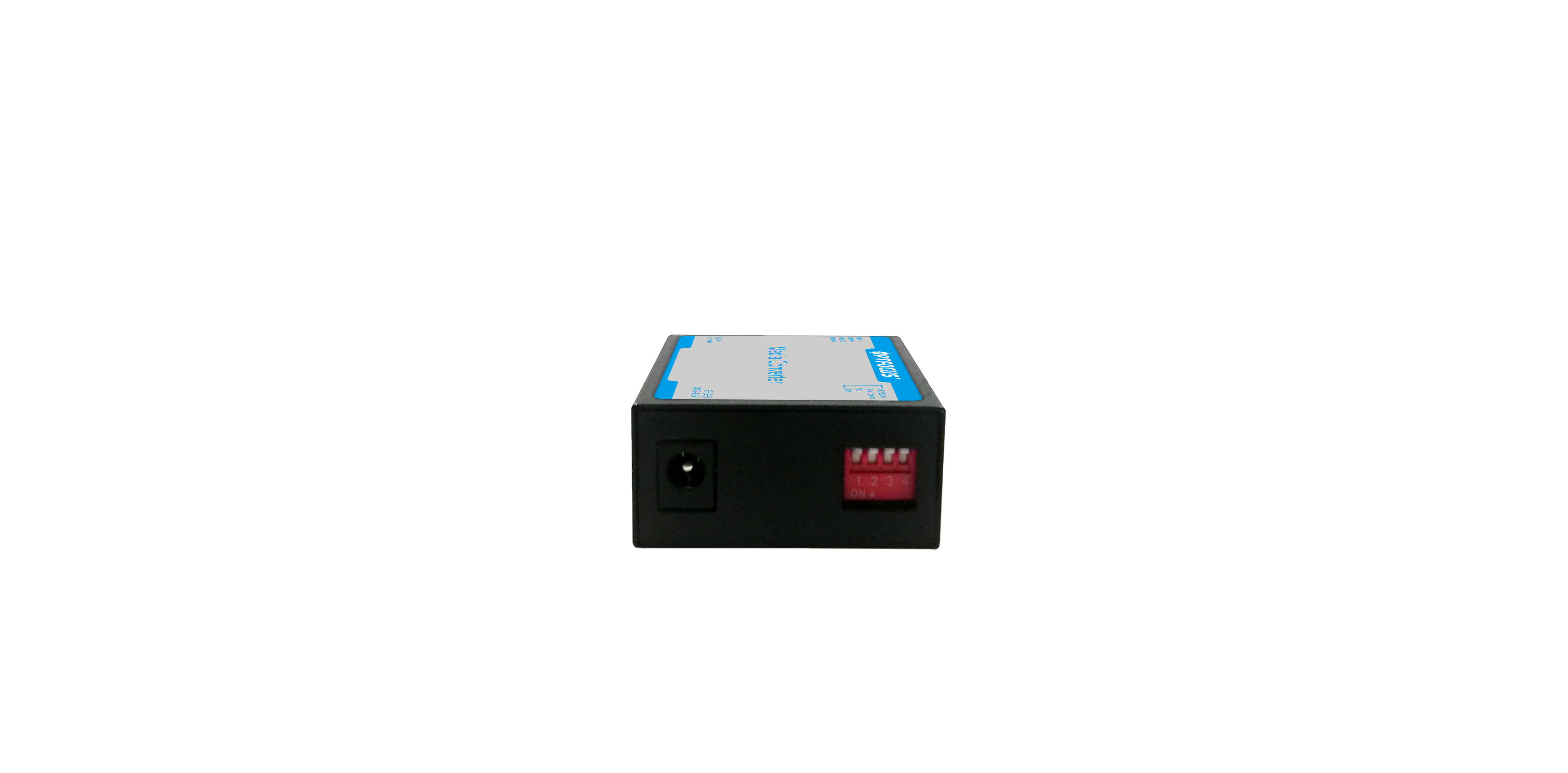

Product Exhibition





Internal Power Supply 10/100/1000M Ethernet Fiber Media Converter



10/100/1000Base-T RJ45, 1000M fiber ports (SFP), without SFP module, external PS, Mini







SFP Slot Mini Fiber Media Converter With 10 / 100 / 1000M RJ45 Interface









SFP Slot Mini Fiber Media Converter With 10 / 100 / 1000M RJ45 Interface











SFP Slot Mini Fiber Media Converter With 10 / 100 / 1000M RJ45 Interface





SFP Slot Mini Fiber Media Converter With 10 / 100 / 1000M RJ45 Interface



Application



SFP Slot Mini Fiber Media Converter With 10 / 100 / 1000M RJ45 Interface
