Indoor 8 Cores Ftth Terminal Box Fiber Optic Wall Mounting With Plc Splitter / Pigtail And Adapters

Basic Information
Place of Origin: CHINA
Brand Name: OPTFOCUS
Certification: RoHS
Model Number: OFS-FTH-308
Minimum Order Quantity: 10
Price: negotiable
Packaging Details: 30 pcs per carton
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union, L/C, Paypal
Supply Ability: 3000 pcs per week

FTTH terminal box wall-mounting indoor / outdoor 8 cores with PLC splitter / pigtail and adapters

OFS-FTH-308

Indoor 8 Cores Ftth Terminal Box Fiber Optic Wall Mounting With Plc Splitter / Pigtail And Adapters



Introduction

OFS-FTH-308-1 is a new generation product for fiber to the home. The box is light and compact. It is especially for connecting and protection for fiber cable of FTTH.

Features

It is suitable for wall-mounting installation;

It is IP65;

It is suitable for SC adapters installation and usage;

It is easy to access the box by sliding shackle;

It is applicable for outdoor cables or indoor soft cables;

Size: 210×175×50mm;

The maximum capacity is 8 pieces SC adapters installation and usage;

The Max capacity is 12 fibers for fusion of direct fusion;

It is allowed to preinstall PLC optical splitter with the Max optical distribution ratios 1:8. It applies to various cables and fast connector;

Specifications

Model Capacity Dimension Carton Dimension G.W/CTN QTY/CTN
OFS-FTH-308 8 fibers 210×175×50mm 57*47*29CM   14.8KG 30PCS

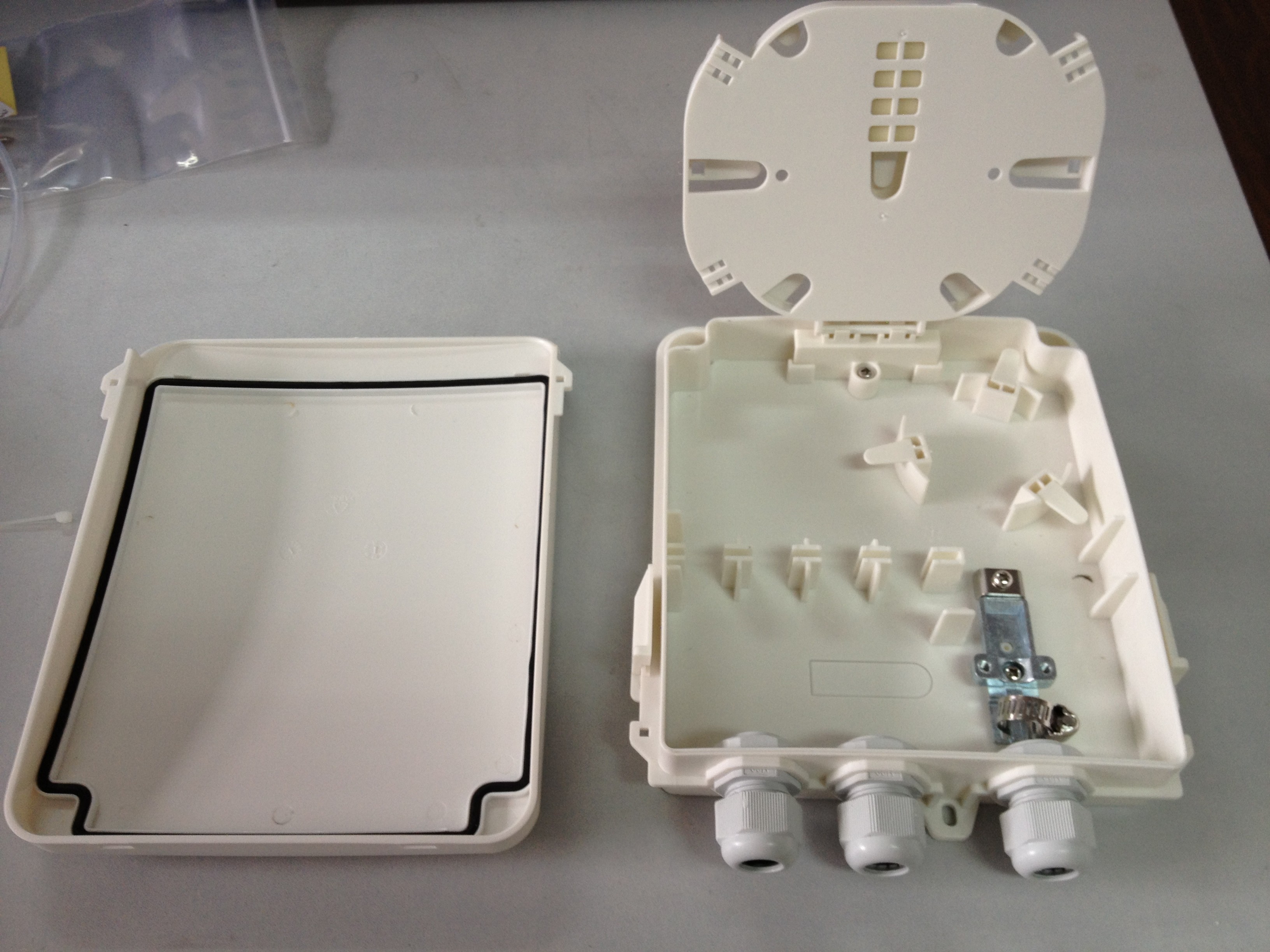

Internal instruction

Indoor 8 Cores Ftth Terminal Box Fiber Optic Wall Mounting With Plc Splitter / Pigtail And Adapters

Indoor 8 Cores Ftth Terminal Box Fiber Optic Wall Mounting With Plc Splitter / Pigtail And Adapters

1. base

2. cable gland

3. fixing cable parts

4. splice chip

5. cover

6. sealing ring

7. for adapter fixing

8.splice tray

9. for coiling cable

10. sliding shackle
