Fibretool Fiber Optic Visual Fault Locator 1mw 10mw Economical laser pointer 650nm ± 10nm

Basic Information
Place of Origin: Guangdong,China(mainland)
Brand Name: OPTFOCUS
Certification: CE
Model Number: OFS-6105N
Minimum Order Quantity: 1 PCS
Price: negotiated
Packaging Details: The seller standard export package
Delivery Time: Within 3-5 days after get payment
Payment Terms: T/T, Western Union, L/C,Paypal
Supply Ability: 10000pcs one week
Central Wavelength: 650nm±10nm Emitter Type: FP-LD
Output Povwer: 1mw Or 10mw Operating Model: Both CW And Pulse(2Hz) Available
Power Supply: Two AAA Alkaline Batteries Battery Operating Time: 40hours Test With Panasonic LR6 AAA ALKALINE Battery
Operating Temperature: -10~+60 (℃)
High Light:

fiber optic tools

,

fiber tester

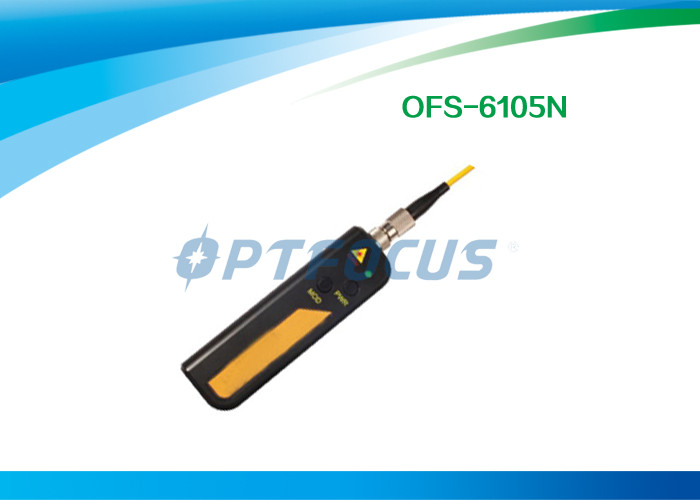

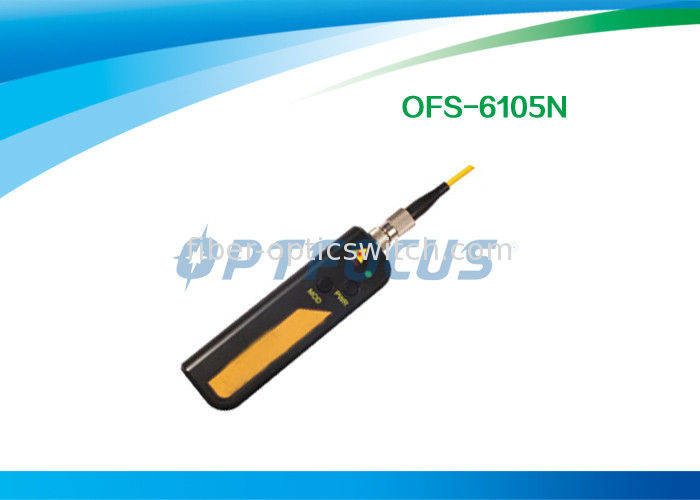

Fibretool Fiber Optic Visual Fault Locator 1mw 10mw Economical laser pointer 650nm ± 10nm



The OFS- 6105N Economical VFL is an efficient and low cost basic fiber test tool, it provides a visible way to find fiber faults and identify fibers in an optical network during and after installation. It includes:

Finding the breakpoint, poor connections, bending or cracking in fiber optic cables.

Finding the faults of OTDR dead zone

End-to-end visual fiber identification



Features



* Constant & stable output power

* Special laser driver circuit design, to make sure the laser output power remains a constant power level

  as long as in an available battery voltage.

* Low battery warning, reminds users to change the battery timely.

* Long battery life(up to 40 hours with AAA batteries)

* Operates either in CW or Pulsed

* Pocket size and light weight, easy to use



Specifications





Type

OFS-6105N Economical VFL

Central Wavelength

650nm±10nm

Emitter Type

FP-LD

Output Power

1mw or 10mw

Optical Connector

FC/2.5mm universal connector

For 1.25mm connectors, FC (Male)-LC (Female) convertor

can be optional on customer requests

Operating Model

Both CW and Pulse(2Hz) available

Power Supply

Two AAA alkaline batteries

Battery Operating Time

40hours

Test with Panasonic LR6 AAA  ALKALINE battery

Operating Temperature

-10~+60 (℃)

Storage Temperature

-25~+70 (℃)

Dimension (mm)

100*30*18

Weight

37g



Standard Packages



MODEL

INCLUDES

OFS-6105N

OFS- 6105N VFL, Two AAA batteries, User Manual, Cotton swabs and Soft Carrying case.
