| Place of Origin: | SHENZHEN,CHINA |
|---|---|
| Brand Name: | OPTFOCUS |
| Certification: | CE |
| Model Number: | OFSE3504S |
| Minimum Order Quantity: | 10PCS |
| Price: | 157-178 |
| Packaging Details: | Carton |
| Delivery Time: | 15 DAYS |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100000 PCS PER MONTH |
| Warranty: | 3 Years | Port Speed: | 1G/10G |
|---|---|---|---|
| Storage Temperature: | -40°C~+85°C | Dimensions: | 300mm*440mm*45mm |
| Operating Temperature: | -40°C~+85°C | Weight: | 2.6Kg |
| Number Of Ports: | 24 | Power Supply: | AC/DC |
| High Light: | 4 Port GPON OLT Epon,1G/10G GPON OLT Epon,GPON Low Power Consumption OLT |
||

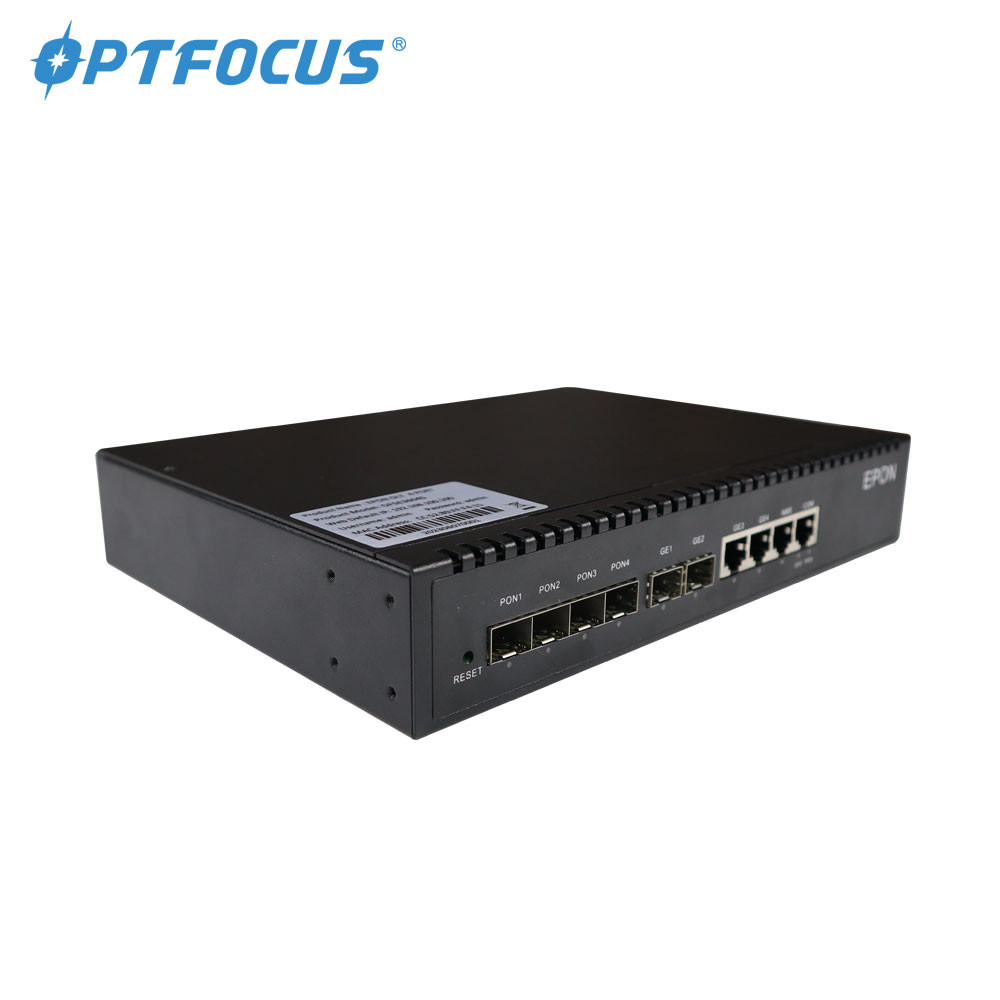

GPON EPON OLT is a fiber optic equipment which is designed for FTTH applications. It is a high performance, cost-effective EPON 4PON OLT, providing 24 ports with 2GE SFP and 2GE RG45 ports. It provides the transmission wavelength of 1310nm/1490nm/1550nm, with power supply of AC/DC, and the weight of 2.6kg. The dimensions are 300mm*440mm*45mm. It can be used for uplink modem and other fiber optic equipments. It is a reliable and efficient EPON OLT, providing excellent performance for FTTH applications.
| Parameters | Specification |
|---|---|
| Weight | 2.6Kg |
| Transmission Rate | 2.5G/1.25G/1G/100M |
| Warranty | 3 Years |
| Number of Ports | 24 |
| Port Speed | 1G/10G |
| Power Supply | AC/DC |
| Dimensions | 300mm*440mm*45mm |
| Wavelength | 1310nm/1490nm/1550nm |
| Humidity | 5%~95% |
| Operating Temperature | -40°C~+85°C |
| EPON 4PON Port | 2GE SFP + 2GE RG45 |
| OLT Epon 4 Port | 10G SFP+ |
The GPON EPON OLT from OPTFOCUS is the perfect solution for any size fiber network. The OFSE3504S model is an ideal choice for uplink modem and FTTH OLT fiber optic equipment. It is compatible with various brands, providing excellent performance, reliability, and scalability. It offers 24 ports for maximum network connectivity and is certified with CE. All of this combined with a temperature range of -40°C~+85°C, 5%~95% humidity, and a warranty of 3-years makes the OFSE3504S an ideal choice for any FTTH network.
The GPON EPON OLT is available with a minimum order quantity of 10PCS and a competitive market price of 157-178. It is shipped in a carton and delivery time is 15 days, with payment terms of L/C, D/A, D/P, T/T, Western Union, MoneyGram. The supply ability of the product is 100000 PCs per month.
OPTFOCUS offers custom services for GPON EPON OLT with model number OFSE3504S. Our product is CE certified and the minimum order quantity is 10PCS. The price range is from 157-178. The delivery time is 15 days and the payment terms include L/C, D/A, D/P, T/T, Western Union, MoneyGram. We are able to provide 100000 PCS per month with carton packaging. The transmission distance of our product is up to 20km with 1310nm/1490nm/1550nm wavelength. The power supply is AC/DC and the power consumption is ≤20W with dimensions 300mm*440mm*45mm.
Our GPON EPON OLT supports up to 96 user ONU and it is compatible with various brands. The OLT is also compatible with various brands.
