OEM ODM cctv network ethernet poe switch 16 10/100/1000Base-T adaptive RJ45 ports, industrial grade for NVR ISP FTTH

Basic Information
Place of Origin: Guangdong, China(Mainland)
Brand Name: OPTFOCUS
Certification: CE
Model Number: OFS-IGT16
Minimum Order Quantity: 1 pcs
Price: negotiated
Packaging Details: Normal Package
Delivery Time: 3 days after payment received
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 50000 pcs per month
Network Protocols: IEEE802.3,IEEE802.3u,IEEE802.3ab, IEEE802.3x Network Media: 10BASE-T: Cat3,4,5 UTP(≤100 Meter) 100BASE-TX: Cat5 Or Later UTP(≤100 Meter) 1000BASE-TX: Cat6 Or Later UTP(≤100 Meter)
Performance Specification: Exchange Capacity:56G Packet Forwarding Rate:23.9Mpps MAC Address Table:8K Forwarding Mode: Store-and-Forward
Protection: Lightening Protection, IP40 Protection Power Supply: Input Power: 10~55VDC (Terminal Block)
High Light:

pci express ethernet card

,

fiber optic network interface card

OEM ODM cctv network ethernet poe switch 16 10/100/1000Base-T adaptive RJ45 ports, industrial grade for NVR ISP FTTH



Features



OFS-IGT16 series is an unmanaged Gigabit industrial
Ethernet fast switch independently developed by our
company. It supports 16 10/100/1000Base-T adaptive
RJ45 ports and POE is optional. OFS-IGT16 series products,
fully follow the design and materials of industrial products,
the shell is made of aluminum alloy to enhance the heat dissipation
efficiency, and through the design of fanless heat dissipation circuit,
wide range of working environment temperature, high
protection level and other technologies, it provides
high/low temperature resistance and protection Thunder
and other excellent industrial-grade quality; industrial-grade
three-level ESD protection is suitable for a variety of occasions,
such as intelligent transportation, outdoor monitoring, industrial
networks, safe cities and other harsh environment deployment
requirements

Name  OEM ODM cctv network ethernet poe switch 16 10/100/1000Base-T adaptive RJ45 ports, industrial grade for NVR ISP FTTH
Network Protocols
IEEE802.3,IEEE802.3u,IEEE802.3ab, IEEE802.3x
Network Media
10BASE-T: Cat3,4,5 UTP(≤100 meter)
100BASE-TX: Cat5 or later UTP(≤100 meter)
1000BASE-TX: Cat6 or later UTP(≤100 meter)
Performance
Specification
Exchange capacity:56G
Packet forwarding rate:23.9Mpps
MAC address table:8K
Forwarding Mode
Store-and-Forward
Protection
Lightening protection, IP40 protection
Power Supply
Input Power: 10~55VDC (Terminal Block)
Weight & Size
Product Weight: 1KG
Product size (L×W×H): 181mm× 146mm× 47mm

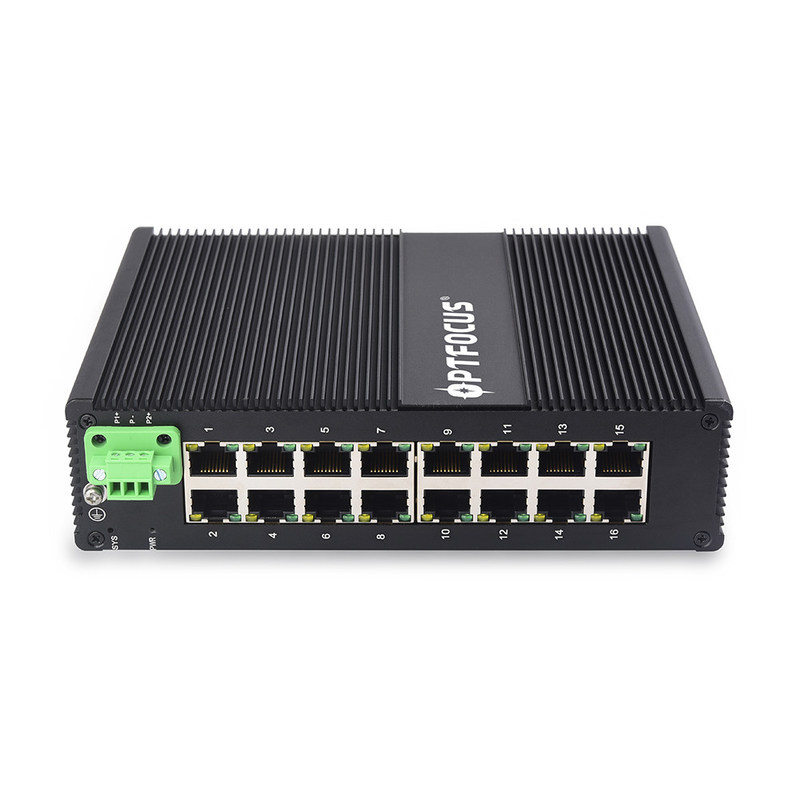

OFS-IGT16
16 10/100/1000Base-T adaptive RJ45 ports, industrial grade



OEM ODM cctv network ethernet poe switch 16 10/100/1000Base-T adaptive RJ45 ports, industrial grade for NVR ISP FTTH 0

OEM ODM cctv network ethernet poe switch 16 10/100/1000Base-T adaptive RJ45 ports, industrial grade for NVR ISP FTTH 1

OEM ODM cctv network ethernet poe switch 16 10/100/1000Base-T adaptive RJ45 ports, industrial grade for NVR ISP FTTH 2

Shenzhen OPTFOCUS Technology Co., Ltd was established in 2009, which is a High -tech manufacturer
enterprise with 10 years' experience in global sales and services. Our company focus on professional R & D,
production and sales of XPON access equipments, FTTH/FTTx solution and passive cabling system products.
We also committed to provide Customized OEM & ODM services to Global communication distributors,
Telecom Operators and System Integrator. OPTFOCUS manufacturing center covering area around
2,500 Square meter, and owning three production workshops, 9 production lines

OEM ODM cctv network ethernet poe switch 16 10/100/1000Base-T adaptive RJ45 ports, industrial grade for NVR ISP FTTH 3
OEM ODM cctv network ethernet poe switch 16 10/100/1000Base-T adaptive RJ45 ports, industrial grade for NVR ISP FTTH 4
