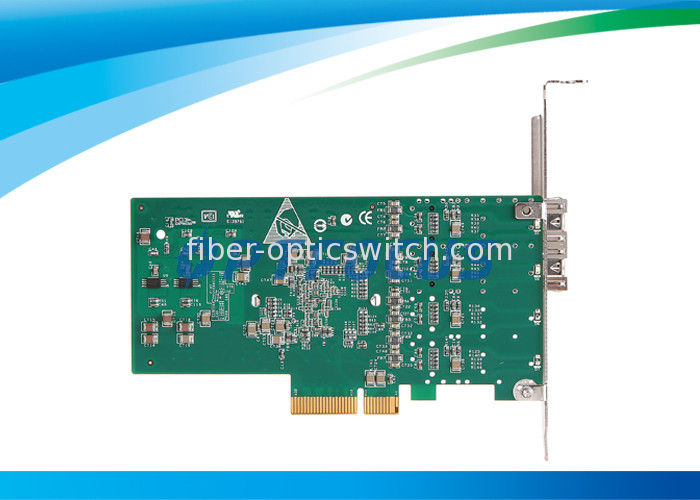

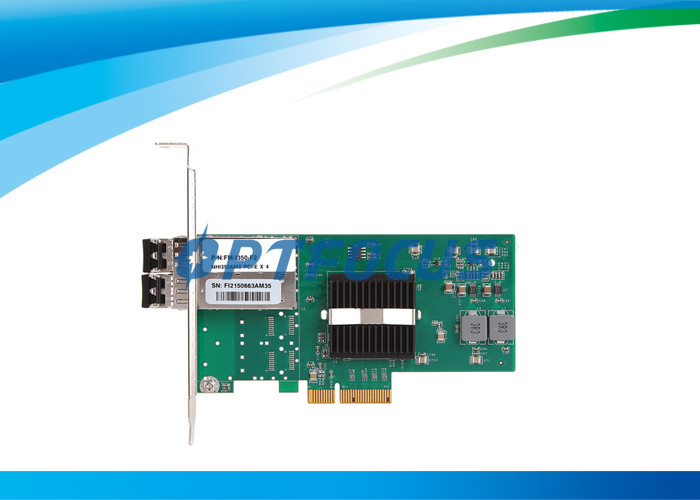

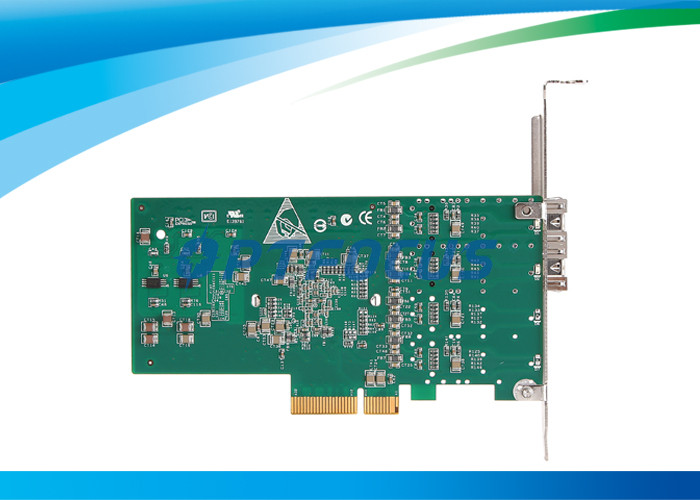

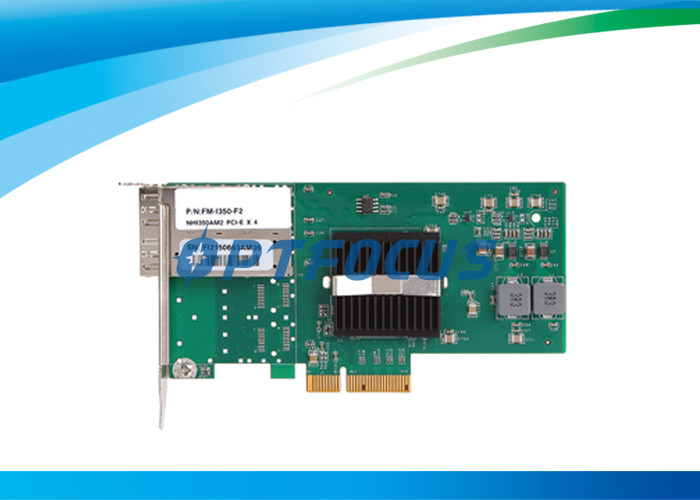

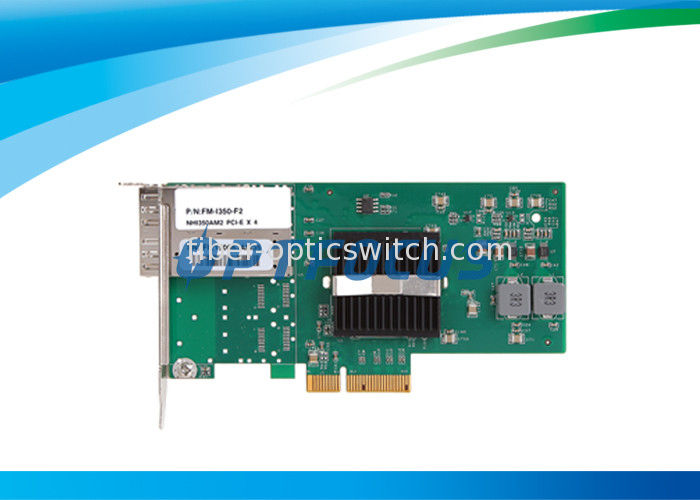

Dual Port Gigabit Ethernet Fiber Optic Network Card 2 LED Indicator Lamp

Basic Information
Place of Origin: Guangdong, China(Mainland)
Brand Name: OPTFOCUS
Certification: CE
Model Number: OFS-FL1002F-D
Minimum Order Quantity: 5 pcs
Price: negotiated

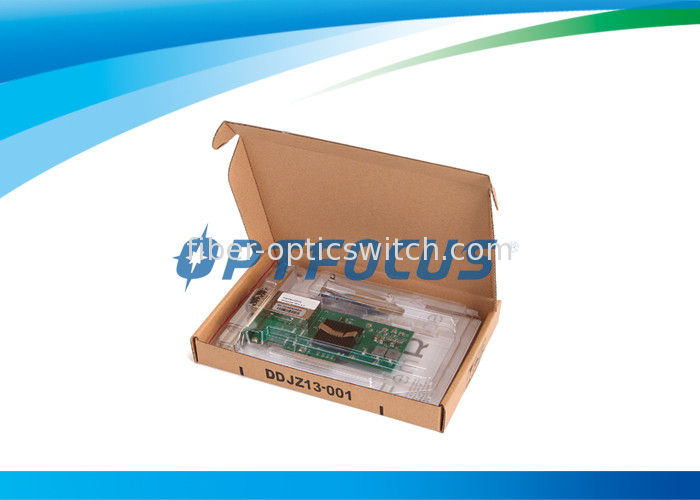

Packaging Details: Normal Package
Delivery Time: 5-8 days after payment received
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 10000 pcs per month
SFP+Products Type: 10G1BF- Indicator Lamp: 2LED
IEEE802.3 (10G-SR, 10G-LR): Support Working Temperature: 0°C-55°C (32°F-131°F)
Working Humidity: 85% Chipset: Intel 82599EN 10G Ethernet Controller
Storage Humidity: 35°C 90% Network Standard: IEEE802.3 (10G-SR, 10G-LR)
High Light:

pci express ethernet card

,

fiber optic network interface card



Dual Port Gigabit Ethernet Fiber Optic Network Card 2 LED Indicator Lamp





Type Number: OFS-FL1002F-D



Brand: OPTFOCUS



Overview:



OFS-FL1002F-D builds on OPTFOCUS history of excellence. OPTFOCUS continues its market leadership with this new generation of PCIe* GbE network adapters. Built with the bridgeless Intel® Ethernet Controller I350-AM4, these adapters represent the next step in the Gigabit Ethernet (GbE) networking evolution for the enterprise and data center by introducing new levels of performance through industry-leading enhancements for both virtualized and iSCSI Unified Networking environments.This new family of adapters also includes new power management technologies such as Energy Efficient Ethernet (EEE) and DMA Coalescing (DMAC).



Key Features



Halogen-free Dual-port Gigabit Ethernet adapters with SFP interface options

Innovative power management features including Energy Efficient Ethernet (EEE) and DMA

Coalescing for increased efficiency and reduced power consumption

Flexible I/O virtualization for port partitioning and quality of service (QoS) of up to 32 virtual ports

Scalable iSCSI performance delivering cost-effective SAN connectivity

High-performing bridgeless design supporting PCI Express* Gen 2.1 5GT/s

Reliable and proven Gigabit Ethernet technology from Intel Corporation



Advanced Technologies of IntelI350 Chipset controller



Virtualization, Halogen free, intelligent offloads, storage over Ethernet, power management



Technical Specification :



Product Code

OFS-FL1002F-D

Product Name

PCI Express Dual Port Fiber Optical Gigabit Ethernet Server Adapter

Chipset

Intel I350-AM4 Gigabit Controller

Bus Interface

PCI Express* V2.1 (5 GT/s) Support

Bus Width

x4 lane PCI Express operable in x4, x8, x16 slots

Network interface type

Dual-Port ,SFP*2,Fiber Optical Card,LC

Data rate supported per port

1000Mbps/Port

Optional Connection Parts

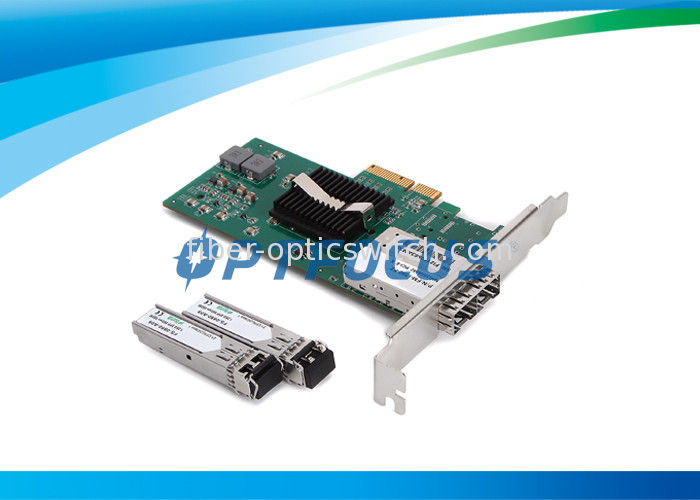

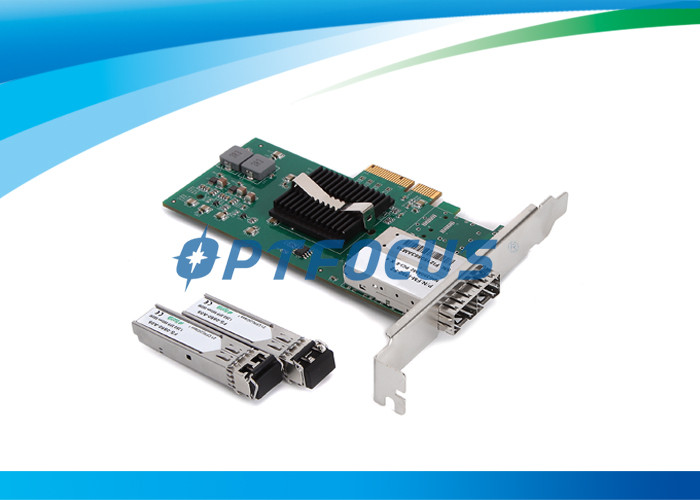

SFP Transceiver *2, (1000BASE-SX, 1000BASE-LX, 1000BASE-ZX).

LC fiber optical cables.

Network standard

IEEE802.3auto-negotiation

Brackets

Half and full (two brackets)

Intelligent offloads

YES

Operating Temperature

0℃~55℃

Operating Humidity

85%

Stoke Temperature

-40℃~70℃

Stoke Humidity

90%

Length

13.3cm

Width

6.8cm

Full-height end bracket

12cm

Low-profile end bracket

8cm

Packing Standard Size (Unit)

23*14.6*2.7cm

Intel Virtualiztion Technology

(Intel VT)for connectivity

On-chip Qos and traffic management,flexible port partitioning,Virtual Machine Device queues(VMDQ),PCI-SIG SR-IOV-capable

Storage Over Ethernet

Yes





Operating System/Architectures Support

Operating SYSTEM

IA32

X64

IPF1

Windows Server 2003 SP2

Y

N

Windows Server 2008 SP2

Y

Y

N

Windows Server 2008 SP2 Core

Y

Y

n/a

Windows Server 2008 SP2 Core(w/Hyper-V role)

n/a

Y2

n/a

Hyper-V Server 2008 SP2

n/a

Y2

n/a

Windows Server 2008 R2

n/a

Y

N

Windows Server 2008 R2 Core

n/a

Y

N

Windows Server 2008 R2(w/Hyper-V role)

n/a

Y2

n/a

Windows Server 2008 R2

n/a

Y2

n/a

WinPE 1.6(2003PE)

Y

Y

n/a

WinPE 2.1(2008PE)

Y

Y

n/a

WinPE 3.0(2008 R2 PE)

Y

Y

n/a

Linux*Stable Kernel Version 3.x,2.6,X

Y

Y

n/a

Linux RHEL5.6

Y

Y

N

Linux RHEL 6.1

Y

Y

n/a

Linux SLES 10 SP4

Y

Y

n/a

Linux SLES 11 SP1

Y

Y

N

DOS*NDIS 2

Y

n/a

n/a

DOS ODI

Y

n/a

n/a

UEFI*2.1

N

Y

N

UEFI*2.3

N

Y

N

VMware*ESX 4.03

n/a

Y

n/a

VMware ESX 4.13

n/a

Y

n/a

VMware ESX5.03

n/a

Y

n/a

Xen4

n/a

Y

n/a



Key: Y=affected, N=not affected ,n/a=OS not available on specified architecture



Flexible I/O Virtualization



Scalable iSCSI Performance



Power Management Technologies



Energy Efficient Ethernet (EEE)



The OFS-FL1002F-D supports the IEEE802.3az Energy Efficient Ethernet (EEE) standard so that, during periods of low network activity, EEE reduces the power consumption of an Ethernet connection by negotiating with a compliant EEE switch port to transition to a low power idle (LPI) state.This reduces the controller power to approximately 50% of its normal operating power, saving power on the network port and the switch port. As soon as increased network traffic is detected, the controller and the switch quickly come back to full power to handle the increased network traffic.



DMA Coalescing



Another power management technology that can reduce power on the server platform is DMA Coalescing (DMAC). Typically, when a packet arrives at a server, DMA calls are made to transfer the packet within the server. These calls wake up the processor, memory and other system components from a lower power state in order to perform the tasks required to handle the incoming packet.



Based on the configurable DMAC settings, incoming packets are buffered momentarily before any DMA calls are made. This enables the controller to intelligently identify opportunities to batch multiple packets together so that when components are wakened from lower power states they can efficiently handle the batched packets at the same time. This enables platform components to remain in lower power states longer, which can dramatically reduce platform energy consumption. DMAC synchronizes DMA calls across all controller ports to ensure maximum power savings.



Using Environment



 DELL Server,HP Server,IBM Server,INSPUR Server,Leno Server and other big server brand,

IT System Integrator,Cloud,Big Date Center,Workstation,PC,FTTD Solution(Fiber to the desk) for

Government,institution, School, personal using ,IDC etc.



 Partners and End-Users



China Telecom, China Netcom, China Railcom, China Unicom, Space Unisign servers, Bank of China, Founder Technology, Dawning servers, Lenovo servers, IBM servers, HP servers, Dell servers, the Great Wall Broadband, Beijing Radio and Television General Institute, , World Chinese Youth Federation, Tsinghua Huambo, China Urban Planning and Design, Gehua, The People's Republic of China Ministry of Railways, China City Planning Information Network, etc.
