| Place of Origin: | Guangdong, China(Mainland) |
|---|---|
| Brand Name: | OPTFOCUS |
| Certification: | ROHS |
| Model Number: | OFS-FTH-308 |
| Minimum Order Quantity: | 5 pcs |
| Price: | negotiated |
| Packaging Details: | 550*355*620 mm |
| Delivery Time: | 5-8 days after payment received |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 10000 pcs per month |
| Protection Class: | IP 65 | QTY/CTN PCS: | 10 |
|---|---|---|---|
| Adaptors: | 16 SC | Demensition: | 260(W)x320(D)x90mm( D) |
| N.W . (kg/pcs): | 1.85 | Carton Dimension (mm): | 550*355*620 |
| G． W．/ CTN KGS: | 16.1 | ||
| High Light: | optical fiber termination box,fiber optic termination box |
||
1. 1:8PLC splitter indoor plastic box
2. max capacity is 1:8
3. IP65

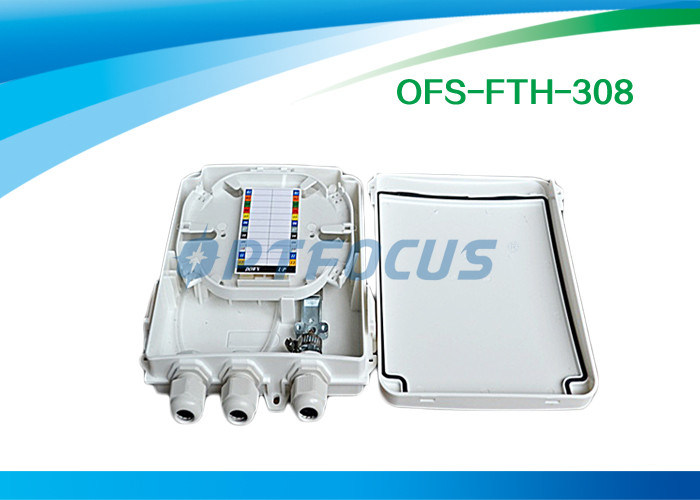

FTTH Terminal Box
applicable for wall-mounted indoor or outdoor
suitable for Max capacity of 8 pieces SC adapters
Features:
• It is applicable for wall-mounted indoor or outdoor; available for PLC splitter or pigtail.
•The cover is removable.
• It is suitable for Max capacity of 8 pieces SC adapters’ installation and usage;
• The Max capacity is 12 fibers for fusion of direct fusion;
• It is allowed to preinstall PLC optical splitter with the Max optical distribution ratios 1:8.It applies to various cables and fast connector;
• The protection grade is IP65.
Specifications
|
Size |
210×175×50mm |
|
Weight |
0.35kg |
|
Color |
ivory |
|
Functions: |
Cable terminal, passive splitter |
|
Splitter type: |
micro splitter |
|
Splitter installation position: |
splitter fixing bracket |
|
Adaptor type: |
SC |
|
Max ratio: |
1:8 |
|
Splice tray type: |
15# |
|
Splice tray quantity: |
1 pcs |
|
cable: |
8 figure soft cable, general outdoor cable, indoor cable |
|
Standard accessory: |
box one set |
|
Optional accessory: |
PLC splitter, SC adaptor, fast connector |
