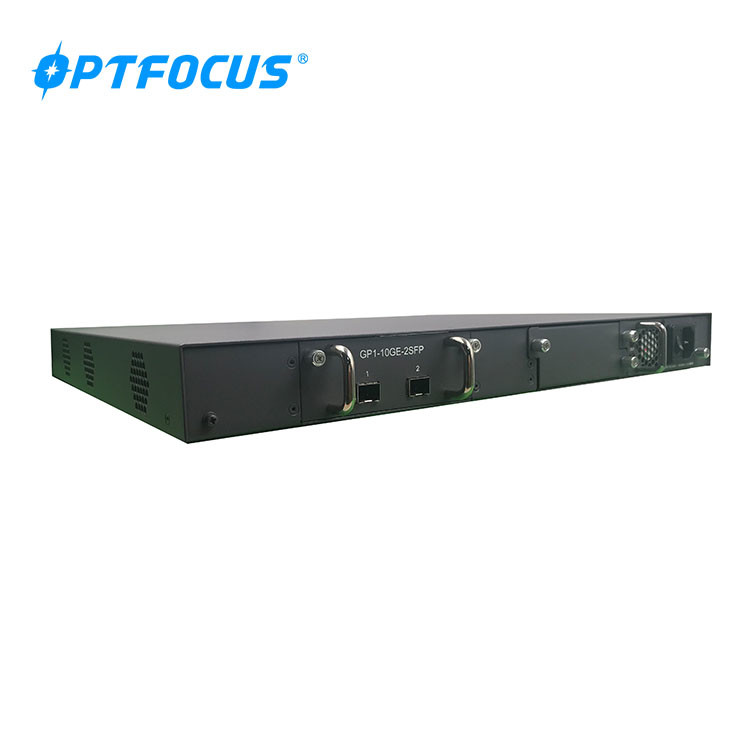

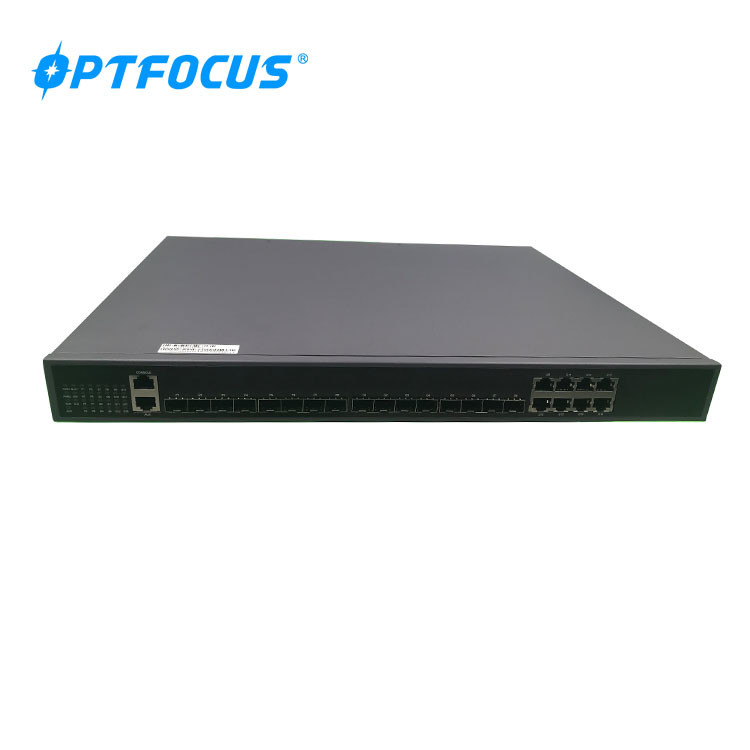

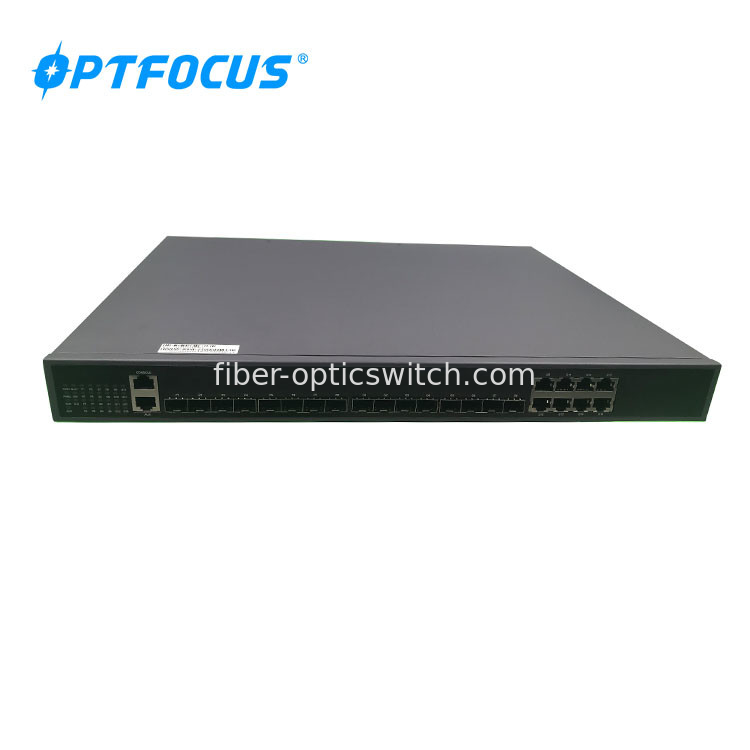

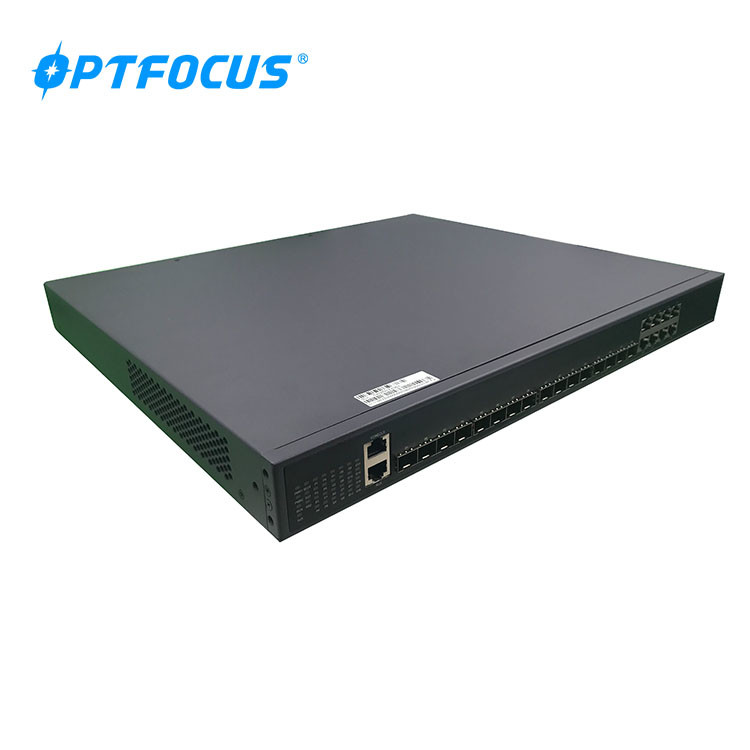

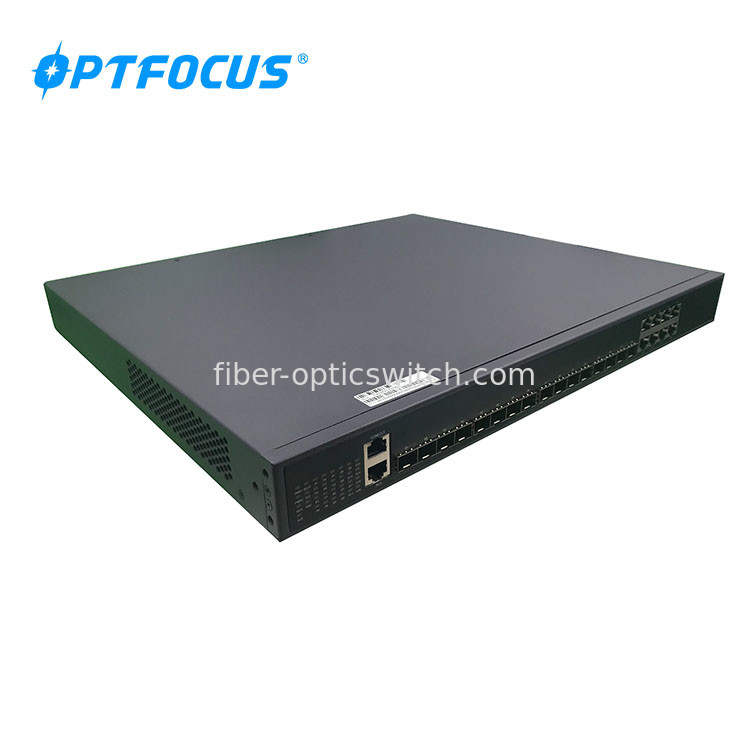

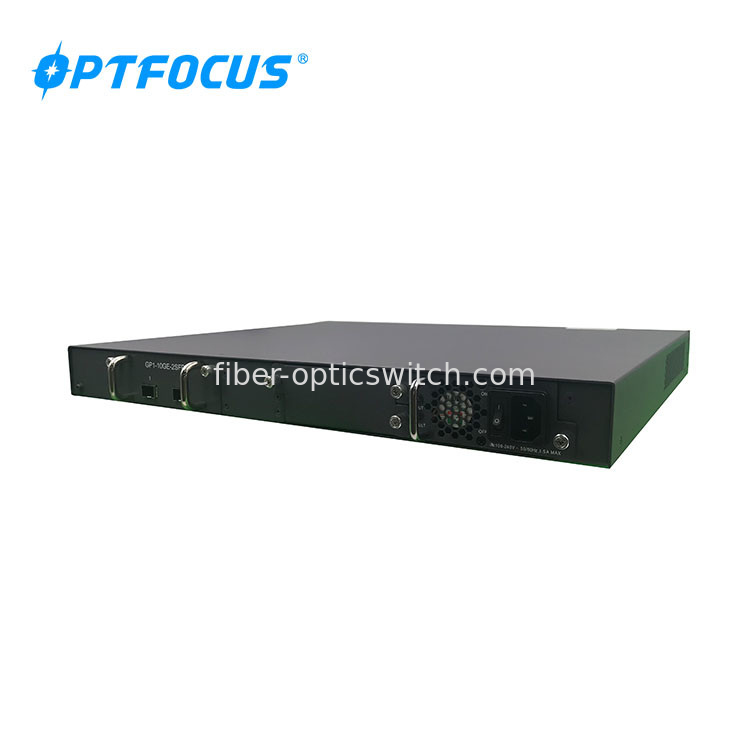

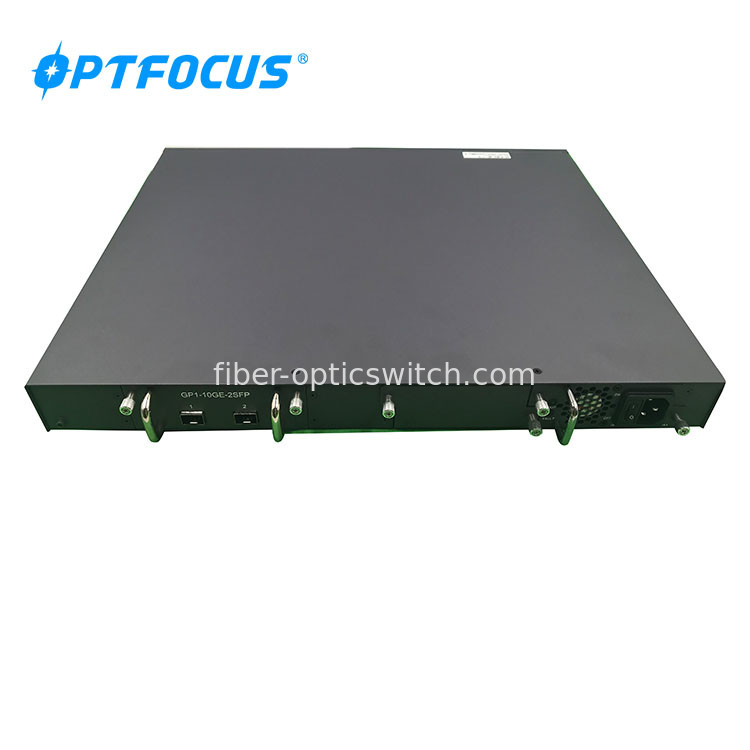

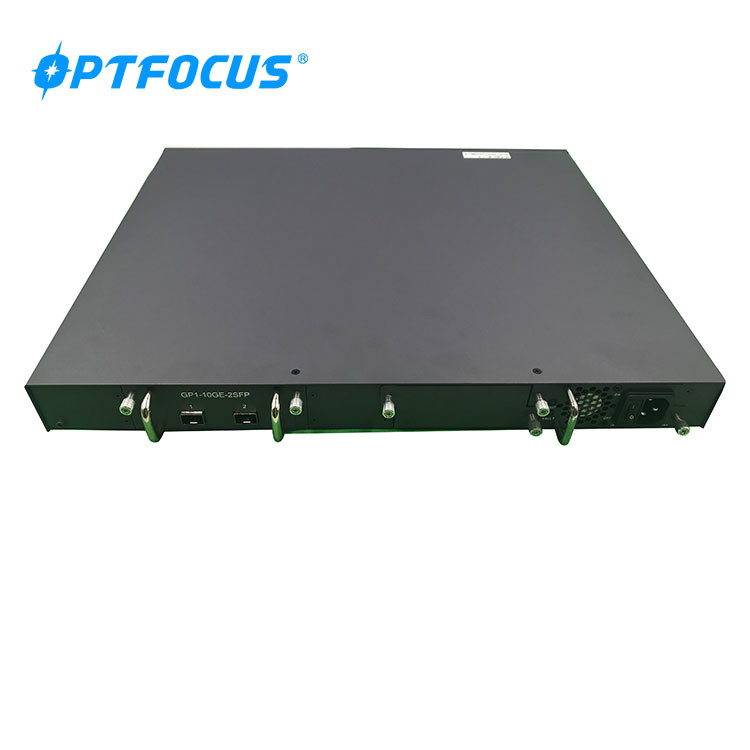

Optfocus FTTH Optical Line Terminal 4 PON 8 Ports 4 Ports 16ports MA5608t OLT

Basic Information
Place of Origin: Shenzhen
Brand Name: OPTFOCUS
Certification: CE,RoHS
Model Number: OFSE3504
Minimum Order Quantity: 1 piece
Price: USD 66.9 1piece
Packaging Details: Box and carton
Delivery Time: 8-14 days
Payment Terms: L/C, Western Union, T/T, D/P
Supply Ability: 5000 piece a month
Keywords: OLT Function: Wired LAN
Ports: ≤ 8,24,16 Products Status: Stock
Key Word: Epon Olt Warranty Time: 18 Months
Product: 4 PON Epon Olt Use: FTTH
High Light:

FTTH Optical Line Terminal

,

MA5608t Optical Line Terminal

,

Wired LAN MA5608t OLT

Optfocus FTTH Optical Line Terminal 4 PON eponolt 8 ports 4 ports 16ports Epon olt olt huawei PON Module



Optfocus FTTH Optical Line Terminal 4 PON eponolt 8 ports 4 ports 16ports  Epon olt olt MA5608t huawei PON Module

Optfocus FTTH Optical Line Terminal 4 PON eponolt 8 ports 4 ports 16ports  Epon olt olt MA5608t huawei PON Module

Optfocus FTTH Optical Line Terminal 4 PON eponolt 8 ports 4 ports 16ports  Epon olt olt MA5608t huawei PON Module



Optfocus FTTH Optical Line Terminal 4 PON eponolt 8 ports 4 ports 16ports  Epon olt olt MA5608t huawei PON Module



Item

    OLT

PON Features



IEEE 802.3ah EPON

China Telecom/Unicom EPON

Maximum 20 Km PON transmission distance

Each PON port supports the max. 1:64 splitting ratio

Uplink and downlink triple churning encrypted function with 128Bits

Standard OAM and extended OAM

ONU batch software upgrade, fixed time upgrade, real time upgrade

PON transmit and inspect receiving optical power

PON port optical power detection

L2 Features MAC

MAC Black Hole

Port MAC Limit

16K MAC address

VLAN

4K VLAN entries

Port-based/MAC-based/protocol/IP subnet-based

QinQ and flexible QinQ (StackedVLAN)

VLAN Swap and VLAN Remark

PVLAN to realize port isolation and saving public-vlan resources

GVRP

Spanning Tree

STP/RSTP/MSTP

Remote loop detecting

Port

Bi-directional bandwidth control

Static link aggregation and LACP(Link Aggregation Control Protocol)

Port mirroring

Security

Features

User’s Security

Anti-ARP-spoofing

Anti-ARP-flooding

IP Source Guard create IP+VLAN+MAC+Port binding

Port Isolation

MAC address binding to the port and MAC address filtering

IEEE 802.1x and AAA/Radius authentication

Device Security

Anti-DOS attack(such as ARP, Synflood, Smurf, ICMP attack), ARP

detection, worm and Msblaster worm attack

SSHv2 Secure Shell

SNMP v3 encrypted management

Security IP login through Telnet

Hierarchical management and password protection of users

Network Security

User-based MAC and ARP traffic examination

Restrict ARP traffic of each user and force-out user with abnormal ARP traffic

Dynamic ARP table-based binding

IP+VLAN+MAC+Port binding

L2 to L7 ACL flow filtration mechanism on the 80 bytes of the head of user-defined packet

Port-based broadcast/multicast suppression and auto-shutdown risk port

URPF to prevent IP address counterfeit and attack

DHCP Option82 and PPPoE+ upload user’s physical location Plaintext authentication of OSPF, RIPv2 and BGPv4 packets and MD5

cryptograph authentication

IP Routing IPv4

ARP Proxy

DHCP Relay

DHCP Server

Static Routing

RIPv1/v2

OSPFv2

BGPv4

Equivalent Routing

Routing Strategy

  IPv6

ICMPv6

ICMPv6 Redirection

DHCPv6

ACLv6

OSPFv3

RIPng

BGP4+

Configured Tunnels

ISATAP

6to4 Tunnels

Dual stack of IPv6 and IPv4

Service Features



ACL

Standard and extended ACL

Time Range ACL

Flow classification and flow definition based on source/destination MAC address, VLAN, 802.1p, ToS, DiffServ, source/destination IP(IPv4/IPv6) address, TCP/UDP port number, protocol type, etc

packet filtration of L2~L7 deep to 80 bytes of IP packet head

QoS

Rate-limit to packet sending/receiving speed of port or self-defined flow and provide general flow monitor and two-speed tri-color monitor of self-defined flow

Priority remark to port or self-defined flow and provide 802.1P, DSCP

priority and Remark

CAR(Committed Access Rate), Traffic Shaping and flow statistics

Packet mirror and redirection of interface and self-defined flow

Super queue scheduler based on port or self-defined flow. Each port/

flow supports 8 priority queues and scheduler of SP, WRR and

SP+WRR.

Congestion avoid mechanism, including Tail-Drop and WRED

Multicast

IGMPv1/v2/v3

IGMPv1/v2/v3 Snooping

IGMP Filter

MVR and cross VLAN multicast copy

IGMP Fast leave

IGMP Proxy

PIM-SM/PIM-DM/PIM-SSM

PIM-SMv6, PIM-DMv6, PIM-SSMv6

MLDv2/MLDv2 Snooping

Reliability Loop Protection

EAPS and GERP (recover-time <50ms)

Loopback-detection

Link Protection

FlexLink (recover-time <50ms)

RSTP/MSTP (recover-time <1s)

LACP (recover-time <10ms)

BFD

Device Protection

VRRP host backup

1+1 power hot backup

Maintenance Network Maintenance

Port real-time, utilization and transmit/receive statistic based on Telnet

RFC3176 sFlow analysis

LLDP

802.3ah Ethernet OAM

RFC 3164 BSD syslog Protocol

Ping and Traceroute

Device Management

CLI, Console port, Telnet and WEB

SNMPv1/v2/v3

RMON (Remote Monitoring)1, 2, 3, 9 groups MIB

NTP

NMS network management





Our company:

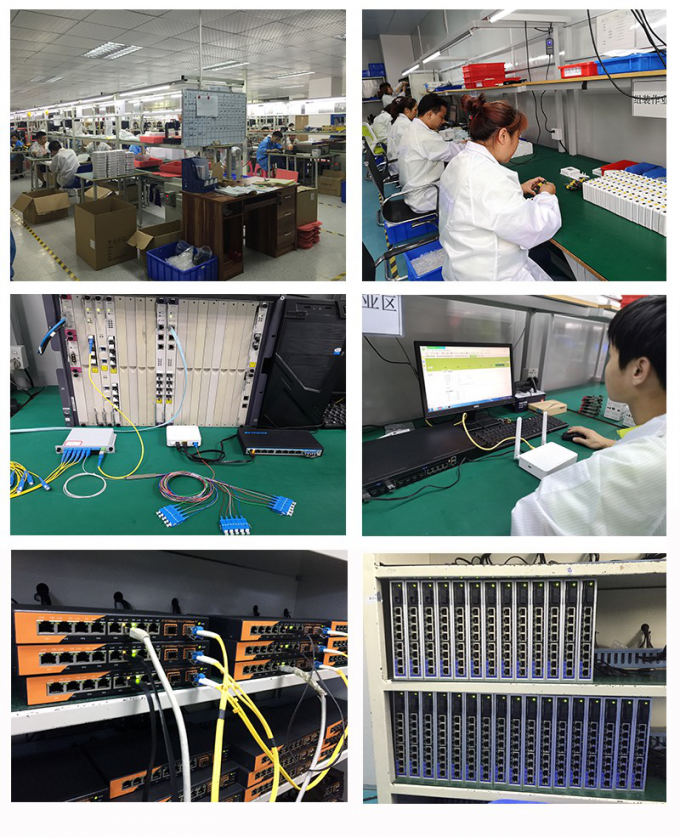

Shenzhen OPTFOCUS Technology Co., Ltd was established in 2009, which is a High -tech manufacturer enterprise with 10 years' experience in global sales and services. Our company focus on professional R & D, production and sales of XPON access equipments, FTTH/FTTx solution and passive cabling system products. We also committed to provide Customized OEM & ODM services to Global communication distributors, Telecom Operators and System Integrator. OPTFOCUS manufacturing center covering area around 2,500 Square meter, and owning three production workshops, 9 production lines.
