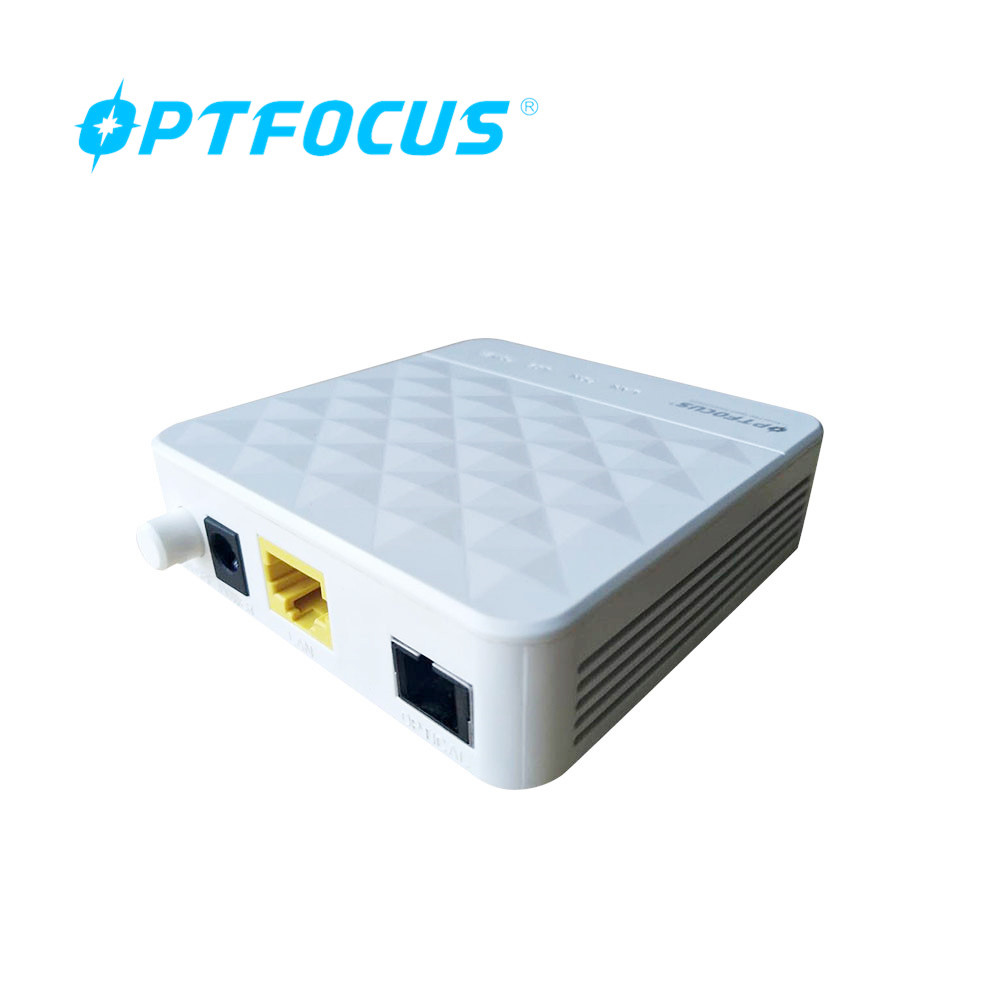

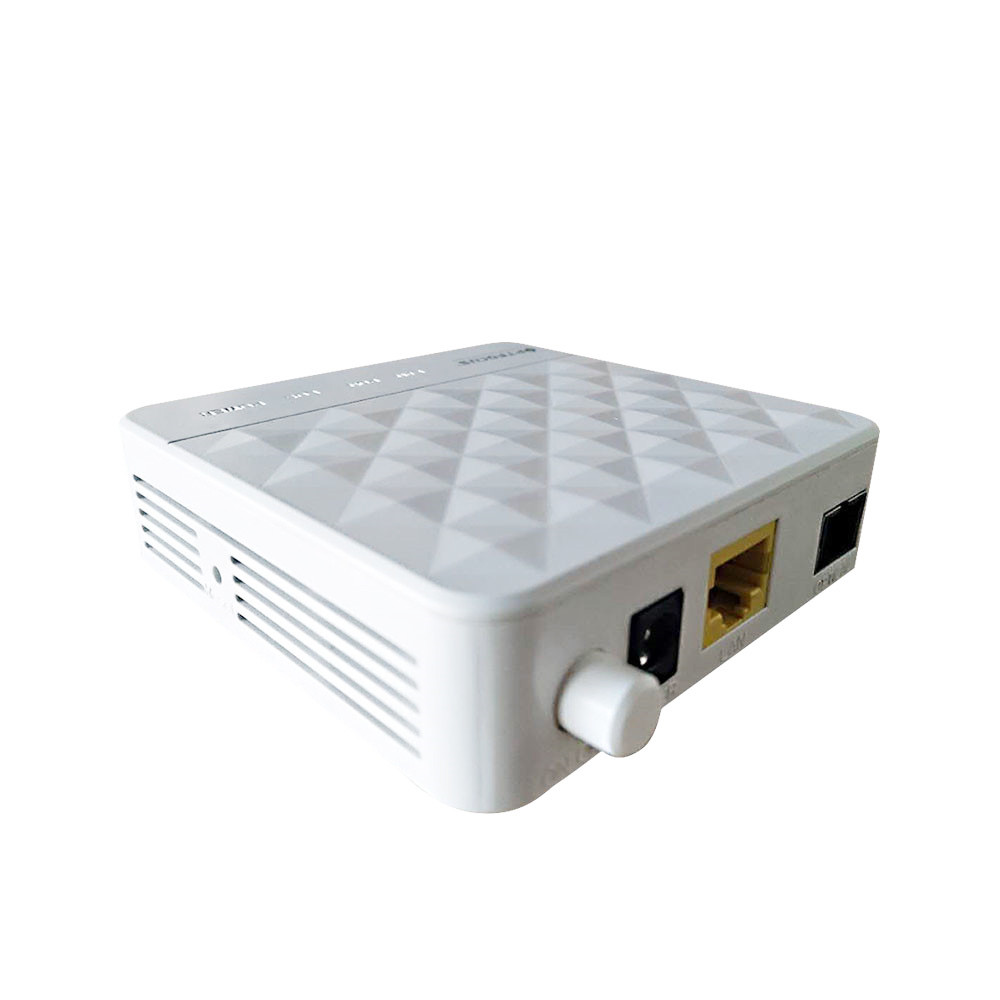

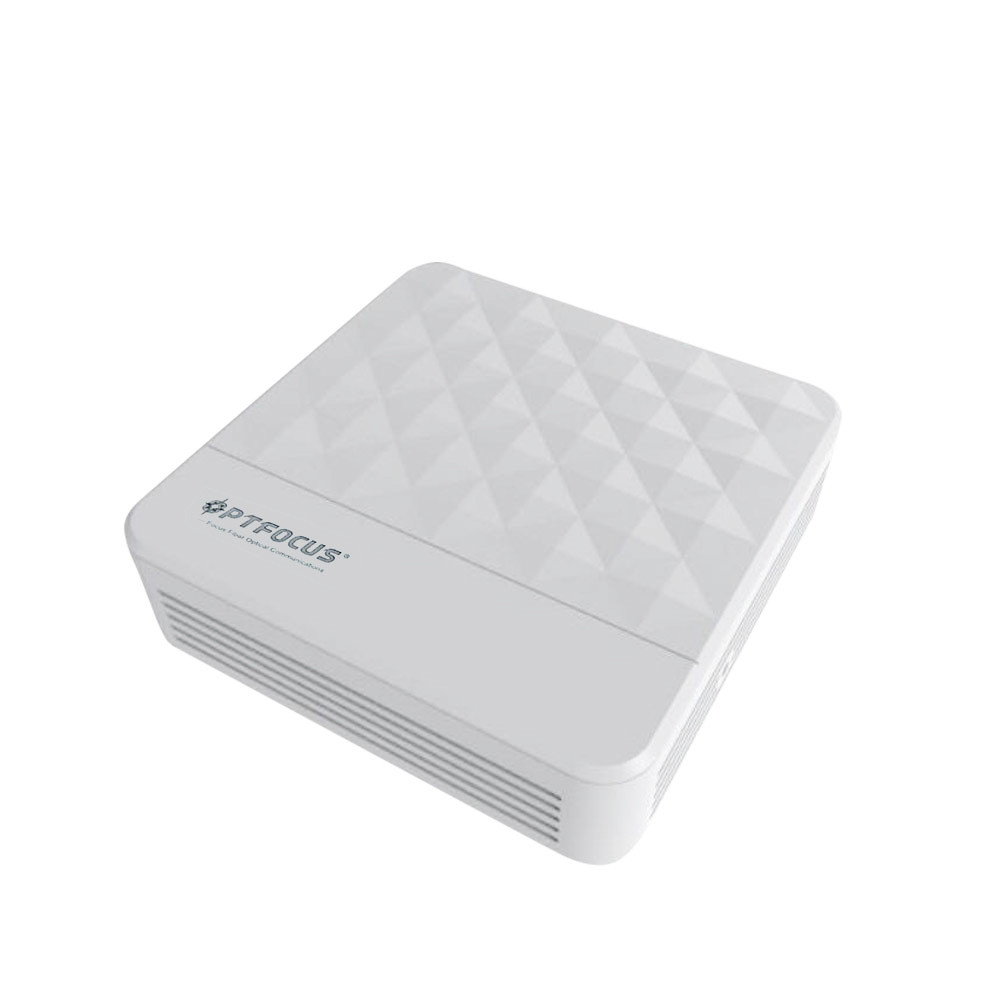

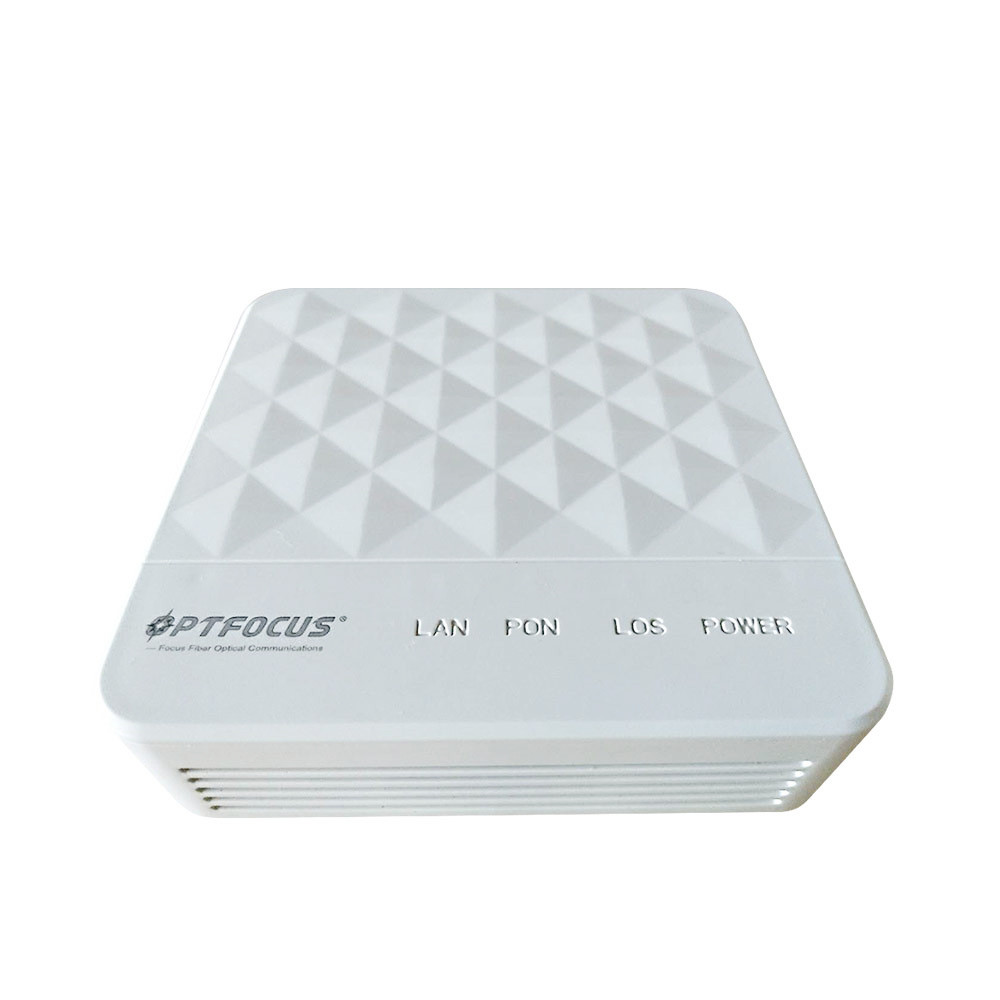

1 Port Full Giga HG8310M GPON XPON ONU TX 1310nm RX 1490nm For FTTx Solutions

Basic Information
Place of Origin: China
Brand Name: OPTFOCUS
Certification: 3C,CE,FCC,RoHS
Model Number: OFSX711F
Minimum Order Quantity: 2 piece
Price: USD 7.9 1piece
Packaging Details: Box and carton
Delivery Time: 7-14 days
Payment Terms: L/C, T/T, D/A, Western Union
Supply Ability: 10000 piece a month
Type: FTTx Solutions Products Status: Stock
Transmission Rate: 10/100/1000Mbps,10/100Mbps Wavelength: TX 1310nm,RX 1490nm
Certification: CE RoHS FCC Warranty: 3 Years
Operating Temperature: -5~+55℃ Condition: 100% Original Brand
Keywords: Gpon Onu Hg8310m
High Light:

FTTx Solutions GPON XPON ONU

,

Hg8310m GPON XPON ONU

,

Full Giga huawei hg8310m gpon onu

best quality 1port full giga hg8310m GPON XPON ONUbest quality 1port full giga huawei hg8310m GPON XPON ONU

best quality 1port full giga huawei hg8310m GPON XPON ONUbest quality 1port full giga huawei hg8310m GPON XPON ONUbest quality 1port full giga huawei hg8310m GPON XPON ONU

Product Description

Quick view


About purchasing and shipping:

1) Products are in stock. Contact us and you will buy and ship directly.
2) Shipping cost is depend on address and nation. Please contact us to check the further cost.
3) Every carton includes 80 pcs of ONU device (Neutral type). Purchase order started with one carton.
4) Shipping is clearly through express. There will be a little bit delay of status updating. Please be patient. Deliver time is about 5-10 workdays.
5) Please do your best to cooperate with express company to do custom clearance. If it result in any delay or return back, seller do not take any responsiblity.


About competibility:

1) This is XPON ONU/ONT which means it fit with EPON/GPON OLT.
2) Some OLT appears propriatary protocol. that result in incompatible to ONU. (If you need sample or whole set of equipment, please chat with us about the solutions.)


About products and service:

1) Products support both bridge and router.
2) This products is NO branded. If need brand, please chat with us, we support OEM & ODM services
3) Connector: SC/UPC, if need SC/APC, please contact us, we also support.
4) For this model, we have two kind of design, BOSA & SFF. This one is made of BOSA solution ( Chat with us, if you need SFF)
5) Power adaptor originally: EU.Standard (Two round plug). if you need any other standards please note us when you place the order, we will suppy accordingly.
6) Warranty: 1 year.



Technical Specification


Tech parameters description



Up-link interface

1 PON interface,SC single mode single fiber RX 2.488 Gbits/s rate and TX 1.244 Gbits/s(GPON), RX 1.244 Gbits/s rate and TX 1.244 Gbits/s(EPON) rate Fiber type:SC/UPC

Optical power:0~4 dBm Sensitivity:-28 dBm safety: ONU authentication mechanism

Wavelength(nm) TX 1310nm,RX 1490/1550nm
Fiber connector SC/UPC connector (SC / APC optional)
Down-link data interface 1*10/100Mbps and 1*10/100/1000M auto-negotiation Ethernet interface, RJ45 interface
Indicator LED 8 pcs
DC supply interface input+12V 1A
Power ≤8W
Operating temperature -5~+55℃
Humidity 10~85%(non-condensation)
Storage temperature -30~+70℃
Dimension(MM) 167*119*32mm(mainframe)
Weight 0.5Kg(mainframe)





  • Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade, etc.
  • Completely compatible with GPON international standard IEEE802.3ah/802.3-2005
  • Support China Telecom GPON CTC3.1 standard and expand OAM
  • Support DBA reporting mechanism request
  • Support OAM (Link, Test, Loop back)maintenance function defined IEEE802.3ah
  • Support to save configured parameters if power down
  • Support to configure the work mode at the user port
  • Support MDI-MDIX automatic-detection at the user port.
  • Support access authentication based on serial number
  • Support access authentication based on MAC address
  • Support 802.1Q VLAN
  • Support traffic rule to modify the related priority.
  • Support to restore the factory settings
  • Support the remote reset and reboot
  • Support dying gasp outage alarm
  • Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset.

Solution

1 Port Full Giga HG8310M GPON XPON ONU TX 1310nm RX 1490nm For FTTx Solutions 4



Packaging & Shipping

Packing:

Optofucs brand packing:

1 PCS/Box, 90Boxes/CTN, 48*43*38CM, 17.2KG/CTN

Neutral packing:

1 PCS/Box, 80Boxes/CTN, 48*43*38CM, 15.6KG/CTN



Delivery:

best quality 1port full giga huawei hg8310m GPON XPON ONU

Company Information

Shenzhen Optfocus Technology Co.,Ltd was established in 2009, which is a High -tech enterprise, professional R & D, production and sales of Fiber to the Home (FTTH), Fiber to the Building (FTTB) & FTTx,

Fiber access network equipment and terminal equipment & cabling system products. It is committed to provide Customized OEM & ODM services to Global communication distributors, Telecom Operators and System Integrators.



1 Port Full Giga HG8310M GPON XPON ONU TX 1310nm RX 1490nm For FTTx Solutions 6

Production Workshop

1 Port Full Giga HG8310M GPON XPON ONU TX 1310nm RX 1490nm For FTTx Solutions 7

Production Lines

1 Port Full Giga HG8310M GPON XPON ONU TX 1310nm RX 1490nm For FTTx Solutions 8

Products Test Machine

best quality 1port full giga huawei hg8310m GPON XPON ONU



Exhibition picture



best quality 1port full giga huawei hg8310m GPON XPON ONU





FAQ

1.What is your MOQ, Can I have a small sample order?
Yes, we welcome sample order to test and check quality.



2. What is your payment terms?

Trade assurance ,T/T, West Union or Cash.



3. What is your warranty time

We promise 2 years’ warranty for all products shipped from us.



4. What is the lead time?

For usual products. We keep stock, could ship 1-3 days after PO. For big quantity and special products. Please check lead time with our sales representative.



5. Could I use our own logo and label?

Yes, we could provide a OEM service and make the products with your own label.

Our Certification



best quality 1port full giga huawei hg8310m GPON XPON ONU

Customer Evaluation



best quality 1port full giga huawei hg8310m GPON XPON ONU
